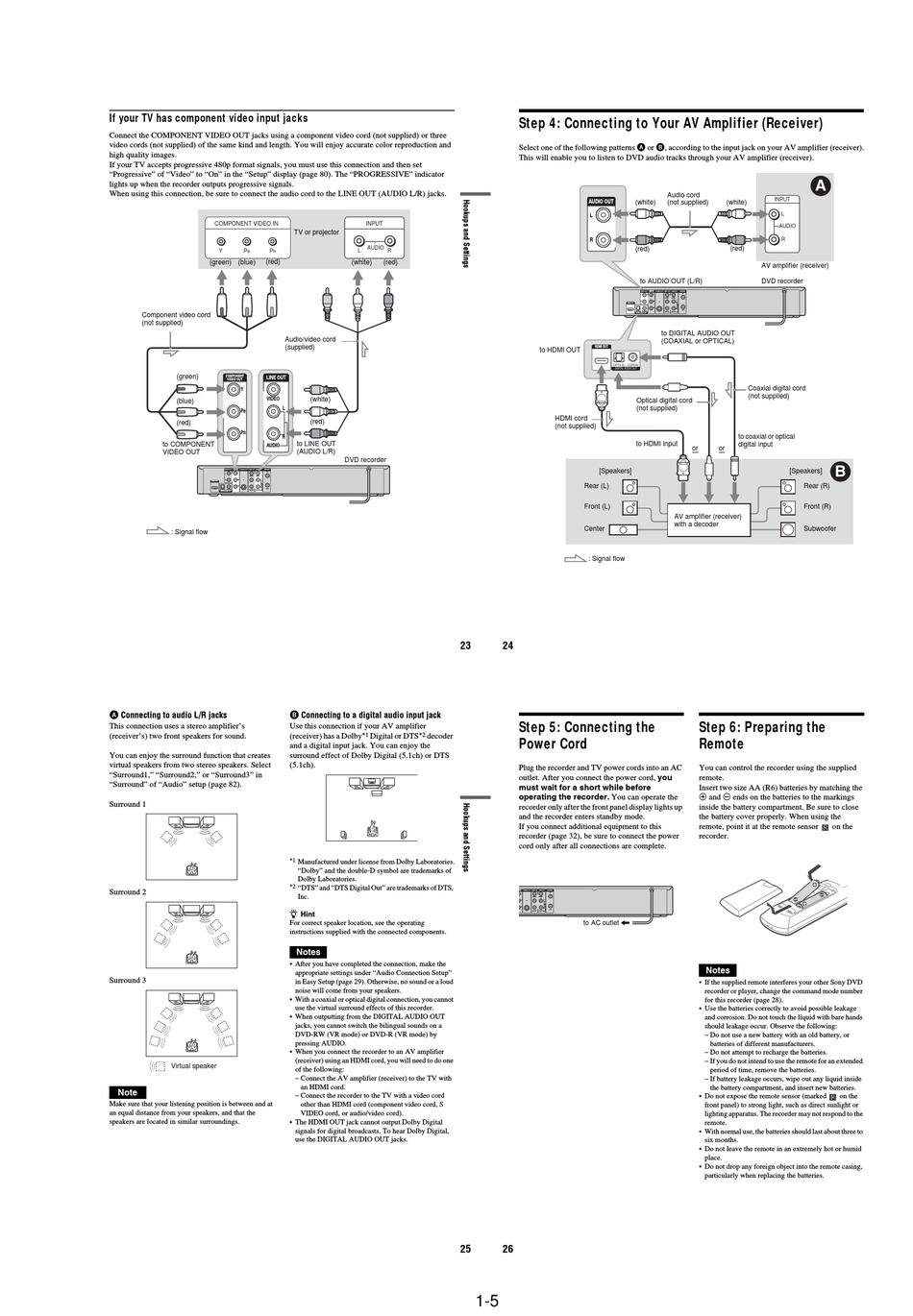

Sony RDR-GXD455 Service Manual page 15

If your TV has component video input jacks
Connect the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three
video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and
high quality images.
If your TV accepts progressive 480p format signals, you must use this connection and then set
"Progressive" of "Video" to "On" in the "Setup" display (page 80). The "PROGRESSIVE" indicator
lights up when the recorder outputs progressive signals.
When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.
COMPONENT VIDEO IN
Y P P
B R
(red)
(green) (blue)
Component video cord
(not supplied)
(green) COMPONENT
LINE OUT
VIDEO OUT
Y
VIDEO
(blue)
P
B
(red)
P
R
to COMPONENT
AUDIO
VIDEO OUT
AUDIO OUT COMPONENT S VIDEO OUT LINE 1 IN LINE OUT VHF/UHF
VIDEO OUT
IN
L Y
VIDEO VIDEO
L
R P B
HDMI OUT
P R
R
OUT
OPTICAL COAXIAL
AUDIO AUDIO
DIGITAL AUDIO OUT
: Signal flow
A Connecting to audio L/R jacks
This connection uses a stereo amplifier's
(receiver's) two front speakers for sound.
You can enjoy the surround function that creates
virtual speakers from two stereo speakers. Select
"Surround1," "Surround2," or "Surround3" in
"Surround" of "Audio" setup (page 82).
Surround 1
Surround 2
Surround 3
Virtual speaker
Note
Make sure that your listening position is between and at
an equal distance from your speakers, and that the
speakers are located in similar surroundings.
INPUT
TV or projector
AUDIO
L R
(white) (red)
Audio/video cord
(supplied)
(white)
L
(red)
R
to LINE OUT
(AUDIO L/R)
DVD recorder
B Connecting to a digital audio input jack
Use this connection if your AV amplifier
(receiver) has a Dolby *1 Digital or DTS *2 decoder
and a digital input jack. You can enjoy the
surround effect of Dolby Digital (5.1ch) or DTS
(5.1ch).
*1 Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of
Dolby Laboratories.
*2
"DTS" and "DTS Digital Out" are trademarks of DTS,
Inc.
z Hint
For correct speaker location, see the operating
instructions supplied with the connected components.
Notes
• After you have completed the connection, make the
appropriate settings under "Audio Connection Setup"
in Easy Setup (page 29). Otherwise, no sound or a loud
noise will come from your speakers.
• With a coaxial or optical digital connection, you cannot
use the virtual surround effects of this recorder.
• When outputting from the DIGITAL AUDIO OUT
jacks, you cannot switch the bilingual sounds on a
DVD-RW (VR mode) or DVD-R (VR mode) by
pressing AUDIO.
• When you connect the recorder to an AV amplifier
(receiver) using an HDMI cord, you will need to do one
of the following:
– Connect the AV amplifier (receiver) to the TV with
an HDMI cord.
– Connect the recorder to the TV with a video cord
other than HDMI cord (component video cord, S
VIDEO cord, or audio/video cord).
• The HDMI OUT jack cannot output Dolby Digital
signals for digital broadcasts. To hear Dolby Digital,
use the DIGITAL AUDIO OUT jacks.
Step 4: Connecting to Your AV Amplifier (Receiver)
Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver).
This will enable you to listen to DVD audio tracks through your AV amplifier (receiver).
AUDIO OUT
L
R
HDMI OUT
HDMI OUT
to HDMI OUT
OPTICAL COAXIAL
DIGITAL AUDIO OUT
HDMI cord
(not supplied)
[Speakers]
Rear (L)
Front (L)
Center
: Signal flow
23 24
Step 5: Connecting the
Power Cord
Plug the recorder and TV power cords into an AC
outlet. After you connect the power cord, you
must wait for a short while before
operating the recorder. You can operate the
recorder only after the front panel display lights up
and the recorder enters standby mode.
If you connect additional equipment to this
recorder (page 32), be sure to connect the power
cord only after all connections are complete.
ONENT S VIDEO OUT LINE 1 IN LINE OUT VHF/UHF
O OUT
IN
Y
VIDEO VIDEO
L
P B HDMI OUT
P R
R
OUT
AUDIO AUDIO
to AC outlet <
25 26
1-5
Audio cord
INPUT
(white) (not supplied) (white)
L
AUDIO
R
(red) (red)
AV amplifier (receiver)
to AUDIO OUT (L/R) DVD recorder
COMPONENT
AUDIO OUT VIDEO OUT S VIDEO OUT LINE 1 IN LINE OUT VHF/UHF
IN
L Y
VIDEO VIDEO
L
R P
B
P R
R
OUT
OPTICAL COAXIAL AUDIO AUDIO
DIGITAL AUDIO OUT
to DIGITAL AUDIO OUT
(COAXIAL or OPTICAL)
Coaxial digital cord
(not supplied)
Optical digital cord
(not supplied)
to coaxial or optical
to HDMI input
digital input
or or
[Speakers]
Rear (R)
Front (R)
AV amplifier (receiver)
with a decoder
Subwoofer
Step 6: Preparing the
Remote
You can control the recorder using the supplied
remote.
Insert two size AA (R6) batteries by matching the
3 and # ends on the batteries to the markings
inside the battery compartment. Be sure to close
the battery cover properly. When using the
remote, point it at the remote sensor
recorder.
Notes
• If the supplied remote interferes your other Sony DVD
recorder or player, change the command mode number
for this recorder (page 28).
• Use the batteries correctly to avoid possible leakage
and corrosion. Do not touch the liquid with bare hands
should leakage occur. Observe the following:
– Do not use a new battery with an old battery, or
batteries of different manufacturers.
– Do not attempt to recharge the batteries.
– If you do not intend to use the remote for an extended
period of time, remove the batteries.
– If battery leakage occurs, wipe out any liquid inside
the battery compartment, and insert new batteries.
• Do not expose the remote sensor (marked
front panel) to strong light, such as direct sunlight or
lighting apparatus. The recorder may not respond to the
remote.
• With normal use, the batteries should last about three to
six months.
• Do not leave the remote in an extremely hot or humid
place.
• Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
A
B
