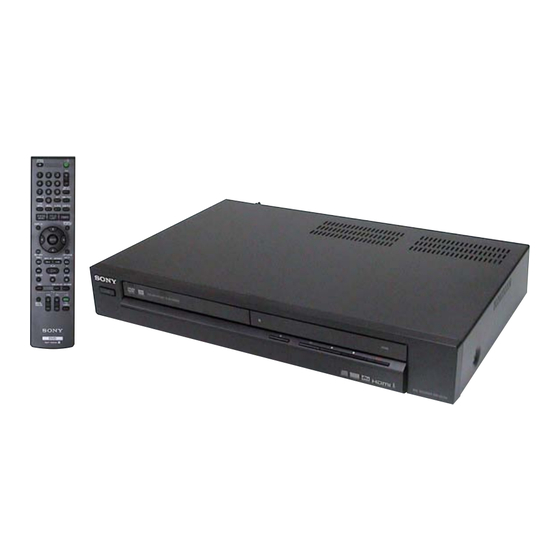

Sony RDR- RDR-GX355 Service Manual
  1. Manuals
  2. Brands
  3. Sony Manuals
  4. DVD Recorder
  5. RDR- RDR-GX355
  6. Service manual
Sony RDR- RDR-GX355 Service Manual

Sony RDR- RDR-GX355 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
System
[DVD recorder section]
Laser
Semiconductor laser
Audio recording format
Dolby Digital
Video recording format
MPEG Video
[Timer section]
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
12 programs (max.)
SPECIFICATIONS
Inputs and outputs
LINE 1 IN and LINE 2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE 2 IN
S VIDEO, 4-pin, mini-DIN jack
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
DV IN, 4-pin jack, i.LINK S100
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
RDR-GX355
DIGITAL AUDIO OUT
OPTICAL, Optical output jack
−18 dBm (wave length: 660 nm)
COAXIAL, phono jack
Output signal: 0.5 Vp-p, 75 ohms
COMPONENT VIDEO OUT (Y, P
Phono jack
Y: 1.0 Vp-p/P
S VIDEO OUT
4-pin, mini-DIN jack
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
SET TOP BOX CONTROL
Mini jack
HDMI
HDMI 19 pin-Standard Connector
DVD RECORDER
RMT-D243A
US Model
, P
)
B
R
, P
: 0.7 Vp-p, 75 ohms
B
R
— Continued on next page —

Advertisement

Table of Contents
loading

Related Manuals for Sony RDR- RDR-GX355

Summary of Contents for Sony RDR- RDR-GX355

  • Page 1 RDR-GX355 RMT-D243A SERVICE MANUAL US Model SPECIFICATIONS DIGITAL AUDIO OUT Inputs and outputs System OPTICAL, Optical output jack LINE 1 IN and LINE 2 IN −18 dBm (wave length: 660 nm) [DVD recorder section] VIDEO IN, phono jack (1 each) Laser COAXIAL, phono jack Input signal: 1 Vp-p, 75 ohms,...
  • Page 2 General Power requirements 120 V AC, 60 Hz Power consumption 17 W Power back-up Back-up duration: 30 min Operating temperature 5°C to 35°C (41°F to 95°F) Storage temperature −20°C to 60°C (−4°F to 140°F) Operating humidity 25% to 80% Dimensions including projecting parts and controls (w/h/d) Approx.
  • Page 3 LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. — 3 —...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Precautions Safety Precautions ······························································ 5 Servicing Precautions ························································ 7 ESD Precautions ································································· 8 Handling the Optical Pick-up ············································· 9 General Hookups and Settings ······················································ 1-2 Quick Guide to Disc Types ·············································· 1-6 Playback ·········································································· 1-8 Recording ······································································ 1-10 Editing ···········································································...

  • Page 5: Safety Precautions

    PRECAUTIONS 1 SAFETY PRECAUTIONS 1) Before returning an instrument to the customer, always make a (4) Insulation Resistance Test Cold Check-(1) Unplug the power safety check of the entire instrument, including, but not limited supply cord and connect a jumper wire between the two prongs to, the following items: of the plug.
  • Page 6 6) Product Safety Notice-Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by shading, an ( ) or a ( ) on...

  • Page 7: Servicing Precautions

    2 SERVICING PRECAUTIONS CAUTION: Before servicing units covered by this service manual 2-2 Insulation Checking Procedure and its supplements, read and follow the Safety Precautions section of this manual. Disconnect the attachment plug from the AC outlet and turn the power ON.

  • Page 8: Esd Precautions

    3 ESD PRECAUTIONS Electrostatically Sensitive Devices (ESD) Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components.

  • Page 9: Handling The Optical Pick-Up

    4 HANDLING THE OPTICAL PICK-UP The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body. The following method is recommended. (1) Place a conductive sheet on the work bench (The black sheet used for wrapping repair parts.) (2) Place the set on the conductive sheet so that the chassis is grounded to the sheet.
  • Page 10 5 Reset operation after IC104 was replaced Be sure to perform the reset by the method described below, if the IC104 (FLASH MEMORY) used on the DVD Main board was replaced. Resetting method 1. Enter the Adjustment mode, and press two times the “1” button on the remote commander.

  • Page 11: General

    RDR-GX355 1. GENERAL This section is extracted from instruction manual. (3-096-489-11) About this manual Icon Meaning Ways to Use Your DVD Recorder • Instructions in this manual describe the controls on the remote. You can also use the controls on the recorder if Functions available for DVD+RWs they have the same or similar names as those on the remote.

  • Page 12: Hookups And Settings

    Selectable options Sub-menu Step 2: Connecting the Selectable options on the System Menu differ Hookups and Settings depending on the media type, disc condition, and The sub-menu appears when you select an item Cable Box/Satellite operating status. from a list menu (e.g., a title from the Title List Hooking Up the Recorder Receiver (Tuner) menu), and press ENTER.
  • Page 13 If your TV has an HDMI input jack Step 3: Connecting to Your TV Connect the HDMI* OUT jack using a certified HDMI cord (not supplied). You will enjoy high quality picture and sound. The HDMI indicator lights up on the front panel when the recorder outputs signals Connect the supplied audio/video cord to the LINE OUT (VIDEO/AUDIO L/R) jacks of the recorder.
  • Page 14 Notes Notes • After you have completed the connection, make the • If the supplied remote interferes your other Sony DVD appropriate settings under “Audio Connection Setup” recorder or player, change the command mode number Surround 3 in Easy Setup (page 23).
  • Page 15 Set the command mode for the remote so it Switch the input selector on your TV so that Step 7: Easy Setup matches the command mode for the the signal from the recorder appears on Easy Setup No Disc recorder you set above. your TV screen.

  • Page 16: Quick Guide To Disc Types

    Notes Connecting a VCR or Similar Device • Do not connect more than one type of video cord between the recorder and your TV at the same time. • Pictures containing copy protection signals that prohibit any copying cannot be recorded. You cannot dub from DVD VIDEOs to this recorder.
  • Page 17 12 cm/8 cm discs 12 cm 8 cm Disc Type Playback Recording Playback Recording Recording Features Editing Features DVD+RW Change Erase VR mode Auto Divide Rewrite Title Title/ Playlist DVD-RW Chapter Erase Title (page 67) Name Chapter (page 61) (page 49) (page 58) (page 59) Video mode...

  • Page 18: Playback

    z Hints Playback Options • You can play DATA CDs or DATA DVDs with MP3 Playback audio tracks or JPEG image files (pages 41 or 42). • If you insert a DVD VIDEO, VIDEO CD, or CD, playback starts automatically depending on the disc. Playing Discs •...
  • Page 19 Select the title, and press ENTER. Press ENTER. Playing a Title From the Searching for a Title/ The sub-menu appears. The recorder starts playback from the selected point. Select “Play,” and press ENTER. Title List Chapter/Track, etc. To turn off the display, press OPTIONS. Playback starts from the selected title on the disc.

  • Page 20: Recording

    Enjoying a slide show with sound About MP3 audio tracks and JPEG Notes Displaying the Playing Time image files • Some DATA CDs or DATA DVDs cannot be played When a disc contains both MP3 audio tracks and and Play Information on this recorder depending on file format.
  • Page 21 Press CH +/– or INPUT repeatedly to select Recording main and sub sounds Notes Recording From Connected the channel or input source you want to • Recording may not start immediately after REC is You can record the different soundtracks on a record.
  • Page 22 To use the Rec Mode Adjust function Press REC MODE repeatedly to select the If the timer settings of a Synchro-Recording Recording From Connected If the remaining disc space is not enough for the recording mode. and another timer recording overlap current recording, the recorder automatically The display changes on the TV screen as Regardless of whether or not the program is a...

  • Page 23: Editing

    Press REC MODE repeatedly to select the Edit options for DVD-RWs (VR mode)/ recording mode. Editing DVD-Rs (VR mode) The display changes on the TV screen as follows: Before Editing - RW You can enjoy advanced edit functions. First you This recorder offers various edit options for have two options for a DVD-RW (VR mode) and various disc types.
  • Page 24 z Hints Press TITLE LIST. Press ENTER at the point where you want to • A chapter mark is inserted after the scene was erased. Changing the Name of a When editing a DVD-RW (VR mode) or divide the title. The chapter mark divides the title into separate chapters You can use H PLAY, DVD-R (VR mode), press ORIGINAL/...
  • Page 25 Select “Edit Playlist,” and press ENTER. Select a Playlist title to be combined. “Move”: Allows you to change scene order Editing a Playlist (page 65). The “Playlist” Title List appears. “Add”: Allows you to add other scenes before Playlist 10:10 AM Playlist 10:10 AM a selected scene (page 65).
  • Page 26 B “Disc Protect” (DVD+RWs/DVD-RWs To return to the previous display Formatting/Renaming/ Press O RETURN. (VR mode)/DVD-Rs (VR mode) only): Protects all titles on the disc when Protecting a Disc z Hints “Protected” is selected. To cancel the • You can set protection for individual titles (page 57). protection, select “Not Protected.”...

  • Page 27: Dv/D8 Dubbing (Dv/D8 T Dvd)

    Press Z OPEN/CLOSE to close the disc Connecting a Digital Video Dubbing From a DV/D8 tray. DV/D8 Dubbing (DV/D8 t DVD) Wait until “LOAD” disappears from the front Camera to the DV IN Jack Format Tape to a DVD panel display. Before DV/D8 Dubbing Unused discs are automatically formatted.

  • Page 28: Settings And Adjustments

    Select “Setup,” and press ENTER. Some items display a dialog box that requires Clock Setting (Clock Set) additional settings. The “Setup” display appears. Settings and Adjustments Example: When “Parental” in “Options” Setup 10:10 AM No Disc setup is selected. The “Clock Set” setup allows you to make clock Using the Setup Displays Title List Clock Set...
  • Page 29 ◆ Dolby Digital (DVDs only) Downmix (DVDs only) Audio (HDMI) (DVD VIDEOs only) Audio Settings (Audio) Selects the type of Dolby Digital signal. Switches the method for mixing down to two Selects the output method from the HDMI OUT channels when you play a DVD which has rear jack.

  • Page 30: Additional Information

    (Options) Title List Rating Level : Level 1 (Kids) here. For details, see “If you have a Sony DVD After step 3 above, select “Parental,” and Change Password Level 8 (Adults) Timer player or more than one Sony DVD recorder”...
  • Page 31 , Restart the recorder. Press down "/1 on the Contents previously recorded were erased. recorder for more than ten seconds until “SONY , Data that has been recorded on a DVD with a PC DVD” appears in the front panel display.
  • Page 32 IEEE 1394 data Required i.LINK cable transport bus proposed by SONY, and is a trademark approved by many corporations. Use the Sony i.LINK 4-pin-to-4-pin cable (during IEEE 1394 is an international standard DV/D8 dubbing).
  • Page 33 DVD-RW (page 30) Front panel display Glossary A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD- RW has two different modes: VR mode and Video Chapter (page 40) mode. DVDs created in Video mode have the Sections of a picture or a music feature that are same format as a DVD VIDEO, while discs smaller than titles.
  • Page 34 0303 Cable box brand Code number Cable box brand Code number Satellite receiver Code number Cable box brand Code number brand Popular Mechanics 0400 Sony 1006 Tusa 0015 AlphaStar 0772 Prelude 0770 Spectradyne 0769, 0058 TV COMM 0035, 0019 Atlantic Telephone...
  • Page 35 Copy-Once 47 Feature settings 81 “Add” 64 CPRM 30 0856, 0099, 1856 Finalizing 69 ADVANCE 36 “Create Playlist” 62 “Format DVD-RW” 82 Sony 0639, 1639 ANGLE 36 Creating chapters 49 Formatting 47 AUDIO 36 Star Choice 0869 “Front Display” 84 “Audio”...
  • Page 36 MEMO 1-26E...

  • Page 37: Disassembly And Reassembly

    RDR-GX355 2. DISASSEMBLY AND REASSEMBLY 2-1 CABINET AND PCB 2-1-1 Cabinet Top Removal 2 CABINET TOP 1 REMOVE 5 SCREWS Fig. 2-1 Cabinet Top Removal 2-1-2 Ass’y Front Panel Removal 3 FRONT PANEL 1 RELEASE 2 HOOKS 2 RELEASE 3 HOOKS (Top View) (Bottom View) Fig.

  • Page 38: Chassis Removal

    2-1-3 Chassis Removal 5 POWER CORD 7 REMOVE 6 SCREWS 4 REMOVE CONNECTOR 6 REMOVE CONNECTOR 8 ASSY PWB MAIN FRONT 0 REMOVE 3 SCREWS 1 REMOVE 4 SCREWS 3 ASSY LOADER qa ASSY PWB MAIN DVD 2 SHIELD LOADER 9 REMOVE 4 SCREWS Fig.

  • Page 39: Circuit Board Locations

    2-2 CIRCUIT BOARD LOCATIONS VCR FRONT TIMER PCB DVD MAIN PCB FUNCTION TIMER PCB Fig. 2-4 Circuit Board Locations...
  • Page 40 MEMO 2-4E...

  • Page 41: Block Diagram

    RDR-GX355 3. Block Diagram IC103 IC104 4MB FFLASH EEPROM 16M DDR 24LC32 KBD3216UBM (16bit) (I C) (8bit) DVD-Rewitable Drive TS-P632A RF IC2 C DATA CLK STB OUT S3C80F9B IC101 DVD CODEC DVDV IN 6CHAMP MS9301 LA73054 SAA7138 VIDEO DIGITAL DATA(T1U656) LINE1 IN(REAR) (BTSC) AUDIO DIGITAL DATA(I C)
  • Page 42 MEMO 3-4E...

  • Page 43: Pcb Diagrams

    RDR-GX355 4. PCB Diagrams 4-1 DVD Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3 4-2 VCR Front Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-7 4-3 Function Timer PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-11...

  • Page 44: Dvd Main Pcb

    4-1 DVD Main PCB COMPONENT SIDE...
  • Page 45 CONDUCTOR SIDE...

  • Page 46: Vcr Front Main Pcb

    4-2 VCR Front Main PCB COMPONENT SIDE DUBBING DUBBING...
  • Page 47 CONDUCTOR SIDE 4-10...

  • Page 48: Function Timer Pcb

    4-3 Function Timer PCB COMPONENT SIDE CONDUCTOR SIDE 4-11 4-12E...

  • Page 49: Schematic Diagrams

    RDR-GX355 5. Schematic Diagrams 5-1 S.M.P.S (VCR Front Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3 Note 5-2 Power (VCR Front Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-5 For schematic Diagram...

  • Page 50: Vcr Front Main Pcb)

    5-1 S.M.P.S. (VCR Front Main PCB)

  • Page 51: Power (Vcr Front Main Pcb)

    5-2 Power (VCR Front Main PCB)

  • Page 52: Logic (Vcr Front Main Pcb)

    5-3 Logic (VCR Front Main PCB)

  • Page 53: Atsc Tm & Connector (Vcr Front Main Pcb)

    5-4 ATSC TM & Connector (VCR Front Main PCB) 5-10...

  • Page 54: Mpeg Decoder (Dvd Main Pcb)

    5-5 MPEG Decoder (DVD Main PCB) 5-11 5-12...

  • Page 55: A/V Decoder (Dvd Main Pcb)

    5-6 A/V Decoder (DVD Main PCB) 5-13 5-14...

  • Page 56: In Out (Dvd Main Pcb)

    5-7 In Out (DVD Main PCB) 5-15 5-16...

  • Page 57: Dv & Hdmi (Dvd Main Pcb)

    5-8 DV & HDMI (DVD Main PCB) 5-17 5-18...

  • Page 58: Front Panel (Function Timer Pcb)

    5-9 Front Panel (Function Timer PCB) 5-19 5-20...

  • Page 59: Function & Jack (Vcr Front Main Pcb)

    5-10 Function & Jack (VCR Front Main PCB) 5-21 5-22...
  • Page 60 MEMO 5-24E...

  • Page 61: Alignment And Adjustments

    RDR-GX355 6. ALIGNMENT AND ADJUSTMENTS 6-1 TEST LOCATION OF ADJUSTMENT MODE SETTING Short-Circuit for few seconds and release. (Just one time) Fig. 6-1 VCD Front Main PCB (Top View)
  • Page 62 MEMO 6-2E...

  • Page 63: Troubleshooting

    RDR-GX355 7. TROUBLESHOOTING No Pow er Detected Change fuse F1S01 BD01-04, ZD1S01-2 Change short or opened parts SHORT and OPEN Voltage at Check the voltage f RIS02, Collector of RIS03, and DIS05 Q1S01 Operation of Replace Q1S01 Q1S01 Check feedback IC1S01...
  • Page 64 Key Operation or Remote Control Error Check power of front connector Voltage on the Function Display Ass’y? (CN702 Pin 11) XT601 14.318MHz Check the circuit around the clock oscillation Check the circuit Check the circuit around around IC601 reset? IC601 reset Check the circuit around the swith.
  • Page 65 Disc loading error Power cable Check the power (Pin # 1: 5V, Pin # 4 :12V) CN02 Is the FFC cable (between DVD main & Loader) Reinsert FFC cable correctly inserted correctly? Change the main board...
  • Page 66 No Analog Audio Output Check Audio input signal Check VCC of AVIC1 and peripheral Check AVIC1 1) Line 1 Audio input : AVIC1 Pin # 122, 123 parts of Clock oscillation (Pin # 109, 110) 2) Line 2 Audio input : AVIC1 Pin # 125, 126 (IC105 Pin # 1, 2, 14) Check VCC and peripheral parts of AIC4.
  • Page 67 No digital audio out Checking Check the digital audio Refer to user manual setting Skip setting check (hardware problem) Check Vcc Line Proper vcc of DOL3 Proper signal input on DOL4 Check MR53 Replace DOL2 Proper signal on DOL2 Check peripheral parts of optical and coaxial output terminal...
  • Page 68 No audio on line input mode or recorded disc playback Check audio input signal Check peripheral parts of 1) Line 1 Audio input: AVIC1 Pin # 122, 123 JACK1, JK801 2) Line 2 Audio input: AVIC1 Pin # 125, 126 Check VCC (3.3V, 1.8V) of Check VCC line IC101...
  • Page 69 CVBS output error Check VCC of IC101 and peripheral parts of Clock oscillation Check VC50 (IC105 Pin # 1, 2, 14) Check VCC and peripheral Check VIC 1 (Pin # 2, 33) parts of VIC 1 Check peripheral parts of Check IC811 (Pin # 3, 4) IC811, AVIC1 (Pin # 10) and AVQ01 Check peripheral parts of...
  • Page 70 S- Video output error Check VCC of IC101 and peripheral parts of Clock oscillation Check VC7, VC8 (IC105 Pin # 1, 2, 14) Check VIC1 Check VCC and peripheral parts of (Pin # 6, 8, 28, 31) VIC 1 Check peripheral parts of SJACK...
  • Page 71 Component output error Check VCC of IC101 and peripheral parts of Clock oscillation Check VC9, V10, V11 (IC105 Pin # 1, 2, 14) Check VIC 1 Check VCC and peripheral parts of (Pin # 11, 14, 16, 21, 23, 25) VIC 1 Check peripheral parts of JACK1...
  • Page 72 HDMI Video Out Error Check the connector of HDMI Correctthe HDMIcable Connector cable with HDMI jack Check the 1.8V Check the ICHD1 peripheral circuit. and 3.3V at ICHD1 Pin 74 and 71 Check the Clock of Check the ICHD1 peripheral circuit. ICHD1 Pin 26, 27 Check PCMO_LRCK Check IC101 or replace it.
  • Page 73 Line1 CVBS Video Input Error Check JK801 Check peripheral parts of JK801 (Video input signal) 1. Check VCC and peripheral parts of Check AVIC1 AVIC1 (Pin # 15) Check VCC of AVIC1 and peripheral Check AVIC1 parts of Clock oscillation (Pin # 75, 76, 79, -84) (Pin # 53, 54) of AVIC1 1.
  • Page 74 Line2 CVBS Video Input Error Check Front Check peripheral parts of Front Jack JACK (Video input signal) and cable and connector of CN02. and CN02 (Pin # 14) 1. Check VCC and peripheral parts of Check AVIC1 AVIC1 (Pin # 16) 2.
  • Page 75 Line2 S-Video Video Input Error Check Front Check peripheral parts of Front Jack JACK (SVideo input signal) and cable and connector of CN02. and CN02 (Pin # 10, 12) 1. Check VCC and peripheral parts of Check AVIC1 AVIC1 (Pin # 28, 36) 1.
  • Page 76 DV (Digital Video) Input Error Check DV JACK Check peripheral parts of DV JACK and CN02 and cable and connector of CN02. (Pin # 11, 12, 13, 14) Check peripheral parts of CN02 and Check IC1301 IC1301. (Pin # 34-37) Check VCC and Clcok oscillation Check IC1301 (Pin # 4-13)

  • Page 77: Repair Parts List

    RDR-GX355 8. REPAIR PARTS LIST 8-1 Exploded Views ----------------------------------------------------------------------8-2 8-2 Electrical Parts List ------------------------------------------------------------------ 8-3...
  • Page 78 8-1 EXPLODED VIEW NOTE: • -XX, -X mean standardized parts, so they may • The mechanical parts with no reference number The components identified by mark 0 or have some differences from the original one. in the exploded views are not supplied. •...

  • Page 79: Electrical Parts List

    DVD MAIN 8-2 ELECTRICAL PARTS LIST • Items marked “*” are not stocked since they are NOTE: When indicating parts by reference number, • Due to standardization, replacements in the seldom required for routine service. Some delay please include the board name. parts list may be different from the parts should be anticipated when ordering these items.
  • Page 80 DVD MAIN FUNCTION TIMER VCR FRONT MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks QS03 9-885-070-30 TRANSISTOR KSC1623-L QS04 9-885-070-30 TRANSISTOR KSC1623-L < COIL/FERRITE BEAD/INDUCTOR > < VIBRATOR > BD1P01 1-400-086-11 FERRITE CORE BD1S01 1-400-085-11 INDUCTOR 70uH AVXT01 9-885-070-70 CRYSTAL-SMD (24.576MHz) 1-424-828-11 COIL CHOKE...
  • Page 81 VCR FRONT MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks ZD1S03 8-719-109-93 DIODE RD6.2ESB2 ACCESSORIES < FUSE > ************ 0 F1S01 1-576-526-11 FUSE (T1.6A/250V) 3-096-489-11 MANUAL, INSTRUCTION (ENGLISH) < IC/PHOTO-COUPLER > IC601 9-885-112-12 IC MN101D10G-EE (MICOM) IC603 9-885-111-34 IC AT24C04N-10SU-2.7 (EEPROM) IC1P02 9-885-084-28 IC (SWITCH VOL.
  • Page 82 RDR-GX355 Sony Corporation 2007C0500-1 Home Electronics Network Company © 2007. 3 — 102 — 9-883-946-11 Published by Quality Assurance Dept.
