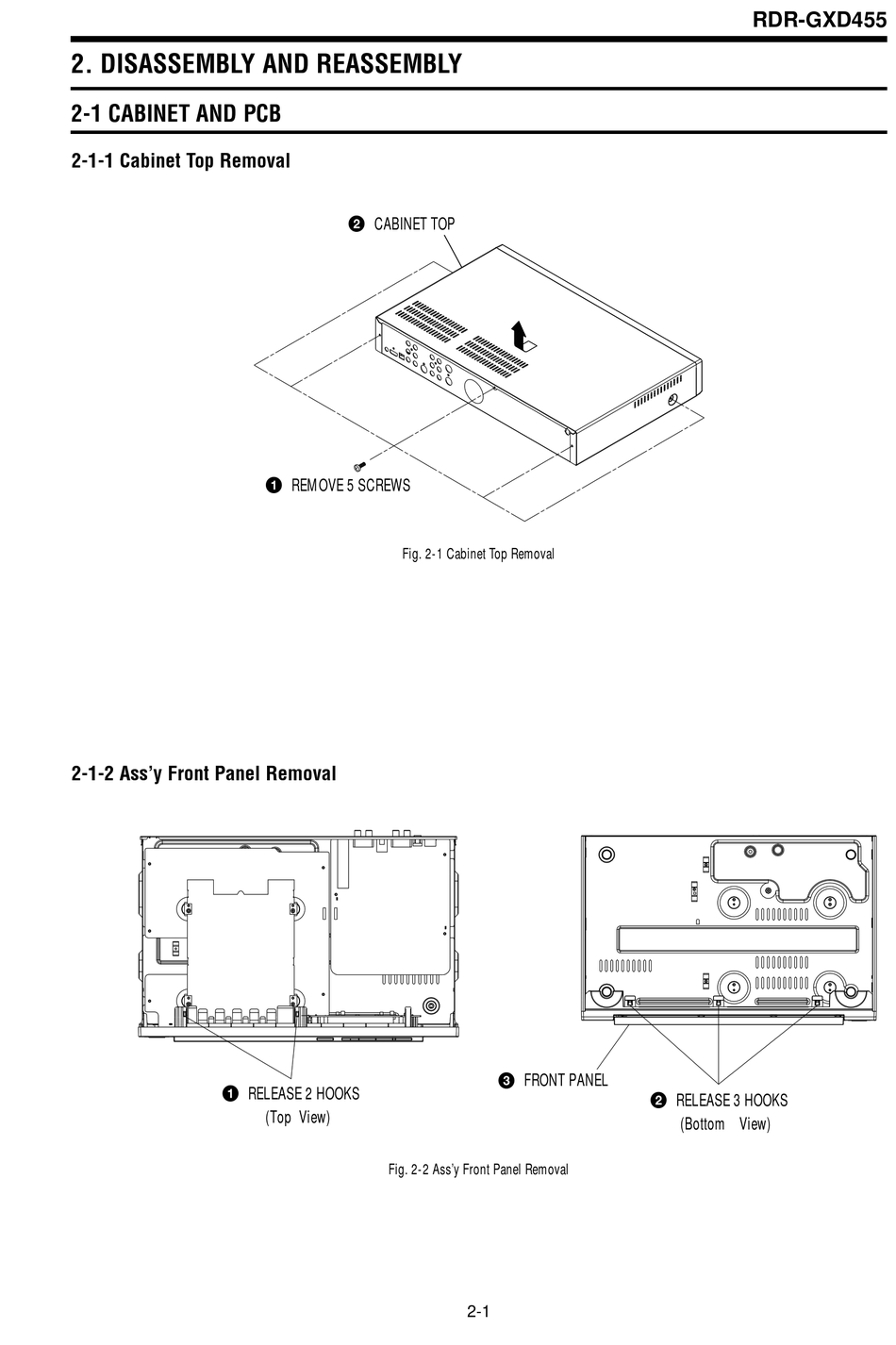

2. DISASSEMBLY AND REASSEMBLY

2-1 CABINET AND PCB

2-1-1 Cabinet Top Removal

2-1-2 Ass'y Front Panel Removal

1 RELEASE 2 HOOKS
2 CABINET TOP
1 REMOVE 5 SCREWS
Fig. 2-1 Cabinet Top Removal
(Top View)
Fig. 2-2 Ass'y Front Panel Removal
3 FRONT PANEL
2-1
RDR-GXD455
2 RELEASE 3 HOOKS
(Bottom View)
