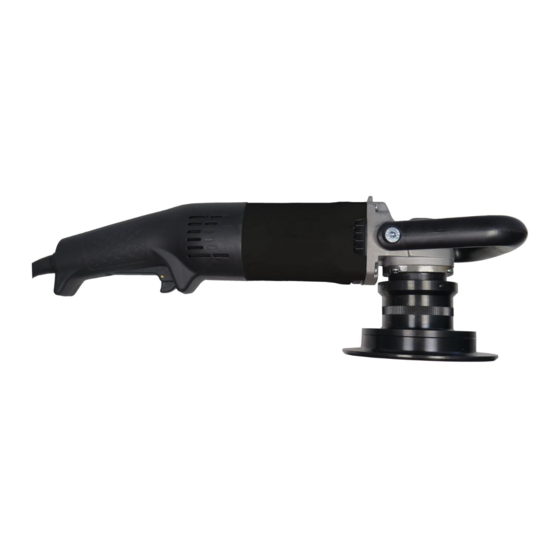

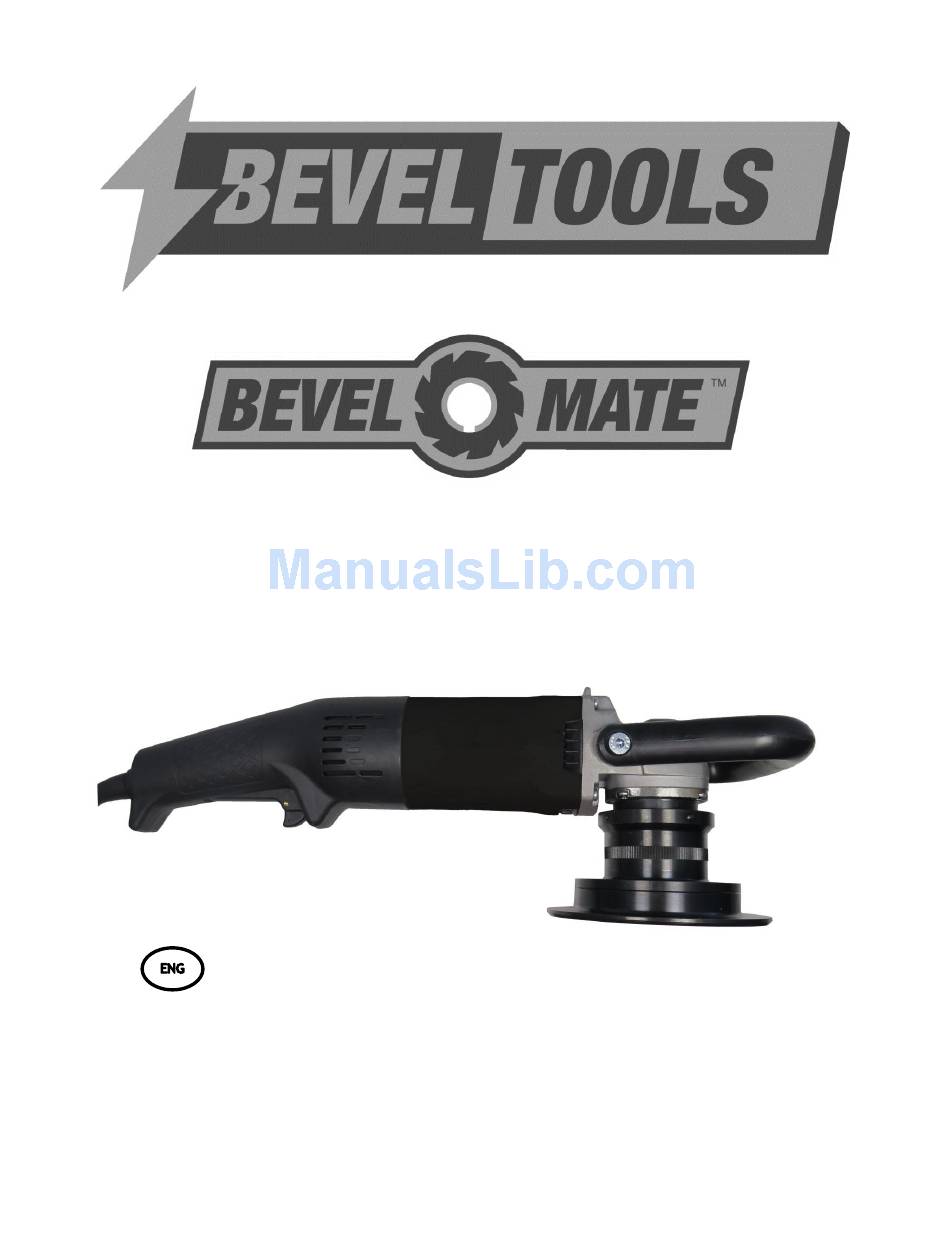

- Page 1 EBA-12 EBA-12 S Instruction Manual www.beveltools.com 01-2014...
-
Page 2: Table Of Contents
Content General Notes of safety Use of the machine for purposes for which it is intended Incorrect use CE declaration of conformity Symbol legend Prior to taking the machine into service Taking the machine into service Rating data Operating conditions Protection devices Beveling tool Working instructions... -
Page 3: General Notes Of Safety
1.1 General notes on safety This operation manual is applicable for the machines EBA-12 EBA-12S The machines may only be handled by personnel who are qualified. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. -
Page 4: Prior To Taking The Machine Into Service
Disposal Friendly-to-the-environment disposal. Power connector Before any work is carried out on the machine, disconnect the power connector. 2.1 Prior to taking the machine into service Before connecting tool to a power source, be sure the voltage supplied is the same as specified on the name plate of the tool. -
Page 5: Rating Data
2.2.1 Turn on • Make sure you always have a firm footing when working with the machine. • Whatever the position of the machine, always use two hands to control the machine. • Never touch the milling head when the machine is running. •... -
Page 6: Operating Conditions
2.4 Operating conditions Temperature range during operation: 0 to +50°C Relative air humidity: 95% at +10°C not condensed 3.1 Protective devices The machine may only be operated with the Flange head and the additional handle fitted! 3.1.1 Flange head Adapt Flange head •... -
Page 7: Beveling Tool
3.1.3 ON/OFF switch Two-pole ON/OFF switch with turn-on inhibit and locking. 3.1.4 Protection of the machine • Starting current limitation the electronically controlled soft starting provides for smooth starting of the machine. Due to the low machine starting current a 16A fuse is adequate. •... -
Page 8: Working Instructions
3.3 Working instructions • To achieve an optimum Bevel result, move Bevel tool uniformly with light pressure. • The electronic constant control maintains the speed nearly constant during idling and work under load and assures a uniform result. • Excessive pressure lessens the working capability of the machine, as well as the life of the Bevel tool. •... -
Page 9: Repair
4.2 Repair If despite strict observance of the manufacturing and testing method the tool should happen to fail, it must be repaired by an authorized agency. Any replacement needed for the connecting line must be installed by the manufacturer or its agent if safety risks are to be eliminated. 4.3 Warranty In the event of the tool being improperly handled, used for purposes for which it is not intended and/or of the service and maintenance instructions not being observed by non-authorized persons, no warranty... -
Page 10: Maintenance And Wearing Parts
Maintenance and wearing parts... - Page 11 Armature with fan 230 Volt 30002482 Retaining ring 30001757 Armature with fan 230 Volt 30002483 Return line 30001754 Stator complete 230 Volt 30000900 Pinion gear 30001753 Stator complete 120 Volt 30000913 30001752 Stator Housing 30000761 Angle head 30002125 Carbon brush holder 30000702 Blocking bolt 30001748...
- Page 13 P.O. Box 190 2302 Centerline Ind. Dr. 6880 AD Velp St. Louis, MO 63146 The Netherlands United States of America T: +31(0)26 369 92 22 T: +1 855 882 3835 F: +31(0)26 369 92 23 F: +1 314 567 0124 info@beveltools.com sales@beveltools.com www.beveltools.com...
