Flex System x222 Compute Node
Lenovo Press Product Guide
The Flex System™ x222 Compute Node is a high-density dual-server offering that is designed for
virtualization, dense cloud deployments, and hosted clients. The x222 has two independent servers in
one mechanical package, which means that the x222 has a double-density design that allows up to 28
servers to be housed in a single 10U Flex System Enterprise Chassis.
Suggested use : For clients looking to virtualize their workloads while maximizing the density of their
computing resources.

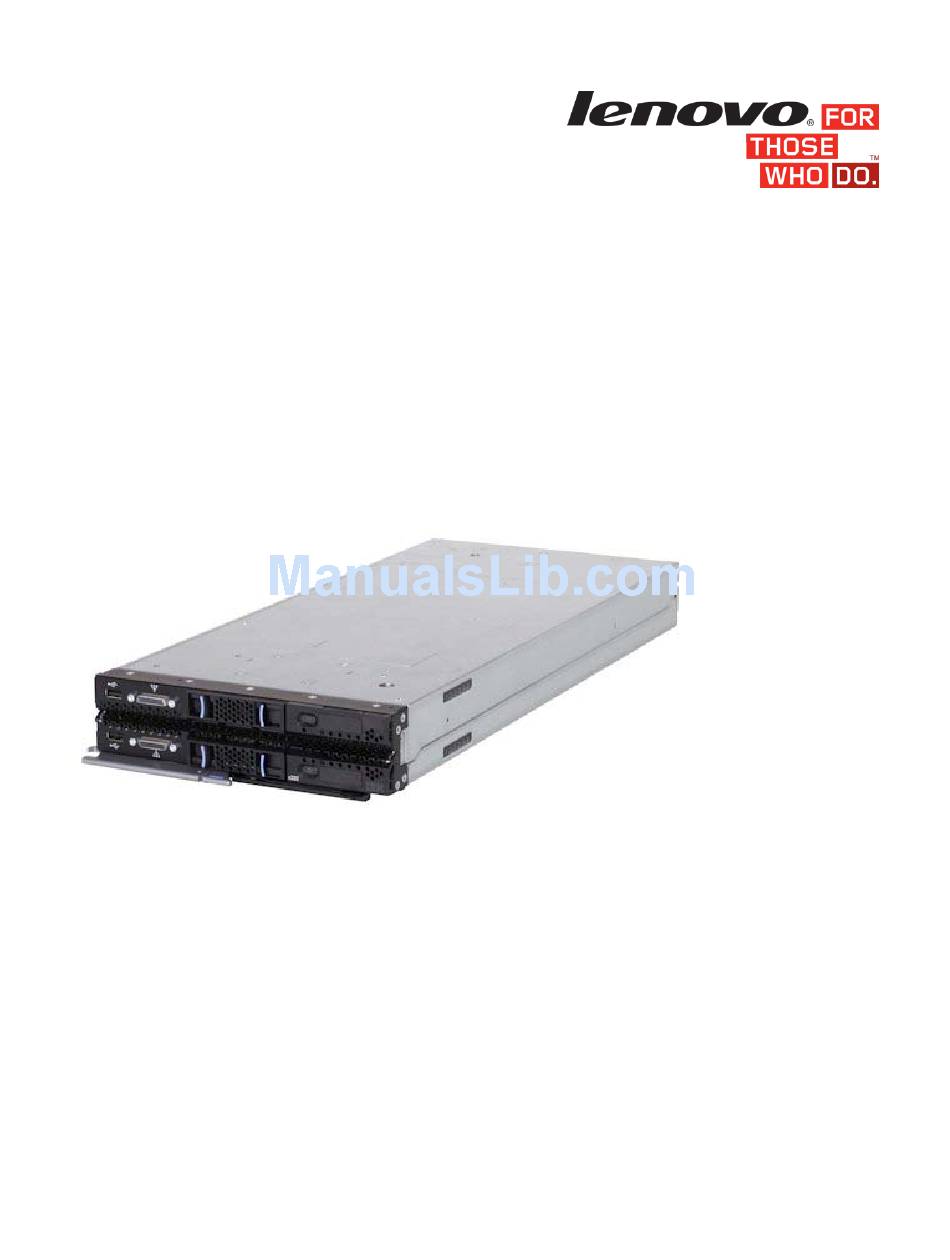

The following figure shows the Flex System x222 Compute Node.
Figure 1. The Flex System x222 Compute Node
Did you know?
Flex System is a new category of computing that integrates multiple server architectures, networking,
storage, and system management capability in to a single system that is easy to deploy and manage.
Flex System has full and built-in virtualization support of servers, storage, and networking to speed
provisioning and increased resiliency. In addition, it supports open industry standards, such as operating
systems, networking and storage fabrics, virtualization, and system management protocols, to easily fit
within existing and future data center environments. Flex System is scalable and extendable with
multigenerational upgrades to protect and maximize IT investments.
Flex System x222 Compute Node
1
Advertisement
Table of Contents
Related Manuals for Lenovo Flex System x222 Compute Node
Summary of Contents for Lenovo Flex System x222 Compute Node
- Page 1 10U Flex System Enterprise Chassis. Suggested use : For clients looking to virtualize their workloads while maximizing the density of their computing resources. The following figure shows the Flex System x222 Compute Node. Figure 1. The Flex System x222 Compute Node Did you know? Flex System is a new category of computing that integrates multiple server architectures, networking, storage, and system management capability in to a single system that is easy to deploy and manage.
-
Page 2: Key Features
Key features The Flex System x222 Compute Node is a high-density offering that is designed to maximize the computing power that is available in the data center. With a balance between cost and system features, the x222 is an ideal platform for dense workloads, such as virtualization. This section describes the key features of the x222. - Page 3 Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space protected from all other software running on a system. Flex System x222 Compute Node...
- Page 4 Solid-state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs. The server uses hexagonal ventilation holes, a part of IBM Calibrated Vectored Cooling™ technology. Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system. Flex System x222 Compute Node...
-
Page 5: Locations Of Key Components And Connectors
Locations of key components and connectors The following figure shows the front of the server. Figure 2. Front view of the Flex System x222 Compute Node The following figure shows how the two servers connect together. Figure 3. Open view of the Flex System x222 Compute Node... - Page 6 The following figure shows the locations of key components inside the upper server. Figure 4. Inside view of the upper server The following figure shows the locations of key components inside the lower server. Figure 5. Inside view of the lower server Flex System x222 Compute Node...
-
Page 7: Standard Specifications
I/O cards that are shared by both system boards. Only one card is needed to connect both system boards. Video Each server: Matrox G200eR2 video core with 16 MB video memory that is integrated into IMM2. The maximum resolution is 1600x1200 at 75 Hz with 16 M colors. Flex System x222 Compute Node... - Page 8 Each server: UEFI, Integrated Management Module II (IMM2) with Renesas SH7757 controller, management Predictive Failure Analysis, light path diagnostics panel, automatic server restart, and remote presence. Support for IBM Flex System Manager, IBM Systems Director, and the Lenovo ServerGuide. Security Power-on password and admin password, Trusted Platform Module (TPM) 1.2.
-
Page 9: Standard Models
** The 1600 MHz memory DIMMs that are standard in these models operate at most at 1333 MHz or 1066 MHz as indicated, matching the memory speed of the processor. † Model H6x includes the Flex System IB6132D 2-port FDR InfiniBand Adapter. Flex System x222 Compute Node... -
Page 10: Chassis Support
5 power 4 power 6 power rating supplies supplies supplies supplies supplies supplies supplies supplies Expansion Node support The x222 does not support the Flex System Storage Expansion Node or the Flex System PCIe Expansion Node. Flex System x222 Compute Node... -
Page 11: Processor Options
Intel Xeon E5-2448L 8C 1.8GHz 20MB 1333MHz 70W 00D1267 A35Y / A371 Intel Xeon E5-2450L 8C 1.8GHz 20MB 1600MHz 70W * The first feature code is for processor 1 and the second feature code is for processor 2. Flex System x222 Compute Node... -
Page 12: Memory Options
Memory options Lenovo DDR3 memory is compatibility tested and tuned for optimal performance and throughput. Memory specifications are integrated into the light path diagnostics panel for immediate system performance feedback and optimum system uptime. From a service and support standpoint, Lenovo memory automatically assumes the Lenovo system warranty, and Lenovo provides service and support worldwide. - Page 13 DIMMs must be installed per populated channel (the DIMMs do not need to be identical). In rank sparing mode, one rank of a DIMM in each populated channel is reserved as spare memory. The size of a rank varies depending on the DIMMs that are installed. Flex System x222 Compute Node...
- Page 14 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM models 00D4968 A2U5 16GB (1x16GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM Load-reduced DIMMs (LRDIMMs) 90Y3105 A291 32GB (1x32GB, 4Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP LRDIMM Flex System x222 Compute Node...
-
Page 15: Internal Disk Storage Options
A56V 120GB SATA 1.8" MLC Enterprise Value SSD 00AJ340 A56W 240GB SATA 1.8" MLC Enterprise Value SSD 00AJ345 A56X 480GB SATA 1.8" MLC Enterprise Value SSD 00AJ350 A56Y 800GB SATA 1.8" MLC Enterprise Value SSD Flex System x222 Compute Node... -
Page 16: Internal Tape Drives
Lenovo. Note: The USB port on the compute nodes supply up to 0.5 A at 5 V. For devices that require more power, an additional power source will be required. Flex System x222 Compute Node... - Page 17 For more than 11 compute nodes or for additional external ports, you will need to purchase additional upgrades. For a list of supported Ethernet switches, see the Supported switches section. For more details about the switches, see the relevant Product Guide: http://www.redbooks.ibm.com/portals/puresystems?Open&page=pg&cat=switches Flex System x222 Compute Node...
- Page 18 90Y9310 A2TD IBM Virtual Fabric Advanced Software Upgrade (LOM) 1 per server 2 per x222 Compute Node * To enable the FCoE/iSCSI upgrade for both servers in the x222 Compute Node, two licenses are required. Flex System x222 Compute Node...
- Page 19 90Y3486 A365 Flex System IB6132D 2-port FDR InfiniBand Adapter Fibre Channel 95Y2379 A3HU Flex System FC5024D 4-port 16Gb FC Adapter * One adapter is supported per x222. The adapter is shared between the two servers. Flex System x222 Compute Node...
- Page 20 The following figure shows how the FC5024D 4-port 16 Gb FC adapter and the Embedded 10Gb VFAs are connected to the Ethernet and Fibre Channel switches installed in the chassis. Figure 8. Logical layout of the interconnects - Ethernet and Fibre Channel Flex System x222 Compute Node...
- Page 21 The following figure shows how the IB6132D 2-port FDR InfiniBand adapter and the four ports of the two Embedded 10 GbE VFAs are connected to the Ethernet and InfiniBand switches that are installed in the chassis. Figure 9. Logical layout of the interconnects - Ethernet and InfiniBand Flex System x222 Compute Node...
-
Page 22: Supported Switches
Flex System FC3171 8Gb SAN Pass-thru Flex System EN6131 40Gb Ethernet Switch Cisco Nexus B22 Fabric Extender For more information, see the list of Product Guides in the Adapter cards category at the following website: http://www.redbooks.ibm.com/portals/puresystems?Open&page=pg&cat=switches Flex System x222 Compute Node... -
Page 23: Power Supplies
(see Figure 3). The supported USB memory keys are listed in the following table. There are two types of USB keys: preload keys or blank keys. Blank keys allow you to download a Lenovo customized version of ESXi and load it onto the key. Each server supports one or two keys that are... -
Page 24: Light Path Diagnostics Panel
A non-maskable interrupt (NMI) has occurred. TEMP An over-temperature condition occurs that was critical enough to shut down the server. A memory fault has occurred. The corresponding DIMM error LEDs on the system board are also lit. Flex System x222 Compute Node... -
Page 25: Remote Management
ISO and diskette image files as virtual drives that are available for use by the server Uploading a diskette image to the IMM2 memory and mapping it to the server as a virtual drive Capturing blue-screen errors Flex System x222 Compute Node... -
Page 26: Supported Operating Systems
Support by some of these operating system versions are after the date of initial availability. For the latest information about the specific versions and service levels that are supported and any other prerequisites, see the ServerProven® website, found at the following address: http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/nos/matrix.shtml Flex System x222 Compute Node... -
Page 27: Physical Specifications
Maximum dew point: 29 °C (84.2°F) Shipment (non-operating): Temperature: -40 - 60 °C (-40 - 140 °F) Altitude: 10,700 m (35,105 ft) Relative humidity: 5 - 100% Maximum dew point: 29 °C (84.2 °F) Flex System x222 Compute Node... -
Page 28: Warranty Options
Warranty options The Flex System x222 Compute Node has a three-year onsite warranty with 9x5 next-business-day terms. Lenovo offers the warranty service upgrades through ServicePac®, which is described in this section. The ServicePac is a series of prepackaged warranty maintenance upgrades and post-warranty maintenance agreements with a defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions. -
Page 29: Regulatory Compliance
51318.249, GOST R 51317.3.2, GOST R 51317.3.3 IEC 60950-1 (CB Certificate and CB Test Report) CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, and EN61000-3-3) CISPR 22, Class A TUV-GS (EN60950-1/IEC 60950-1, EK1-ITB2000) Flex System x222 Compute Node... -
Page 30: Related Publications And Links
http://ibm.com/systems/flex/compute-node/x86/bto/x222 PureSystems Centre Updates page: https://www-304.ibm.com/software/brandcatalog/puresystems/centre/update Flex System Information Center: http://publib.boulder.ibm.com/infocenter/flexsys/information/index.jsp Flex System x222 Compute Node Installation and Service Guide : http://publib.boulder.ibm.com/infocenter/flexsys/information/topic/com.ibm.acc.7916.doc/printable_doc.html ServerProven for Flex System: http://ibm.com/systems/info/x86servers/serverproven/compat/us/flexsystems.html ServerProven hardware compatibility page for the x222: ... - Page 31 Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment.
- Page 32 Trademarks Lenovo, For Those Who Do and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. These and other Lenovo trademarked terms are marked on their first occurrence in this information with the appropriate symbol (® or ™), indicating US registered or common law trademarks owned by Lenovo at the time this information was published.
