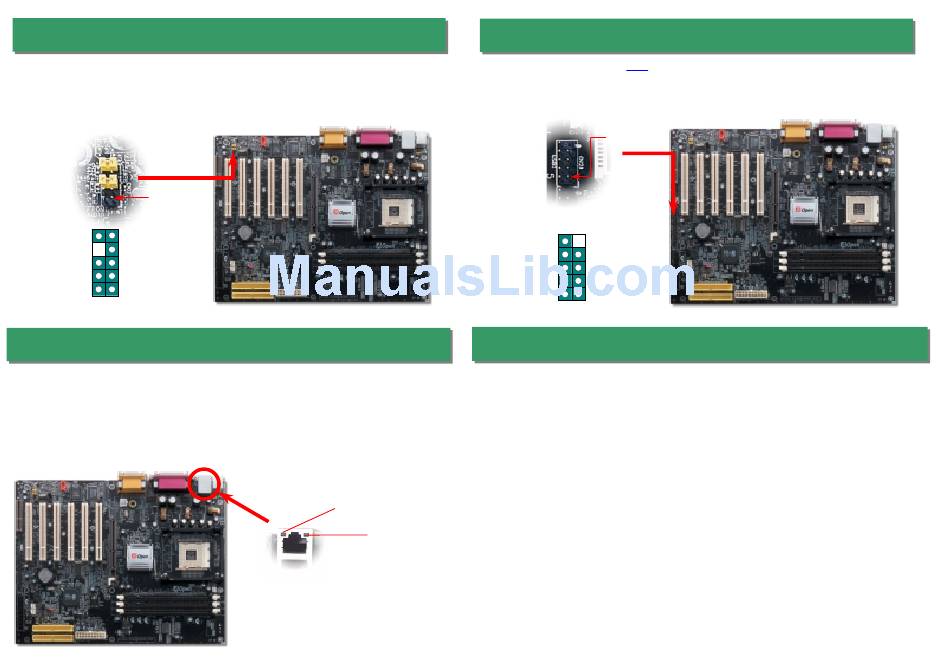

10. Front Audio Connector
If the housing has been designed with an audio port on the front panel, you'll be able to
connect onboard audio to front panel through this connector. By the way, please remove
5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable.
Please do not remove these 5-6 and 9-10 yellow jumper caps if there's no audio port on
the front panel.
Pin 1
AUD_RET_L
AUD_FPOUT_L
KEY
NC
AUD_RET_R
AUD_FPOUT_R
AUD_VCC
AUD_MIC_BIAS
AUD_GND
AUD_MIC
1
11. 10/100 Mbps LAN onboard (AX45S-533N only)
The South Bridge SIS961B includes a fast Ethernet controller on chip. On the strength of
Realtek 8100BL LAN controller on board, which is a highly-integrated Platform LAN
Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet
RJ45 connector is located on top of USB connectors. The green LED indicates the link
mode, it lights when linking to network and blinking when transferring data. The orange
LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode.
To enable or disable this function, you may simply adjust it through BIOS.
This motherboard provides six
keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You
can use proper cable to connect other USB connectors to the back panel or front panel of
chassis.
USB_FP_OC0
USB_FP_P1+
USB_FP_P1-
USBPWR0
You can install LAN Driver under Windows95/98, Windows NT and Windows 2000 for
RealTek 8100BL PCI Fast Ethernet adapter by following steps.
Installing driver procedure on Microsoft Windows 95 :
-----------------------------------------------------
1. Select "Driver from disk provided by hardware manufacturer" when being asked which
driver you would like to install.
2. Specify the setup file pathname
[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95\WIN95A (for Windows 95 and Win95A) or
[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95 (for Windows 95 OSR2).
3. Follow the procedure and insert Windows 95 system disk to complete setup step.
Green/ACT
4. Windows 95 will finish the other installation procedures automatically, and then restart your
system.
Installing driver for Win98/Win98 SE/Windows2000/Windows ME :
Orange/Speed
-------------------------------------------------------------------
1. Select "Driver from disk provided by hardware manufacturer" when being asked which
driver you would like to install.
2. Specify the setup file pathname
[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN98 (for Windows 98/98 SE) or
[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN2000 (for Windows 2000) or
[CD-ROM]:Driver\LAN\RTL8100\Windows\Windows ME (for Windows ME)
3. Follow the procedure and insert your system disk (Win98/Win98
SE/Windows2000/Windows ME) to complete setup step.
4. Win98/Win98 SE/Windows2000/Windows ME will finish the other installation procedures
automatically, and then restart your system.
12. Support Six USB Connectors
USB
connectors to connect USB devices, such as mouse,
Pin 1
USB2 Connector
KEY
GND
GND
USB_ FP_P0+
USB_FP_P0-
USBPWR0
1
13. Installing LAN Driver (AX45S-533N only)
