Jp14 Clear Cmos; S/Pdif (Sony/Philips Digital Interface) Connector - AOpen AX45S-533 Easy Installation Manual

Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete
User's Manual can be found in the
Bonus Pack CD Disc. Thanks for
the help of saving our earth.
This Motherboard x1
This Easy Installation Guide x1
80-wire IDE Cable x1
Floppy Disk Drive Cable x1
Registration Card x1
Bonus Pack CD x1
NORTON AntiVirus CD x1
PART NO: 49.88I02.011 DOC. NO: AX45S533-EG-E0203A
You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin 1 & pin 2.
Online
5. Connect ATX power cable back to connector PWR2.
S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive
quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Normally there
are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer
audio products, and the other for optical connector with better audio quality. Through a specific audio
cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears
S/PDIF digital output. However, you must have a S/PDIF supported speaker with S/PDIF digital input to
connect to the S/PDIF digital output to make the most out of this function.
Connecting to
RCA Cable
Connecting to
Optical Cable

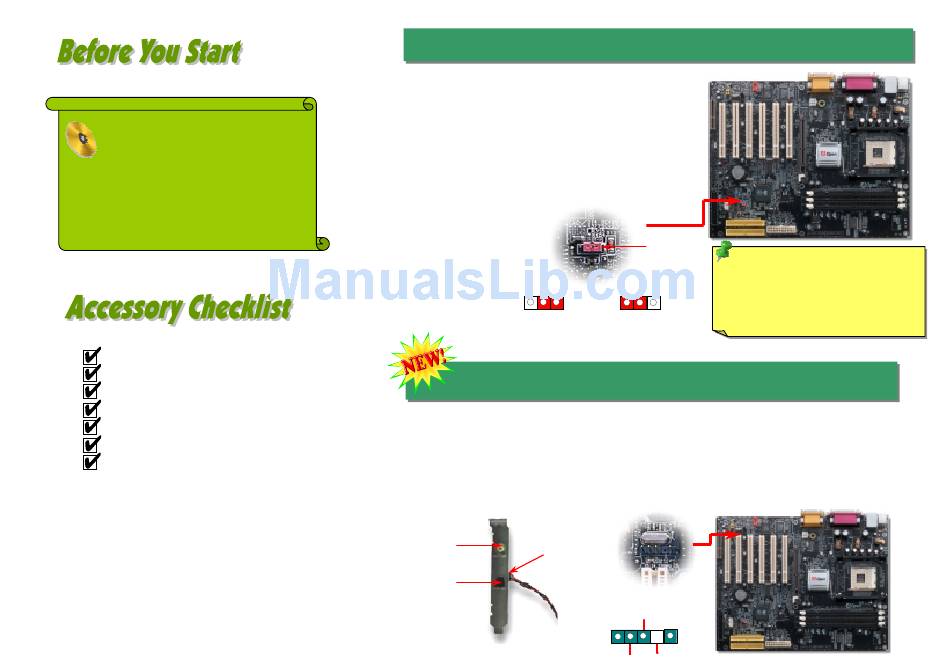

1. JP14 Clear CMOS

1
Normal
Clear CMOS
(default)

2. S/PDIF (Sony/Philips Digital Interface) Connector

Audio
cable
S/PDIF Connector
S/PDIFOUT
S/PDIFIN
S/PDIF Module
(Optional)
GND
Pin 1
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
1
2. Forget password...
3. Troubleshooting...
1
+5VSB
NC
