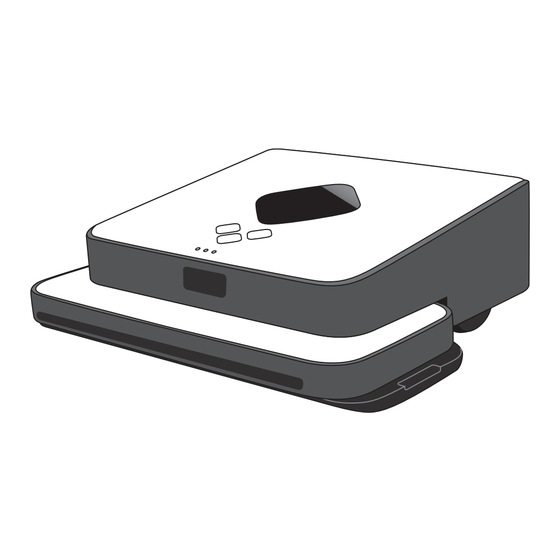

iRobot Braava 300 Series Owner's Manual
  1. Manuals
  2. Brands
  3. iRobot Manuals
  4. Vacuum Cleaner
  5. Braava 300 Series
  6. Owner's manual
iRobot Braava 300 Series Owner's Manual

iRobot Braava 300 Series Owner's Manual

Hide thumbs Also See for Braava 300 Series:
Table of Contents

Advertisement

Quick Links

Braava
®
Floor Mopping Robot
300 Series Owner's Manual
global.irobot.com

Advertisement

Table of Contents
loading

Related Manuals for iRobot Braava 300 Series

Summary of Contents for iRobot Braava 300 Series

  • Page 1 Braava ® Floor Mopping Robot 300 Series Owner’s Manual global.irobot.com...
  • Page 2 ® ® Welcome to the world of iRobot. As an owner of the iRobot Braava Floor Mopping Robot, you join a growing group of people around the globe who, like you, are discovering an easier way to mop their floors.

  • Page 3: Table Of Contents

    Table of Contents Safety Instructions ............Braava Overview ............. Buttons and Lights ............Battery and Charging ............Sweep and Mop Modes ..........How Braava Cleans ............NorthStar Navigation ............. ® Operating Braava ............Maintenance ..............Trouble Shooting ............. Customer Support ............global.irobot.com...

  • Page 4: Safety Instructions

    • When mopping, do not use Braava in areas where wetness can damage unfinished or unsealed floors or delicate carpeting or rugs. • Operate at room temperature. Do not expose Braava or its batteries to freezing or extreme heat. Braava 300 Series Owner’s Manual...
  • Page 5 Braava software is strictly prohibited. WARNING: Changes or modifications not expressly approved by iRobot could void your warranty. THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED...

  • Page 6: Braava Overview

    Navigation System Indicator Bumper Handle Cube on/off button (on back corner) Removable Cleaning Pad NorthStar Navigation Cube ® Battery Charging Port Floor Transition Sensors Wheel Guards Charging Adapter Turbo Charge Cradle (Ships with Select Models) Braava 300 Series Owner’s Manual...
  • Page 7 For dry sweeping or wet mopping, disposable or reusable microfibre cloths. Cloth Gripping Strips Middle Channel for Floor Transition Sensors Pro-Clean Reservoir Pad (Ships with Select Models) For wet mopping with the blue Pro-Clean microfibre cleaning cloth. Fill Cap Reservoir Wick global.irobot.com...

  • Page 8: Buttons And Lights

    Press once to start cleaning.* Press while cleaning to pause. Blue solid light: Mop mode activated Blue blinking light: Mop mode paused *Holding the cleaning mode button will activate Quick Clean Mode. See page 15. Braava 300 Series Owner’s Manual...
  • Page 9 Blue lights flashing with pause: Sleep mode Red light in middle: Error* See trouble shooting section for more information. NorthStar Navigation Cube Lights ® Blue blinking light: Power on, broadcasting signal Blue solid light: Power on, connected to Braava Red solid light: Batteries low global.irobot.com...

  • Page 10: Battery And Charging

    CAUTION: Do not charge Braava while the Pro-Clean reservoir pad or any wet cloth is attached. Charge using a standard 220-240 V outlet only. Only use the included adapter to charge Braava. Always disconnect Braava from the adapter before cleaning. Braava 300 Series Owner’s Manual...

  • Page 11: Power Button

    The Cube uses 2 C batteries. The battery door can be found on the bottom of the Cube. Power Button Red pulsing light: Battery charging Blue solid light: Battery charged Please dispose of all batteries properly by finding a recycling resource near you. global.irobot.com...

  • Page 12: Sweep And Mop Modes

    Mop mode to optimise cleaning while the cloth is wet. TIP: Start with dry Sweep mode to pick up surface grit and then follow with a wet cloth in mopping mode to get a deeper clean. Braava 300 Series Owner’s Manual...

  • Page 13: Cleaning Cloths

    NOTICE: Braava is not intended to pick up large debris. Before cleaning with Braava, pick up large debris and check for gravel or sharp objects that could scratch the floor if captured under the cleaning pad. global.irobot.com...

  • Page 14: How Braava Cleans

    Braava a boundary it can detect. • Braava follows along walls and edges as it encounters them and as it completes each section it cleans. Braava 300 Series Owner’s Manual...

  • Page 15: Pause/Resume

    • To exit Pause and quit the cleaning cycle, power Braava off by holding the power button for 2 seconds. Note: Braava can only be paused after it has locked onto the NorthStar Navigation Cube at the beginning of the cleaning cycle. global.irobot.com...

  • Page 16: Northstar Navigation

    • Multiple cubes can be used in Mop mode, too, but Braava limits its wet cleaning area to 32 square metres to optimise for cloth wetness. Mode Braava 300 series Coverage Sweep 93 m 32 m up to 186 m with additional NorthStar Cube (sold separately) ® Braava 300 Series Owner’s Manual...
  • Page 17 NorthStar coverage to overlap. • Braava will automatically clean from one Cube to another. Cubes are pre-programmed to different NorthStar channels, indicated on the bottom of the Cube. Cubes with different channels must be used for multi-Cube cleaning. One Cube Multiple Cubes global.irobot.com...

  • Page 18: Operating Braava

    Re-attach the cleaning pad. Magnets will help it snap back into place. CAUTION: Make sure the cleaning cloth does not drape into the middle channel between the gripping strips as this could impede sensor functions and safe operation. Braava 300 Series Owner’s Manual...

  • Page 19: Using Pro-Clean Reservoir Pad

    Fill reservoir with water and replace fill cap, pressing it in securely so it does not leak. Visit global.irobot.com for information about other cleaning solutions. Fill the reservoir over a sink as a small amount of fluid can leak out when the fill cap is closed.
  • Page 20 • Do not move the NorthStar Navigation Cube once Braava has started cleaning as it may impair Braava’s cleaning performance. • Do not put the NorthStar Navigation Cube on the floor as the cleaner may run into it and move it. Braava 300 Series Owner’s Manual...

  • Page 21: Start Cleaning

    • To turn Braava off, press the power button for two seconds. A tune will play and the light will turn off. • To turn off the NorthStar Navigation Cube, press the button on the back corner. The light on the opposite corner will turn off. global.irobot.com...

  • Page 22: Maintenance

    • Periodically check Braava’s wheels to see if debris has accumulated and remove as needed. • A small notch next to the wheel allows access with tweezers or scissors if needed to free the debris. Access Notch Braava 300 Series Owner’s Manual...
  • Page 23 • If the wick cap becomes dirty or shows wear, it can be replaced. • Remove the wick cap by pulling on the side rubber tab. • Replace with a new wick cap, pressing firmly into place to create a tight seal to prevent leaking. global.irobot.com...

  • Page 24: Trouble Shooting

    Trouble Shooting Visit global.irobot.com for additional tips and trouble shooting. Navigation System Indicators (NSI) Error Indicators on the Navigation System Indicator (NSI) while cleaning Problem: Likely Cause What To Do Solid red light on System error • Press and hold the power button to turn Braava off.
  • Page 25 Check the fill cap and the wick cap and make sure both are puddles. securely sealed shut. Fluid will dispense at a faster rate if these caps are not sealed. Not wicking fluid. Wick cap requires Refer to Reservoir Pad maintenance for instructions to replacement replace the wick cap. global.irobot.com...

  • Page 26: General Troubleshooting

    If problem persists, contact Customer Support. Battery needs Charge Braava for 12 hours using the adapter and not a refresh charge Cradle, then run Braava until battery fully depletes. Repeat 3 times to achieve expected run times. Braava 300 Series Owner’s Manual...

  • Page 27: Irobot Customer Care

    Customer Care If you have questions or comments about this product please contact iRobot before contacting a retailer. Please visit the iRobot home support site at www.irobot.com/support for support tips, frequently asked questions, or information about accessories and other iRobot products.
  • Page 28 International customers visit global.irobot.com. © 2008-2015 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA | All rights reserved. iRobot, Braava and NorthStar are registered trademarks of iRobot Corporation. Swiffer and WetJet are registered trademarks of Procter and Gamble. Target is a registered trademark of Target Brands Inc.
