TV Surround System
Owner's Manual
Read the supplied booklet "Quick Reference Guide" before using the unit.
English

Advertisement

Table of Contents
loading

Related Manuals for Yamaha SRT-1500

Summary of Contents for Yamaha SRT-1500

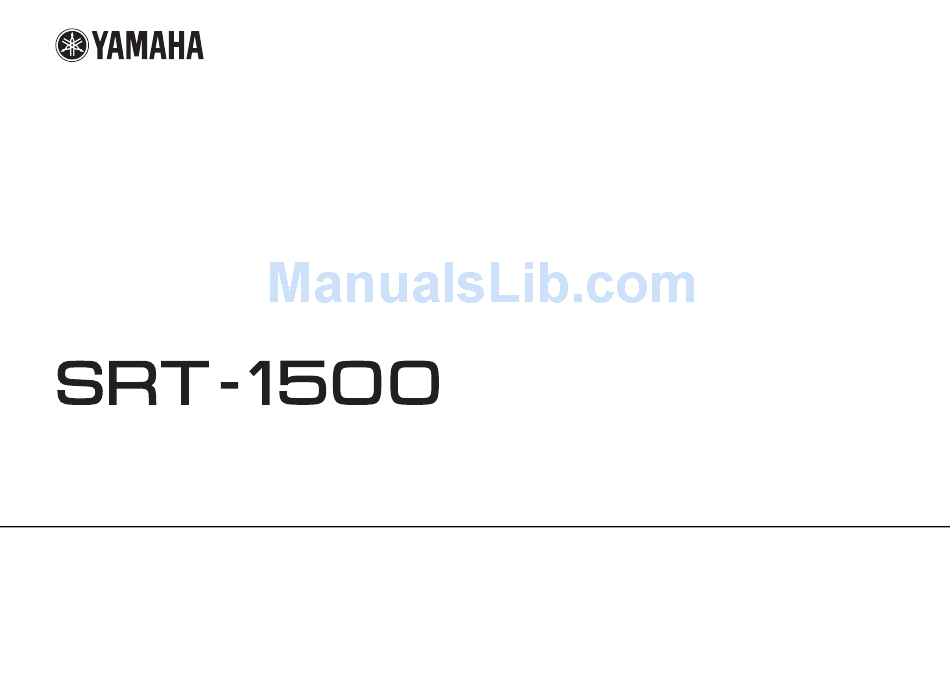

  • Page 1 TV Surround System Owner’s Manual Read the supplied booklet “Quick Reference Guide” before using the unit. English...

  • Page 2: Table Of Contents

    CONTENTS Supplied accessories ..........4 PLAYBACK Preparing remote control .
  • Page 3 Yamaha’s Audio Technologies ........

  • Page 4: Supplied Accessories

    Before installing batteries or using the remote control, be sure to read battery and Before connecting, make sure you have received all of the following items. remote control precautions in “Quick Reference Guide” (separate booklet). SRT-1500 The unit Installing the batteries Peel off the protection sheet before use.

  • Page 5: Features

    FEATURES What you can do with this unit Sound beams are reflected off walls using unique real surround sound formats and techniques, allowing listeners to enjoy their preferred Wide variety of supported content acoustic environment. . p. 41 • Media server (PC/NAS) .

  • Page 6: Mastering Useful Apps

    • Play songs stored on computers (servers) • Select an Internet radio station • Play music stored on mobile devices • Distribute and receive audio between the unit and other Yamaha network A/V devices See MusicCast Setup Guide for details. HOME THEATER CONTROLLER (WLAN) This app allows you to configure specific settings such as sound beams.

  • Page 7: Controls And Functions

    Controls and functions Front panel Indicators INPUT key Indicate the status of the unit (p. 8). The indicators will dim Select an audio input source (p. 21). • When the unit is turned off, this unit consumes a small amount of automatically if no operations are performed for 5 seconds.
  • Page 8 Indicators STATUS HDMI ANALOG BLUETOOTH SURROUND ❑ STATUS indicator SURROUND indicator Other indications The STATUS indicator shows the unit’s power status. Glows when surround playback is selected and turns off In addition to indications explained 1–5, other indicators when stereo playback is selected. STATUS Glows green: The unit is on on the front panel may glow or flash to indicate operation and...

  • Page 9: Rear Panel

    Rear panel Remove the jack cover from the top of the unit to Jack cover connect cables. Once cables are connected, reattach the jack cover. Jack cover HDMI NETWORK ANALOG SUBWOOFER UPDATE OUT(ARC) ONLY HDMI IN jack TV (digital optical) jack UPDATE ONLY jack For connecting an HDMI-compatible playback device such For connecting to a playback device equipped with a digital...
  • Page 10 Remote control z key Input selector keys Select an audio input source to be played back (p. 21). Turn on/off the unit (p. 21). Infrared signal transmitter NET RADIO (1–3) keys Register and play streaming services such as Internet radio HDMI Device connected via the HDMI IN jack stations via the unit (p.

  • Page 11: Preparations

    PREPARATIONS General setup procedure Position the unit to achieve the optimal surround sound effects. Installation (p. 12) Raise the wireless antenna in preparation for network connection using a wireless router (access point). Connecting a TV (p. 14) Connect a TV to the unit. Connecting playback devices (p.

  • Page 12: Installation

    1 2 3 4 5 6 Installation Place the unit on a flat surface, such as the top of a TV stand, and then place the TV on top of the unit. When installing this unit on a rack behind which there is limited space, for example, it may be easier to connect external devices to this unit first.

  • Page 13: Raising The Antenna

    1 2 3 4 5 6 ❑ Unit installation position and surround sound effects Raising the antenna The unit achieves surround sound by reflecting sound beams off walls. Raise the antenna on the rear panel of the unit when connecting a wireless router (access point) to use a network.

  • Page 14: Connecting A Tv

    1 2 3 4 5 6 b Connecting a TV Connect a TV to the unit so that video input to the unit can be output to the TV. You can also enjoy playback of TV audio on the unit. •...

  • Page 15: Connecting Playback Devices

    1 2 3 4 5 6 c Connecting playback devices Connect video devices such as BD/DVD players, set-top boxes (STBs) and game consoles to the unit. Depending on the video/audio output jacks available on your video device, choose one of the following connections. We recommend using an HDMI connection if the video device has an HDMI output jack. HDMI connection Analog connection Connect a video device to the unit with an HDMI cable (not supplied).

  • Page 16: Other Connections

    1 2 3 4 5 6 d Other connections e Connecting the power cable After all the connections are complete, plug in the power cable. Connecting an external subwoofer The unit has built-in subwoofers. However, you can connect an external subwoofer to enhance low-frequency sounds.

  • Page 17: Initial Settings

    1 2 3 4 5 6 f Initial settings Displaying the menu screen on the TV Visual operation of this unit is TV remote control (example) possible by displaying its menu Initial screen display screen on the TV. When the unit is turned on for the first time after purchase, the Turn on the unit and the TV, and screen below will be displayed and the indicator on the front...

  • Page 18: Selecting The Language For Menu Display

    1 2 3 4 5 6 Selecting the language for menu display Setting a surround sound effect for the installation position Turn the unit and TV on. The surround sound is achieved by reflecting the sound beams off walls as shown in the illustration below.

  • Page 19: Operating The Unit By Tv's Remote Control (Hdmi Control)

    1 2 3 4 5 6 Operating the unit by TV’s remote control (HDMI control) With some TVs, navigating this unit’s menus displayed on the TV can be controlled. What is the HDMI control function? HDMI Control allows you to operate external devices via HDMI. If you connect a TV that •...
  • Page 20 1 2 3 4 5 6 Setting the HDMI control function If devices are not coordinated Be sure that all devices are correctly connected to this unit, and Turn on the unit, TV, and playback devices. that settings are properly configured as described below. –...

  • Page 21: Playback

    PLAYBACK Basic operation for playback Subwoofer volume display Press the key to turn on this unit. The lighted indicator moves to the right when the volume is turned up, and to the left when the volume is turned down. Turn on devices (TV, BD/DVD player, game console, etc.) connected to this unit.

  • Page 22: Enjoying Sound Based On Your Preference

    Yamaha’s sound field program, “CINEMA Press the STEREO key to switch to stereo playback DSP.” You can select a surround mode that best suits the source from MOVIE, MUSIC, SPORTS, GAME, or TV PROGRAM.

  • Page 23: Adjusting Volume For Each Channel

    Adjusting volume for each channel Press the key to adjust the volume. Adjust the volume of playback for each channel (audio in each Display while volume is adjusted direction) so that sounds are evenly distributed in their respective The lighted indicator moves to the right when the volume is turned up, directions.

  • Page 24: Clear Playback Of Human Voices (Clear Voice)

    Clear playback of human voices (CLEAR VOICE) Human voices, such as lines in movies and TV shows, or news and sports commentary, are played back very clearly. Press the CLEAR VOICE key to turn on the CLEAR VOICE function. Indicators on the front panel Flashes three times and then turns off Press the key again to turn off the function.

  • Page 25: Wireless Playback Of Audio Via Bluetooth Connection

    Wireless playback of audio via Bluetooth connection You can receive and play audio from a Bluetooth device, such as a mobile device or digital music player, over a wireless connection. Yamaha’s exclusive Compressed Music Enhancer technology improves sound quality characteristics for the richness and depth of original audio before it is compressed.

  • Page 26: Listening To Music From A Bluetooth Device

    The operation varies depending on the device. Refer to the • Refer to “Bluetooth” (p. 62) in “Troubleshooting” if paring is not possible. instruction manual supplied with the device. Select “SRT-1500” in the Bluetooth device list on the device. If a passkey (PIN) is required, enter the number “0000”.
  • Page 27 • The unit is turned off. Turn on the Bluetooth device. Flashes Glows steadily Connecting Connection established Select “SRT-1500” in the Bluetooth device list on the device. Play back a song on the Bluetooth device. PLAYBACK ➤ Wireless playback of audio via Bluetooth connection...

  • Page 28: Listening To Audio Through Bluetooth Speakers Or Headphones (Transmitting)

    Listening to audio through Bluetooth speakers or headphones (transmitting) Pairing a Bluetooth device with the unit Use the keys to select a Bluetooth device, and then press the ENTER key. Turn on the Bluetooth device. D e v i c e S e a r c h ▲...

  • Page 29: Terminating Bluetooth Connection

    Terminating Bluetooth connection Playing back audio input from the unit through Bluetooth speakers or Bluetooth connection is terminated in the following cases. headphones indicator on the unit’s front panel turns off when the connection is terminated. • The connection is terminated from the Bluetooth device, or •...

  • Page 30: Networks

    NETWORKS Connecting to a network You can choose between wired network connection and wireless network connection (p. 31) depending upon your network environment. Network connection allows you to listen to Internet radio stations and play music files with AirPlay or your computer (media service) via this unit. You can operate the unit with a mobile device to which the MusicCast CONTROLLER app has been installed, allowing you to enjoy listening to a variety of audio sources via this unit.

  • Page 31: Wireless Network

    Wireless network Connecting the unit to a wireless network Connect the unit to a wireless router (access point). Select the connection method appropriate for your network environment from “Wireless (Wi-Fi)” in the setup menu. Internet W i r e l e s s ( W i - F i ) Wireless router S e l e c t s e t u p...
  • Page 32 Sharing the iOS device setting Use the keys to select “Share Wi-Fi Settings (iOS)”, and then press the ENTER key. You can easily setup a wireless connection by applying the connection settings on iOS devices ( iPhone). such as an W i r e l e s s ( W i - F i ) Before proceeding, confirm that your iOS device is connected to a wireless router (access point).
  • Page 33 Display the Wi-Fi setup screen on the iOS device Use the keys to select “WPS Button”, and then and select the unit from “SETUP A NEW AIRPLAY press the ENTER key. SPEAKER...”. W i r e l e s s ( W i - F i ) Follow the on-screen instructions displayed on the iOS device.
  • Page 34 Searching for a wireless router (access Use the keys to select the desired access point point) and press the ENTER key. The wireless connection setting screen appears on the TV. Find and connect to a nearby wireless router (access point). Press the key to turn on this unit.
  • Page 35 Use the keys to select “Connect” and press the ENTER key to start the connection process. When a connection has been established (the device has been paired with the unit), “Completed” will be displayed on the TV screen. If “Not connected” is displayed press the ENTER key to repeat the process beginning with step 6, or see the information below to try another connection method.
  • Page 36 Setting up the wireless connection Use the keys to select “SSID”. manually M a n u a l S e t t i n g Setup the SSID (network name), encryption method and security ▲ key for your network manually. S S I D S e c u r i t y : N o n e...
  • Page 37 Use the keys to select “Security Key” and Use the keys to select “Connect” and press the press the ENTER key. ENTER key to start the connection process. When a connection has been established (the device has been paired with the unit), “Completed” will be displayed on •...
  • Page 38 Using the WPS PIN code Use the keys to select the desired access point and press the ENTER key. Register the unit’s PIN code with your wireless router (access point) to establish a connection. The PIN code of the unit appears on the TV screen. Press the key to turn on this unit.

  • Page 39: Connecting A Mobile Device To The Unit Directly (Wireless Direct)

    Connecting a mobile device to the unit directly (Wireless Direct) Connect a mobile device directly to the unit without using a wireless Use the keys to select “Network”, and then router (access point). press the ENTER key. Wireless Direct supports the following. –...
  • Page 40 Use the / / / and ENTER keys to enter the Use the keys to select “Save” and press the security key. ENTER key to save the setting. Enter either 8 to 63 character string, or 64 hexadecimal This completes the settings and “Set the mobile device.” (base 16) keys.

  • Page 41: Playing Back Music Stored On Media Servers (Pcs/Nas)

    Playing back music stored on media servers (PCs/NAS) You can play back music files stored on your PC or DLNA-compatible NAS on the unit. Media sharing setup To play back music files stored on your PC or DLNA-compatible NAS, first you need to •...

  • Page 42: Listening To Internet Radio

    Listening to Internet radio You can listen to Internet radio stations from all over the world. • To use this function, the unit must be connected to the Internet (p. 30). You can check whether the network parameters (such as the IP address) are properly assigned to the unit in “Information”...
  • Page 43 Registering the station on the vTuner website You can also register your favorite Internet radio stations on the vTuner website. Select any of Internet radio stations on the unit. This operation is necessary to register the radio station for the first time. Check the vTuner ID of the unit.

  • Page 44: Playing Back Music With Airplay

    (example) iPod (example) SRT-1500 XXXX • To use this function, the unit and your PC or iPod must be connected to the same router (p. 30). You can SRT-1500 XXXX check whether the network parameters (such as the IP address) are properly assigned to the unit in “Information”...
  • Page 45 Select a song and start playback. To operate playback, use the Music app on the iPod or iTunes on the PC. The input source switches to NET, and playback begins. Glows • You can turn on the unit automatically when starting playback on iTunes or iPod by setting “Network Standby”...

  • Page 46: Playing Back Music Stored On Mobile Devices

    Playing back music stored on mobile devices Use this function to play music stored on your mobile device over a network. Using a mobile device to play songs Use the MusicCast CONTROLLER app installed on your mobile device to operate Router playback.

  • Page 47: Setup Menu

    SETTINGS Setup menu A variety of settings for this unit can be specified and adjusted from the setup menu. Among the options available are channel volume control, HDMI settings, and network settings. The setup menu is displayed on, and operated from, the TV screen. See “Displaying the menu screen on the TV” (p. 17) for instructions on displaying the setup menu on the TV.

  • Page 48: Setup Menu List

    Setup menu list Menu Item Function Page Front L, Front R, Center, Surround L, Surround R, Channel Level Adjust the volume of each channel. Subwoofer Sound Dynamic Range Specify dynamic range. Audio Delay Adjust the delay between video and audio output. HDMI Control Turn HDMI control on or off.

  • Page 49: Sound

    Sound Channel Level Audio Delay ➜ ➜ ➜ ➜ Setup Menu Sound Channel Level Setup Menu Sound Audio Delay Adjust the volume of each channel to balance output levels. Use test sounds output TV images sometimes lag behind the sound. You can use this function to delay the from each channel to adjust volume for optimal balance.

  • Page 50: Hdmi

    HDMI Use to configure the settings related to HDMI signals and the HDMI control function. HDMI Control Audio Assign ➜ ➜ ➜ ➜ Setup Menu HDMI HDMI Control Setup Menu HDMI Audio Assign Turn HDMI control (p. 19) on or off. Specify whether audio is input via the HDMI IN jack or the TV (digital optical) jack of the unit when HDMI is selected as the input source.

  • Page 51: Function

    Function Dimmer Auto Power Standby ➜ ➜ ➜ ➜ Setup Menu Function Dimmer Setup Menu Function Auto Power Standby Adjust the brightness of indicators on the front panel. Turn Auto Power Standby on or off. When this function is activated, the unit turns off when it is not in use. Settings -2 (off), -1 (normal;...

  • Page 52: Information

    Information Display information for the audio and video signal input to this unit. Audio System ➜ ➜ ➜ ➜ Setup Menu Information Audio Setup Menu Information System The following information on the current audio input signal is displayed. Display the version of firmware currently installed on this unit. Format Digital audio format The number of channels contained within the input signal—front/...

  • Page 53: Network

    Network Configures the network settings. • Some menus are not superimposed over video content on the TV screen. Information Network Connection ➜ ➜ ➜ ➜ Setup Menu Network Information Setup Menu Network Network Connection Display the network information on the unit. Select the network connection method.

  • Page 54: Configure The Network Parameters (Such As Ip Address)

    IP Address MAC Address Filter ➜ ➜ ➜ ➜ Setup Menu Network IP Address Setup Menu Network MAC Address Filter Configure the network parameters (such as IP address). The MAC address filter limits network devices that can be used to operate the unit. When operating the unit via an app on a mobile device, specify the MAC address of the ❑...

  • Page 55: Enable/Disable The Function That Turns On The Unit From Other Network Devices

    Network Standby Network Name ➜ ➜ ➜ ➜ Setup Menu Network Network Standby Setup Menu Network Network Name Turn the function that controls the unit’s power (Network Standby) when a network Edit the name displayed for this device (the unit’s name on the network) on other device or Bluetooth device is operated on or off.

  • Page 56: Bluetooth

    Bluetooth Configures the Bluetooth settings. • Some menus are not superimposed over video content on the TV screen. Bluetooth Device Search ➜ ➜ ➜ ➜ Setup Menu Bluetooth Bluetooth Setup Menu Bluetooth Device Search Enables/disables the Bluetooth function. Select the Bluetooth speakers or headphones to which audio will be transmitted, and the pair the speakers or headphones with the unit to establish a connection.

  • Page 57: Updating The Unit's Firmware

    • To perform the following procedure, your TV must be connected to the unit via each firmware update begins. HDMI. • For details on update, visit the Yamaha website. Using “Network Update” in the setup menu to update firmware Press the SETUP key twice.

  • Page 58: Updating Firmware With Connection Of A Usb Flash Drive

    Updating firmware with connection of a USB flash drive Alternates Download the latest firmware version from the Yamaha website to a USB flash drive, which can then be used to update the unit’s firmware. See information provided when updating firmware for details.

  • Page 59: Initializing The Unit's Settings

    Initializing the unit’s settings Various settings for the unit can be initialized. You can choose to initialize basic unit settings (does not initialize network settings), or to initialize only network settings. Initializing basic unit settings Initializing network settings The basic unit settings other than network settings will be initialized. The following settings will be initialized.

  • Page 60: Troubleshooting

    Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the AC power supply cable, and contact the nearest authorized Yamaha dealer or service center.
  • Page 61 Problem Cause Remedy See page No sound. Incorrect input or output cable connections. Connect the cable properly. No appropriate input source has been selected. Select an appropriate input source with the input selector keys. The volume is turned down. Turn up the volume. The sound is muted.

  • Page 62: Bluetooth

    Problem Cause Remedy See page The image is not displayed on TV The HDMI cable is not securely connected. Connect the HDMI cable properly. 14, 15 screen. The “This content can not be The HDMI IN jack on the TV, which is connected to the HDMI OUT (ARC) Connect the unit to the HDMI IN jack that is compatible with HDCP 2.2 on a viewed on your TV.

  • Page 63: Remote Control

    Problem Cause Remedy See page Cannot make a Bluetooth connection. Receiving/transmitting “Bluetooth” is set to “Off”. Set it to “On”. Another Bluetooth device is connected. The unit cannot make multiple Bluetooth connections. Terminate current Bluetooth connection, and make connection for the desired device. More than 20 devices are paired and the oldest pairing information is Perform pairing again.

  • Page 64: Network

    Network Problem Cause Remedy See page The network feature does not The network parameters (IP address) have not been obtained properly. Enable the DHCP server function on your router and set “DHCP” in the function. setup menu to “On” on the unit. If you want to configure the network parameters manually, check that you are using an IP address which is not used by other network devices in your network.
  • Page 65 Problem Cause Remedy See page The Internet radio cannot be The selected Internet radio station is currently not available. There may be a network problem at the radio station, or the service may – have been stopped. Try the station later or select another station. played.

  • Page 66: When Surround Effect Is Not Enough

    When surround effect is not enough The unit achieves its surround sound effects by projecting sound beams which reflect How to install YRB-100 off walls. The sound beams are not reflected toward to the listening position caused by furniture, etc., in the path of sound beams, or the room shape. In this case, the sound The unit outputs sound beams according to the “Position”...

  • Page 67: Basic Knowledge Of Surround Sound

    Surround sound offers the sense of being surrounded by sounds, an A digital sound projector separately controls compact speakers This unit features many more functions based on Yamaha’s superior experience common in concert halls and movie theaters. This can be installed in orderly rows, so that optimized audio signals are output audio technologies.

  • Page 68: Glossary

    Glossary Audio/video information MPEG-4 AAC An MPEG-4 audio standard. It is used for mobile telephones, portable audio players, and audio streaming services on Internet because it allows a high compression rate of data while maintaining better audio quality Sampling Frequency and Bit Depth than MP3.

  • Page 69: Specifications

    Specifications Compatible with DLNA ver. 1.5 Item Specifications Network AirPlay supported Array speakers 2 W x 8 Internet Radio Maximum Rated Amplifier Woofer 30 W x 2 Output Power Wireless LAN IEEE802.11b/g/n Standards Subwoofer 60 W Radio Frequency Type Acoustic suspension type 2.4 GHz Wireless LAN Band...

  • Page 70: Available Signal Information

    Available signal information ❑ Repeatable video signals HDMI signal compatibility This unit is compatible with the following video signals. ❑ Receivable audio signals • Deep Color • x.v.Color Audio signal types Audio signal formats Compatible media • 3D video signal 2ch Linear PCM 2ch, 32–192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio, etc.
  • Page 71 The Bluetooth word mark and logos are registered trademarks trademarks of Yamaha Corporation. owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Internet Explorer, Windows Media Audio and Windows Media Player Corporation is under license. are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 72: Index

    Index Numerics Delay between video and audio output 49 DHCP 30, 54 2-channel playback 22 Jack cover 9 DLNA 41 3D video 14 DNS server (P) 53, 54 4K video 14 DNS server (S) 53, 54 5.1-channel 67 Dolby Digital 68 Language (OSD) 18 Dolby Pro Logic II 68 DTS Digital Surround 68...
  • Page 73 Sampling frequency 68 Security 53 Security key 37, 39 Security software 30 Setup menu 47 Sharing Wi-Fi settings (iOS device) 17, 32 SSID 33, 35, 53, 68 Stereo playback 22 Subnet mask 30, 53 Subwoofer volume 21, 23 Surround mode 22 Surround sound effect 18 Test sounds 49 TV 17, 19, 21...
  • Page 74 © 2015 Yamaha Corporation YH259B0/EN...
