Page 1: User Manual
User Manual MAN10xxx-01... -
Page 3: Table Of Contents
User Manual Compuprint 6210 CONTENTS Page Compuprint 6210 Portable Thermal Printer Box Content Getting to Know Your Printer Printer Setup Battery Installation Paper Installation Battery Charging Belt Strap & Shoulder Strap Usage Connecting the Printer to the Host Computer through USB... -
Page 4: Fcc Compliance Statement For American Users
User Manual Compuprint 6210 FCC COMPLIANCE STATEMENT FOR AMERICAN USERS Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 5 Do not directly connect the battery to an electrical power outlet not specified by Compuprint or an automobile’s cigarette lighter jack. Doing so may result in overheating, combustion and/or explosion of the battery by over-current and/or over-voltage.
- Page 6 User Manual Compuprint 6210 Do not charge the battery near open flames and/or under direct sunlight. Charging the ambient temperature at 0°C ~ 40°C. Because exposure to high temperatures triggers the operation of the safety mechanism, the battery may not charge or may overcharge due to destruction of the safety mechanism.
-
Page 7: Compuprint 6210 Portable Thermal Printer

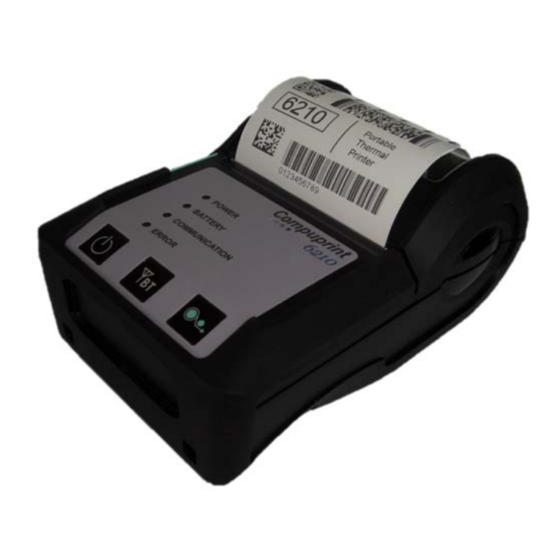

User Manual Compuprint 6210 Compuprint 6210 Portable Thermal Printer Box Content Please check that all of the following items are included with your printer: Compuprint 6210 Portable Thermal Printer Thermal Paper USB Cable Compuprint 6210 Quick Guide Lithium Battery Power Adapter &... -
Page 8: Getting To Know Your Printer
User Manual Compuprint 6210 Getting To Know Your Printer Device Overview Front View (take the model witjh LCD as an example) Windows Top cover Open Membrane button Panel Interface Rear View Shoulder Strap Holes MAN10xxx-01... - Page 9 User Manual Compuprint 6210 The Internal View of Printer Platen Roller Tear Bar Label Roll Guide Power This RS232 & Jack USB Port only support signal transmission, no charge function Top Cover Hooks Thermal Print Head Top Cover Hooks MAN10xxx-01...
-
Page 10: Printer Setup
User Manual Compuprint 6210 2 Printer Setup Battery Installation Make sure to charge the battery for at least 3 hours prior to first use. Insert the battery on the rear side of the printer aligning the battery hook properly. Push the battery into the slot until... -
Page 11: Paper Installation
User Manual Compuprint 6210 Paper Installation The printer is set to Direct thermal transfer so no ribbon is required. Place the printer on a flat surface and press the button and the top cover is opened. Label roll guide can be adjusted... -
Page 12: User Manual Compuprint
User Manual Compuprint 6210 Insert the paper as shown in the image Pull the paper out and close the paper cover Tear off excess paper in the direction of the side of the printer Note *When you move label roll guide, try to force near its bottom... -
Page 13: Battery Charging
User Manual Compuprint 6210 Battery Charging Please make sure that the printer is switched off. Open the external interface cap. Connect the jack of the power adapter to the printer and connect the plug of the power adapter to the socket of the wall. -
Page 14: Belt Strap & Shoulder Strap Usage
User Manual Compuprint 6210 Shoulder Strap Usage Connect the clips of the shoulder strap to the printer. MAN10xxx-01... -
Page 15: Connecting The Printer To The Host Computer Through Usb
User Manual Compuprint 6210 Connecting the Printer to the Host Computer through USB Please make sure that the printer is switched off. Connect the power cord to the AC adapter as indicated in chapter 2.2 or, if the battery is charged, Connect the printer directly to the host. -
Page 16: Installing Printer Driver Directly From Cd Folder
User Manual Compuprint 6210 2.6 Installing Printer Driver Directly from CD Folder 1. Insert the product CD in the CD/DVD drive of the host computer and open the "Seagull Drivers" folder on the CD. 2. Double click on the Icon for the driver. You run the Compuprint_7.3.8_M-3.exe file 3. - Page 17 User Manual Compuprint 6210 4. With a USB connection, search models such as the right diagram printer device. Specify your printer model and click ”Next”. Enter the printer name (you can use default), then click "Next" to display as right diagram.
- Page 18 User Manual Compuprint 6210 Once the installation is complete, a summary of the printer settings is displayed. Check whether the printer settings are correct and click "Finish" to start copying the driver files. Wait until copying is complete, then finish the installation.
-
Page 19: Setting And Control For Operation Panel
Press the POWER button to turn on the printer, and the POWER LED signal lights appears. While hear one “Beep sound”, If the printer has the LCD screen should display the message “Compuprint“ Logo on the screen. When printer is turned on, hold and press down the POWER button for 3 second will turn the printer off. - Page 20 User Manual Compuprint 6210 LEDS 4 dual-color LED - Power On, Battery Capacity, Status Information (Wireless) , Status Information (Media): POWER BATTERY COMMUNICATION ERROR Turn off POWER Turn on Without battery Power off Battery power supply as normal recharge finish...
-
Page 21: Lcd Interface Introduction (Only Model With Lcd Display)
Turn on the printer After the printer starts, Compuprint Logo will appear on the LCD screen, which means that the printer is ready to print in the state. Use the printer's user interface can perform various operation, such action is set on... -
Page 22: Lcd Setting Items In Setting Mode
User Manual Compuprint 6210 3.2.1 Setting Items in Setting Mode Self Test Activate Darkness 0-19 ADJUST STOP POSITION 0-10 Reflective SENSOR Media Type See-Through Auto English 簡體中文 繁體中文 Español LCD Language Italiano Deutsch Français T ürkçe 日本語 Code Page Windows 1250... - Page 23 User Manual Compuprint 6210 Setting Items in Setting Mode cont’d Baud Rate 4800 9600 19200 38400 57600 115200 COMPORT Parity None Even Data Bits Stop Bits MAN10xxx-01...
-
Page 24: Label Calibration And Self Test
User Manual Compuprint 6210 Label Calibration and Self Test Label Calibration The printer can automatically detect and store label height. That means the host computer does not need to transmit the label height to the printer. Self Test Self-test function lets you check whether the printer is functioning normally. -
Page 25: Active / Sleep / Shutdown / Charge Mode
User Manual Compuprint 6210 Active / Sleep / Shutdown / Charge Mode Sleep Mode = LED active. Power saving model. Active Mode All functions active. On active mode, receiving a print job. Go to Sleep mode if no operation over 30~3600 seconds in Active mode. -
Page 26: Bluetooth Connection Terminal
User Manual Compuprint 6210 Bluetooth Connection Terminal The printer can be connected to devices equipped with Bluetooth communication capability. 1- Press power button to turn on the printer. 2- Press Bluetooth button, bluetooth function is turned. So that the printer can be searched. -
Page 27: Accessories
User Manual Compuprint 6210 Accessories 4.1 Charger The printer can be connected to devices equipped with Bluetooth communication capability. Connect the AC adpter to the Charger. Insert the battery into the Charger as shown in the figure the below. Gently slide the battery until it reaches the bottom of the charger. -
Page 28: Car Charger And Rs-232 Cable
User Manual Compuprint 6210 4.2 Charger and RS-232 Cable Please make sure that the printer is switched off. (Connect the car charger to your car’s cigarette lighter jack.) Open the external interface protection cap. Connect the mini USB cable(battery charger) to the power connector... -
Page 29: Protective Case
User Manual Compuprint 6210 4.3 Protective Case Unzip to open up the protective case and insert your printer into the protective case as shown in the figure on below. Open the paper discharger when using the printer Conenct the clips of the leather case with the shoulder strap. -
Page 30: Maintenance And Adjustment
User Manual Compuprint 6210 Maintenance and Adjustments 5.1 Cleaning the Thermal Print Head Dirt on the print head, or glue residue from the label stock may result in inadequate print quality. The printer cover must therefore always be closed during printing. Keeping dirt and dust away from the paper or labels ensures a good print quality and a longer lifespan of the print head. -
Page 31: Troubleshooting
User Manual Compuprint 6210 5.2 Troubleshooting Problem Solution The printer is switched on but the LED ♦ Check if the battery is ull charged. does not light up. The LED lights up red and printing is ♦ Check the software settings (driver settings) or interrupted. -
Page 32: Appendix
Media Min 0,0508 mm Max 0.165 mm Thickness Media roll Max 2.35“ (60 mm) diameter CZL (Compuprint Zebra Language Printer Language CEL (Compuprint Eltron Language) Label design GoLabel (for EZPL only) software Win CE, .NET, Pocket PC, Windows Mobile, MAC O.S., Windows... - Page 33 User Manual Compuprint 6210 Model 6210 Switching power supply Power Adapter I/P: 100/240 VAC, 50/60 Hz. DC 9V/2.0 A Auto Switching 100-240VAC, 50-60Hz Battery Operation 32°F to 122°F(0°C to 50°C) Temperature Environment Storage -4°F to 140°F (-20°C to 60°C) Temperature...
-
Page 34: Interface
User Manual Compuprint 6210 INTERFACE Pinout Description USB Port (mini-B Type) Pin No. Function VBUS MAN10xxx-01... - Page 36 SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. This manual refers to various company and products by their trade names. In most of the cases, these designations are claimed as trademarks or registered tramarkers by their respective companies. Copyright 2015 COMPUPRINT s.r.l. - Printed in Italy...
