Connecting Optional Devices

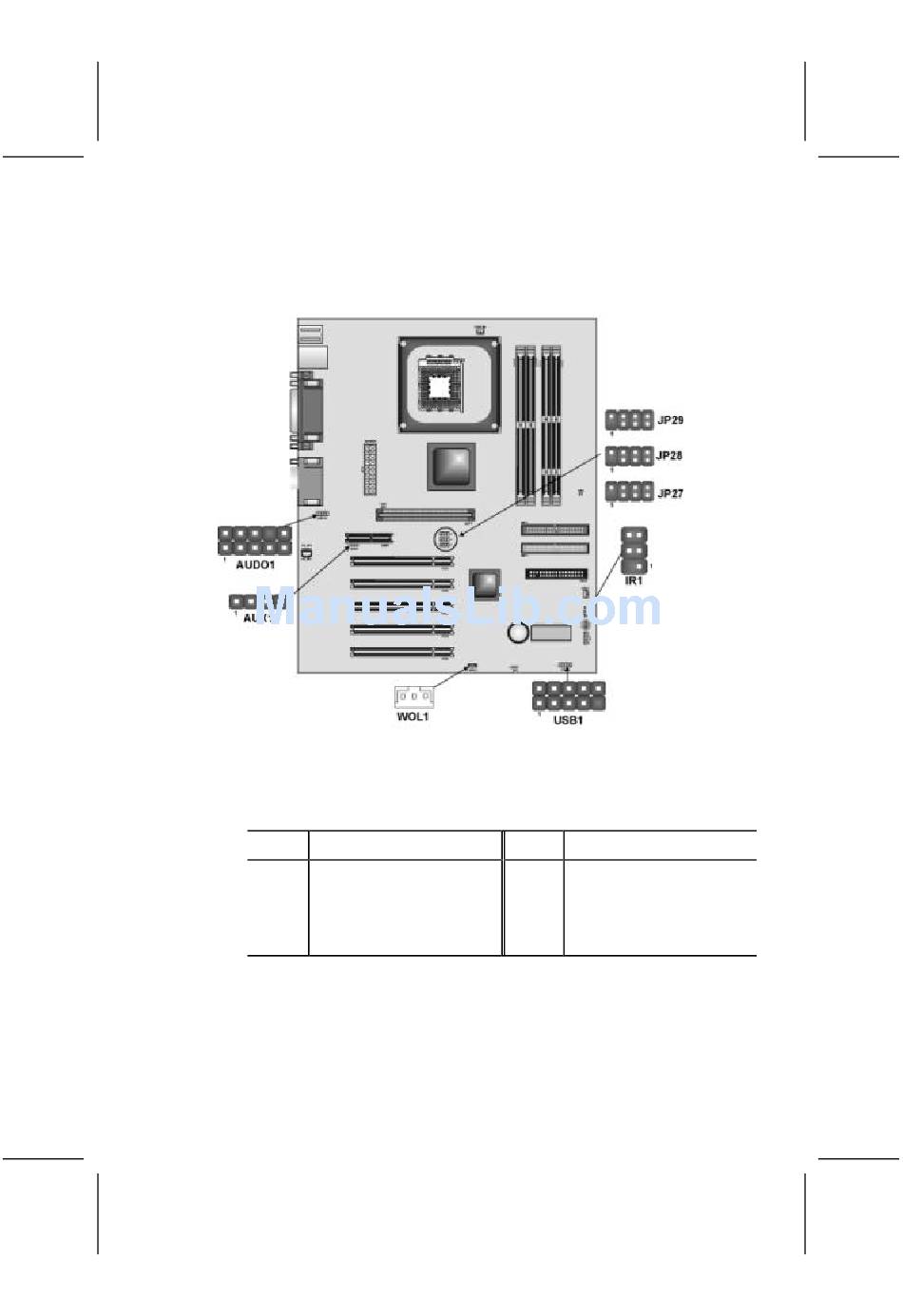

Refer to the following for information on connecting the mainboard's optional
devices:
AUDO1: Front panel MIC/Speaker Out header
This header allows the user to install auxiliary front-oriented microphone and
line-out ports for easier access.
Pin Signal Name
1 MICIN
3 MIC-P 3
5 FPOUT-R 5
7 NC
9 FPOUT-L
AUX1: Auxilliary header
On the mainboard, locate the 4-pin Aux-In header AUX1and connect the cable
to the connector.
Pin Signal Name
2 GND
4 VCC
6 RET-R
8 KEY
10 RET-L
19
