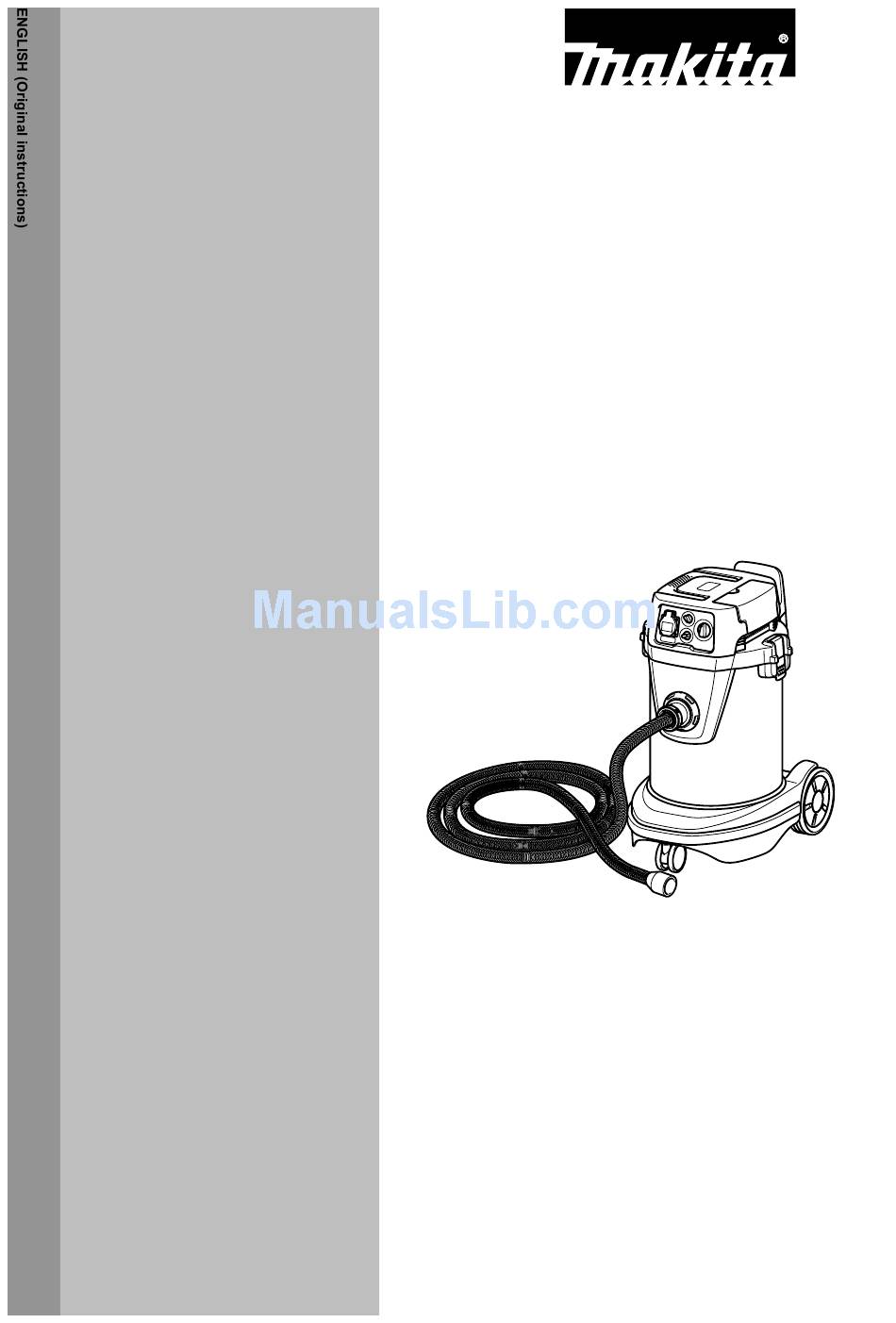

Page 1: Vacuum Cleaner
INSTRUCTION MANUAL Vacuum Cleaner VC3211M 013368 IMPORTANT: Read Before Using. -
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model VC3211M Countries Switzerland Voltage Volt 230-240 230-240 230-240 Power consumption Watt 1050 1050 1050 1050 Watt at symbol mode 2400 1100 1900 Connected load for appliance socket Watt at symbol mode 2600 1400 2100 Total connected load... - Page 3 VOLTAGE WARNING: Before connecting the Makita Corporation responsible cleaner to a power source (receptacle, outlet, manufacturer declare that the following Makita etc.) be sure the voltage supplied is the same machine(s): as that specified on the nameplate of the Designation of Machine: cleaner.
- Page 4 receptacle. Keep cord away from heat, oil, and 30. Do not operate this or any tool while under sharp edges. Inspect cleaner cords the influence of drugs or alcohol. periodically and if damaged, have repaired by 31. As a basic rule of safety, use safety goggles authorized service facility.
-
Page 5: Functional Description
When the tank is filled with liquid, the cleaner emits long FUNCTIONAL DESCRIPTION warning beep. When the tank is full and the beep sounds, switch off the cleaner and empty the tank. WARNING: Before plugging the cleaner, always make sure •... - Page 6 Storing the power supply cord 1. Hose band 1. Base hook 2. Power supply cord 013479 When connecting an electric power tool, secure 013461 the power supply cord and hose by the hose NOTICE: bands at regular distance. It prevents the hose Do not use the cleaner or a connected electric •...
- Page 7 Locking or unlocking the caster 1. Filter bag 1. FREE position 2. LOCK position 3. Stopper lever 4. Caster 013377 Extend the filter bag. 013482 To lock the caster with a stopper, lower the stopper lever 1. Filter bag and the caster no longer will rotate. To release the caster from the locked position, raise the stopper lever.
- Page 8 Hook up the other side of the bag around the top of the tank so that the prefilter hook can catch and hold it securely NOTE: A polyethylene bag available on the market can be • used. 0.04 thicker recommended. Too much dust will tear the bag easily, so do not •...
-
Page 9: Operation
Check the filters periodically. If there is a tear on it, • replace it immediately. Removing the air filter CAUTION: Wait for about 5 minutes so that dust in the tank • completely settles down. Make sure that the tool is unplugged. •... - Page 10 Remove the air filters from the tank cover carefully and The level sensors detect liquid when the tank becomes tie the plastic bag firmly. full with liquid. Clean the level sensors with a soft cloth from time to time when changing the air filters. Assembling the air filter Cleaning the air filters When you get the air filter components separately,...
-
Page 11: Optional Accessories
Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Hose 013382 • The pipes can be placed into the pipe holder when also Front cuffs (22, 24, 38) •... - Page 12 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan www.makita.com 885182A223...
