Summary of Contents for CTC Union ecoflex

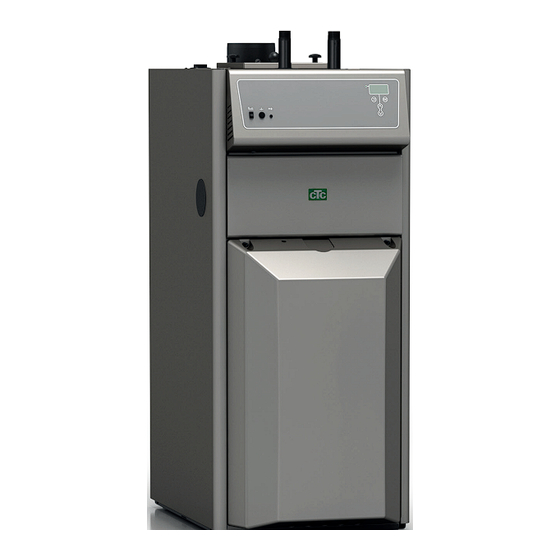

- Page 1 162 105 01-4 2015-11–05 Providing sustainable energy solutions worldwide Installation- and maintenance manual CTC EcoFlex Wood pellet boiler IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE...
- Page 3 Installation- and maintenance manual 162 105 01-4 2015-11–05 CTC EcoFlex Wood pellet boiler 42 15 03...
-
Page 4: Table Of Contents
END USER INFORMATION Hydraulic installation ______________________ 44 Control panel _____________________________ 14 10. Electrical installation _______________________ 47 CTC EcoFlex menu map ___________________ 16 11. Terminal block ____________________________ 48 Detailed menu description _________________ 18 12. First start _________________________________ 52 Factory set values __________________________ 18 13. -
Page 5: General Information
CTC EcoFlex is equipped with a large ash bin to make maintenance easier. Sweeping is usually carried out from CTC EcoFlex wood pellet boiler the top. -
Page 6: Safety Regulations
General Information The way CTC EcoFlex is designed makes it very simple to install. The small dimensions mean that it can be installed in boiler rooms, which are often very small. Most pipe fittings are on the top of the boiler. Electrical installation is to a terminal block behind the control panel. -
Page 7: Pellet Quality
Ø Bulk density > 600 kg/m Fines in % <3mm < 0,8 Moisture content < 10 % Ash content < 0,7 % Calorific value > 16,9 Mj/kg > 4,7 kWh/kg Sulphur < 0,08 % Chlorine < 0,03% CTC EcoFlex... -
Page 8: Design Ctc Ecoflex
General Information Design CTC EcoFlex The principle boiler body components are made of welded steel plates. The boiler is pressure and tightness tested at the factory, insulated with skin-tight heat insulation and clad with powder coated steel sheets. Ändr.meddel. Datum Ändrad från... -
Page 9: Design Pellet Burner
Hearth Primary Gear wheel ring lock Driving motor Rotary valve (concealed) (inside the housing) Flame detector Top connection Counterhold plate Primary air tube Dosage Ignition element auger Rotary valve Burner auger Insulation Connection plate Boiler front Water mantle CTC EcoFlex... -
Page 10: Safety/Alarm
This safety zone remains intact, irrespective of power failure, maintenance failures or equipment breakdown. Safety has become a part of operation. CTC EcoFlex... -
Page 11: Heating Curve
• Outdoor temperature is not higher than +5°C. (If the outdoor temperature is higher when the system is installed, use the factory set graph until the outdoor temperature falls to this level.) • The radiator system functions well and is correctly adjusted for the different circuits. CTC EcoFlex... - Page 12 -15 °C. Outside Temperature Adjustment Adjustment Primary Flow Temperature The curve can be parallel displaced (adjusted) by Inclination 50 °C the desired number of degrees to adapt to different Adjustment 0 °C systems/houses. Inclination 50 °C Adjustment +5 °C Outside Temperature CTC EcoFlex...
- Page 13 Indoor°C. To low adjusted values might imply that the required indoor temperature is not being reached. Then you have to adjust the heating curve according to need. CTC EcoFlex...
-
Page 14: End User Information
Safety limit thermostat is triggered when the temperature in the boiler becomes too high. Reset by pressing the centre button under the cover casing. 3 Fuse 10 A The fuse protects the heating circuit pump. Reset by pressing the centre button. CTC EcoFlex... - Page 15 Use the button to increase or reduce a value. The button can also be used to move the row marker upwards or downwards. Button – “Alarm reset” Use this button to reset the product after an alarm has been triggered. CTC EcoFlex...
-
Page 16: Ctc Ecoflex Menu Map
End user information 2. CTC EcoFlex menu map Time setting Thursday Time 18:03 Indoor temp ● ● ● ● + (52) Operation data Outdoor °C Indoor °C 20(20) Boiler °C FlueGas °C Primfl . °C 45(45) ▼ Operation data ▲... - Page 17 El ignition Funct. test other ElRelay 1,5/3 kW ► ElRelay 3/6 kW Pellet Service Heatingcirpump. Functiontest pellets ► MixingValve Close Funktionstest other DHW pump Alarm info Diode sensor Alarm stored Last alarm xxxxx Stored alarm xxxxx xxxxx xxxxx xxxxx CTC EcoFlex...
-
Page 18: Detailed Menu Description
Indoor temp red °C peratures, which components are active etc. Prim red °C WeekProgram Stored oper data Select this menu to view the operating data which has been stored over a longer time period. Installer Settings ► Service CTC EcoFlex... -
Page 19: Menu Time Setting
Prim red °C WeekProgram Night reduction Service Activated No/Yes ► Installer Functiontest pellets ► Type WeekProg With indoor sensor Funktionstest other Indoor temp red °C Without indoor sensor Settings ► Alarm info Prim red °C Service WeekProgram CTC EcoFlex Installer... -
Page 20: Menu Operation Data
Displays whether the mixing valve valve increases/opens or reduces/closes the heat supplied to the heating system. When the correct temperature has been supplied, the valve solenoid then remains stationary. Control program identity. Program ID 1011111 Control program version date. Prog date 06-01-11 CTC EcoFlex... -
Page 21: Menu Stored Operation Data
The schedule repeats every week. Block means that lowering is scheduled for several days of the week, for example Monday to Friday. Two lower temperature periods can be scheduled. The schedule repeats every week. CTC EcoFlex... -
Page 22: Menu Week Program
Set the day and time at which the temperature is to be returned to normal. If two lowering periods are required in the week, they are programmed in chronologic order. E.g.: Decr. Sunday 6:00 pm Incr. Wednesday 4:00 pm Decr. Thursday 9:00 pm Incr. Friday 4:00 pm CTC EcoFlex... -
Page 23: Menu Installer
Temp tank °C I. The control system contains functions for connecting a system with Heat pump Diff °C EcoFlex to heat pump CTC EcoAir or CTC EcoPart. See the separate Tank prio instructions book. (Only Swedish version with DHW-heat exchanger) I. - Page 24 Load factory setting I/U. The product is supplied with factory settings. These can be restored by using this function. Confirm using “OK”. Language, product and product size are however not reset. CTC EcoFlex...
-
Page 25: Menu Setting House Parameters (Heating)
0. If the adjustment is set to +5, the temperature is xxxxx Stored alarm 55°C. The graph is increased by 5°C at all outdoor temperatures, i.e. the xxxxx graph is parallel displaced by 5°C. xxxxx xxxxx xxxxx CTC EcoFlex... -
Page 26: Menu Setting Pellet
Flame detector % 99(50) Burner type kW Pellet burner parameters are set in this menu. CTC EcoFlex is supplied with Power full auger % the pellet burner set for most normal heating systems. Changes are only to Power full fan %... -
Page 27: Menu Inst Tank
If no button is pressed within a 10 minute period, the product automatically ElRelay 3/6 kW returns to normal operation. Pellet Heatingcirpump. Auger Feeder Activation of feed auger. MixingValve Close DHW pump Diode sensor Alarm stored Last alarm xxxxx Stored alarm xxxxx xxxxx xxxxx xxxxx CTC EcoFlex... -
Page 28: Menu Function Test Other
Immersion heater 3kW semi activated. First relay 1a (1.5kW), then relay 1b ElRelay 1,5/3kW xxxxx (3kW). Connected power is displayed. (Only Swedish version.) Immersion heater 6kW semi activated. First relay 2a (3kW), then relay 2b ElRelay 3/6kW (6kW). Connected power is displayed. (Only Swedish version.) CTC EcoFlex... -
Page 29: Menu Alarm Info
Latest alarm Displays the last alarm in text form. Stored alarm Displays the three previous alarms. If all four alarms are of the same alarm type, this can indicate an intermittent fault, for example a bad contact. CTC EcoFlex... -
Page 30: Operation And Maintenance
• That the room sensor position is representative for the house. • That radiator thermostats do not affect the room sensor. • That no secondary heat source/cold source affects the indoor sensor. • That the shunt is not in the manual position. CTC EcoFlex... - Page 31 Summer basement heating Background heating in basements/recreation room/bathrooms is often required in the summer months, to avoid damp air. Your EcoFlex can provide this by you setting a “minimum permitted primary flow temperature” to a suitable temperature (15–65°C). See the Installer/Settings/Setting heating/ Min Primfl.
- Page 32 End user information Load monitor EcoFlex has a load monitor. If the system is fitted with a current sensor, the house’s main fuses are then continuously monitored to ensure they are not overloaded. If overloading occurs, an electrical step on the electric cartridge heater is disconnected.
-
Page 33: Start/Stop Of The Pellet Burner
4 degrees below the set point value, at which point the part power load is reactivated. The first time the burner is started or if it is empty of pellet for any other reason, an additional restart may be required after around 3 minutes of operation. CTC EcoFlex... -
Page 34: Cleaning
Cleaning the boiler All combustion using solid fuels, even though automated, normally requires a little more maintenance and service than oil fired units. CTC EcoFlex has been designed to minimise the need for maintenance. Ash emptying is carried out as required. Cleaning of the boiler’s convection surfaces (combustion chamber and heating surfaces) should be carried out regularly, cleaning of the boiler’s combustion chamber should be carried out as... - Page 35 Sintering is due to contaminants in the fuel and a claim should immediately be submitted to the fuel supplier. Only use pellets fuel which meets standard SS 187120 class 1. CTC EcoFlex...
-
Page 36: Alarm And Fault Tracing/Measures
Clean the boiler as specified in the maintenance section Note: This alarm does not stop the pellet burner. This can be used as a reminder that it is time to clean the boiler, where a suitable alarm level is set. CTC EcoFlex... -
Page 37: Alarm Texts (Pellet Burner)
The motor will not start before it has cooled. Do not forget to check whether the auger helix is blocked. If it is, unblock by hand using suitable measures. Call a service technician if there is a fault on the motor. CTC EcoFlex... - Page 38 Check the flame detector. If ignition is not sucessful after two start attempts, check the ignition element function, see Installer/ Service/ Functiontest pellet / El. ignition If the ignition element does not function, call in a service technician. CTC EcoFlex...
- Page 39 Fuse ext auger The fuse has been triggered for the external auger. Fault: Alarm The fuse has been triggered for the auger inside the burner. Fuse auger Fault: Alarm The fuse has been triggered for the burner fan. Fuse fan CTC EcoFlex...
-
Page 40: Information Texts
Operation data House heating off shut off and the mixing valve remains closed. The pump is exercised daily Outdoor temperature xx °C for a short period so that it does not jam. Current outdoor temperature is also displayed. CTC EcoFlex... -
Page 41: Installation
General This chapter is for those who are responsible for one or more of the installations required for CTC EcoFlex to function as the property owner wishes. Take the time required to go through the functions, controls and settings with the property owner and answer any questions he/she may have. -
Page 42: Connection To Chimney
15 kW is it in exceptional cases possible to use stainless steel chimney of 90 mm diametet. To less cross section area of the chimney results in insufficient draught in the boiler which may lead to operation disturbances. Recommended chimney draught is 0,1 - 2,5 mBar. CTC EcoFlex... - Page 43 The pellet tube outlet can alternatively be moved up into the hood by the connection of a 1.5 metres feed auger. The feeding time for external feed auger is on the CTC EcoFlex factory pre-set to 30 seconds. By the connection of a feed auger from other manufacturers, the feeding time might need some adjustment.
-
Page 44: Hydraulic Installation
The safety valve drain pipe must be uncovered and visible. Possible exhausting high temperature hot water must without danger be removed (Caution! Risk of scalding!). Return temperature The temperature of the return flow (at connection number 4, page 50)must not be lower than 50 °C. CTC EcoFlex... -
Page 45: Heating Circuit Pump
Connection of DHW storage tank (water heater) If the CTC EcoFlex will be combined together with DHW storage tank, it is of high importance that it’s size and power capacity corresponds to the installed boiler output. The installation must correspond to existing building regulations. - Page 46 2006-06-07/SJ different, for example one or two pipe systems. The completed installation can therefore differ from what is shown here. T 11 Legend CTC EcoFlex Pellet boiler Safety valve Heating circuit mixing valve Drain valve (in delivery) Heating circuit pump...
-
Page 47: Electrical Installation
Place the sensor at around Å hight of the facade near a corner, but not under roof projections or other wind protection. Do not position above ventilation ducts, doors and windows where the sensor can be affected by other elements than the outdoor temperature. CTC EcoFlex... -
Page 48: Terminal Block
Reverse valve, only used for systems with heat Additional input for remote control/night pump, see separate instruction (Only Swedish reduction/power supplier control version) DHW storage tank sensor Connection of heating circuit pump 230 V 1 N~ Mixing valve motor CTC EcoFlex... - Page 49 - Connect the cables to the boiler’s terminal block. Sensor block and applied contact paste Connection cables Sensor Primary flow pipe Tensioning band Do not permanently mount the sensor cable before you have tested and found the best position. CTC EcoFlex...
- Page 50 The function is made avaliable by selecting NR in the Settings menu.. Safety limit thermostat (STB) If the boiler has been stored extremely cold, the safety limit thermostat may have been released. Reset by pressing the button under the cover of the panel. CTC EcoFlex...
- Page 51 Note that the rooom sensor alarm function (the diode) cannot be shown in the display, but must be checked as described in the previous section. The current sensor connection has no alarm, but the current value can be read in the Operation data/Current A menu. CTC EcoFlex...
-
Page 52: First Start
When the system is warm, check that all connections are tight, that the varios systems are bled, that the heat comes out of the system and that hot water comes out of the tapping point. Go through the settings with the user. CTC EcoFlex... -
Page 53: Electric Diagram 230V 1N
Installation 13. Electric diagram 230V 1N~ CTC EcoFlex... -
Page 54: Electric Diagram 400V 3N
Installation 14. Electric diagram 400V 3N~ CTC EcoFlex... -
Page 55: Technical Data
Installation 15. Technical data CTC EcoFlex 14,6 kW Rated output Pellet Rated input Pellet 15,87 kW Boiler efficiency 92 % Output range Pellet 5-15 kW Output steps from factory Pellet Full/Part/Min 15/9/0 kW Output range immersion heater (Swedish version only) -
Page 56: Declaration Of Conformity
CTC EcoFlex... - Page 60 Enertech AB. P.O Box 309 SE-341 26 Ljungby Sweden. www.ctc.se, www.ctc-heating.com...
