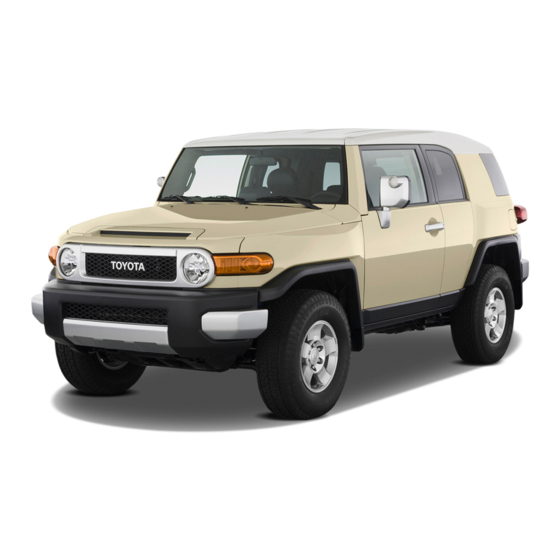

Toyota 2011 FJ Cruiser Service Manual

Toyota 2011 FJ Cruiser Service Manual

Hide thumbs Also See for 2011 FJ Cruiser:

Datasheet (5 pages)

,

Quick reference manual (25 pages)

Table Of Contents

page of 544

/ 544
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Abbreviation list

Abbreviation/Acronym list

ABBREVIATIONS

2WD

4WD

ABS

ACC

AI-SHIFT

ALR

A-TRAC

AUTO LSD

CRS

E/M

ECU

EDR

ELR

GAWR

GVWR

I/M

INT

LATCH

LED

LT

M + S

MMT

MTBE

OBD

RES

RR DIFF LOCK

SRS

512

MEANING

Two Wheel Drive

Four Wheel Drive

Anti-Lock Brake System

Accessory

Artificial Intelligence shifting

Automatic Locking Retractor

Active Traction Control

Automatic Limited Slip Differential

Child Restraint System

English/U.S. Customary System and metric

Electronic Control Unit

Event Data Recorder

Emergency Locking Retractor

Gross Axle Weight Rating

Gross Vehicle Weight Rating

Emission inspection and maintenance

Intermittent

Lower Anchors and Tethers for Children

Light Emitting Diode

Light truck

Mud + Snow

Methylcy clopentadienyl Manganese Tricarbonyl

Methyl Tertiary Butyl Ether

On Board Diagnostics

Resume

Rear differential lock

Supplemental Restraint System

I n f o r ma t i o n P r o v i d e d b y :

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the 2011 FJ Cruiser and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota 2011 FJ Cruiser

Page 1 Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING Two Wheel Drive Four Wheel Drive Anti-Lock Brake System Accessory AI-SHIFT Artificial Intelligence shifting Automatic Locking Retractor A-TRAC Active Traction Control AUTO LSD Automatic Limited Slip Differential Child Restraint System English/U.S. Customary System and metric Electronic Control Unit Event Data Recorder Emergency Locking Retractor...
Page 2 ABBREVIATIONS MEANING Tire Identification Number TPMS Tire Pressure Warning System TRAC/TRC Traction Control Treadwear indicators Vehicle Identification Number Vehicle Stability Control I n f o r ma t i o n P r o v i d e d b y :...
Page 3 Accessories, spare parts and modification of your Toyota A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 4 Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Page 5 CAUTION General precautions while driving Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.
Page 6 This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Page 7 TABLE OF CONTENTS Adjusting and operating features such as door locks, Before driving mirrors, and steering column. When driving Driving, stopping and safe-driving information. Interior Air conditioning and audio systems, as well as other in- features terior features for a comfortable driving experience. Maintenance Cleaning and protecting your vehicle, performing do-it- and care...
Page 8 Pictorial index Exterior Outside rear view mirror ∗ illumination lights P. 143 Windshield wipers P. 145 Hood P. 366 Outside rear view mirrors P. 66 Headlights and daytime ∗ running lights Front turn signal/parking and front P. 143, 144 side marker lights P.
Page 9 Stop/tail and rear side marker lights P. 143 Fuel filler door P. 71 Access doors P. 34 Side doors P. 31 Tires Rotation P. 381 Replacement P. 440 Inflation pressure P. 387 Rear turn signal lights P. 131 Information P. 482 ∗...
Page 10 Pictorial index Exterior Glass hatch P. 41 ∗ Rear window wiper P. 147 Rear window defogger P. 213 Back door P. 36 License plate lights P. 143 ∗ : If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 11 Pictorial index Interior Seat belts P. 56 Head restraints P. 53 SRS driver airbag P. 79 Bottle holders Horn P. 134 P. 323 Auxiliary box P. 324 SRS front passenger airbag P. 79 Rear seats P. 47 Floor mats P. 337 Cup holders Front seats P.
Page 12 Pictorial index Interior Sun visors P. 325 Interior lights P. 316 Vanity mirrors P. 326 SRS curtain shield airbags P. 79 Personal lights P. 317 Anti-glare inside rear view mirror P. 63 ∗ Rear view monitor system P. 157 I n f o r ma t i o n P r o v i d e d b y :...
Page 13 Inside door lock button P. 32 Door lock switch P. 31 Window lock switch P. 69 Power window switches P. 69 ∗ : If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 14 Pictorial index Interior Automatic transmission Front-wheel drive control Shift lever P. 127 Cup holders ∗ lever P. 164 P. 319 Parking brake lever P. 132 Shift lock override Cup holders P. 319 button P. 454 Manual transmission Four-wheel drive control Shift lever P.
Page 15 Pictorial index Instrument panel Headlight switch P. 143 Turn signal lever P. 131 Gauges and meters P. 135 Windshield wipers and washer switch P. 145 Rear window wiper and ∗ washer switch P. 147 ∗ Accessory meter P. 141 Glove box P.
Page 16 Pictorial index Instrument panel Clock P. 327 Emergency flasher switch P. 420 Audio system P. 214 Security indicator P. 74 Air conditioning system P. 206 Rear window defogger switch P. 213 I n f o r ma t i o n P r o v i d e d b y :...
Page 17 VSC OFF switch P. 169, 176, 177 ∗ RR DIFF LOCK switch P. 171 ∗ A-TRAC switch P. 167 Power outlet P. 329 AUX port/USB port P. 240, 247, 258 ∗ Intuitive parking assist switch P. 152 ∗ Power outlet main switch P.
Page 18 Pictorial index Instrument panel Engine (ignition) switch P. 124 I n f o r ma t i o n P r o v i d e d b y :...
Page 19 Telephone switch P. 283 Audio remote control switches P. 259 Talk switch P. 283 ∗ Cruise control switch P. 148 ∗ : If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 20 Pictorial index Instrument panel Instrument panel light control dial P. 136 Tilt steering lock release lever P. 62 RSCA OFF switch P. 90 ∗ CLUTCH START CANCEL switch P. 174 ∗ Outside rear view mirror switches P. 66 ∗ : If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 21 Pictorial index Luggage compartment Child restraint anchor brackets P. 101 Tie-down hooks P. 340 I n f o r ma t i o n P r o v i d e d b y :...
Page 22 Pictorial index Luggage compartment Shopping bag hooks P. 342 Cargo net hooks P. 341 Jack P. 440 Tools P. 440 Shopping bag hooks P. 342 Cargo net hooks P. 341 Luggage storage P. 339 ∗ Power outlet P. 330 ∗ : If equipped : Vehicles without sub woofer I n f o r ma t i o n P r o v i d e d b y :...
Page 23 FJ CRUISER 2 0 1 1 QUICK REFERENCE GUIDE I n f o r ma t i o n P r o v i d e d b y :...
Page 24 Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations. Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new FJ Cruiser.
Page 25 Spare tire & tools Tire Pressure Monitoring (warning) System Visit your Toyota dealer for information on this and other customizable options. I n f o r ma t i o n P r o v i d e d b y :...
Page 26 OVERVIEW Instrument panel Steering wheel controls Instrument panel light control Power outside rearview mirror controls Clutch start cancel switch Roll Sensing of Curtain shield Airbag OFF switch Tilt steering lock release Headlight and turn signal control Wiper and washer controls Ignition switch Emergency flasher button Clock...
Page 27 Rear differential lock button Active traction control switch Power outlet AUX or USB/AUX port Intuitive parking assist switch Power outlet main switch Cruise control Hood release Volume control switch (for audio) “ ” button (for audio) “MODE” button (for audio) Telephone controls Voice command button If equipped...
Page 28 OVERVIEW Instrument cluster Tachometer Service indicators Speedometer Voltmeter Automatic Transmission indicator Engine coolant temperature Fuel gauge Trip meter reset knob Odometer and two trip meters Indicator symbols Brake system warning Driver/Front passenger seat belt reminder (alarm will sound if speed is over 12 mph) Battery warning Low engine oil pressure warning Malfunction/Check Engine indicator...
Page 29 Airbag SRS warning Automatic Transmission fluid temperature warning Unengaged Park warning Low Tire Pressure Warning Engine immobilizer system indicator Front passenger occupant classification indicator Headlight high beam indicator Turn signal indicator Automatic Transmission indicator Rear differential lock indicator Center differential lock indicator Vehicle Stability Control OFF indicator Four-wheel drive indicator Slip indicator...
Page 30 OVERVIEW Fuel tank door release and cap NOTE: Tighten Turn to open until one click is heard. If the cap is Pull not tightened enough, Check Engine “ ” indicator may illuminate. Keyless entry (if equipped) Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more details.
Page 31 Hood release Pull up latch and raise hood Pull Engine maintenance Windshield washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”...
Page 32 FEATURES/OPERATIONS Automatic Transmission (if equipped) Park* Reverse Neutral Drive Fourth gear Third gear Second gear First gear * The key must be in the “ON” position and the brake pedal depressed to shift from Park. Downshifting increases power going uphill, or provides engine braking downhill.
Page 33 Four-wheel drive (if equipped) Part-time four-wheel drive models (Automatic Transmission) High speed (2WD) High speed (4WD) Shift to “H4” with speed below 50 mph. Low speed (4WD) Stop vehicle, shift to “N” position, then move the lever to “L4.” NOTE: For best fuel economy and performance under normal driving conditions, shift vehicle into “H2”...
Page 34 FEATURES/OPERATIONS Parking brake Release (2) Push (1) Pull slightly Pull (3) Lower Seat adjustments-Front Seat position (forward/backward) Cushion angle (driver side only) Height crank (driver side only) Seatback angle Seats-Head restraints Lock release button I n f o r ma t i o n P r o v i d e d b y :...
Page 35 Seats-Folding rear seats (4) Pull up (2) Remove (1) Push (5) Push down (6) Fold-down (3) Stow Seats-Removing rear seats (2) Loosen (1) Pull up (3) Separate (4) Fold I n f o r ma t i o n P r o v i d e d b y :...
Page 36 FEATURES/OPERATIONS Lights & turn signals Headlights Low beam Headlights High beam flasher Parking lights High beam -Automatic light cutoff system Automatically turns lights off after 30 seconds when all doors are closed with the key in “ACC” or “LOCK.” Lights may also be turned off by pushing lock button on remote after locking.
Page 37 Windows Driver side Window lock switch Down Automatic down operation (driver side only) Push the switch completely down and release to fully open. To stop window at any point, lightly pull the switch up. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
Page 38 FEATURES/OPERATIONS Audio Type 1 Eject CD Preset buttons-functions in other modes indicated above number Station/CD View radio and track scan CD information Push to adjust Push to turn tone & balance ON/OFF Mute/playback Mode /pause Menu Push to skip Seek station/ Setting preset up/down CD track select...
Page 39 Steering wheel switches Volume control “ ” ® Use to search within the selected audio medium (radio, CD, iPod , etc.). “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn audio OFF. AUX port/USB port AUX port By inserting a mini plug into the AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX...
Page 40 FEATURES/OPERATIONS Air Conditioning/Heating Recirculated cabin air (fresh air when OFF) Air Conditioning ON/OFF Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only. Temperature selector Select for maximum cooling. Air intake will automatically be set to recirculate.
Page 41 Refer to “Using the hands-free phone system (for cellular phones),” Section 3-4 in the Owner’s Manual, or go to Toyota.LetsTalk.com for more information about phone connections and compatibility. Cruise control (if equipped)
Page 42 FEATURES/OPERATIONS VSC OFF button VSC OFF button The VSC OFF button is used to switch between modes related to the TRAC, VSC and Auto LSD functions. Refer to Section 2-4 of the Owner’s Manual for more information. Power outlet-12V DC Instrument panel Key must be in the “ACC”...
Page 43 Light control-Instrument panel Brightness control Bottle holders-Rear seat Cup holders Automatic Manual Transmission models Transmission models Rear console I n f o r ma t i o n P r o v i d e d b y :...
Page 44 If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer. Refer to the Owner’s Manual for more details.
Page 45 Spare tire & tools Tool location Tool bag Jack Removing the spare tire (vehicles without rear view monitor system) Turn the hold-down nuts counterclockwise and remove. Removing the spare tire (vehicles with rear view monitor system) (1) Remove the bolt cover. (2) Remove the bolt that fixes the spare wheel cover in place.
Page 46 CUSTOMER EXPERIENCE CENTER 1-800-331-4331 Printed in U.S.A. 11/10 Cert no. SGSNA-COC-005612 10-TCS-03976 00505-QRG11-FJ I n f o r ma t i o n P r o v i d e d b y :...
Page 47 Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 455)
Page 48 1-1. Key information NOTICE To prevent key damage Do not subject the keys to strong shocks, expose them to high tempera- tures by placing them in direct sunlight, or get them wet. Do not expose the keys to electromagnetic materials or attach any mate- rial that blocks electromagnetic waves to the key surface.
Page 49 1-2. Opening, closing and locking the doors ∗ Wireless remote control The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle. Locks all doors Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.
Page 50 When a wireless key (that emits radio waves) is being used nearby When the wireless key has been left near an electrical appliance such as a personal computer Customization that can be configured at Toyota dealer Settings (e.g. wireless remote control system) can be changed. (Customizable features →P. 493)
Page 51 1-2. Opening, closing and locking the doors Certification for wireless remote control For vehicles sold in U.S.A. FCC ID: HYQ12BBT FCC ID: HYQ13BBL NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 52 1-2. Opening, closing and locking the doors Side doors The vehicle can be locked/unlocked using the wireless remote con- trol, key or door lock switch. Wireless remote control (if equipped) →P. 28 Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door, and turning the key again...
Page 53 1-2. Opening, closing and locking the doors Passenger’s door lock switch Locks all doors Unlocks all doors Inside door lock button Locks the door Unlocks the door Pulling the inside handle can open the front door even if the inside door lock button is in the lock position.
Page 54 A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key. Customization that can be configured at Toyota dealer Settings (e.g. unlocking function using a key) can be changed.
Page 55 1-2. Opening, closing and locking the doors Access doors The access door (rear door) can be opened using the inside handle. Open the front door widely Pull (from the outside) or push (from the inside) the inside handle of the access door.
Page 56 1-2. Opening, closing and locking the doors NOTICE When opening or closing the front door and access door The front door and access door could be damaged if they hit each other when being opened or closed. I n f o r ma t i o n P r o v i d e d b y :...
Page 57 1-2. Opening, closing and locking the doors Back door The back door can be locked/unlocked using a key, wireless remote control or door lock switch. Wireless remote control (if equipped) →P. 28 Unlocks the back door Locks the back door Opens the back door When you turn the key clock- wise and hold it for about 1...
Page 58 1-2. Opening, closing and locking the doors Back door fixing function The back door can be held in the following positions: Half open position Open the back door to the half open position. It cannot be held in this posi- tion when being closed.
Page 59 1-2. Opening, closing and locking the doors Rear step bumper For rear end protection and eas- ier step-up loading. To get on the rear step bumper, use the shaded area in the illus- tration. CAUTION Caution while driving Keep the back door closed while driving. If the back door is left open, it may hit near-by objects while driving or lug- gage may be unexpectedly thrown out, causing an accident.
Page 60 Doing so may cause hands to be caught or the back door damper stay to break, causing an accident. Do not attach any accessories other than genuine Toyota parts to the back door. Such additional weight on the back door may cause the back door to closed again after it is opened.
Page 61 Do not touch the damper stay rod with gloves or other fabric items. Do not attach any accessories other than genuine Toyota parts to the back door. Do not place your hand on the damper stay or apply vertical forces to it.
Page 62 1-2. Opening, closing and locking the doors Glass hatch The glass hatch can be opened using the key. Turn the key clockwise and hold it for about 1 second. Raise Opening the glass hatch The glass hatch opens slightly, after the back door is locked. When the rear window wiper is working, the wiper returns to the original position and stops working.
Page 63 1-2. Opening, closing and locking the doors CAUTION Caution while driving Keep the glass hatch closed while driving. If the glass hatch is left open, it may hit near-by objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard.
Page 64 Doing so may cause hands to be caught or the glass hatch damper stay to break, causing an accident. Do not attach any accessories other than genuine Toyota parts to the glass hatch. Such additional weight on the glass hatch may cause the glass hatch to fall closed again after it is opened.
Page 65 Do not touch the damper stay rod with gloves or other fabric items. Do not attach any accessories other Damper stay rod than genuine Toyota parts to the glass hatch. Do not place your hand on the damper stay or apply lateral forces to it.
Page 66 1-3. Adjustable components (seats, mirrors, steering wheel) Front seats Seat position adjustment lever Seat cushion angle adjust- ment knob (driver’s side only) Seat height adjustment lever (driver’s side only) Seatback angle adjustment lever Active head restraints When the occupant’s lower back presses against the seatback during a rear-end collision, the head restraint moves slightly for-...
Page 67 1-3. Adjustable components (seats, mirrors, steering wheel) Active head restraints Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may show the head restraint inner structure. These do not indicate problems. During rear-end collision...
Page 68 1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats The seatbacks of the rear seats can be folded down. Stow the seat belt buckles and remove the head restraints. Swing the bottom cushion up by pulling the lock release strap. I n f o r ma t i o n P r o v i d e d b y :...
Page 69 1-3. Adjustable components (seats, mirrors, steering wheel) Push the lock release button and fold down the seatback. Removing rear seat bottom cushions Loosen the bolts with a wrench at first and turn the dials by hand to remove them. Hexagon head bolt Dial I n f o r ma t i o n P r o v i d e d b y :...
Page 70 1-3. Adjustable components (seats, mirrors, steering wheel) Separate the bottom cushion from the hinge. Fold the hinge as shown in the illustration. I n f o r ma t i o n P r o v i d e d b y :...
Page 71 1-3. Adjustable components (seats, mirrors, steering wheel) If you cannot raise the seatback Release the seat belt lock by: Pushing on the lower front edge of the seatback to slacken the seat belt. Letting the seat belt retract a little. When the bottom cushion is reinstalled Click the claw of the hinge into the hole of the bottom cushion before refastening the...
Page 72 Have the hexagon head bolts tightened with a torque wrench to 12.5 ft·lbf (17 N·m, 1.7 kgf·m), or have them tightened by your Toyota dealer. Failure to do so may cause the dials to be loosened and the bottom cush- ions to be removed.
Page 73 1-3. Adjustable components (seats, mirrors, steering wheel) NOTICE Before folding down or removing the seats The seat belts buckles must be stowed. The head restraints must be removed before you fold down the seatback. After returning the seatback and reinstalling the bottom cushion Return the seat belt buckles to their cor- rect position.
Page 74 1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints Head restraints are provided for all seats. Adjusting the head restraints Front seats Vertical adjustment Pull the head restraints up. Down Push the head restraint down while pushing the lock release Lock release button button.
Page 75 1-3. Adjustable components (seats, mirrors, steering wheel) Removing the head restraints Front seats Pull the head restraint up while pushing the lock release button. Rear seats Pull the head restraint up while pushing the lock release button. Installing the head restraints Front seats Align the head restraint with the installa- tion holes and push it down to the lock...
Page 76 1-3. Adjustable components (seats, mirrors, steering wheel) When installed the rear outboard head restraints to opposite direction Push a flathead screwdriver into the slot. The slot is located on the right side of the right head restraint anchor. While pressing in the screwdriver, pull up the head restraint. Adjusting the height of the front seat head restraints Make sure that the head restraints are adjusted so that the center of the head...
Page 77 1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. Correct use of the seat belts l Extend the shoulder belt so that it comes fully over the shoulder, does come into contact with the...
Page 78 1-3. Adjustable components (seats, mirrors, steering wheel) Releasing the belt Press the release button. Release button Adjusting the height of the belt (front seats) Move the height adjuster up as needed until you hear a click. Down Push the lock release button and slide the height adjuster down.
Page 79 1-3. Adjustable components (seats, mirrors, steering wheel) Emergency locking retractor (ELR) The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.
Page 80 Each seat belt should be used by one person only. Do not use a seat belt for more than one person at once, including children. Toyota recommends that children be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system.
Page 81 Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact your Toyota dealer. Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there is no obvious damage.
Page 82 Seat belt damage and wear Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling of the pretensioner may prevent it from operating properly resulting in death or serious injury.
Page 83 1-3. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Hold the steering wheel and pull and hold the lever. Adjust to the ideal position by moving the steering wheel vertically. After adjustment, release the lever to secure the steering wheel.
Page 84 1-3. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror In automatic mode, sensors are used to detect the headlights of vehicles behind and automatically reduces the reflected light. Turns automatic mode on/off The indicator comes on when automatic mode is turned on.
Page 85 1-3. Adjustable components (seats, mirrors, steering wheel) To prevent sensor error (vehicles with auto anti-glare inside rear view mirror) To ensure that the sensors operate prop- erly, do not touch or cover them. If a sun visor interferes with the mirror Hold and rotate the mirror to adjust the support.
Page 86 1-3. Adjustable components (seats, mirrors, steering wheel) NOTICE When adjusting the support Do not push the mirror horizontally from the side. The mirror could fall off. I n f o r ma t i o n P r o v i d e d b y :...
Page 87 1-3. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted. Power-adjustable type Select a mirror to adjust. (L: left or R: right) Adjust the mirror up, down, in or out using the switch. Manually adjustable type Adjust the mirror up, down, in or out by pushing the mirror surface.
Page 88 1-3. Adjustable components (seats, mirrors, steering wheel) Folding back the mirrors Push backward to fold the mir- rors. Mirror operating conditions (vehicles with power-adjustable type) The engine switch is in the ACC or ON position. CAUTION When driving the vehicle Observe the following precautions while driving.
Page 89 1-3. Adjustable components (seats, mirrors, steering wheel) NOTICE If ice should jam the mirror Do not operate the control or scrape the mirror face. Use a spray de-icer to free the mirror. I n f o r ma t i o n P r o v i d e d b y :...
Page 90 1-4. Opening and closing the windows Power windows The power windows can be opened/closed using the following switches. Driver’s power window switches Closing Opening One-touch opening (driver’s window only) : Pressing the switch in the opposite direction will stop win- dow travel partway.
Page 91 1-4. Opening and closing the windows The power windows can be operated when The engine switch is in the ON position. Operating the power windows after turning the engine switch off The power windows can be operated for approximately 45 seconds even after the engine switch is turned off.
Page 92 1-5. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap. Before refueling the vehicle Turn the engine switch off and ensure that all the doors, win- dows and glass hatch are closed. Opening the fuel tank cap Open the fuel filler door.
Page 93 1-5. Refueling Closing the fuel tank cap When installing the fuel tank cap, turn it until you hear a click. The cap will turn slightly to the opposite direction when released. Fuel types Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or higher) Fuel tank capacity Approximately 19.0 gal.
Page 94 This may cause static electricity to build up, resulting in a possible engine hazard. When replacing the fuel tank cap Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 95 1-6. Theft deterrent system Engine immobilizer system The vehicle’s keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator light flashes after the key has been removed from the engine switch to indi-...
Page 96 1-6. Theft deterrent system Certifications for the engine immobilizer system For vehicles sold in U.S.A. FCC ID: MOZRI-20BTY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 97 1-6. Theft deterrent system Theft prevention labels (U.S.A.) These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from sto- len vehicles. Do not remove under penalty of law. I n f o r ma t i o n P r o v i d e d b y :...
Page 98 1-7. Safety information Correct driving posture Drive in a good posture as follows: Sit upright and well back in the seat. (→P. 45) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 99 1-7. Safety information CAUTION While driving Do not adjust the position of the driver’s seat while driving. Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.
Page 100 1-7. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. Front airbags Driver airbag/front passenger airbag Can help protect the head and chest of the driver and front pas-...
Page 101 1-7. Safety information Airbag system components Front passenger airbag Side and curtain shield air- bag sensors Curtain shield airbags Driver airbag Side airbags RSCA OFF switch Occupant detection system (ECU and sensors) Driver’s seat position sen- Front passenger’s seat belt buckle switch Driver’s seat belt buckle switch...
Page 102 1-7. Safety information Your vehicle is equipped with ADVANCED AIRBAGS designed based on US motor vehicle safety standards (FMVSS208). The airbag sys- tem controls airbag deployment power for the driver and front pas- senger. The driver airbag system consists of the driver seat’s position sensor etc.
Page 103 1-7. Safety information Operating conditions (front airbags) The SRS front airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to an approxi- mately 12-18 mph [20-30 km/h] frontal collision with a fixed wall that does not move or deform).
Page 104 1-7. Safety information Conditions under which the SRS airbags may deploy (inflate), other than a collision The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration. Hitting a curb, edge of pavement or hard surface Falling into or jumping over a deep hole...
Page 105 1-7. Safety information Types of collisions that may not deploy the SRS airbag (side airbags and curtain shield airbags) The SRS side airbag and curtain shield airbag system may not activate if the vehicle is subjected to a collision from the side at certain angles, or a colli- sion to the side of the vehicle body other than the passenger compartment.
Page 106 1-7. Safety information When to contact your Toyota dealer In the following cases, contact your Toyota dealer as soon as possible. Any of the SRS airbags have been inflated. The front of the vehicle is damaged or deformed, or was involved in an acci- dent that was not severe enough to cause the SRS airbags to inflate.
Page 107 1-7. Safety information CAUTION SRS airbag precautions Observe the following precautions regarding the airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts properly. The SRS airbags are supplemental devices to be used with the seat belts. The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag.
Page 108 An infant or child who is too small to use a seat belt should be properly secured using a child restraint sys- tem. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are the safest for infants and children.
Page 109 1-7. Safety information CAUTION SRS airbag precautions Do not sit on the edge of the seat or lean against the dashboard. Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger. Do not drive the vehicle while the driver or passenger has items resting on their knees.
Page 110 If the areas where the SRS airbags are stored, such as the steering wheel pad and front and rear pillar garnishes, are damaged or cracked, have them replaced by your Toyota dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 111 Modification and disposal of SRS airbag system components Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.
Page 112 1-7. Safety information The switch only should be used In a situation where inflation is not desired (such as during extreme off-road driving). Operating conditions when the RSCA OFF indicator is on The curtain shield airbag and seat belt pretensioner will not activate in a vehicle rollover.
Page 113 1-7. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica- tion system. This system detects the conditions of the front passen- ger seat and activates or deactivates the devices for front passenger. SRS warning light Front passenger’s seat belt reminder light AIR BAG ON indicator light...
Page 114 1-7. Safety information Condition and operation in the front passenger occupant classification system Adult AIR BAG ON and AIR BAG OFF indicator AIR BAG ON lights Indicator/ SRS warning light warning light Front passenger’s seat belt reminder light Flashing Front passenger airbag Side airbag on the front passenger seat Devices Activated...
Page 115 1-7. Safety information There is a malfunction in the system AIR BAG ON and AIR BAG OFF indicator AIR BAG lights Indicator/ warning light SRS warning light Front passenger’s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Devices Curtain shield airbag in the front passenger side...
Page 116 1-7. Safety information CAUTION Front passenger occupant classification system precautions Observe the following precautions regarding front passenger occupant clas- sification system. Failure to do so may cause death or serious injury. Wear the seat belt properly. Make sure the front passenger’s seat belt tab has not been left inserted into the buckle before someone sits in the front passenger seat.
Page 117 Do not kick the front passenger seat or subject it to severe impact. Other- wise, the SRS warning light may come on to indicate a malfunction of the detection system. In this case, contact your Toyota dealer immediately. Child restraint systems installed on the rear seat should not contact the front seatbacks.
Page 118 1-7. Safety information Child restraint systems A child restraint system for a small child or baby must itself be prop- erly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 119 1-7. Safety information Forward facing — Convertible seat Booster seat Selecting an appropriate child restraint system Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belts. If a child is too large for a child restraint system, sit the child on a rear seat and use the vehicle’s seat belt.
Page 120 In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior. Toyota strongly urges the use of a proper child restraint system that con- forms to the size of the child, installed on the rear seat. According to acci- dent statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 121 1-7. Safety information CAUTION Child restraint precautions Make sure you have complied with all installation instructions provided by the child restraint manufacturer and that the system is properly secured. If it is not secured properly, it may cause death or serious injury to the child in the event of sudden braking, sudden swerving or an accident.
Page 122 1-7. Safety information Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the rear seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Chil- dren) system.
Page 123 1-7. Safety information Anchor bracket (for top tether strap) Anchor brackets are provided for all rear seats. I n f o r ma t i o n P r o v i d e d b y :...
Page 124 1-7. Safety information Installation with LATCH system Type A Widen the gap between the seat cushion and seatback slightly. Latch the hooks of the lower straps onto the LATCH anchors tighten the lower straps. If the child restraint has a top tether strap, the top tether strap should be latched...
Page 125 1-7. Safety information Type B Widen the gap between the seat cushion and seatback slightly. Latch the buckles onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto tether strap anchor. (→P.
Page 126 1-7. Safety information Run the seat belt through the child seat and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt and then allow it to retract slightly in order to activate the ALR lock mode.
Page 127 1-7. Safety information Run the seat belt through the child seat and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt and then allow it to retract slightly in order to activate the ALR lock mode.
Page 128 1-7. Safety information Booster seat Place the booster seat on the seat facing the front of the vehi- cle. Sit the child in the booster seat. Fit the seat belt to the booster seat according to the manufac- turer’s instructions and insert the plate into the buckle.
Page 129 1-7. Safety information Child restraint systems with a top tether strap Secure the child restraint using the LATCH anchors or seat belt, and remove the head restraint. Raise the anchor bracket, latch the hook onto the anchor bracket and tighten the top tether strap. Make sure the top tether strap is securely latched.
Page 130 1-7. Safety information When the anchor bracket is not in use Lower the anchor bracket. The anchor bracket is only designed to secure the top tether strap. Do not use the anchor bracket for any other pur- pose. CAUTION When installing a booster seat Do not fully extend the shoulder belt to prevent the belt from going to ALR lock mode.
Page 131 1-7. Safety information CAUTION When installing a child restraint system Follow the directions given in the child restraint system installation manual and fix the child restraint system securely in place. If the child restraint system is not correctly fixed in place, the child or other passengers may be seriously injured or even killed in the event of sudden braking, sudden swerving or an accident.
Page 132 1-7. Safety information CAUTION Do not use a seat belt extender If a seat belt extender is used when installing a child restraint system, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of sud- den braking, sudden swerving or an accident.
Page 133 1-7. Safety information I n f o r ma t i o n P r o v i d e d b y :...
Page 134 2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driv- ing. Starting the engine (→P. 124) Driving Automatic transmission With the brake pedal depressed, shift the shift lever to D. (→P. 127) Release the parking brake. (→P.
Page 135 2-1. Driving procedures Parking the vehicle Automatic transmission With the shift lever in D, depress the brake pedal. Set the parking brake. (→P. 132) Shift the shift lever to P. (→P. 127) When parking on a hill, if necessary, block the wheels. Turn the engine switch off to stop the engine.
Page 136 Your vehicle has a drum-in-disc type parking brake system. This type of brake system needs bedding-down of the brake shoes periodically or when- ever the parking brake shoes and/or drum are replaced. Have your Toyota dealer perform the bedding down.
Page 137 Have the vehicle inspected by your Toyota dealer immediately. Do not under any circumstances shift the shift lever to P, R or N (automatic transmission) or R (manual transmission) while the vehicle is moving.
Page 138 2-1. Driving procedures CAUTION When driving the vehicle Do not shift the shift lever to N while the vehicle is moving. Doing so may cause the engine brake to not operate properly and lead to an accident. Do not turn the engine off while driving. The power steering and brake booster systems will not operate properly if the engine is not running.
Page 139 2-1. Driving procedures CAUTION When driving on slippery road surfaces Sudden braking, acceleration and steering may cause tire slippage and reduce your ability to control the vehicle, resulting in an accident. Sudden changes in engine speed, such as engine braking caused by up- shifting or down-shifting, may cause the vehicle to skid, resulting in an accident.
Page 140 The exhaust should be checked occasionally. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
Page 141 2-1. Driving procedures CAUTION When taking a nap in the vehicle Always turn the engine off. Otherwise, you may accidentally move the shift lever or depress the accelerator pedal, which could cause an accident or fire due to engine overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust gases may collect and enter the vehicle, leading to death or a serious health hazard.
Page 142 If you hear a squealing or scraping noise while driving (brake pad wear limit indicators) Have the brake pads checked and replaced by your Toyota dealer as soon as possible. The rotor damage can result if the pads are not replaced when needed.
Page 143 Engine damage caused by water immersion In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Toyota dealer check the following. Brake function Changes in quantity and quality of oil and fluid used for the engine, trans- mission, transfer (4WD models), differentials, etc.
Page 144 2-1. Driving procedures Engine (ignition) switch Engine switch LOCK The steering wheel is locked and the key can be removed. (Vehicles with an automatic transmission: The key can be removed only when the shift lever is in P.) Some electrical components such as the audio system can be used.
Page 145 2-1. Driving procedures Turning the key from ACC to LOCK Shift the shift lever to P (auto- matic transmission) or N (man- ual transmission). (→P. 127, 129) Push in the key and turn to the LOCK position. Steering lock release When starting the engine, the engine switch may seem stuck in the LOCK posi- tion.
Page 146 2-1. Driving procedures CAUTION Caution while driving Do not turn the engine switch to the LOCK position. If in an emergency, you must turn the engine off while the vehicle is moving, turn the engine switch only to the ACC position. NOTICE To prevent battery discharge Do not leave the engine switch in the ACC or ON position for long periods if...
Page 147 2-1. Driving procedures ∗ Automatic Transmission Select a shift position appropriate for the driving conditions. Shifting the shift lever While the engine switch is on, depress the brake pedal and move the shift lever. Shift position uses Shift position Function Parking the vehicle or starting the engine Reversing Neutral...
Page 148 2-1. Driving procedures Downshifting restrictions The shift lever cannot be downshifted if the following speeds are exceeded. 2WD models Maximum speed Downshifting mph (km/h) 4 → 3 91 (148) 3 → 2 61 (99) 2 → L 25 (41) 4WD models Maximum speed Downshifting Transfer position...
Page 149 2-1. Driving procedures ∗ Manual Transmission Fully depress the clutch pedal before operating the shift lever, and then release it slowly. ∗ : If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 150 2-1. Driving procedures Maximum allowable speed Observe the following maximum allowable speeds in each gear when maxi- mum acceleration is necessary. Maximum speed Shift position Transfer position mph (km/h) H or HL 30 (48) 11 (18) H or HL 58 (93) 22 (35) H or HL 86 (138)
Page 151 2-1. Driving procedures Turn signal lever Left turn Right turn Move and hold the lever partway to signal a lane change. The left hand signal will flash until you release the lever. Move and hold the lever partway to signal a lane change.
Page 152 2-1. Driving procedures Parking brake Set the parking brake Fully set the parking brake while depressing the brake U.S.A. Canada pedal. At this time, the indicator will come on. Release the parking brake Slightly raise the lever Press the button Lower it completely Usage in winter time See “Winter driving tips”...
Page 153 2-1. Driving procedures NOTICE Before driving Fully release the parking brake. Driving the vehicle with the parking brake set will lead to brake components overheating, which may affect braking performance and increase brake wear. I n f o r ma t i o n P r o v i d e d b y :...
Page 154 2-1. Driving procedures Horn To sound the horn, press on or close to the mark. After adjusting the steering wheel Make sure that the steering wheel is securely locked. The horn may not sound if the steering wheel is not securely locked. (→P.
Page 155 2-1. Driving procedures I n f o r ma t i o n P r o v i d e d b y :...
Page 156 2-1. Driving procedures I n f o r ma t i o n P r o v i d e d b y :...
Page 157 2-1. Driving procedures I n f o r ma t i o n P r o v i d e d b y :...
Page 158 2-1. Driving procedures I n f o r ma t i o n P r o v i d e d b y :...
Page 159 2-2. Instrument cluster Gauges and meters The following gauges, meters and displays illuminate when the engine switch is in the ON position. Tachometer Displays the engine speed in revolutions per minute. Speedometer Displays the vehicle speed. Voltmeter Displays the charge state. Engine coolant temperature gauge Displays the engine coolant temperature.
Page 160 2-2. Instrument cluster Odometer/trip meter Odometer: Displays the total distance the vehicle has been driven. Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display differ- ent distances independently.
Page 161 2-2. Instrument cluster NOTICE To prevent damage to the engine and its components Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed. The engine may be overheating if the temperature gauge is in the red zone (H).
Page 162 2-2. Instrument cluster Indicators and warning lights The indicator and warning lights on the instrument cluster and cen- ter panel inform the driver of the status of the vehicle’s various sys- tems. Instrument cluster Center panel I n f o r ma t i o n P r o v i d e d b y :...
Page 163 2-2. Instrument cluster Indicators The indicators inform the driver of the operating state of the vehicle’s various systems. Turn signal indicator AUTO LSD indicator (→P. 131) (→P. 169, 176) (if equipped) Headlight high beam Four-wheel drive indicator (→P. 143) indicator(→P. 164) (if equipped) Security indicator Center differential lock...
Page 164 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
Page 165 2-2. Instrument cluster ∗ Accessory meter Compass Displays the direction that the vehicle is heading. (→P. 343) Outside temperature Displays the outside air temperature. (→P. 328) Clinometer Displays the longitudinal and lateral inclination of the vehicle. SET button This button is used to calibrate the compass. (→P. 344) E/M button Outside temperature mode: Switch between English/U.S.
Page 166 2-2. Instrument cluster CAUTION Caution while driving Do not adjust the display. Doing so may cause the driver to mishandle the vehicle and cause an acci- dent, resulting in death or serious injury. I n f o r ma t i o n P r o v i d e d b y :...
Page 167 2-3. Operating the lights and wipers Headlight switch The headlights can be operated manually. Vehicles with daytime running light system: The daytime running lights turn on. The side marker, park- ing, tail, license plate, outside rear view mir- illumination equipped), daytime running lights...
Page 168 To turn the lights on again, turn the engine switch to the ON position, or turn the headlight switch off once and then back to the position. Customization that can be configured at Toyota dealer Settings (automatic light off system) can be changed. (Customizable features →P. 493)
Page 169 2-3. Operating the lights and wipers Windshield wipers and washer Wiper intervals can be adjusted for intermittent operation (when INT is selected). Intermittent windshield wiper operation Low speed windshield wiper operation High speed windshield wiper operation Decreases the intermittent windshield wiper frequency Increases the intermittent windshield wiper frequency I n f o r ma t i o n P r o v i d e d b y :...
Page 170 When a nozzle becomes blocked In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged. I n f o r ma t i o n P r o v i d e d b y :...
Page 171 2-3. Operating the lights and wipers ∗ Rear window wiper and washer Intermittent window wiper operation. The wiper operates 3 times at normal speed and then moves to intermittent mode. Normal window wiper oper- ation Washer/wiper dual opera- tion Washer/wiper dual opera- tion The rear window wiper oper- ates while the washer squirts.
Page 172 2-4. Using other driving systems ∗ Cruise control Use the cruise control to maintain a set speed without depressing the accelerator pedal. Indicator Cruise control switch Setting the vehicle speed Press the ON-OFF button to activate the cruise control. Press the button again to deactivate the cruise control.
Page 173 2-4. Using other driving systems Adjusting the set speed To change the set speed, operate the lever until the desired set speed is obtained. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction. Large adjustment: Hold the lever in the desired direction.
Page 174 2-4. Using other driving systems Canceling and resuming the constant speed control Pulling the lever toward you cancels the constant speed control. The speed setting is also can- celed when the brakes are applied or the clutch pedal (manual transmission only) is depressed.
Page 175 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer. CAUTION To avoid operating the cruise control by mistake Switch the cruise control off using the ON-OFF button when not in use.
Page 176 2-4. Using other driving systems ∗ Intuitive parking assist The intuitive parking assist assists the driver by communicating the distance to obstacles measured by the sensors via the buzzer when parallel parking or maneuvering into a garage. Always check the sur- rounding area when using this system.
Page 177 2-4. Using other driving systems Intuitive parking assist switch ON/OFF When on, the buzzer sounds to inform the driver that the system is operational. At this time, the indicator will come Press the switch to switch the ON/OFF mode. The distance and buzzer When a sensor detects an obstacle, the buzzer sounds.
Page 178 2-4. Using other driving systems Sensors that operate and detection range The following diagrams show the sensor detection range. Note that sensors may not be able to detect obstacles that are extremely close to the vehicle. Detection range of the sensors Approx.
Page 179 Objects lower than the sensors or thin stakes etc. may be detected ini- tially, but as they draw closer, they may cease to be detected. • A towing hitch is mounted to the vehicle. • A non-genuine Toyota suspension (lowered suspension etc.) is installed. • When attaching a two-way radio antenna.
Page 180 2-4. Using other driving systems The shape of the obstacle may prevent a sensor from detecting it. Pay particular attention to the following obstacles: • Wires, fences, ropes, etc. • Cotton, snow and other materials that absorb radio waves • Sharply-angled objects •...
Page 181 2-4. Using other driving systems ∗ Rear view monitor system The rear view monitor system assists the driver by displaying an image of the area behind the vehicle. The image is displayed in reverse on the screen. This reversed image is a similar image to the one on the inside rear view mirror.
Page 182 2-4. Using other driving systems Switching the screen ON/OFF mode When the screen is displayed, press the AUTO button on the inside rear view mir- ror to switch the screen ON/OFF mode. Screen ON mode: Green indicator comes Screen OFF mode: Orange indicator comes on.
Page 183 2-4. Using other driving systems Rear view monitor system camera In the following cases, it may become dif- ficult to see the images on the screen, even when the system is functioning cor- rectly. The vehicle is in a dark area, such as at night.
Page 184 Conditions which may affect the rear view monitor system If the back of the vehicle has been hit, the camera’s position and mounting angle may have changed. Have the vehicle inspected by your Toyota dealer. Rapid temperature changes, such as when hot water is poured on the vehicle in cold weather, may cause the system to function abnormally.
Page 185 2-4. Using other driving systems Four-wheel drive system (4WD models with a manual transmission) Use the four-wheel drive control lever to select the following transfer modes. The center differential lock indicator comes on when the LL or HL mode is selected.
Page 186 2-4. Using other driving systems Shifting between H and HL You need not to depress the clutch pedal. If the center differential lock indicator does not come on when you shift from H to HL, drive straight ahead while accelerating or decelerating. If the center differential lock indicator does not go off when you shift from HL to H, drive straight ahead while accelerating or decelerating, or drive in reverse.
Page 187 2-4. Using other driving systems NOTICE To prevent damage to the center differential For normal driving on dry and hard surface roads, unlock the center differ- ential. Shift to H after the wheels are out of the ditch or off the slippery or bumpy surface.
Page 188 2-4. Using other driving systems Four-wheel drive system (4WD models with an automatic transmission) Use the front-wheel drive control lever to select the following trans- fer modes. The four-wheel drive indicator comes on when the H4, N or L4 mode is selected.
Page 189 2-4. Using other driving systems Shifting between H2 and H4 Reduce your speed to less than 50 mph (80 km/h) and shift the front- wheel drive control lever from H2 to H4. If you have trouble shifting in cold weather, reduce your speed or stop the vehicle.
Page 190 2-4. Using other driving systems CAUTION Caution while driving Never shift the front-wheel drive control lever from H2 to H4 if the wheels are slipping. Stop the slipping or spinning before shifting. For normal driving on dry and hard surface roads, use H2 position. Driving on dry and hard surface roads in H4 or L4 position may cause drive com- ponent oil leakage, seizure, or other problems resulting in an accident.
Page 191 2-4. Using other driving systems ∗ Active traction control system The active traction control system automatically helps prevent the spinning of 4 wheels when the vehicle is started or accelerated on slippery road surfaces. System operation Vehicles with an automatic transmission: Stop the vehicle, shift the shift lever to N and shift the front- wheel drive control lever into L4.
Page 192 2-4. Using other driving systems When the rear differential is locked (vehicles with the rear differential lock system) The active traction control system is activated only when the vehicle speed is less than 4 mph (6 km/h). Sounds and vibrations caused by the active traction control system A sound may be heard from the engine compartment when the engine is started or just after the vehicle begins to move.
Page 193 2-4. Using other driving systems AUTO LSD system (2WD models) The AUTO LSD system aids traction by using the traction control system to control engine performance and braking when one of the rear wheels begins to spin. The system should be used only when wheel spinning occurs in a ditch or rough surface.
Page 194 2-4. Using other driving systems If the engine is turned off and restarted The AUTO LSD system and the indicators are automatically turned off. Reactivation of the VSC system linked to vehicle speed When the AUTO LSD system is turned on, the VSC system will turn on auto- matically if vehicle speed increases.
Page 195 2-4. Using other driving systems ∗ Rear differential lock system The rear differential lock system is provided for use only when wheel spinning occurs in a ditch or on a slippery or rugged surface. The rear differential lock system is effective in case one of the rear wheels is spinning.
Page 196 2-4. Using other driving systems Manual transmission Before using the rear differential lock system. Stop the vehicle or reduce your speed to less than 5 mph (8 km/h). Depress the clutch pedal and shift the four-wheel drive control lever into LL to see if this is sufficient. If this has no effect, additionally use the rear differential lock system.
Page 197 2-4. Using other driving systems CAUTION To avoid an accident Do not use the rear differential lock system except when wheel spinning occurs in a ditch or on a slippery or ragged surface. Large steering effort and careful cornering control will be required. Do not lock the rear differential until the wheels have stopped spinning.
Page 198 2-4. Using other driving systems Clutch start cancel switch (vehicles with a manual transmission) The switch allows the vehicle to be driven out of difficult situations by cranking the engine with the clutch engaged. Never use the switch for normal engine starting. Be sure to follow the starting procedure.
Page 199 2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following sys- tems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ABS (Anti-lock Brake System) Helps to prevent wheel lock when the brakes are applied suddenly, or if the brakes are applied while driving on a slippery road surface.
Page 200 2-4. Using other driving systems To disable TRAC and/or VSC (2WD models) If the vehicle gets stuck in fresh snow or mud, TRAC and VSC may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it. Turning off TRAC Press the VSC OFF switch to turn off TRAC.
Page 201 2-4. Using other driving systems To disable TRAC (TRC) and/or VSC (H2 and H4 mode [automatic transmission] or H and HL mode [manual transmission] on 4WD models) If the vehicle gets stuck in fresh snow or mud, TRAC (TRC) and VSC may reduce power from the engine to the wheels.
Page 202 2-4. Using other driving systems Automatic reactivation of TRAC (TRC) and VSC Turning the engine switch off after turning off the TRAC (TRC) and VSC sys- tems will automatically re-enable them. Automatic VSC reactivation (2WD models) If only the TRAC system is turned off, VSC OFF and AUTO LSD indicators turn on.
Page 203 The ABS, VSC and TRAC (TRC) will not function correctly if different tires are fitted on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. Handling of tires and suspension Using tires with any kind of problem or modifying the suspension will affect the driving assist systems, and may cause the system to malfunction.
Page 204 2-5. Driving information Off-road precautions This vehicle belongs to the utility vehicle class, which has higher ground clearance and narrower tread in relation to the height of its center of gravity to make it capable of performing in a wide variety of off-road applications.
Page 205 2-5. Driving information CAUTION Off-road vehicle precautions Always observe the following precautions to minimize the risk of serious per- sonal injury or damage to your vehicle: In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. Therefore, the driver and all passengers should fasten their seat belts whenever the vehicle is moving.
Page 206 2-5. Driving information Off-road driving When driving your vehicle off-road, please observe the following pre- cautions to ensure your driving enjoyment and to help prevent the closure of areas to off-road vehicles. l Drive your vehicle only in areas where off-road vehicles are permit- ted to travel.
Page 207 2-5. Driving information CAUTION Off-road driving precautions Always observe the following precautions to minimize the risk of serious per- sonal injury or damage to your vehicle: Drive carefully when off the road. Do not take unnecessary risks by driving in dangerous places. Do not grip the steering wheel spokes when driving off-road.
Page 208 2-5. Driving information NOTICE To prevent the water damage Take all necessary safety measures to ensure that water damage to the engine or other components does not occur. Water entering the engine air intake will cause severe engine damage. Water entering the automatic transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ulti- mately damage.
Page 209 2-5. Driving information Cargo and luggage Take notice of the following information about storage precau- tions, cargo capacity and load. l Stow cargo and luggage in the luggage compartment whenever possible. l Be sure all items are secured in place. l Be careful to keep the vehicle level.
Page 210 2-5. Driving information (6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. Example on your vehicle Cargo capacity Total load capacity...
Page 211 2-5. Driving information CAUTION Things that must not be carried in the luggage compartment The following things may cause a fire if loaded in the luggage compart- ment. Receptacles containing gasoline Aerosol cans Storage precautions Observe the following precautions. Failing to do so may result in death or serious injury. Do not place cargo or luggage in or on the following locations as the item may get under the clutch, brake or accelerator pedal and prevent the pedals from being depressed properly, block the driver’s vision, or...
Page 212 2-5. Driving information CAUTION Capacity and distribution Do not exceed the maximum axle weight rating or the total vehicle weight rating. Even if the total load of occupant’s weight and the cargo load is less than the total load capacity, do not apply the load unevenly. Improper loading may cause deterioration of steering or braking control which may cause death or serious injury.
Page 213 2-5. Driving information Vehicle load limits Vehicle load limits include total load capacity, seating capacity, towing capacity and cargo capacity. Total load capacity: 1130 lb. (510 kg) Total load capacity means the combined weight of occupants, cargo and luggage. Seating capacity: 5 occupants (Front 2, Rear 3) Seating capacity means the maximum number of occupants whose estimated average weight is 150 lb.
Page 214 2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropri- ate to the prevailing weather conditions. Pre-winter preparations l Use fluids that are appropriate to the prevailing outside tem- peratures.
Page 215 2-5. Driving information When driving the vehicle Accelerate the vehicle slowly and drive at a reduced speed suit- able to road conditions. When parking the vehicle Park the vehicle and move the shift lever to P (automatic trans- mission) or to 1 or R (manual transmission) without setting the parking brake.
Page 216 NOTICE Repairing or replacing snow tires Request repairs of and obtain replacement snow tires from Toyota dealers or legitimate tire retailers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 217 For your safety and the safety of others, do not overload the vehicle or trailer. Toyota warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes. Weight limits Confirm the total trailer weight, gross vehicle weight, gross axle weight and trailer tongue load are all within the limits.
Page 218 Total trailer weight Tongue load Towing a trailer Consult your Toyota dealer for further information about additional requirements such as a towing kits, etc. Hitch and tow hitch receiver Hitch Trailer hitch assemblies have different weight capacities estab- lished by the hitch manufacturer.
Page 219 2-5. Driving information Selecting trailer ball Use the correct trailer ball for your application. Trailer ball load rating Matches or exceeds the gross trailer weight rating of the trailer. Ball diameter Matches the size of the trailer coupler. Most couplers stamped with the required trailer ball size.
Page 220 Break-in schedule Toyota recommends that you do not use a new vehicle or a vehicle with any new power train components (engine, transmission, differential, wheel bear- ings, etc.) to tow a trailer for the first 500 miles (800 km) of driving.
Page 221 The tow hitch receiver installed on your vehicle must never be used on another vehicle. Hitches If you wish to install a trailer hitch, your Toyota dealer should be consulted. Use only a hitch that conforms to the total trailer weight requirement. Follow the directions supplied by the hitch manufacturer.
Page 222 NOTICE When installing a trailer hitch Use only the position recommended by your Toyota dealer. Do not install the trailer hitch on the bumper; this may cause body damage. Brakes Toyota recommends trailers with brakes that conform to any applicable fed- eral and state/provincial regulations.
Page 223 2-5. Driving information Trailer towing tips Your vehicle will handle differently when towing a trailer. In order to avoid accident, death or serious injury, keep the following in mind when towing: l Before starting out, check the trailer’s light and the vehicle-trailer connections.
Page 224 2-5. Driving information l Note that when making a turn, the trailer wheels will be closer than the vehicle wheels to the inside of the turn. Compensate by making a larger than normal turning radius. l Crosswinds and rough roads will adversely affect handling of your vehicle and trailer, causing sway.
Page 225 2-5. Driving information l Always place wheel blocks under both the vehicle and the trailer wheels when parking. Apply the parking brake firmly, and put the transmission in P (automatic transmission) or in 1 or R (manual transmission). Avoid parking on a slope, but if unavoidable, do so only after performing the following: Apply the brakes and keep them applied.
Page 226 2-5. Driving information CAUTION To avoid an accident Do not exceed 45 mph (72 km/h) or posted towing speed limit, whichever is lower. As instability (swaying) of the towing vehicle-trailer combination increases as speed increases, exceeding 45 mph (72 km/h) may cause loss of control.
Page 227 2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle Do not tow your vehicle with four wheels on the ground. I n f o r ma t i o n P r o v i d e d b y :...
Page 228 3-1. Using the air conditioning system and defogger Air conditioning system Outside air or recirculated Air conditioning air mode switch ON/OFF switch Fan speed control dial Temperature control dial Air outlet selection dial Adjusting the settings Adjusting the temperature setting Turn the temperature control dial clockwise (warm) or counter- clockwise (cool).
Page 229 3-1. Using the air conditioning system and defogger Adjusting the fan speed Turn the fan speed control dial clockwise (increase) or counter- clockwise (decrease). Set the dial to OFF to turn the fan off. Selecting the air outlets Set the air outlet selection dial to an appropriate position. The positions between the air outlet selections shown below can also be selected for more detailed adjustment.
Page 230 3-1. Using the air conditioning system and defogger When the dial is set to , air flows to the feet and the wind- shield defogger operates. The air intake selector is automat- ically set to outside air mode. To return the recirculated air mode, press When the dial is set to , air...
Page 231 3-1. Using the air conditioning system and defogger If the ambient temperature drops while using the recirculated air mode The air intake mode automatically changes from recirculated air mode to outside air mode after a few minutes. To cancel this function: Press and hold for longer than 2 seconds.
Page 232 3-1. Using the air conditioning system and defogger Right and left side outlets Direct air flow to the left or right, up or down. Opening and closing the right and left side outlets Open the vent. Close the vent. I n f o r ma t i o n P r o v i d e d b y :...
Page 233 There may be a problem in the air conditioning system if the indi- cator continues to flash. Turn the air conditioning system off and have it inspected by your Toyota dealer. Air conditioning odors During use, various odors from inside and outside the vehicle may enter into and accumulate in the air conditioning system.
Page 234 3-1. Using the air conditioning system and defogger NOTICE To prevent battery discharge Do not leave the air conditioning system on longer than necessary when the engine is stopped. I n f o r ma t i o n P r o v i d e d b y :...
Page 235 3-1. Using the air conditioning system and defogger Rear window defogger This feature is used to defog the rear window. On/off Press the button to turn on the rear window defogger. The indicator light will come on. The defogger will automatically turn off after 15 to 240 minutes.
Page 236 3-2. Using the audio system Audio system Type A: CD player with changer controller and AM/FM radio Type B: CD player with changer and AM/FM radio I n f o r ma t i o n P r o v i d e d b y :...
Page 237 3-2. Using the audio system Title Page Using the radio P. 218 Using the CD player P. 225 Playing MP3 and WMA discs P. 233 Operating an iPod P. 240 Operating a USB memory P. 247 Optimal use of the audio system P.
Page 238 3-2. Using the audio system Using cellular phones Interference may be heard through the audio system’s speakers if a cellular phone is being used inside or close to the vehicle while the audio system is operating. Certification for the audio system This device complies with part 15 of the FCC Rules and RSS-Gen of the IC Rules.
Page 239 3-2. Using the audio system NOTICE To prevent battery discharge Do not leave the audio system on longer than necessary with the engine off. To avoid damaging the audio system Take care not to spill drinks or other fluids over the audio system. I n f o r ma t i o n P r o v i d e d b y :...
Page 240 3-2. Using the audio system Using the radio Power Volume Scanning for Adjusting the frequency receivable stations (AM, FM mode) or channel (SAT mode) Station selector Displaying radio text messages Mute Setting preset button Seeking the frequency AM/FM/SAT mode button Changing the channel category ®...
Page 241 3-2. Using the audio system ® Scanning radio stations (excluding XM Satellite Radio) Scanning the preset radio stations Press and hold until you hear a beep. Preset stations will be played for 5 seconds each. When the desired station is reached, press again.
Page 242 3-2. Using the audio system ® Satellite Radio (if equipped) ® Receiving XM Satellite Radio Press The display changes as follows each time is pressed. AM → FM → XM Turn to select the desired channel in all the catego- ries or press “∧”...
Page 243 3-2. Using the audio system ® Scanning XM Satellite Radio channels l Scanning channels in the current category Press When the desired channel is reached, press again. l Scanning the preset channels Press and hold until you hear a beep. When the desired channel is reached, press again.
Page 244 3-2. Using the audio system Reception sensitivity Cargo loaded on the roof luggage carrier, especially metal objects, may ® adversely affect the reception of XM Satellite Radio. Maintaining perfect radio reception at all times is difficult due to the con- tinually changing position of the antenna, differences in signal strength and surrounding objects, such as trains, transmitters, etc.
Page 245 CHECK ANTENNA There is a short-circuit in the antenna or the sur- rounding antenna cable. See a Toyota certified dealer. ® You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryp- ®...
Page 246 3-2. Using the audio system The channel you selected is no longer available. CHANNEL NOT Wait for about 2 seconds until the radio returns to AVAILABLE the previous channel or “CH001”. If it does not change automatically, select another channel. ®...
Page 247 Using the CD player Power Volume CD load (type B only) CD eject PWR VOL PWR VOL Searching playback Displaying text messages Selector buttons TOYOTA LOAD SCAN TEXT PWR VOL TUNE SCROLL Selecting a track PUSH SELECT Playback Playback/ PRESET...
Page 248 3-2. Using the audio system Loading multiple CDs (type B only) Press and hold until you hear a beep. When the indicator on the slot turns from amber to green, insert a CD. The indicator on the slot turns to amber when the CD is inserted. When the indicator on the slot turns from amber to green again, insert the next CD.
Page 249 3-2. Using the audio system Selecting a track Turn or press “∧” or “∨” on to select the desired track. Fast-forwarding and reversing tracks Press and hold “∧” or “∨” on Scanning tracks Press The first ten seconds of each track will be played. To cancel, press again.
Page 250 3-2. Using the audio system Selecting a CD (type B only) Selecting a CD to play Press ) or Scanning loaded CDs Press and hold until you hear a beep. The first ten seconds of the first track on each CD will be played. To cancel, press again.
Page 251 Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played back. I n f o r ma t i o n P r o v i d e d b y :...
Page 252 3-2. Using the audio system Discs that can be used Discs with the marks shown below can be used. Playback may not be possible depending on the recording format or disc features, or due to scratches, dirt or deterioration. CDs with copy-protection features may not be used. CD player protection feature To protect the internal components, playback is automatically stopped when a problem is detected while the CD player is being used.
Page 253 3-2. Using the audio system NOTICE CDs and adapters that cannot be used Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Discs. Doing so may damage the CD player and/or the CD insert/eject function. CD player with changer and AM/FM radio: CDs that have a diameter that is not 4.7 in.
Page 254 3-2. Using the audio system NOTICE CD player precautions Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot. Do not apply oil to the CD player. Store CDs away from direct sunlight.
Page 255 3-2. Using the audio system Playing MP3 and WMA discs Power Volume CD eject Searching playback CD load (type B only) Selector buttons Displaying text messages Selecting a file Playback Selecting a folder Playback/pause Selecting a file/ and file fast-forwarding and reversing Loading and ejecting MP3 and WMA discs →P.
Page 256 3-2. Using the audio system Selecting and scanning a folder Selecting folders one at a time Press “∧” or “∨” on to select the desired folder. Scanning the first file of all the folders Press and hold until you hear a beep. The first ten seconds of the first file in each folder will be played.
Page 257 3-2. Using the audio system Playing and pausing files Press Random playback Playing files from a particular folder in random order Press (RDM). To cancel, press the button twice more. Playing all of the files on a disc in random order Press (RDM) twice.
Page 258 “PLEASE WAIT”: Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played. Discs that can be used →P. 230 CD player protection feature →P.
Page 259 3-2. Using the audio system MP3 and WMA files MP3 (MPEG Audio LAYER3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression. ® WMA (Windows Media Audio) is a Microsoft audio compression format.
Page 260 3-2. Using the audio system Compatible disc formats The following disc formats can be used. • Disc formats: CD-ROM Mode 1 and Mode 2 CD-ROM XA Mode 2, Form 1 and Form 2 • File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above may not play correctly, and their file names and folder names may not be displayed correctly.
Page 261 3-2. Using the audio system Extensions If the file extensions .mp3 and .wma are used for files other than MP3 and WMA files, they will be mistakenly recognized and played as MP3 and WMA files. This may result in large amounts of interference and damage to the speakers.
Page 262 3-2. Using the audio system Operating an iPod Connecting an iPod enables you to enjoy music from the vehicle speakers. Connecting an iPod Open the cover and connect an iPod using an iPod cable. Turn on the power of the iPod if it is not turned on.
Page 263 3-2. Using the audio system Control panel Power Volume Selector buttons Displaying text messages Selector knob Playback Selecting a song/ Playback/pause fast-forwarding and reversing I n f o r ma t i o n P r o v i d e d b y :...
Page 264 3-2. Using the audio system Selecting a play mode Press (BROWSE) to select iPod menu mode. Press as corresponds to the desired play mode. Pressing (MORE) to change to the second selection list. Play mode list First Second Third Fourth Play mode selection selection...
Page 265 3-2. Using the audio system Selecting a list Turn to display the first selection list. Press to select the desired item. Repeat the same procedure to select the desired song name. To return to the previous selection list, press Selecting songs from a song list Press (LIST).
Page 266 3-2. Using the audio system Playing and pausing songs Press Fast-forwarding and reversing songs ∧ Press and hold “ ” or “∨” on Shuffle playback Playing songs from one playlist or album in random order Press (RDM). To cancel, press the button twice. Playing songs from all the playlists or albums in random order Press (RDM) twice.
Page 267 3-2. Using the audio system About iPod Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other coun- tries. iPod functions When an iPod is connected and the audio source is changed to iPod mode, the iPod will resume play from the same point at which it was last...
Page 268 3-2. Using the audio system Compatible models Model Generation Software version iPod 5th generation Ver. 1.2.0 or higher iPod nano 1st generation Ver. 1.3.0 or higher 2nd generation Ver. 1.1.2 or higher 3rd generation Ver. 1.0.0 or higher iPod touch 1st generation Ver.
Page 269 3-2. Using the audio system Operating a USB memory Connecting a USB memory enables you to enjoy music from the vehicle speakers. Connecting a USB memory Open the cover and connect a USB memory. Turn on the power of the USB memory if it is not turned on.
Page 270 3-2. Using the audio system Control panel Power Volume Searching playback Selector buttons Displaying text messages Selector knob Playback Playback/ pause Selecting a file/ Selecting a folder fast-forwarding and reversing Selecting and scanning a folder Selecting a folder Press “∧” or “∨” on to select the desired folder.
Page 271 3-2. Using the audio system Selecting and scanning files Selecting a file Turn or press “∧” or “∨” on to select the desired file. Scanning the files in a folder Press The first ten seconds of each file will be played. To cancel, press again.
Page 272 3-2. Using the audio system Random playback Playing files from a folder in random order Press (RDM). To cancel, press the button twice. Playing all the files from a USB memory in random order Press (RDM) twice. To cancel, press the button again. Repeat play Repeating a file Press...
Page 273 3-2. Using the audio system USB memory functions Depending on the USB memory that is connected to the system, certain functions may not be available. Disconnecting the device and reconnecting it once again may resolve some malfunctions. Error messages “USB ERROR”:This indicates a problem in the USB memory, in the USB box or connection between them.
Page 274 3-2. Using the audio system MP3 and WMA files MP3 (MPEG Audio LAYER 3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size using MP3 compression. ® WMA (Windows Media Audio) is a Microsoft audio compression format.
Page 275 3-2. Using the audio system File names The only files that can be recognized as MP3/WMA and played are those with the extension .mp3 or .wma. ID3 and WMA tags ID3 tags can be added to MP3 files, making it possible to record the track title, artist name, etc.
Page 276 3-2. Using the audio system CAUTION Caution while driving Do not connect a USB memory or operate the controls. NOTICE To prevent damage to a USB memory Do not leave a USB memory in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the player.
Page 277 3-2. Using the audio system Optimal use of the audio system Selector buttons Adjusting the sound quality and ASL Menu button Using the audio control function Changing sound quality modes Press Press (type B only) as corresponds to the desired mode. “BASS”, “MID”...
Page 278 3-2. Using the audio system Adjusting sound quality Turning adjusts the level. Mode Sound qual- Turn to the Turn to the Level displayed ity mode left right BASS Bass* -5 to 5 Mid-range* -5 to 5 High (type B only) TREB Treble* -5 to 5...
Page 279 3-2. Using the audio system Setting the number of preset pages The number of preset pages desired can be set from 1 to 6. The initial setting is 6 pages. Press Press (MORE). Press (PRESET). Press as corresponds to the desired number of preset pages.
Page 280 3-2. Using the audio system Using the AUX port This port can be used to connect a portable audio device and listen to it through the vehicle’s speakers. Open the cover and connect the portable audio device. Press Operating portable audio devices connected to the audio system The volume can be adjusted using the vehicle’s audio controls.
Page 281 3-2. Using the audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. Increases/decreases vol- Radio mode: Selects radio station CD mode: Selects tracks, files (MP3 and WMA) and discs (type B only) iPod mode: Selects a song memory...
Page 282 3-2. Using the audio system Turning the power on Press when the audio system is turned off. The audio system can be turned off by holding the switch down until you hear a beep. Changing the audio source Press when the audio system is turned on. The audio source changes as follows each time the switch is pressed.
Page 283 3-2. Using the audio system Selecting a track/file or song ® Press to select the CD, iPod, USB memory, Bluetooth audio mode. Press “∨” or “∧” on to select the desired track/file or song. Selecting a folder or album ® Press to select the CD, USB memory or Bluetooth audio...
Page 284 ® 3-3. Using the Bluetooth audio system ® Bluetooth audio system ® The Bluetooth audio system enables you to enjoy music played on a portable digital audio player (portable player) from the vehicle speakers via wireless communication. ® This audio system supports Bluetooth , a wireless data system capable of playing portable audio music without cables.
Page 285 ® 3-3. Using the Bluetooth audio system ® About Bluetooth Bluetooth is a registered trademark of Bluetooth SIG. Inc. Compatible models ® Bluetooth specifications: Ver. 1.2 Following Profiles: • A2DP (Advanced Audio Distribution Profile) Ver. 1.0 • AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.3 or higher recommended) Portable players must correspond to the above specifications in order to be ®...
Page 286 ® 3-3. Using the Bluetooth audio system For vehicles sold in Canada • Vehicles with CD changer IC ID: 2024B-FT0001A MADE IN JAPAN • Vehicles without CD changer IC ID: 775E-K025 MADE IN JAPAN Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.
Page 287 ® 3-3. Using the Bluetooth audio system ® Using the Bluetooth audio system Audio unit Display Track title, Artist name, Album name, Elapsed time, “Streaming Audio”, etc. is displayed. Selects items such as menu and number Turn: Selects an item Press: Inputs the selected item Bluetooth-Audio...
Page 288 ® 3-3. Using the Bluetooth audio system Operating the system using voice commands By following voice guidance instructions output from the speaker, ® voice commands enable to the operation of the Bluetooth audio sys- tem without the need to check the display or operate Operation procedure when using voice commands Press the talk switch and follow the voice guidance instructions.
Page 289 ® 3-3. Using the Bluetooth audio system Register a portable player name by either of the following methods: a. Select “Record Name” using , and say the name to be registered. b. Press the talk switch and say the name to be registered. A voice guidance instruction to confirm the input is heard.
Page 290 ® 3-3. Using the Bluetooth audio system ® Menu list of the Bluetooth audio system Second First menu Third menu Operation detail menu Pair Audio Players Registering a portable player (Pair audio player) Select Audio Selecting a portable player to Player be used Audio...
Page 291 ® 3-3. Using the Bluetooth audio system When using a voice command For numbers, say a combination of single digits from zero to nine. Say the command correctly and clearly. Situations that the system may not recognize your voice When driving on rough roads When driving at high speeds When air is blowing out of the vents onto the microphone When the air conditioning fan emits a loud noise...
Page 292 3-3. Using the Bluetooth audio system ® Operating a Bluetooth enabled portable player Power Volume PWR VOL PWR VOL Selector buttons Displaying text messages TOYOTA LOAD SCAN TEXT PWR VOL TUNE SCROLL Selector knob PUSH SELECT Playback PRESET RADIO SET UP...
Page 293 ® 3-3. Using the Bluetooth audio system Fast-forwarding and reversing tracks ∧ Press and hold “ ” or “∨” on Switching the display Press Each time is pressed, the display changes in the following order: Track title → Track title/Artist name → Track title/Album name → Track title/Elapsed time Using the steering wheel audio switches →P.
Page 294 ® 3-3. Using the Bluetooth audio system ® Setting up a Bluetooth enabled portable player ® Registering a portable player in the Bluetooth audio system allows the system to function. The following functions can be used for reg- istered portable players: Functions and operation procedures Press until “BT AUDIO”...
Page 295 ® 3-3. Using the Bluetooth audio system Selecting a portable player to be used Select “Select Audio Player” using a voice command or Select the portable player to be used by either of the following methods, and select “Confirm” using a voice command or a.
Page 296 ® 3-3. Using the Bluetooth audio system Changing the registered name of a portable player Select “Change Name” using a voice command or Select the name of the portable player to be changed by either of the following methods, and select “Confirm” using a voice command or a.
Page 297 ® 3-3. Using the Bluetooth audio system Listing the registered portable players Select “List Audio Players” using a voice command or The list of registered portable players will be read aloud. When listing is complete, the system returns to “BT Audio Setup”. Pressing the talk switch while the name of a portable player is being read aloud selects the portable player, and the following functions will become available:...
Page 298 ® 3-3. Using the Bluetooth audio system Deleting a registered portable player Select “Delete Audio Player” using a voice command or Select the portable player to be deleted by either of the follow- ing methods and select “Confirm” using a voice command or a.
Page 299 ® 3-3. Using the Bluetooth audio system ® Bluetooth audio system setup System setup items and operation procedures →P. 302 I n f o r ma t i o n P r o v i d e d b y :...
Page 300 3-4. Using the hands-free phone system (for cellular phone) Hands-free phone system features ® This system supports Bluetooth , which allows you to make or receive calls without using cables to connect a cellular phone and the system, and without operating the cellular phone. Hands-free system quick guide Setting a cellular phone.
Page 301 3-4. Using the hands-free phone system (for cellular phone) Title Page Security and system setup n Setting or changing the PIN n Locking or unlocking the phone book P. 302 n Setting voice guidance volume n Initialization Using the phone book n Adding a new phone number n Setting speed dials n Changing a registered name...
Page 302 3-4. Using the hands-free phone system (for cellular phone) ® About Bluetooth Bluetooth is a registered trademark of Bluetooth SIG. Inc. Certification for the hands-free phone system For vehicles sold in U.S.A. • Vehicles with CD changer FCC ID: BABFT0001A MADE IN JAPAN •...
Page 303 3-4. Using the hands-free phone system (for cellular phone) CAUTION FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radio Frequency Radiation Exposure. This equipment complies with FCC/ IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 304 3-4. Using the hands-free phone system (for cellular phone) Using the hands-free phone system Audio unit Display A message, name, phone number, etc. is displayed. Lower-case characters and special characters, such as an umlaut, cannot be dis- played. Selects speed dials Selects items such as menu or number Turn: Selects an item...
Page 305 3-4. Using the hands-free phone system (for cellular phone) Steering wheel switches Volume The voice guidance volume cannot be adjusted using this button. Off-hook switch Turns the hands-free sys- tem on/starts a call On-hook switch Turns the hands-free sys- tem off/ends a call/refuses a call Talk switch Turns the voice command...
Page 306 3-4. Using the hands-free phone system (for cellular phone) Microphone I n f o r ma t i o n P r o v i d e d b y :...
Page 307 3-4. Using the hands-free phone system (for cellular phone) Operating the system by using a voice command By following the voice guidance instructions output from the speaker, voice commands enable the operation of the hands-free phone sys- tem without the need to check the display or operate Operation procedure when using a voice command Press the talk switch and follow the voice guidance instructions.
Page 308 3-4. Using the hands-free phone system (for cellular phone) Register a phone name either of the following methods. a. Select “Record Name” using , and say a name to be registered. b. Press the talk switch and say a name to be registered. A voice guidance instruction to confirm the input is heard.
Page 309 3-4. Using the hands-free phone system (for cellular phone) Menu list of the hands-free phone system Normal operation Second First menu Third menu Operation detail menu Dialing a number stored in CallBack the incoming call history (Callback) memory Dialing a number stored in Redial the outgoing call history memory...
Page 310 3-4. Using the hands-free phone system (for cellular phone) Second First menu Third menu Operation detail menu Set PIN Setting a PIN code Phonebook Lock Locking the phone book (Phone book Security lock) Phonebook Unlock Unlocking the phone book (Phone book unlock) Registering the cellular Pair Phone...
Page 311 3-4. Using the hands-free phone system (for cellular phone) Using a short cut key First menu Second menu Operation detail Dialing a number registered in Dial XXX (name) the phone book Dial XXX (number) Dialing the input numbers Phone book add Adding a new number entry Phone book change...
Page 312 3-4. Using the hands-free phone system (for cellular phone) Automatic volume adjustment When vehicle speed is 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less. When using a voice command For numbers, say a combination of single digits from zero to nine, # (pound), ∗...
Page 313 3-4. Using the hands-free phone system (for cellular phone) Making a phone call Making a phone call l Dialing by inputting a number “Dial by Number” l Dialing by inputting a name “Dial by Name (Dial by name)” l Speed dialing l Dialing a number stored in the outgoing history memory “Redial”...
Page 314 3-4. Using the hands-free phone system (for cellular phone) Dialing by inputting a number Press the talk switch and say “Dial by Number”. Press the talk switch and say the phone number. Dial by one of the following methods: a. Press the off-hook switch. b.
Page 315 3-4. Using the hands-free phone system (for cellular phone) When receiving a phone call Answering a phone call Press the off-hook switch. Refusing a phone call Press the on-hook switch. Transferring a call A call can be transferred between the cellular phone and system while dialing, receiving a call, or during a call.
Page 316 3-4. Using the hands-free phone system (for cellular phone) Using the call history memory Follow the procedure below to use a number stored in the call history memory: Press the talk switch and say “Redial” (when using a number stored in the outgoing call history memory) or “CallBack” (when using a number stored in the incoming call history memory).
Page 317 3-4. Using the hands-free phone system (for cellular phone) Call history Up to 5 numbers can be stored in each of the outgoing and incoming call his- tory memories. When talking on the phone Do not talk at the same time as the other party. Keep the volume of the received voice down.
Page 318 3-4. Using the hands-free phone system (for cellular phone) Setting a cellular phone Registering a cellular phone in the hands-free phone system allows the system to function. The following functions can be used for reg- istered cellular phones: Functions and operation procedures To enter the menu for each function, follow the steps below using a voice command or l Registering a cellular phone...
Page 319 3-4. Using the hands-free phone system (for cellular phone) Registering a cellular phone Select “Pair Phone” using a voice command or , and per- form the procedure for registering a cellular phone. (→P. 285) Selecting the cellular phone to be used Select “Select Phone”...
Page 320 3-4. Using the hands-free phone system (for cellular phone) Changing a registered name Select “Change Phone Name (Change name)” using a voice command or Select the name of the cellular phone to be changed by either of the following methods: a.
Page 321 3-4. Using the hands-free phone system (for cellular phone) Listing the registered cellular phones Selecting “List Phones” using a voice command or causes the list of registered cellular phones to be read aloud. When listing is complete, the system returns to “Phone Setup”. Pressing the talk switch while the name of a cellular phone is being read selects the cellular phone, and the following functions will be available:...
Page 322 3-4. Using the hands-free phone system (for cellular phone) Changing the passkey Select “Set Passkey” using a voice command or Press the talk switch, say a 4 to 8-digit number, and select “Confirm” using a voice command or The number should be input 1 digit at a time. When the entire number to be registered as a passkey has been input, press again.
Page 323 3-4. Using the hands-free phone system (for cellular phone) Turning on the automatic connection Select “Handsfree Power” using a voice command or Select “Turn on” using a voice command or The number of cellular phones that can be registered Up to 6 cellular phones can be registered in the system. I n f o r ma t i o n P r o v i d e d b y :...
Page 324 3-4. Using the hands-free phone system (for cellular phone) Security and system setup To enter the menu of each setting, follow the steps below: Security setting items and operation procedure l Setting or changing the PIN (Personal Identification Number) 1. “Setup” → 2. “Security” → 3. “Set PIN” l Locking the phone book 1.
Page 325 3-4. Using the hands-free phone system (for cellular phone) Setting or changing the PIN Setting a PIN Select “Set PIN” using a voice command or Enter a PIN using a voice command or When using , input the code 1 digit at a time. Changing the PIN Select “Set PIN”...
Page 326 3-4. Using the hands-free phone system (for cellular phone) Locking or unlocking the phone book Select “Phonebook Lock (Phone book lock)” or “Phonebook Unlock (Phone book unlock)” using a voice command or Input the PIN by either of the following methods and select “Confirm”...
Page 327 3-4. Using the hands-free phone system (for cellular phone) ® Displaying the Bluetooth device address and name Select “Device Name” using ® Turn to display the Bluetooth device address and name. Select “Go Back” using to return to “System Setup”. Initialization Select “Reset Settings”...
Page 328 3-4. Using the hands-free phone system (for cellular phone) Initialization The following data in the system can be initialized: • Phone book • Outgoing and incoming call history • Speed dials • Registered cellular phone data • Security code Once the initialization has been completed, the data cannot be restored to its original state.
Page 329 3-4. Using the hands-free phone system (for cellular phone) Using the phone book To enter the menu of each setting, follow the steps below: l Adding a new phone number 1. “Phonebook” → 2. “Add Entry” l Setting speed dial 1.
Page 330 3-4. Using the hands-free phone system (for cellular phone) Adding procedure Select “Add Entry” using a voice command or Use one of the following methods to input a telephone num- ber: Inputting a telephone number using a voice command STEP2-1 Select “By Voice (By voice)” using a voice com- mand or STEP2-2 Press the talk switch, say the desired number, and select “Confirm”...
Page 331 3-4. Using the hands-free phone system (for cellular phone) Inputting a phone number using STEP2-1 Select “Manual Input” using STEP2-2 Input a phone number using , and press once again. Input the phone number 1 digit at a time. Selecting a phone number from outgoing or incoming call history STEP2-1 Select “Call History”...
Page 332 3-4. Using the hands-free phone system (for cellular phone) Select the name to be registered by either of the following methods, and select “Confirm” using a voice command or a. Press the talk switch and say the desired name. b. Select “Record Name” using , and say the desired name.
Page 333 3-4. Using the hands-free phone system (for cellular phone) Setting speed dials Select “Speed Dial (Set speed dial)” using a voice command Select the data to be registered as a speed dial by either of the following methods: a. Press the talk switch, say desired number, and select “Confirm”...
Page 334 3-4. Using the hands-free phone system (for cellular phone) Changing a registered name Select “Change Name” using a voice command or Select the name to be changed by either of the following methods. a. Press the talk switch, say desired name, and select “Confirm”...
Page 335 3-4. Using the hands-free phone system (for cellular phone) Deleting registered data Select “Delete Entry” using a voice command or Select the data to be deleted by either of the following meth- ods, and select “Confirm” using a voice command or a.
Page 336 3-4. Using the hands-free phone system (for cellular phone) Listing the registered data Selecting “List names” using a voice command causes a list of the registered data to be read aloud. When listing is complete, the system returns to “Phonebook”. Pressing the talk switch while the desired data is being read aloud selects the data, and the following functions will be available.
Page 337 3-5. Using the interior lights Interior lights list Rear interior light (→P. 316) Front interior light (→P. 316) Personal lights (→P. 317) Engine switch light Illuminated entry system When the interior light switch is in the DOOR position, the interior light and engine switch light automatically turns on/off according to whether the doors are locked/unlocked and whether the doors are open/closed and the engine switch position.
Page 338 3-5. Using the interior lights Interior lights Customization that can be configured at Toyota dealer Settings (e.g. The time elapsed before lights turn off) can be changed. (Cus- tomizable features →P. 493) Interior lights Front DOOR position Rear DOOR position...
Page 339 3-5. Using the interior lights Personal lights Personal lights On/off To prevent the battery from being discharged The personal lights will automatically turn off in about 30 minutes after the key is removed from the engine switch. I n f o r ma t i o n P r o v i d e d b y :...
Page 340 3-6. Using the storage features List of storage features Auxiliary box Glove box Bottle holders Cup holders CAUTION Items that should not be left in the storage spaces Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: Glasses may be deformed by heat or cracked if they come into contact with other stored items.
Page 341 3-6. Using the storage features Glove box and cup holders (front) Glove box Pull up the lever. CAUTION Caution while driving Keep the glove box closed. Injuries may result in the event of an accident or sudden braking. Cup holders (front) Vehicles with an automatic transmission I n f o r ma t i o n P r o v i d e d b y :...
Page 342 3-6. Using the storage features Cup holders (front) Vehicles with a manual transmission Holding large cups Vehicles with an automatic transmission The adapter can be removed. I n f o r ma t i o n P r o v i d e d b y :...
Page 343 3-6. Using the storage features Cup holders (front) Vehicles with a manual transmission The adapter can be removed. CAUTION Items unsuitable for the cup holder Do not place anything other than cups or beverage cans in the cup holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 344 3-6. Using the storage features Cup holders (rear) Cup holders (rear) Removing the mat Pull up. CAUTION Items unsuitable for the cup holder Do not place anything other than cups or beverage cans in the cup holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 345 3-6. Using the storage features Bottle holders Bottle holders Bottle holders Depending on their size or shape, some bottles may not fit in the holders. NOTICE Items that should not be stowed in the bottle holders Put the cap on before stowing a bottle. Do not place open bottles in the bot- tle holders, or glasses and paper cups containing liquid.
Page 346 3-6. Using the storage features Auxiliary box Auxiliary box Push the button. Pull up the lid. CAUTION Caution while driving Keep the auxiliary box closed. Items may fall out and cause death or serious injury in case of an accident or sudden stop.
Page 347 3-7. Other interior features Sun visors Front Forward position: Flip down. Side position: Flip down, unhook, and swing to the side. Side Flip down. I n f o r ma t i o n P r o v i d e d b y :...
Page 348 3-7. Other interior features Vanity mirrors Open the cover. I n f o r ma t i o n P r o v i d e d b y :...
Page 349 3-7. Other interior features Clock Adjusts the hours Adjusts the minutes The clock is displayed when The engine switch is in the ACC or ON position. When disconnecting and reconnecting battery terminals The time display will automatically be set to 1:00. I n f o r ma t i o n P r o v i d e d b y :...
Page 350 English/U.S. Cus- tomary System and metric. When – –°C or – –°F is displayed The system may be malfunctioning. Take your vehicle to your Toyota dealer. The outside air temperature is displayed when The engine switch is in the ON position.
Page 351 3-7. Other interior features Power outlet (12V DC) The power outlet can be used for 12 V accessories that run on less than 10A. The power outlet can be used when The engine switch is in the ACC or ON position. NOTICE To avoid damaging the power outlet Close the power outlet lid when not in use.
Page 352 3-7. Other interior features ∗ Power outlet (115V AC) The power outlet can be used for electrical appliances. Operation Main switch To use the power outlet, turn on the main switch. The power supply starts a few seconds after the main switch is pressed.
Page 353 3-7. Other interior features Maximum available capacity of the power outlet While the vehicle is being driven The maximum capacity of the power outlet is always 115V AC/ 100W. When the vehicle is stationary The maximum capacity of the power outlet varies depending on the following conditions.
Page 354 3-7. Other interior features The power outlet can be used when The engine is started. The indicator light changes according the maximum available capacity, as follows: Indicates 115V AC/400W Indicates 115V AC/100W When the power outlet is in operation The sound of the cooling fan may be heard from the right side of the luggage compartment.
Page 355 Do not modify, disassemble or repair the power outlet or its inverter, in any way. Doing so may result in unexpected malfunctions or accidents, which could cause serious damage or injuries. Contact a Toyota dealer for any necessary repairs. I n f o r ma t i o n P r o v i d e d b y :...
Page 356 3-7. Other interior features CAUTION To prevent injuries and accidents, securely fix all electric appliances before use and do not use any appliances that may do any of the fol- lowing: Distract the driver while driving, or hamper safe driving. Result in a fire or burn injuries due to the appliance rolling, falling or over- heating while driving.
Page 357 If the power outlet is loose when an electrical appliance plug is con- nected Replace the outlet. Contact a Toyota dealer for any necessary replacements. If the power outlet gets dirty Turn the main switch off and use a soft, clean cloth to wipe it gently.
Page 358 3-7. Other interior features Armrest Adjusting to the desired angle: Lower the armrest from the highest position to the lowest position. Raise the armrest to the desired angle. Unlock the armrest: Lift the armrest to raise it to the highest position. NOTICE To prevent damage to the armrest Do not place too much strain on the armrest.
Page 359 3-7. Other interior features Floor mat Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet. Insert the retaining hooks (clips) into the floor mat eye- lets.
Page 360 When installing the driver’s floor mat Do not use floor mats designed for other models or different model year vehicles, even if they are Toyota Genuine floor mats. Only use floor mats designed for the driver’s seat. Always install the floor mat securely using the retaining hooks (clips) pro- vided.
Page 361 3-7. Other interior features Luggage storage box (vehicles without sub woofer) Push the lid down and pull it towards you. CAUTION Caution while driving Keep the luggage storage box closed. Injuries may result in the event of an accident or sudden braking. I n f o r ma t i o n P r o v i d e d b y :...
Page 362 3-7. Other interior features Luggage compartment features Tie-down hooks Tie-down hooks are provided for securing loose items. I n f o r ma t i o n P r o v i d e d b y :...
Page 363 3-7. Other interior features Cargo net hooks To hang the cargo net, use the cargo net hooks and tie-down hooks. The cargo net itself is not included as an original equip- ment. I n f o r ma t i o n P r o v i d e d b y :...
Page 364 3-7. Other interior features Shopping bag hooks To hang the shopping bag, use the cargo net hooks. CAUTION When the tie-down hooks and cargo net hooks are not in use To avoid injury, always return the tie-down hooks and cargo net hooks to their positions when they are not in use.
Page 365 3-7. Other interior features ∗ Compass The compass indicates the direction that the vehicle is heading. Operation The compass points north for about 3 seconds after the engine switch is turned to the ON position, and then indi- cates the actual direction the vehicle facing.
Page 366 3-7. Other interior features Calibrating the compass Samoa: 5 Guam: 8 Saipan: 8 The direction display deviates from the true direction determined by the earth’s magnetic field. The amount of deviation varies according to the geographic position of the vehicle. If you cross over a map boundary shown in illustration, the compass will deviate.
Page 367 3-7. Other interior features After calibration, leave the system for 6 seconds or press the SET button for about 2 seconds. If the display returns to the outside temperature display, the calibra- tion is complete. Circling calibration Stop the vehicle where it is safe to drive in a circle. Press the SET button until the zone number appears on the outside...
Page 368 3-7. Other interior features Conditions unfavorable to correct operation The compass may not show the correct direction in the following conditions: The vehicle is stopped immediately after turning. The compass does not adjust while the vehicle is stopped. The engine switch is turned off immediately after turning. The vehicle is on an inclined surface.
Page 369 3-7. Other interior features NOTICE To avoid the compass malfunctions Do not place magnets or any metal objects on or near the accessory meter. Doing this may cause a malfunction of the compass sensor. To ensure normal operation of the compass Do not perform circling calibration of the compass in a place where the earth’s magnetic field is subject to interference by artificial magnetic fields.
Page 370 3-7. Other interior features I n f o r ma t i o n P r o v i d e d b y :...
Page 371 4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition. l Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 372 4-1. Maintenance and care Touch-up paint (if equipped) Touch-up paint may be used to cover small chips or scratches. Apply the paint soon after the damage occurs or corrosion may set in. To apply the touch-up paint so it is hardly noticeable the trick is to apply it only to the bare spots.
Page 373 4-1. Maintenance and care NOTICE To prevent paint deterioration and corrosion on the body and compo- nents (aluminum wheels etc.) Wash the vehicle immediately in the following cases: • After driving near the sea coast • After driving on salted roads •...
Page 374 4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty sur- faces with a cloth dampened with lukewarm water.
Page 375 4-1. Maintenance and care Caring for leather areas Toyota recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’s interior. Shampooing the carpets There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 376 4-1. Maintenance and care NOTICE Cleaning detergents Do not use organic substances such as benzene or gasoline, acidic or alkaline solutions, dye, bleach or other detergent. Doing so may discolor the vehicle interior or cause streaks or damage to painted surfaces. Do not use polish wax or polish cleaner.
Page 377 Warranty Information Booklet”, “Owner’s Manual Supplement”. Repair and replacement It is recommended that genuine Toyota parts be used for repair to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than Toyota dealer performs repairs, confirm the war- ranty coverage.
Page 378 4-2. Maintenance Allow inspection and repairs to be performed by a Toyota dealer Toyota technicians are well-trained specialists and are kept up to date with the latest service information. They are well informed about the operations of all systems on your vehicle.
Page 379 “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment Items...
Page 380 4-2. Maintenance Vehicle interior Items Check points • Moves smoothly (without uneven Accelerator pedal pedal effort or catching)? • Can the vehicle be hold securely Automatic transmission “Park” on an incline with the shift lever in mechanism • Moves smoothly? •...
Page 381 4-2. Maintenance Items Check points • Moves smoothly? Steering wheel • Has correct free play? • No strange noises? Vehicle exterior Items Check points Door • Operate smoothly? Engine hood • The lock system works properly? • Is there any leakage after park- Fluid leaks ing? •...
Page 382 The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/ M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. Your vehicle may not pass the I/M test:...
Page 383 • SAE J1703 or FMVSS No.116 Brake fluid level (→P. 373) DOT 3 brake fluid • Rag or paper towel • “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non- amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology.
Page 384 4-3. Do-it-yourself maintenance Items Parts and tools • Bulb with same number and watt- Light bulbs (→P. 410) age rating as original • Phillips-head screwdriver • Automatic transmission fluid Power steering fluid level ® DEXRON II or III (→P. 375) •...
Page 385 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury observe the following precautions. When working on the engine compartment Keep hands, clothing, and tools away from the moving fan and engine drive belt.
Page 386 4-3. Do-it-yourself maintenance NOTICE If you remove the air cleaner Driving with the air cleaner removed may cause excessive engine wear due to dirt in the air. Also a backfire could cause a fire in the engine compart- ment. If the fluid level is low or high It is normal for the brake fluid level to go down slightly as the brake pads wear or when the fluid level in the accumulator is high.
Page 387 4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. The hood will pop up slightly. Pull up the hood catch lever and lift the hood. CAUTION Pre-driving check Check that the hood is fully closed and locked.
Page 388 4-3. Do-it-yourself maintenance Engine compartment Washer fluid tank (→P. 379) Engine oil filler cap (→P. 368) Power steering fluid reservoir (→P. 375) Brake fluid reservoir (→P. 373) Radiator cap Fuse box (→P. 399) Engine oil level dipstick (→P. 368) Battery (→P.
Page 389 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil Park the vehicle on level ground. After turning off the engine, wait more than 5 minutes for the oil to drain back into the bot- tom of the engine.
Page 390 4-3. Do-it-yourself maintenance Adding engine oil If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine. Make sure to check the oil type and prepare the items needed before adding oil.
Page 391 1000 km) If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km), contact your Toyota dealer. After changing the engine oil (U.S.A. only) The oil change system should be reset. Perform the following procedures: Turn the engine switch off with the odometer reading shown.
Page 392 Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal.
Page 393 If the coolant level drops within a short time after replenishing Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water pump. If you cannot find a leak, have your Toyota dealer pressure test the cap and check for leaks in the cooling system. Coolant selection Only use “Toyota Super Long Life Coolant”...
Page 394 Check the radiator and condenser and clear any foreign objects. If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Toyota dealer. CAUTION When the engine is hot Do not touch the radiator or condenser as they may be hot and may cause burns.
Page 395 4-3. Do-it-yourself maintenance Adding fluid Make sure to check the fluid type and prepare the necessary items. Fluid type SAE J1703 or FMVSS No.116 DOT 3 brake fluid Items Rag or paper towel Turn the engine switch off. Depress the brake pedal 20 times or more. Remove the reservoir cap.
Page 396 4-3. Do-it-yourself maintenance Power steering fluid Fluid level The fluid level should be within the appropriate range. Full (when cold) Add fluid (when cold) Full (when hot) Add fluid (when hot) Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frigid temperatures.
Page 397 4-3. Do-it-yourself maintenance CAUTION Checking the fluid level Take care, as the reservoir may be hot. NOTICE When adding fluid Avoid overfilling, or the power steering may be damaged. After replacing the reservoir cap Check the steering box case, vane pump and hose connections for leaks or damage.
Page 398 4-3. Do-it-yourself maintenance Checking battery fluid Check that the level is between the upper line and the lower line. Upper line Lower line If the fluid level is at or below the lower line, add distilled water. Adding distilled water O.K.
Page 399 4-3. Do-it-yourself maintenance CAUTION Chemicals in the battery A battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near bat- tery: Do not cause sparks by touching the battery terminals with tools.
Page 400 4-3. Do-it-yourself maintenance NOTICE When recharging the battery Never recharge the battery while the engine is running. Also, be sure all accessories are turned off. When adding distilled water Avoid overfilling. Water spilled during battery recharging may cause corro- sion. Washer fluid If the washer fluid level is at LOW, add washer fluid.
Page 401 4-3. Do-it-yourself maintenance CAUTION When refilling the washer fluid Do not refill the washer fluid when the engine is hot or running, as the washer fluid contains alcohol and may catch fire if spilled on the engine etc. NOTICE Do not use any fluid other than washer fluid Do not use soapy water or engine antifreeze instead of washer fluid.
Page 402 The tire pressure warning system Your Toyota is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire inflation pressure before serious problems arise. (→P. 433)
Page 403 ID codes must be registered in the tire pressure warning computer and tire pressure warning system must be initialized. Have tire pressure warning valve and transmitter ID codes registered by your Toyota dealer. Registering ID codes The tire pressure warning valve and transmitter is equipped with a unique ID code.
Page 404 4-3. Do-it-yourself maintenance If the tread wears down below 0.16 in. (4 mm) on snow tires The effectiveness of snow tires is lost. Maximum load of tire Check that the number given by dividing the maximum load by 1.10 of the replacement tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater.
Page 405 4-3. Do-it-yourself maintenance Routine tire inflation pressure checks The tire pressure warning system does not replace routine tire inflation pressure checks. Make sure to check tire inflation pressure as part of your routine of daily vehicle checks. Tire pressure warning system certification FCC ID: PAXPMV107J FCC ID: HYQ13BCX For vehicles sold in the U.S.A .
Page 406 Do not mix tires of different makes, models or tread patterns. Also, do not mix tires of remarkably different treadwear. Do not use tire sizes other than those recommended by Toyota. Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 407 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 408 4-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. (→P. 477) I n f o r ma t i o n P r o v i d e d b y :...
Page 409 4-3. Do-it-yourself maintenance Inspection and adjustment procedure Tire valve Tire pressure gauge Remove the tire valve cap. Press the tip of the tire pressure gauge onto the tire valve. Read the pressure using the graduations of the gauge. If the tire inflation pressure is not within the recommended levels, adjust inflate the tire.
Page 410 Reduced driving comfort and tire life Reduced safety Damage to the drive train If a tire needs frequent refilling, have it checked by your Toyota dealer. Instructions for checking tire inflation pressure When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 411 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury. Excessive wear Uneven wear Poor handling Possibility of blowouts resulting from overheated tires Poor sealing of the tire bead Wheel deformation and/or tire separation A greater possibility of tire damage from road hazards...
Page 412 Used wheels l Bent wheels that have been straightened Aluminum wheel precautions (if equipped) l Use only Toyota wheel nuts and wrench designed for use with your aluminum wheels. l When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 413 4-3. Do-it-yourself maintenance When replacing wheels The wheels of your Toyota are equipped with tire pressure warning valves and transmitters that allow the tire pressure warning system to provide advanced warning in the event of a loss in tire inflation pressure.
Page 414 Because tire repair or replacement may affect the tire pressure warn- ing valves and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Toyota dealer.
Page 415 4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air conditioning efficiency. Removal method Turn the engine switch off. Open the glove box. Slide off the damper. Push in each side of the glove box to disconnect the upper claws.
Page 416 4-3. Do-it-yourself maintenance Remove the filter case. Replacement method Remove the air conditioning filter and replace it with a new one. The “↑UP” marks shown on the filter should be pointing up. Checking interval Inspect and replace the air conditioning filter according to the maintenance schedule.
Page 417 4-3. Do-it-yourself maintenance NOTICE When using the air conditioning system Make sure that a filter is always installed. Using the air conditioning system without a filter may cause damage to the system. I n f o r ma t i o n P r o v i d e d b y :...
Page 418 4-3. Do-it-yourself maintenance Key battery Replace the battery with a new one if it is discharged. You will need the following items: l Small Phillips-head screwdriver l Lithium battery CR2016 Replacing the battery Remove the screw and cover. Push the cover in the arrow direction.
Page 419 The wireless remote control will not function properly. The operational range is reduced. Use a CR2016 lithium battery Batteries can be purchased at your Toyota dealer, jewelers, or camera stores. Replace only with the same or equivalent type recommended by your Toyota dealer.
Page 420 4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the engine switch off. The fuses are located in the following places. To check the fuses, follow the instructions below.
Page 421 4-3. Do-it-yourself maintenance Under the instrument panel Remove the lid. After a system failure, see “Fuse layout and amperage rat- ings” (→P. 403) for details about which fuse to check. I n f o r ma t i o n P r o v i d e d b y :...
Page 422 4-3. Do-it-yourself maintenance Remove the fuse with the pull- out tool. I n f o r ma t i o n P r o v i d e d b y :...
Page 423 4-3. Do-it-yourself maintenance Check if the fuse has blown. Type A Normal fuse Blown fuse Replace it with one of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type B Normal fuse Blown fuse Replace it with one of an appropriate amperage rating.
Page 424 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment Type A Type B (if equipped) I n f o r ma t i o n P r o v i d e d b y :...
Page 425 4-3. Do-it-yourself maintenance Fuse Ampere Circuit SPARE 10 A Spare fuse SPARE 15 A Spare fuse TOWING TAIL 15 A Trailer lights RR FOG 10 A No circuit OFFROAD LP 15 A Offroad lamp Stop lights, high mounted stop- light, anti-lock brake system, trac- tion control system, active traction control system, vehicle stability STOP...
Page 426 4-3. Do-it-yourself maintenance Fuse Ampere Circuit DEFOG 30 A Rear window defogger Multiport fuel injection system/ DEFOG NO.2 10 A sequential multiport fuel injection system Interior light, personal lights, DOME 10 A engine switch light, clock, acces- sory meter, meter and gauge RADIO NO.1 20 A Audio system...
Page 427 4-3. Do-it-yourself maintenance Fuse Ampere Circuit AIR PMP 50 A No circuit ACC, ECU-IG, IG1, RR WSH, FR 50 A WIP-WSH, 4WD/DIFF and STA 50 A TAIL, PWR OUTLET, POWER Anti-lock brake system, vehicle sta- bility control system, traction con- ABS MTR 40 A trol system, active traction control...
Page 428 4-3. Do-it-yourself maintenance Under the instrument panel 6 7 8 10 11 Fuse Ampere Circuit Multiport fuel injection system/ sequential multiport fuel injection system, anti-lock brake system, vehicle stability control system, 10 A traction control system, active trac- tion control system, AUTO LSD system, SRS airbag system, front passenger occupant classification system...
Page 429 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Anti-lock brake system, vehicle sta- bility control system, traction con- trol system, active traction control ECU-IG 10 A system, AUTO LSD system, cruise control system, back door lock sys- tem, shift lock system, multiplex communication system Turn signal lights, air conditioning system, charging system, clutch...
Page 430 Never use a fuse of a higher amperage rating than indicated, or use any other object in place of a fuse. Always use a genuine Toyota fuse or equivalent. Never replace a fuse with a wire, even as a temporary fix.
Page 431 You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer. For more information about replacing other light bulbs, contact your Toyota dealer.
Page 432 4-3. Do-it-yourself maintenance Rear bulb locations Stop/tail and rear side marker lights Back-up lights Rear turn signal lights License plate lights Replacing light bulbs Headlights and daytime running lights (if equipped) Unplug the connector. I n f o r ma t i o n P r o v i d e d b y :...
Page 433 4-3. Do-it-yourself maintenance Remove the rubber cover. Release bulb retaining spring. Remove the bulb. To install a new bulb, align the tabs of the bulb with the cutouts of the mounting hole. I n f o r ma t i o n P r o v i d e d b y :...
Page 434 4-3. Do-it-yourself maintenance Front turn signal/parking and front side marker lights Turn the bulb base counterclock- wise. Remove the light bulb. I n f o r ma t i o n P r o v i d e d b y :...
Page 435 4-3. Do-it-yourself maintenance Back-up lights, stop/tail and rear side marker and rear turn signal light bulbs l Removing the sub woofer speaker (vehicles with sub woofer) Remove the speaker cover. Remove the cover. Installing the sub woofer speaker (→P. 417) Remove the sub woofer speaker.
Page 436 4-3. Do-it-yourself maintenance l Removing the back-up, stop/tail and rear side marker and rear turn signal light bulbs Open the back door and remove the cover. Using a flathead screwdriver or equivalent which is wrapped with a cloth. Turn the bulb bases counter- clockwise.
Page 437 Remove the light bulb. Lights other than the above If any of the lights listed below has burnt out, have it replaced by your Toyota dealer. • Outside rear view mirror illumination lights (if equipped) • High mounted stoplight I n f o r ma t i o n P r o v i d e d b y :...
Page 438 LED high mounted stoplight The high mounted stoplight consists of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced. Installing the sub woofer speaker (vehicles with sub woofer) Install the rubber inside the panel as shown in the illustration.
Page 439 4-3. Do-it-yourself maintenance I n f o r ma t i o n P r o v i d e d b y :...
Page 440 5-1. Essential information Emergency flashers Use the emergency flashers if the vehicle malfunctions or is involved in an accident. Press the switch to flash all the turn signal lights. To turn them off, press the switch once again. NOTICE To prevent battery discharge Do not leave the emergency flashers on longer than necessary when the engine is not running.
Page 441 If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Toyota dealer or a commercial towing service, using a lift-type truck or a flat bed truck. Use a safety chain system for all towing, and abide by all state/pro- vincial and local laws.
Page 442 5-1. Essential information Emergency towing procedure The engine switch must be in the ACC (engine off) or the ON (engine running) position. 4WD models with an automatic transmission: Shift the front-wheel drive control lever in H2. 4WD models with a manual transmission: Unlock the center differ- ential.
Page 443 5-1. Essential information Towing with a sling-type truck NOTICE To prevent body damage Do not tow with a sling-type truck, either from the front or rear. Towing with a wheel lift-type truck from the front Use a towing dolly under the rear wheels.
Page 444 5-1. Essential information Towing with a wheel lift-type truck from the rear 2WD models Turn the engine switch to the ACC position. 4WD models Vehicles with a manual transmis- sion: Use a towing dolly under the front wheels. Vehicles with an automatic trans- mission: When not using a tow- ing dolly, turn the engine switch to the ACC position, shift the...
Page 445 5-1. Essential information Using a flat bed truck If your Toyota is transported by a Front flat bed truck, it should be tied down at the locations shown in the illustration. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45°.
Page 446 5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Toyota dealer as soon as possible. Visible symptoms l Fluid leaks under the vehicle (Water dripping from the air conditioning after use is normal.)
Page 447 5-1. Essential information Fuel pump shut off system To minimize the risk of fuel leakage when the engine stalls or an air- bag inflates upon collision, the fuel pump shut off system stops sup- plying fuel to the engine. Follow the procedure below to restart the engine after the system is activated.
Page 448 5-1. Essential information Event data recorder Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Besides storing data useful for troubleshooting, there is an event data recorder (EDR) that records data in a crash or a near car crash event.
Page 449 5-1. Essential information Disclosure of the data Toyota will not disclose the data recorded in an EDR to a third party except when: l An agreement from the vehicle’s owner (or the leasing company for a leased vehicle) is obtained...
Page 450 Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake sys- tem. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning light Warning light/Details Brake system warning light •...
Page 451 Have the vehicle inspected immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning light Warning light/Details Malfunction indicator lamp Indicates a malfunction in: (U.S.A.)
Page 452 5-2. Steps to take in an emergency Warning light Warning light/Details SRS warning light Indicates a malfunction in: • The SRS airbag system; • The front passenger occupant classification system; • The seat belt pretensioner system. ABS warning light (U.S.A.) Indicates a malfunction in: •...
Page 453 (including spare tire) • When the light comes on Have the system after blinking for 1 checked by your minute: Malfunction in Toyota dealer. the tire pressure warning system. Low fuel level warning light Refuel the vehicle. Low level of fuel.
Page 454 5-2. Steps to take in an emergency Warning light Warning light/Details Correction procedure Low washer fluid warn- ing light Fill the tank. (Canada) Low level of washer fluid. Engine oil replacement reminder light • Illuminates for about 3 Check the engine oil, seconds and then flashes and change if neces- for about 12 seconds: Indi-...
Page 455 If it is, tighten it securely. The light will go off after taking several driving trips. If the light does not go off even after several trips, contact your Toyota dealer as soon as possible. Front passenger detection sensor and passenger seat belt reminder If luggage or other load is placed on the front passenger seat, depending on its weight, the reminder light to flash and buzzer to sound.
Page 456 If there is a lot of snow or ice on the vehicle, in particular around the wheels or wheel housings. If non-genuine Toyota wheels are used. (Even if you use Toyota wheels, the tire pressure warning system may not work properly with some types of tires.)
Page 457 5-2. Steps to take in an emergency Customization that can be configured at Toyota dealer The vehicle speed linked seat belt reminder buzzer can be disabled. (Customizable features →P. 493) CAUTION If the tire pressure warning light comes on Be sure to observe the following precautions. Failure to do so could cause loss of vehicle control and result in death or serious injury.
Page 458 5-2. Steps to take in an emergency CAUTION Maintenance of the tire As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS-tire pressure warning system) that illuminates a low tire pressure telltale (tire pressure warning light) when one or more of your tires is significantly under-inflated.
Page 459 5-2. Steps to take in an emergency NOTICE Precaution when installing a different tire When a tire of a different specification or maker is installed, the tire pres- sure warning system may not operate properly. I n f o r ma t i o n P r o v i d e d b y :...
Page 460 5-2. Steps to take in an emergency If you have a flat tire Remove the flat tire and replace it with the spare provided. Before jacking up the vehicle l Stop the vehicle on a hard, flat surface. l Set the parking brake. l Shift the shift lever to P (automatic transmission) or R (manual transmission).
Page 461 5-2. Steps to take in an emergency Taking out the jack and tool bag Remove the cover and loosen the strap. Loosen and remove the jack. Tighten Loosen Taking out the spare tire (vehicles without rear view monitor system) Turn the hold-down nuts counter- clockwise with the wheel nut wrench and remove them.
Page 462 5-2. Steps to take in an emergency Taking out the spare tire (vehicles with rear view monitor system) Remove the bolt cover. Bolt cover Remove the bolt which fixes the spare wheel cover using the wrench in the tool bag (→P.
Page 463 5-2. Steps to take in an emergency Turn the hold-down nuts counter- clockwise with the wheel nut wrench and remove them. Replacing a flat tire Chock the tires. Wheel Flat tire chock positions Behind the Left- rear right- hand hand side side tire Front...
Page 464 5-2. Steps to take in an emergency Remove the wheel ornament using the wheel nut wrench or the remover as shown. To protect the wheel and wheel ornament, place a rag between the wheel nut wrench or the remover and the wheel ornament, as shown in the illustration.
Page 465 5-2. Steps to take in an emergency Assembling the jack handle. Remove the jack handle, jack handle extension bar and jack han- dle bar from the tool bag and assemble by following these steps. Loosen the bolts and the screw using either the jack handle or a screwdriver.
Page 466 5-2. Steps to take in an emergency Position the jack at the correct jack point as shown. Front Rear Make sure the jack is positioned on a level and solid place. Front Raise the vehicle until the tire is slightly raised off the ground. When positioning the jack under the rear axle housing, make sure the groove on the top of...
Page 467 5-2. Steps to take in an emergency Installing the tire Remove any dirt or foreign mat- ter from the wheel contact sur- face. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.
Page 468 5-2. Steps to take in an emergency Lower the vehicle. Firmly tighten each nut two or three times in the order shown in the illustration. Tightening torque: 85 ft·lbf (113 N·m, 11.5 kgf·m) Reinstall the wheel ornament. Aluminum wheel I n f o r ma t i o n P r o v i d e d b y :...
Page 469 5-2. Steps to take in an emergency Steel wheel Stowing the flat tire, jack and all tools Install the flat tire in the reverse order of removal. Tightening torque: 44 ft·lbf (60 N·m, 6.1 kgf·m) Vehicles with rear view monitor system: Install the spare wheel cover in the reverse order of removal.
Page 470 5-2. Steps to take in an emergency CAUTION Using the jack Improper use of the jack may lead to death or serious injuries due to the vehicle suddenly falling off the jack. Do not use the jack for any purpose other than replacing tires or install- ing and removing tire chains.
Page 471 5-2. Steps to take in an emergency CAUTION Replacing a flat tire Observe the following precautions to reduce the risk of death or serious injury: Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury. Have the wheel nuts tightened with a torque wrench to 85 ft·lbf (113 N·m, 11.5 kgf·m) as soon as possible after changing wheels.
Page 472 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 473 One or both of the battery terminals may be disconnected. l The battery may be discharged. (→P. 456) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown. I n f o r ma t i o n P r o v i d e d b y :...
Page 474 (a system to prevent accidental operation of the shift lever). Have the vehicle inspected by your Toyota dealer immediately. The following steps may be used as an emergency measure to ensure that the shift lever can be shifted.
Page 475 5-2. Steps to take in an emergency If you lose your keys New genuine Toyota keys can be made by your Toyota dealer using one of the master keys and the key number stamped on your key number plate. (→P. 26) If you lose all your master keys You cannot make new keys;...
Page 476 You can call your Toyota dealer or qualified repair shop. If you have a set of jumper (or booster) cables and a second vehi- cle with a 12-volt battery, you can jump start your Toyota following the steps below. Connecting the jumper cables...
Page 477 Once the vehicle’s engine has started, remove the jumper cables in the exact reverse order in which they were con- nected. Once the engine starts, have the vehicle checked at your Toyota dealer as soon as possible. Starting the engine when the battery is discharged (vehicles with an automatic transmission) The engine cannot be started by push-starting.
Page 478 5-2. Steps to take in an emergency CAUTION Battery precautions The battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead compounds. Observe the following pre- cautions when handling the battery. When working with the battery, always wear safety glasses and take care not to allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle body.
Page 479 If the fan is not operating: Stop the engine immediately and call your local Toyota dealer. I n f o r ma t i o n P r o v i d e d b y :...
Page 480 (→P. 472) Have the vehicle checked at your nearest Toyota dealer as soon as possible. I n f o r ma t i o n P r o v i d e d b y :...
Page 481 5-2. Steps to take in an emergency Overheating If you observe the following, your vehicle may be overheating. The engine coolant temperature gauge enters the red zone or a loss of power is experienced. Steam is coming from under the hood. CAUTION To prevent an accident or injury when inspecting under the hood of your vehicle...
Page 482 5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow. Stop the engine. Set the parking brake and put the shift lever in P (vehicles with an automatic transmission) or N (vehicles with a manual transmission).
Page 483 5-2. Steps to take in an emergency CAUTION When attempting to free a stuck vehicle If you choose to rock the vehicle back and forth to free it, make sure the sur- rounding area is clear, to avoid striking other vehicles, objects or persons. The vehicle may also lunge forward or lunge back suddenly as it becomes free.
Page 484 5-2. Steps to take in an emergency If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following pro- cedure: Steadily step on the brake pedal with both feet and firmly depress it.
Page 485 5-2. Steps to take in an emergency CAUTION If the engine has to be turned off while driving Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn. Decelerate as much as possible before turning off the engine.
Page 486 5-2. Steps to take in an emergency I n f o r ma t i o n P r o v i d e d b y :...
Page 487 6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 183.9 in. (4670 mm) Overall width 75.0 in. (1905 mm) 2WD models 71.3 in. (1810 mm) Overall height* 4WD models 72.0 in. (1830 mm) Wheelbase 105.9 in. (2690 mm) Front tread 63.2 in.
Page 488 Vehicle identification number The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 489 6-1. Specifications Engine number The engine number is stamped on the engine block as shown. Engine Model 1GR-FE Type 6-cylinder V type, 4-cycle, gasoline 3.70 × 3.74 in. (94.0 × 95.0 mm) Bore and stroke Displacement 241.4 cu.in. (3956 cm Drive belt tension Automatic adjustment Valve clearance...
Page 490 Without filter 6.0 qt. (5.7 L, 5.0 Imp.qt.) Engine oil selection “Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity. Oil grade: ILSAC multigrade engine oil...
Page 491 10.4 qt. (9.8 L, 8.6 Imp.qt.) Capacity Vehicles with a manual transmission 9.9 qt. (9.4 L, 8.3 Imp.qt.) Use either of the following. • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based Coolant type non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone.
Page 492 6-1. Specifications Ignition system Spark plug Make DENSO SK20HR11 0.043 in. (1.1 mm) NOTICE Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine. Electrical system Battery 1.250 ⎯ 1.290 Fully charged Specific gravity reading at 1.160 ⎯...
Page 493 Rear 75W-85 GL-5 or equivalent : Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.
Page 494 Recommended oil viscosity SAE 75W : Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.
Page 495 6-1. Specifications Brakes Pedal clearance 2.1 in. (54 mm) Min. 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm) Pedal free play Brake pad wear limit 0.04 in. (1.0 mm) Parking brake lining wear limit 0.04 in. (1.0 mm) Parking brake lever travel 5 —...
Page 496 6-1. Specifications Steering Free play Less than 1.2 in. (30 mm) ® Automatic transmission fluid DEXRON II or Power steering fluid type Tires and wheels Tire size P265/70R17 113S Front tires: 32 psi (220 kPa, 2.2 kgf/cm or bar) Tire inflation pressure Rear tires: (Recommended cold tire 32 psi (220 kPa, 2.2 kgf/cm...
Page 497 6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlights and — 60/55 daytime running lights Front turn signal/ parking and front side — 21/5 marker lights Outside rear view mirror illumination — Exterior lights Rear turn signal lights — Stop/tail and rear side 7443 21/5...
Page 498 ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline To help prevent incorrect fueling, your Toyota has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If your engine knocks Consult your Toyota dealer.
Page 499 Toyota allows the use of oxygenate blended gasoline where the oxygenate content is up to 10% ethanol or 15% MTBE. If you use gasohol in your Toyota, be sure that it has an octane rating no lower than 91. Toyota does not recommend the use of gasoline containing methanol.
Page 500 6-1. Specifications NOTICE Notice on fuel quality Do not use improper fuels. If improper fuels are used the engine will be damaged. Do not use leaded gasoline. Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction. Do not use gasohol other than that stated here.
Page 501 6-1. Specifications Tire information Typical tire symbols Tire size (→P. 484) DOT and Tire Identification Number (TIN) (→P. 483) Location of treadwear indicators (→P. 381) Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
Page 502 6-1. Specifications Radial tires or bias-ply tires A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a bias-ply tire. Summer tire or all season tire (→P. 383) An all season tire has M+S on the sidewall. A tire not marked M+S is a summer tire.
Page 503 6-1. Specifications Tire size Typical tire size information The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits) Speed symbol...
Page 504 U.S.A. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. DOT quality grades All passenger vehicle tires must conform to Federal Safety Requirements in addition to these grades.
Page 505 6-1. Specifications Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100.
Page 506 6-1. Specifications Warning: The temperature grades for this tire are established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure. Glossary of tire terminology Tire related term Meaning...
Page 507 6-1. Specifications Tire related term Meaning 150 lb. (68 kg) times the number of occupants Normal occupant specified in the second column of Table 1 that weight follows Distribution of occupants in a vehicle as Occupant distribution specified in the third column of Table 1 below The combined weight of installed regular production options weighing over 5 lb.
Page 508 6-1. Specifications Tire related term Meaning The surface area of the rim not covered by the Weather side inflated tire The part of the tire that is made of steel wires, Bead wrapped or reinforced by ply cords and that is shaped to fit the rim A breakdown of the bond between components Bead separation...
Page 509 6-1. Specifications Tire related term Meaning The parting of the innerliner from cord material Innerliner separation in the carcass (a)The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on Intended outboard the other sidewall of the tire, or sidewall...
Page 510 6-1. Specifications Tire related term Meaning A layer of rubber-coated parallel cords A parting of rubber compound between Ply separation adjacent plies A mechanical device made of rubber, chemicals, fabric and steel or other materials, Pneumatic tire that, when mounted on an automotive wheel, provides the traction and contains the gas or fluid that sustains the load A pneumatic tire in which the ply cords that...
Page 511 6-1. Specifications Tire related term Meaning That portion of a tire that comes into contact Tread with the road A tread section running circumferentially Tread rib around a tire Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear indicators designed to give a visual indication of the...
Page 512 Programming these preferences requires specialized equipment and may be performed by an autho- rized Toyota dealership. Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details. Customized Item Function...
Page 513 6-2. Customization Customized Item Function Default setting setting Automatic Time elapsed before 0 seconds light off sys- headlights automati- 60 seconds 30 seconds cally turn off after doors 90 seconds (→P. 143) are closed 7.5 seconds Time elapsed before 15 seconds lights turn off 30 seconds Operation after the...
Page 514 6-2. Customization Items to initialize The following items must be initialized for normal system operation in cases such as after the battery is reconnected, or maintenance is performed on the vehicle. Item When to initialize Reference Engine oil maintenance After changing engine oil P.
Page 515 6-2. Customization I n f o r ma t i o n P r o v i d e d b y :...
Page 516 If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 517 Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English. I n f o r ma t i o n P r o v i d e d b y :...
Page 518 I n f o r ma t i o n P r o v i d e d b y :...
Page 519 SRS airbag instructions for Canadian owners (in French) The following is a French explanation of SRS airbag instructions extracted from the SRS airbag section in this manual. See the SRS airbag section for more detailed SRS airbag instruc- tions in English. I n f o r ma t i o n P r o v i d e d b y :...
Page 520 I n f o r ma t i o n P r o v i d e d b y :...
Page 521 I n f o r ma t i o n P r o v i d e d b y :...
Page 522 I n f o r ma t i o n P r o v i d e d b y :...
Page 523 I n f o r ma t i o n P r o v i d e d b y :...
Page 524 I n f o r ma t i o n P r o v i d e d b y :...
Page 525 I n f o r ma t i o n P r o v i d e d b y :...
Page 526 I n f o r ma t i o n P r o v i d e d b y :...
Page 527 I n f o r ma t i o n P r o v i d e d b y :...
Page 528 I n f o r ma t i o n P r o v i d e d b y :...
Page 529 Alphabetical index Alphabetical index A/C..........206 Anti-lock brake system ABS ...........175 ABS warning light....431 Access doors ......34 Anti-lock brake system..175 Accessory meter ......141 Armrest ........336 Active traction control Audio input....... 258 system ........167 Audio remote controls .... 259 Air conditioning filter....394 Audio system Air conditioning system...
Page 530 Alphabetical index Battery Child restraint system Charging system warning Booster seats, definition..97 light ........431 Booster seats, installation ..107 Checking ......376 Convertible seats, definition ..97 If the vehicle battery is Convertible seats, discharged ......456 installation......105 Preparing and checking Front passenger occupant before winter ......
Page 531 Alphabetical index Clinometer ........141 Emergency, in case of Clock ........327 Blown fuse ......399 Clutch start cancel switch..174 If the engine will not start ..453 Compass......141, 343 If the shift lever cannot be Condenser ........373 shifted from P ..... 454 Cooling system If the vehicle battery is Engine overheating ....459...
Page 532 Alphabetical index Engine coolant Front side marker lights Capacity ....... 472 Replacing light bulbs .....410 Checking ......372 Switch........143 Preparing and checking Wattage.........478 before winter ...... 190 Front turn signal lights Temperature gauge....135 Lever ........131 Engine coolant temperature Replacing light bulbs .....410 gauge ........
Page 533 Alphabetical index Headlights Keyless entry ......28 Replacing light bulbs .....410 Keys Switch........143 Engine switch......124 Wattage.........478 If you lose your keys ..... 455 Hood..........366 Ignition switch ....... 124 Hooks Key battery......397 Cargo net ......341 Keyless entry ......28 Shopping bag ......342 Key number......26 Horn...........134 Keys ........26...
Page 534 Alphabetical index Maintenance Outside rear view mirrors Do-it-yourself maintenance .. 362 Adjusting and folding....66 General maintenance ... 358 Outside temperature Maintenance data....468 display ........328 Maintenance requirements... 356 Overheating, Engine ....459 Vehicle exterior..... 350 Vehicle interior...... 353 Parking assist......152 Malfunction indicator lamp ..431 Parking brake ......132 Manual air conditioning Parking lights...
Page 535 Alphabetical index Rear view monitor system ..157 Seats Rear window.......41 Adjustment ......45 Rear window defogger ....213 Adjustment precautions ..46 Replacing Child seats/child restraint Key battery ......397 system installation ....101 Fuses ........399 Cleaning......350, 353 Light bulbs......410 Folding down the rear seat ..47 Tires .......381,440 Folding down the rear seat Wheels ........391...
Page 536 Alphabetical index SRS airbags Roll sensing of curtain shield Curtain shield airbags..... 79 airbags off switch ....90 Front airbags ......79 Turn signal lights ....131 Precautions ......86 VSC OFF switch..169, 176, 177 Roll sensing of curtain shield Window lock switch ....69 airbags off switch ....
Page 537 Alphabetical index Tools .........440 Front passenger occupant Total load capacity....189 classification system... 431 Towing Front passenger’s seat belt... 433 Dinghy towing......203 Low brake fluid...... 430 Emergency towing....421 Low engine oil pressure ..431 Trailer towing......193 Low fuel level ......433 Traction control system ..175 Low tire inflation pressure ..433 TRAC (TRC) ......175...
Page 538 Alphabetical index Wireless remote control key Replacing the battery ... 397 Wireless remote control..28 Winter driving tips....190 WMA disc ......... 233 I n f o r ma t i o n P r o v i d e d b y :...
Page 539 What to do if... What to do if... A tire punctures If you have a flat tire P. 440 P. 453 If the engine will not start The engine does not start P. 74 Engine immobilizer system P. 456 If the vehicle battery is discharged If the shift lever cannot be shifted The shift lever cannot be P.
Page 540 What to do if... Instrument cluster Center panel I n f o r ma t i o n P r o v i d e d b y :...
Page 541 What to do if... nWarning lights Brake system warning Unengaged “Park” light warning light P. 432 Slip indicator* P. 430 P. 432 Charging system warning Cruise control indicator light light* P. 431 P. 432 Low engine oil pressure Tire pressure warning warning light light P.
Page 542 Memo I n f o r ma t i o n P r o v i d e d b y :...
Page 543 (L, Imp.qt.) (Drain and refill With filter 6.4 (6.1, 5.4) - reference) Without filter 6.0 (5.7, 5.0) Toyota Genuine Motor Oil or equivalent Oil grade: P. 471 Engine oil type ILSAC multigrade engine oil Recommended oil viscosity: SAE 0W-20...
