  • Page 1: Getting Started

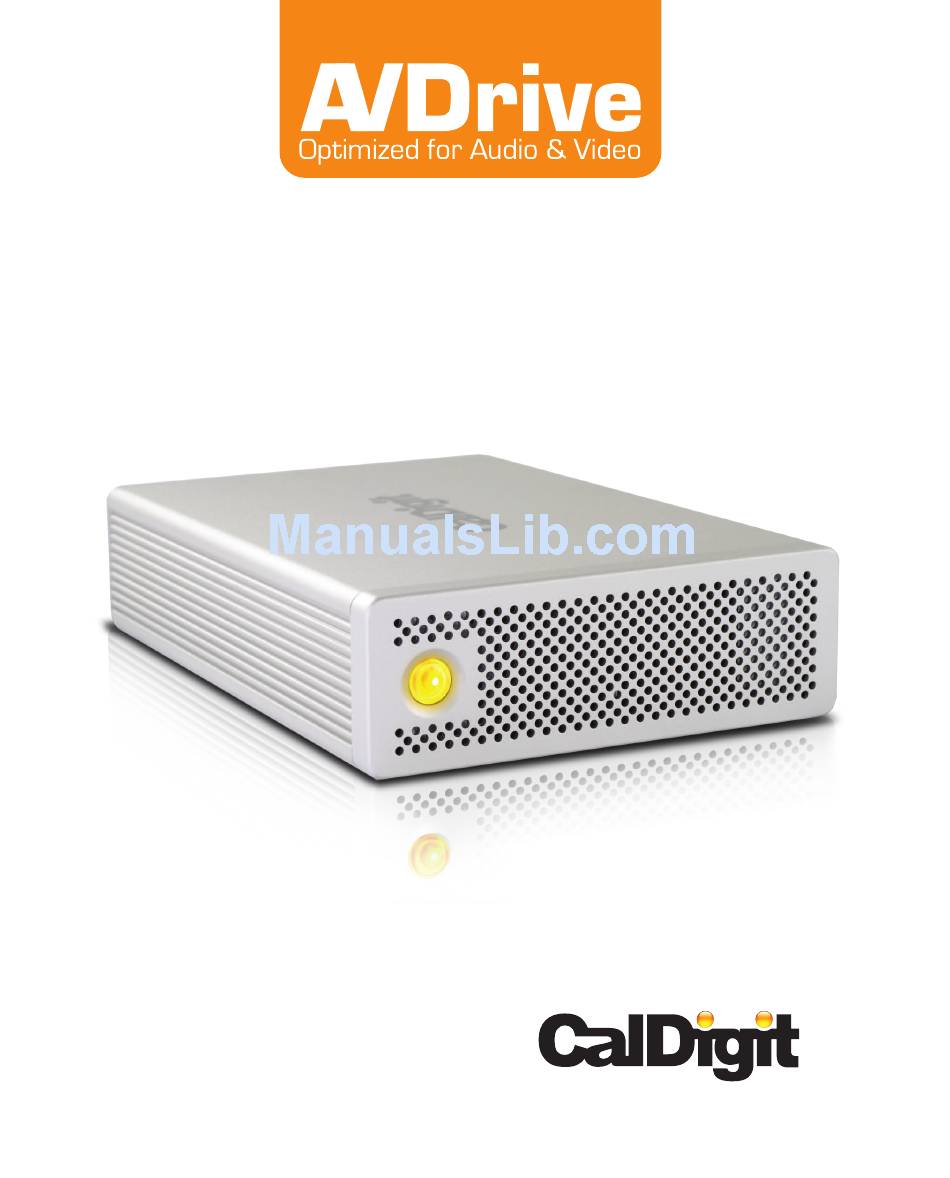

    Getting Started For more information visit www.caldigit.com...
  • Page 2 Fast, Reliable and Secure Storage Solutions Apple, Apple Logo, Mac, the Mac logo and Macintosh are trademarks of Apple Inc. Microsoft, Windows and Windows Logos are registered trademarks of the Microsoft Corporation. All other trademarks are the property of their respective owners. *Speci cations and package contents are subject to change without notice.

  • Page 3: Table Of Contents

    Contents Introduction General Use Warnings Safety Warnings System Requirements Package Contents Installing the CalDigit AV Drive Connecting the CalDigit AV Drive Features Overview CalDigit AV Drive Front Panel CalDigit AV Drive Rear Panel AV Drive Features Formatting the CalDigit AV Drive...

  • Page 4: Introduction

    Introduction Thank you for purchasing the CalDigit AV Drive. Speed, reliability and security are what di erentiates CalDigit storage products from our competitors. The CalDigit AV Drive was designed for those in the eld of video and audio post-production, graphic design, 3D animation, and anyone else that requires a single drive storage solution that delivers optimum performance.

  • Page 5: General Use Warnings

    Please read the AV Drive manual thoroughly and become familiar with the product before use. Only use the CalDigit AV Drive in an area with cool ventilation. Make sure that the fan is not obstructed to ensure heat dissipation. Do not leave or use the AV Drive near a heat source such as a heater or direct sunlight.

  • Page 6: System Requirements

    • 256 MB RAM (512MB recommended) • Requires available FireWire 400 or 800 port to use FireWire 800 interface • Mac Pro requires an available x1 (lane) PCIe slot for CalDigit SuperSpeed USB 3.0 card in orderto use USB 3.0 interface •...

  • Page 7: Package Contents

    Package Contents: 1x CalDigit AV Drive 1x AC Power Adapter & Cord 1x FireWire 800 Cable 1x Quick Start Card (IEEE 1394 9 to 9 Pin Cable 1m) Please contact your CalDigit reseller for any faulty or missing parts.
  • Page 8 3. CalDigit certified USB 3.0 cable CalDigit SuperSpeed Expresscard for Laptop If you are using the CalDigit AV Drive on a laptop, please make sure the laptop is equipped with a USB 3.0 port, or you can purchase the CalDigit SuperSpeed Expresscard for Laptop.

  • Page 9: Installing The Caldigit Av Drive

    Turn on the computer, make sure you have logged into the OS. Connect the AC Adaptor to the CalDigit AV Drive. Connect the FireWire cable from the back of the AV Drive to the FireWire port on the computer. Turn on the CalDigit AV Drive. You can now use the CalDigit AV Drive.
  • Page 10 Please make sure you have a USB 3.0 interface on the computer. If you need to install the CalDigit SuperSpeed PCI Express Card, please make sure the computer is turned off. Unplug the power cord and wait 5 to 10 minutes allowing the computer’s internal components to cool.
  • Page 11 Install Card Close the computer and connect the power cord. Turn on the computer and install the CalDigit USB 3.0 Driver after you have logged into the OS. After the installation, restart the computer. To download the latest driver visit www.caldigit.com/support.asp...

  • Page 12: Features Overview

    Ventilation Holes Illuminated Power Button CalDigit AV Drive Rear Panel Security Lock* USB 3.0 Power FireWire 800 Smart Fan *Security lock (lock is not included) Use a standard computer lock to to secure the CalDigit AV Drive and prevent theft.

  • Page 13: Av Drive Features

    The two FireWire 800 ports on the CalDigit AV Drive have been optimized to provide transfer speeds up to 85 MB/s. Compared to typical speeds of 58MB/s to 74 MB/s, the AV Drive is about 30% faster than competing storage products. The dual FireWire 800 ports also allows for daisy chaining multiple storage devices using the FireWire interface.

  • Page 14: Formatting The Caldigit Av Drive

    Formatting the CalDigit AV Drive Mac OS X - Using CalDigit Drive Assistant The CalDigit AV Drive comes preloaded with CalDigit Drive Assistant which will format the CalDigit AV Drive. It also contains bundled software, drivers and the CalDigit AV Drive manual.
  • Page 15 Register your CalDigit AV Drive online. If you choose this option your serial number will automatically be entered. To format your CalDigit AV Drive, select between Macintosh Computer (Recommended) or Manual Format, then select start. Make sure no other external drives are connected.

  • Page 16: Windows

    Windows - Using CalDigit Drive Assistant The CalDigit AV Drive comes preloaded with CalDigit Drive Assistant which will format the CalDigit AV Drive. It also contains bundled software, drivers and the CalDigit AV Drive manual. CalDigit Drive Assistant will automatically detect if your computer is a Mac or PC and will format your drive as well as transfer the bundled software.
  • Page 17 Register your CalDigit AV Drive online. If you choose this option your serial number will automatically be entered. To format your CalDigit AV Drive, select between Windows Platform Computer (Recommended) or Manual Format, then select start. Make sure no other external drives are connected.

  • Page 18: Accessories And Parts

    Part # U3-HostAdapter SKU # 791900 SuperSpeed ExpressCard for Laptop Part # U3-ExpressCard SKU # 791901 CalDigit FireWire 800 cable, 9-pin to 9-pin, 6ft Part # CBFWY9-6 SKU # 704102 CalDigit USB 3.0 A/B Cable, 3ft Part # CBUSB3AB-3-CD SKU # 791980 CalDigit USB 3.0 A/B Cable, 6ft...

  • Page 19: Technical Support & Warranty Information

    Technical Support & Warranty Information Technical Support If you run into any issues while installing your CalDigit AV Drive please contact CalDigit Technical Support: support@caldigit.com www.caldigit.com/support.asp 1-714-572-6668 When contacting CalDigit Technical Support, make sure to be at your computer and have the following information available: •...

  • Page 20: Glossary

    Glossary Backup Interface The creation of an additional copy of data onto a di erent location than The data transmitters, data receivers, logic and wiring that links one the existing data and can be retrieved at a later time. piece of the computer to another. Kb(Kilobit) Also know as a binary digit.
  • Page 21 CalDigit AV Drive Manual v1.1 www.caldigit.com © 2010 CalDigit, Inc. All Rights Reserved...
