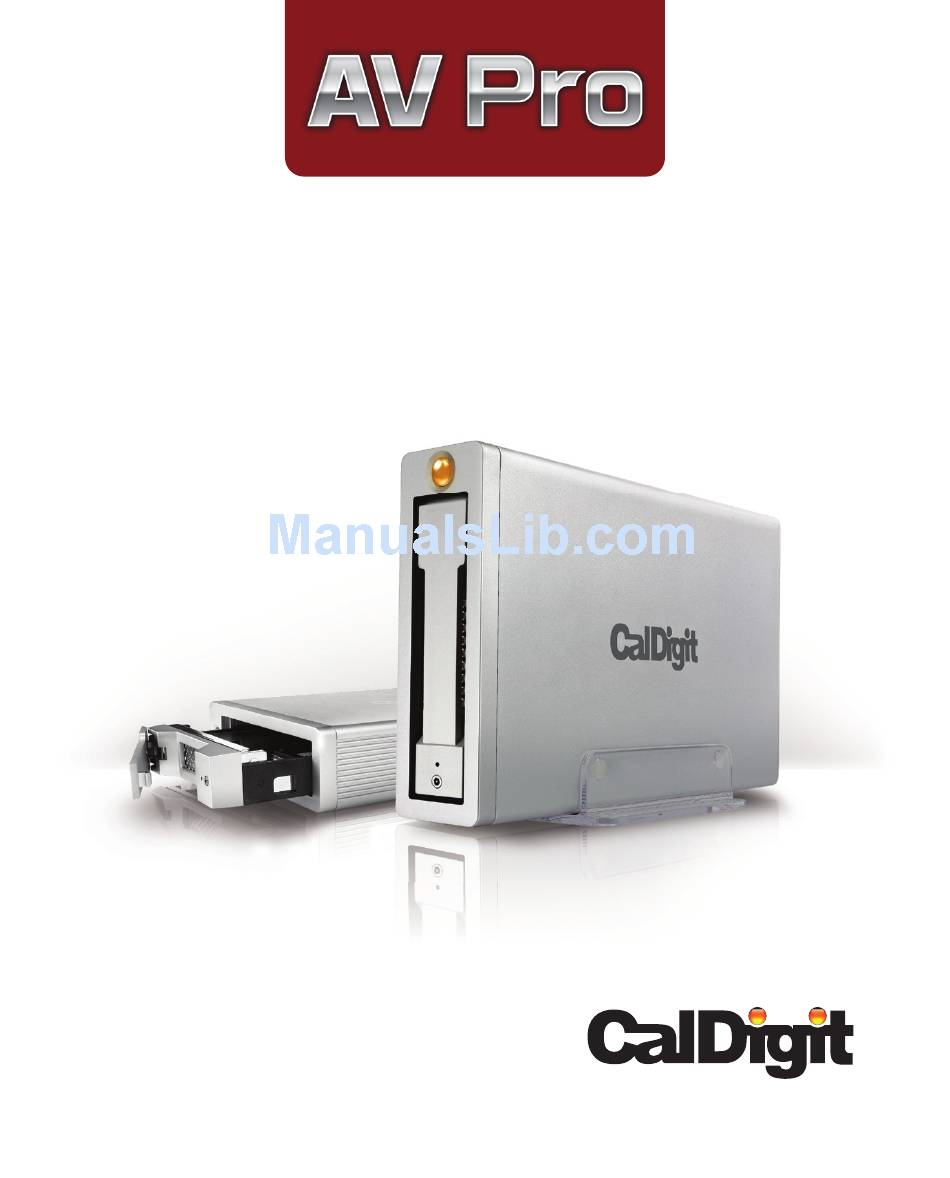

- Page 1 Instruction Manual For more information visit www.caldigit.com...
-
Page 2: Table Of Contents
Contents Introduction Package Contents AV Pro Diagram Using the AV Pro Replacing the AV Pro Drive Module Turning off the AV Pro Overview of CalDigit Drive Utility CalDigit Thunder View Mobile App (Optional) Technical Support & Warranty Information CalDigit... -
Page 3: Introduction
The removable drive module of the AV Pro not only allows users to add extra storage, but also transfer drives between other AV Pro or T series enclosures and ar- chive them for later access. Most importantly, this allows the ability to add 2.5” SSD drives to the unit for blazingly fast speeds of up to 430 MB/s. -
Page 4: Safety Warnings
In the case of any issue with the device, do not attempt to repair or open the AV Pro yourself. Doing so can result in personal injury, damage the device, and will void the warranty. If you have any issues, please contact CalDigit Technical Support. - Page 5 The AV Pro comes with a standard, 3-year limited warranty. Burst transfer rates will vary from one computer to another. Depending on the host configura- tion, average speeds are usually lower. Weight varies by configuration and manufacturing process. IMPORTANT Use of this product is subject to acceptance of the software license agreements included.
-
Page 6: Package Contents
Package Contents 1 One AV Pro 2 One CalDigit drive module 3 Drive module key 4 One power supply and AC cord 5 USB 3.0 cable NOTE Manual and software come preinstalled in the drive. CalDigit... -
Page 7: Av Pro Diagram
PIN Release Front Side Power Button & Drive Access LED AC Adapter USB 3.0 Smart Fan Kensington Lock * Kensington Security lock (lock is not included). Use a standard computer lock to secure the AV Pro and prevent theft. CalDigit... -
Page 8: Using The Av Pro
Connect a USB 3.0 cable or FireWire 800 cable (if port is available). Connect the power supply to the AV Pro. Press the AV Pro’s power button and it will boot. You will see it mount and it will be ready for use. -
Page 9: Replacing The Av Pro Drive Module
Replacing the AV Pro Drive Module Insert the drive key into the lock on the front of the drive module and turn clockwise to unlock. Insert the drive pin into the pin release until the handle of the drive module pops out. - Page 10 Pull out the drive module from the AV Pro enclosure. Lay the AV Pro horizontally and make sure the lock on the drive module is on the opposite side of the power button before inserting the drive. Insert the drive module into the AV Pro enclosure and press down on the drive module handle until it locks securely into place.
-
Page 11: Turning Off The Av Pro
Turning off the AV Pro To power down the AV Pro, right click on the “AV Pro” drive icon on your desktop, and click “Eject CalDigit AV Pro”. When the AV Pro dismounts, press the power button on the front until the light turns off. -
Page 12: Overview Of Caldigit Drive Utility
The CalDigit Drive Utility serves as a diagnostic and notification tool, NOTE but is not required to use the drive. The CalDigit Drive Utility provides important information to help users obtain the current status of their AV Pro or T Series storage solutions. Icon Legend Toolbar Icon: The drive is online. - Page 13 The temperature is higher than 85 The drive is healthy. The drive is unhealthy. Multiple Devices: The drive is working properly. Multiple Devices: The drive has reached a temperature 70~85 Multiple Devices: The drive exceeds a temperature of 85 CalDigit...
-
Page 14: Device List
This section allows you to turn smart polling on or off, which automatically checks the status of your AV Pro. Furthermore, you can select whether you want the utility to open automatically when you log in to your computer, and at what intervals it will check the status of your drives. - Page 15 AV Pro. Notification Types Here you can select what types of notifications you would like to receive. Events In this section of the software, you will receive detailed event information about your AV Pro. CalDigit...
- Page 16 Disk Benchmark Run benchmark tests on your CalDigit AV Pro to determine the read and write speeds of your drive. It also gives you detailed information about what types of video resolutions can be successfully played back. CalDigit...
-
Page 17: Caldigit Thunder View Mobile App (Optional)
Android device. Features of the CalDigit Thunder View App include : Monitor the status of your AV Pro or CalDigit Thunderbolt drive Calculate how much hard drive space you need, depending on the resolution of... - Page 18 Disk info Audio bitrate Color Film length Pixel size Assistance CalDigit...
- Page 19 SKU # 704102 CalDigit FireWire 800 cable, 9-pin to 4-pin, 6ft Part # CBFWY4-6 SKU # 704103 CalDigit FireWire 800 to FireWire 400 cable, 9-pin to 6-pin, 6ft Part # CBFWY6-6 SKU #SKU704104 CalDigit USB 3.0 A/B Cable, 3ft Part # CBUSB3AB-3-CD SKU # 791980 CalDigit USB 3.0 A/B Cable, 6ft...
-
Page 20: Technical Support & Warranty Information
If you run into any issues while installing your CalDigit AV Pro, please contact CalDigit Technical Support: support@caldigit.com www.caldigit.com/support.asp 1-714-572-6668 When contacting CalDigit Technical Support, make sure to be at your computer and have the fol- lowing information available: Your AV Pro serial number Operating system and version Computer make and model Other devices connected to your computer You can also post on the CalDigit forum at the Creative Cow: www.creativecow.net. - Page 21 CalDigit AV Pro www.caldigit.com © 2012 CalDigit, Inc. All Rights Reserved CalDigit...
