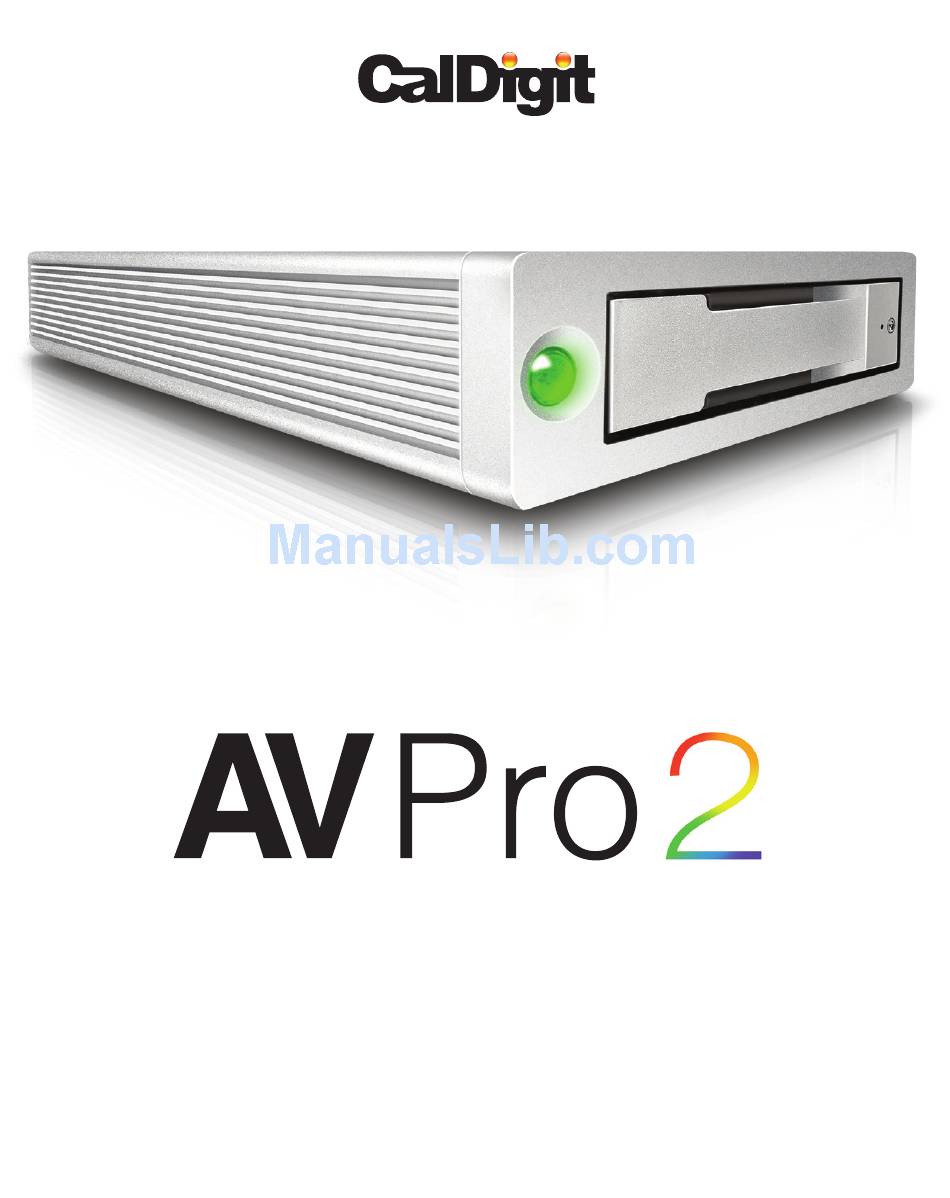

USER GUIDE
For more information visit www.caldigit.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVPro2 and is the answer not in the manual?

Questions and answers

Related Manuals for CalDigit AVPro2

Summary of Contents for CalDigit AVPro2

  • Page 1 USER GUIDE For more information visit www.caldigit.com...

  • Page 2: Table Of Contents

    Table of Contents Section 1 : Introduction Introduction System Requirements In the Box AV Pro 2 Diagram Section 2 : Using the AV Pro 2 Connecting the AV Pro 2 Powering the AV Pro 2 Formatting the AV Pro 2 for Windows OS LED Indicator Charging your Laptop USB Hub...

  • Page 3: Introduction

    1. Introduction The CalDigit AV Pro 2 Storage Hub is the exciting new evolution of our original single drive solution. It is an expandable storage device specifically designed to compliment any Thunderbolt™ 3 computer out of the box. Thanks to the AV Pro 2’s ability to connect to any laptop it can be used by anyone regardless of their connectivity options.

  • Page 4: Safety Warnings

    If you will be sending a drive back to CalDigit for service, please make sure you have backed up your data beforehand. CalDigit cannot guarantee the integrity of data on drives that are returned...
  • Page 5 Burst transfer rates will vary from one computer to another. Depending on the host configuration, average speeds are usually lower. Weight varies by configuration and manufacturing process. IMPORTANT Use of this product is subject to acceptance of the software license agreements included. The product contains electronic documentation.

  • Page 6: System Requirements

    System Requirements Thunderbolt™ 3, USB-C or USB-A computer Mac OSX 10.8.4 or later Windows 7, 8, 10 or later In the Box • 1 x AV Pro 2 • 1 x Drive Stand • 1 x Drive Module • 2 x Drive Keys •...

  • Page 7: Av Pro 2 Diagram

    AV Pro 2 Diagram * Kensington Security lock (lock is not included). Use a standard computer lock to secure the AV Pro 2 and prevent theft.

  • Page 8: Section 2 : Using The Av Pro

    To power off the AV Pro 2, unmount your drive from your OS. Formatting the AV Pro 2 for Windows OS The CalDigit AV Pro 2 is pre-formatted for Mac OS X and ready to work. Windows users please re- format your AV Pro 2 for use with Windows OS.
  • Page 9 Open Disk Management (Control Panel - Administrative Tools - Computer Management - Disk Management). Find the AV Pro 2 that you want to format in the list of drives. Right click on the “Disk number” and select “Properties”. You will see the “CalDigit AV Pro 2 Device”.
  • Page 10 In Disk Management, right click on the partition that was previously formatted for Mac and select “Delete Volume…”. On the pop-up window click “YES” to delete the Mac partition.
  • Page 11 When the disk comes online, right click on the “Unallocated” area and select “New Simple Volume”. The “New Simple Volume Wizard” pop-up window will appear. Follow the simple on-screen instructions to finish formatting your AV Pro 2.

  • Page 12: Led Indicator

    The AV Pro 2 will mount on your Windows computer. Need help setting up your AV Pro 2? Email support@caldigit.com for assistance. LED Indicator The AV Pro 2 is equipped with an LED light that will blink when the unit is being...
  • Page 13 Charging your Thunderbolt™ 3 or USB-C Laptop Not only does the AV Pro 2 Storage Hub store important data quickly and securely, it also enables the capability to simultaneously charge the Thunderbolt™ 3 or USB-C laptop it is connected to. Charge your laptop up to 30W while connected to the AV Pro 2 without connecting your factory AC adapter.

  • Page 14: Usb Hub

    USB Hub The AV Pro 2 Storage Hub also features two USB 3.0 Type-A ports that allow you to connect all your USB peripherals such as high speed storage, card readers, Apple SuperDrives and even daisy chain to another AV Pro 2 Storage Hub. Backwards compatibility ensures that all of your older USB 3.0/2.0/1.0 peripherals such as printers and mice will work flawlessly.

  • Page 15: Stand-Alone Charging

    Stand-Alone Charging The AV Pro 2 Storage Hub’s USB 3.0 ports feature stand-alone fast charging at 1.5A (7.5W), which will charge devices 133% faster than a standard USB 3.0 port and 40% faster than a typical Quick Charge USB 3.0 port, even when it is not connected to a computer. How to use the AV Pro 2 Stand-Alone charging function Disconnect your AV Pro 2 from your laptop.

  • Page 16: Replacing The Av Pro 2 Drive Moudle

    Replacing the AV Pro 2 Drive Module Insert the drive key into the lock on the front of the drive module and turn clockwise to unlock. Insert the drive pin into the pin release until the handle of the drive module pops out.
  • Page 17 Pull out the drive module from the AV Pro 2 enclosure. Lay the AV Pro 2 horizontally and make sure the lock on the drive module is on the opposite side of the power button before inserting the drive. Insert the drive module into the AV Pro 2 enclosure and press down on the drive module handle until it locks securely into place.

  • Page 18: Power Supply

    • 4TB HDD Universal Drive Module • 5TB HDD Universal Drive Module • 6TB HDD Universal Drive Module • 1TB SSD Universal Drive Module • 2TB SSD Universal Drive Module Please contact CalDigit or an authorized CalDigit reseller for availability and pricing.

  • Page 19: Section 3 : Technical Support And Warranty Information

    3. Technical Support and Warranty Information Technical Support If you run into any issues while using your AV Pro 2, please contact CalDigit Technical Support. • Email: support@caldigit.com • Phone: (714) 572-6668 • Website: www.caldigit.com/support.asp To be eligible for customer support and warranty services, please register your CalDigit product on our website.
