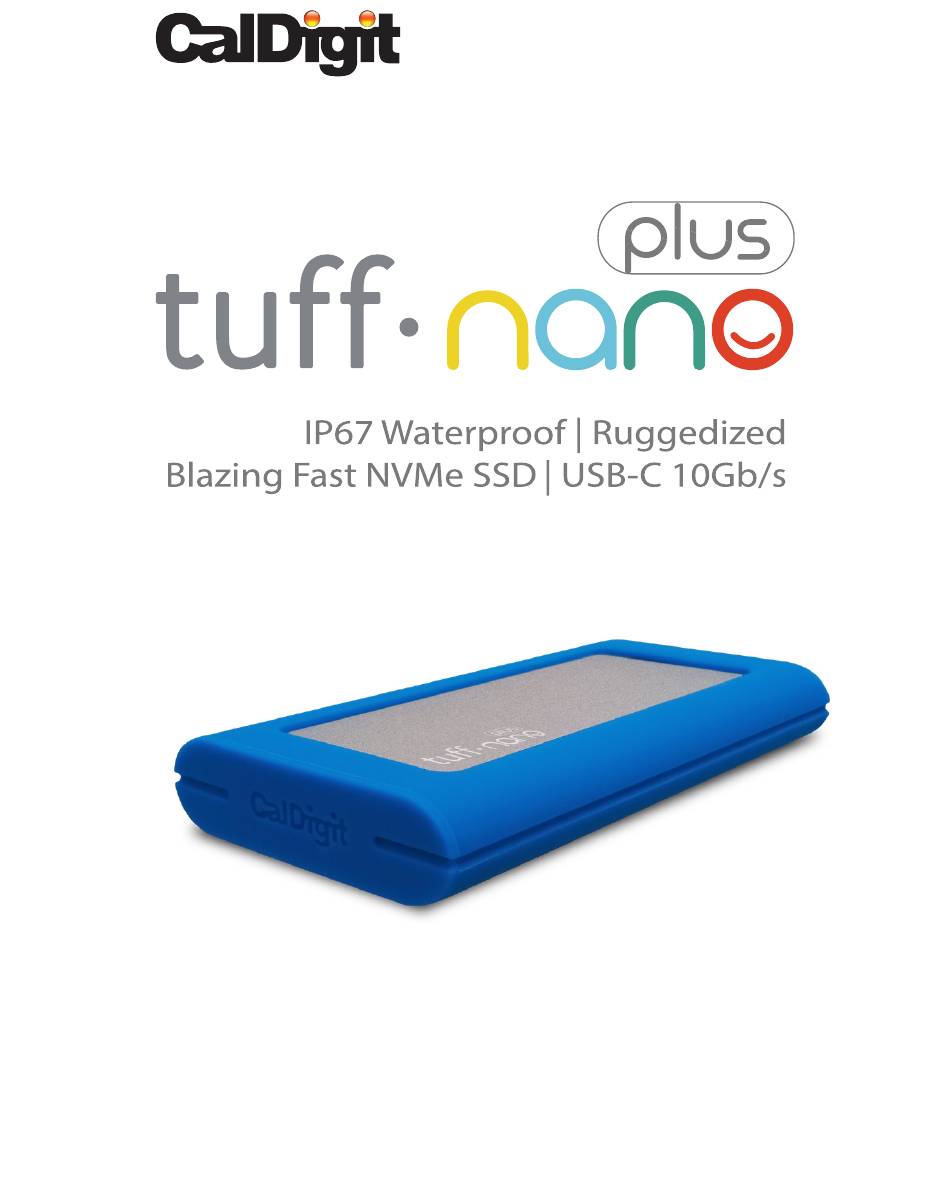

- Page 1 USER GUIDE For more information visit www.CalDigit.com...
-
Page 2: Table Of Contents
Table of Contents 1. General Use Warnings 2. Using the Tuff nano Plus 3. IP67 Protection 4. Drop Protection 5. Specifications 6. CalDigit Tuff nano Plus Accessories 7. Technical Support & Warranty Information... - Page 3 The Tuff nano Plus is a portable bus-powered USB-C storage device with an internal PCIe SSD. Not only is the Tuff nano Plus compact, it also provides up to 2TB capacity, in addition to performance unmatched by anything in its class.
-
Page 4: General Use Warnings
• If your Tuff nano Plus gets wet while it is still off, do not turn it on. In the case of any issue with the device, do not attempt to repair or open the device yourself. - Page 5 System Requirements Windows 7 or later macOS 10.12 or later In the Box • 1 x Tuff nano Plus • 1 x USB C-C cable • 1 x Carrying case...
-
Page 6: Using The Tuff Nano Plus
Connecting the Tuff nano Plus to mac OS Turn on the computer and make sure you are logged into your OS. Connect the USB-C cable to the Tuff nano Plus and to the computer. The Tuff nano Plus will mount on the computer. - Page 7 Open Disk Management (Control Panel - Administrative Tools - Computer Management - Disk Management). Find the Tuff nano Plus that you want to format in the list of drives. Right click on the “Disk Number” and select “Properties”. In Disk Management, right click on the partition that was previously formatted for Mac and select “Delete Volume...
- Page 8 “New Simple Volume”. The “New Simple Volume Wizard” pop-up window will appear. Follow the simple on-screen instructions to finish formatting your Tuff nano Plus. The Tuff nano Plus will mount on your Windows computer. Note: USB-C and Thunderbolt™ 3 users must use the supplied USB-C cable, a certified USB-C cable (10Gb/s) or a Passive Thunderbolt™...
-
Page 9: Ip67 Protection
Immersion Protection The Tuff nano Plus can be fully immersed in water up to 1M for 30 minutes. WARNING Exceeding the distance of water immersion past 1M, for a duration of over 30 minutes could lead to data loss. -
Page 10: Drop Protection
4. Drop Protection The Tuff nano Plus can withstand drops up to 3M. -
Page 11: Specifications
Height: 0.57in (1.45cm) USB 3.2 Gen 2 (10Gbps) Type-C Port Weight: 0.22lbs (0.1kg) Drive Type: In The Box: M.2 NVMe PCIe SSD 1 x Tuff nano Plus Ingress Protection: 1 x USB-C - USB-C Cable IP67 1 x Carrying case Power:... -
Page 12: Caldigit Tuff Nano Plus Accessories
Thunderbolt™ 3 Cable (Passive) 0.7m (40Gb/s) TBT3-P07B-540 • Thunderbolt™ 4 / USB4 Cables: Thunderbolt™ 4 Cable 0.8m (40Gb/s) Active Thunderbolt™ 4 Cable 2m (40Gb/s. Compatible with Thunderbolt™ 3 and USB-C computers.) Please contact CalDigit or an authorized CalDigit reseller for availability and pricing. -
Page 13: Technical Support
7. Technical Support and Warranty Information Technical Support If you run into any issues while using your Tuff nano Plus, please contact CalDigit Technical Support. • Email (US): support@caldigit.com • Phone (US): (714) 572-6668 • Email (UK/EU): eusupport@caldigit.com • Phone (UK/EU): +44 (0) 1993 700 972 •... - Page 14 Warranty Information • The Tuff nano Plus is covered by a 2-year limited warranty. Please visit www.caldigit.com for more information on all CalDigit products Specifications and package contents are subject to change without notice. Thunderbolt™ and the Thunderbolt™ logo are trademarks of Intel Corporation in the U.S. and/or other...
