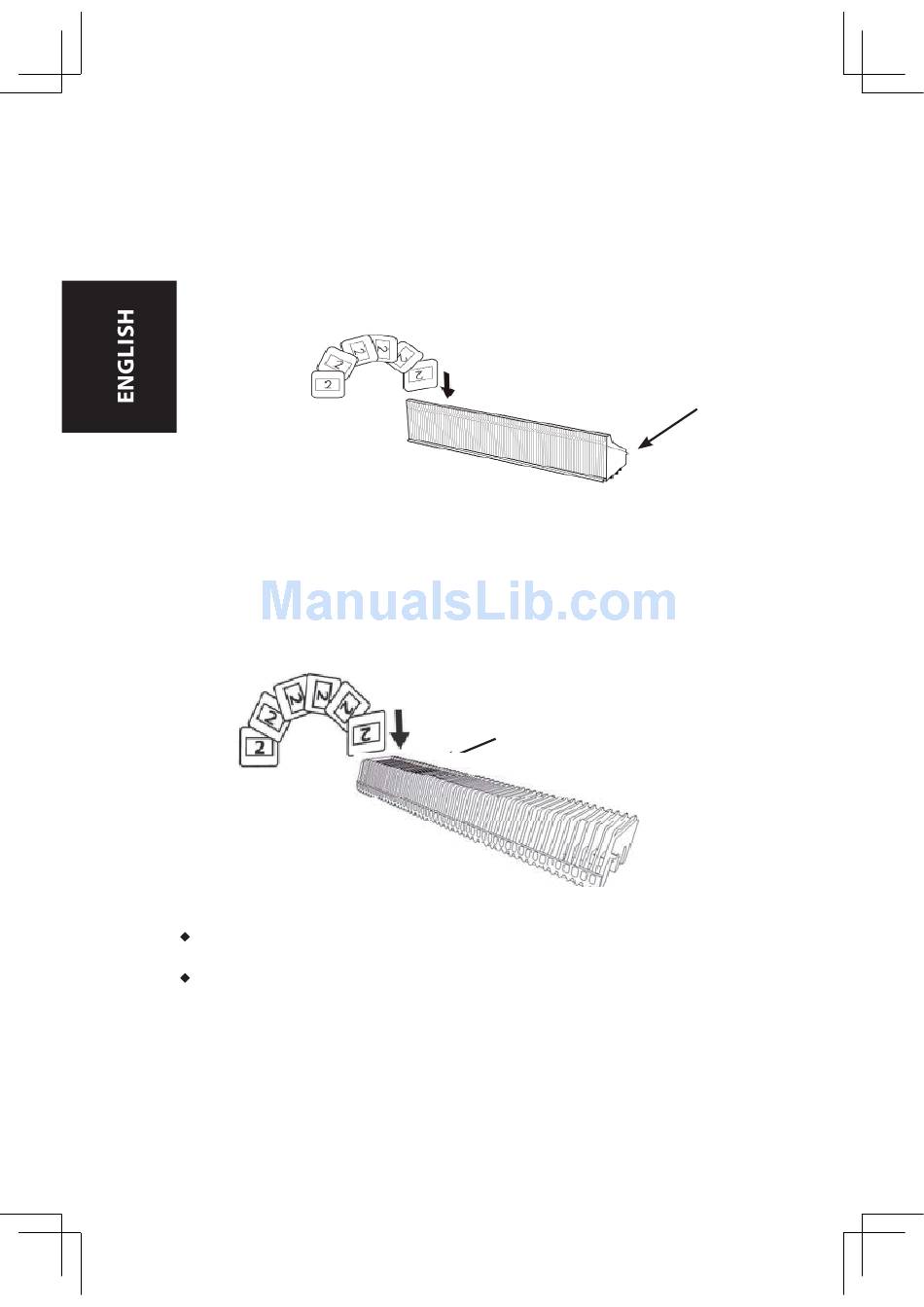

Loading slide(s) into the magazine
LKM Magazine
a. Locate the numbering sequence text on the front of the LKM slide
magazine indicating the slide order. The numbers should be facing
forward and starting from the right
b. Hold the slide right side up, facing forward so the image is NOT re-
versed. Rotate the slide as illustrated below (180 deg) and Insert each
slide, one at a time, into the magazine.
Loading slide(s) into the magazine
Universal Magazine
a. Locate the numbering sequence text on the top of the Universal
slide magazine indicating the slide order. The numbers should be
facing up and starting from the left.
b. Hold the slide right side up, facing forward so the image is NOT
reversed. Rotate the slide as illustrated below (180 deg) and Insert
each slide, one at a time, into the magazine.
Load magazine into the scanner
NOTE: For all magazines (except for the Universal Magazine)
Return the orange adapter to its original position at the grip of the slide
transport arm after scanning.
To release the adapter, gently press its outer tip.
a. Remove the cover from scanner exposing the slide magazine loading area.
b. Load the magazine into the scanner as illustrated below.
Note:
Orientation of scanner in the diagrams is from the back of the unit. Take note
of the magazine slide opening also facing towards the back of the scanner for correct
orientation when loading into the scanner.
