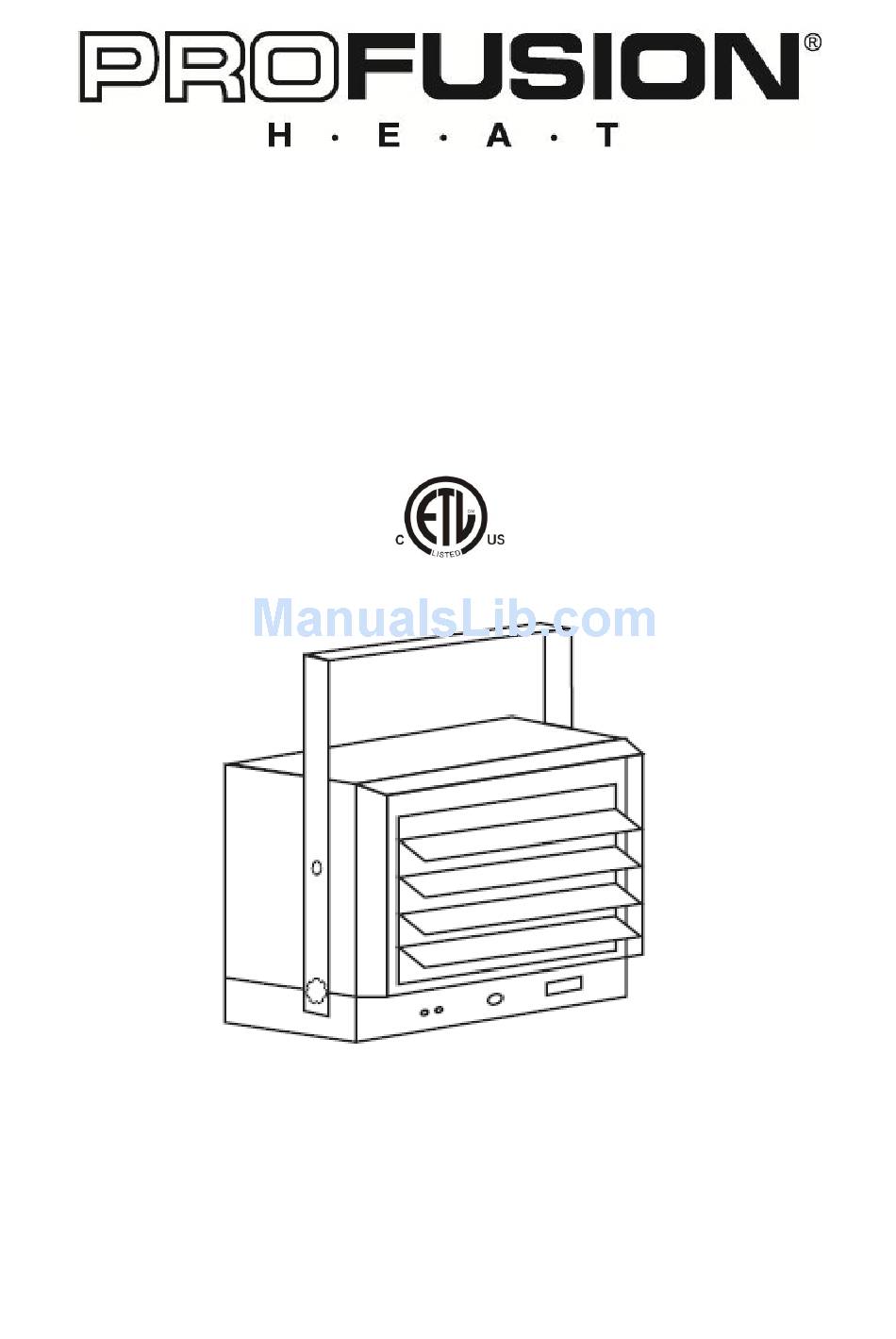

INSTRUCTION MANUAL
Heavy Electric Utility Heater
Model EH-4604B
Figure 1
Technical Support: 1-866-206-0888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH-4604B and is the answer not in the manual?

Questions and answers

Related Manuals for ProFusion EH-4604B

Summary of Contents for ProFusion EH-4604B

  • Page 1 INSTRUCTION MANUAL Heavy Electric Utility Heater Model EH-4604B Figure 1 Technical Support: 1-866-206-0888...

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before installing or using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc.

  • Page 3: Specifications

    DESCRIPTION Electric utility heaters are designed to meet a variety of heating requirements by switching a few wires located in the base of the unit. Heat output is 25 589 BTU per hour. Features horizontal and vertical flow horizontal air flow. Built-in thermostat with overheating safety thermal cutout. SPECIFICATIONS Rating AMPS...

  • Page 4: Locating Heater

    inspecting cleaning or servicing the hater. This is a precaution to prevent serious electric shock. 7. This heater is not suitable for use in hazardous locations as defined by the national fire protection association(NFPA) in the united states. This heater has hot and arcing sparking parts inside.

  • Page 5: Installation

    Figure 3 INSTALLATION MOUNTING THE BRACKET Refer to Figures 4a and 4b. 1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have to install a wood piece on the ceiling as this heater must be securely fastened. 2.

  • Page 6: Hanging The Heater

    HANGING THE HEATER Attach the heating unit to the mounting bracket. Lift the heater up and into the mounting bracket. Align the bracket screws with the keyhole slots in the mounting bracket. If the heater is to be tilted it must be positioned in the keyhole slots - see figure 5. Tighten the bracket screws with a wrench so the unit is securely suspended at horizontal or vertical level.

  • Page 7: Connecting The Power

    NOTE: The louvers are designed so they cannot be completely closed. Do not attempt to defeat this feature; damage to the unit can result. To prevent possible electric shock, disconnect power to the heater at the main service box before attempting to adjust the heat output of this unit. MULTIPLE VERTICAL ANGLES CONNECTING THE POWER...
  • Page 8 TO PROTECT THE HEATING ELEMENT When start the heater,turning the temperature control in clockwise slowly to terminal,the unit starts the fan first then star the heating element. When close the heater,turning the temperature control in anticlockwise slowly to off,the unit close the heating element first then close the fan. Warning: This appliance must be grounded! Warning: The appliance must connect to a current protection circuit or device at 50Amp or less before being connected to power supply!
  • Page 9 required, See Figure 6. Check local electrical codes. If you run the wiring in conduit and wish to be able to turn the heater be sure to purchase enough flexible conduit to allow the heater to be turned. Connect the wire to the power block located in the base of the heater - See Figure 7. Turn on the power at the main service.

  • Page 10: Setting The Thermostat

    OPERATING INSTRUCTIONS THERMOSTAT POWER INDICATOR (yellow) SELECTION SWITCH CAUTION INDICATOR (red) WARNING: the heater must be properly installed before it is used. SETTING THE THERMOSTAT Rotate thermostat knob clockwise to high position, POWER INDICATOR will turn yellow. After room reaches desired comfort level rotate thermostat knob counter clockwise until the thermostat to OFF position.

  • Page 11: Maintenance Instructions

    cause high temperatures. DO NOT OPERATE THE HEATER WITH THE CAUTION INDICATOIR GLOWING RED. MAINTENANCE INSTRUCTIONS MAINTENANCE AND CLEANING Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the heating element of the heater is cool. To maintain the external appearance of the radiator, it need only be wiped over occasionally with a dry duster.
