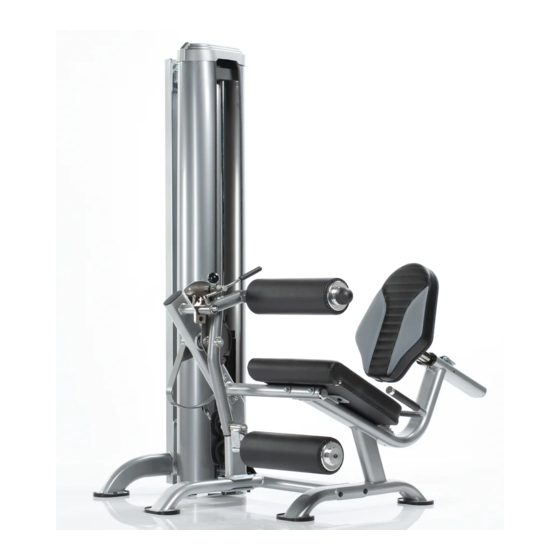

Tuff stuff Apollo 7000 series Owner's Manual

Leg ext/curl station
Hide thumbs

Advertisement

Quick Links

AMERICA'S PREMIER EXERCISE EQUIPMENT
OWNER'S MANUAL
LEG EXT/CURL STATION
AP-71LE Rev1
Revision Date 10-20-09

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apollo 7000 series and is the answer not in the manual?

Questions and answers

Related Manuals for Tuff stuff Apollo 7000 series

Summary of Contents for Tuff stuff Apollo 7000 series

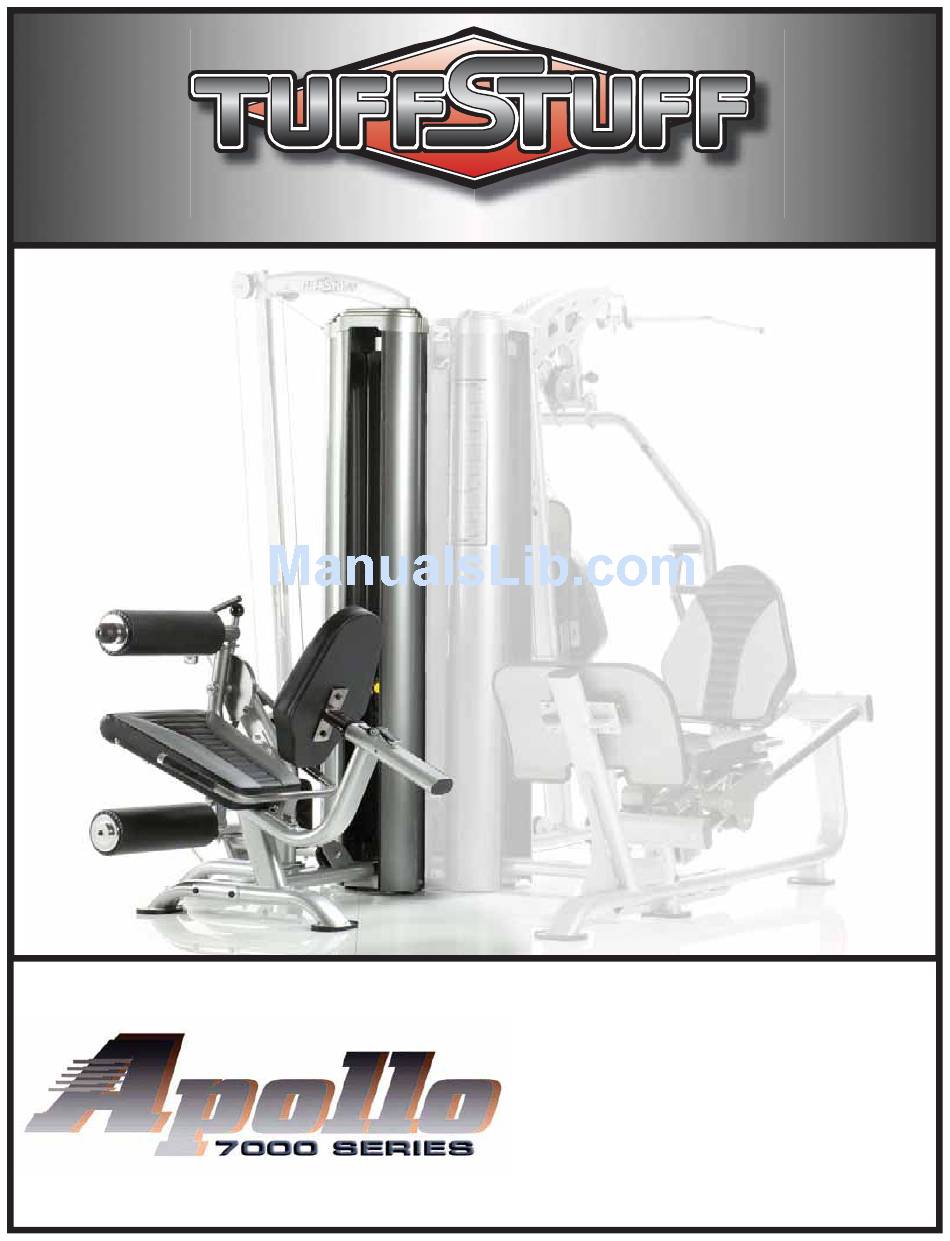

  • Page 1 AMERICA’S PREMIER EXERCISE EQUIPMENT OWNER’S MANUAL LEG EXT/CURL STATION AP-71LE Rev1 Revision Date 10-20-09...

  • Page 2: Safety Precautions

    Assembly of the LEG EXT/CURL STATION bout the LEG EXT/CURL STATION. Congratulations on your 1. We advise you to consult your local Tuff Stuff retailer if you should new purchase of the LEG EXT/CURL STATION. We hope you are have a question or problem regarding the proper assembly of completely satisfi...

  • Page 3: Table Of Contents

    INDEX IMPORTANT ASSEMBLY INSTRUCTION NOTE....4 FIRST STEPS FOR A SINGLE STATION........5 MULTIPLE STATION ASSEMBLY STEPS.........7 LEG EXT/CURL CABLE CABLE..........11 EXPLODED VIEW...............15 PARTS LIST...................16 MAINTENANCE.................17 AP-7000 SERIES LEG EXT/CURL STATION...

  • Page 4: Important Assembly Instruction Note

    IMPORTANT ASSEMBLY INSTRUCTION NOTE INSTRUCTIONS FOR A SINGLE STATION ASSEMBLY ONLY: FOR STEPS 1 AND 2 YOU WILL NEED SOME HARDWARE THAT IS PROVIDED IN THE AP-70RP BOX. ONCE YOU COMPLETE STEPS 1 AND 2 SKIP TO STEP 5 TO RESUME INSTALLATION. INSTRUCTIONS FOR A MULTI STATION ASSEMBLY ONLY: BEGIN ASSEMBLY IN STEP 3.

  • Page 5: First Steps For A Single Station

    STEP 1 Assembly List Item # Description Qty. REAR POST FLAT WASHER SAE N/P 3/8” FLAT WASHER N/P 3/8 ID X 1 1/2 OD X 3/16 NYLON INSERT LOCK NUT N/P 3/8-16 SOCKET CAP SCREW GR-8 N/P 3/8-16 X 3 BASE FRAME SEAT FRAME BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 5...
  • Page 6 AP-7000 SERIES LEG PRESS STATION...

  • Page 7: Multiple Station Assembly Steps

    STEP 3 Assembly List Item # Description Qty. CENTER POST SOCKET CAP SCREW GR-8 N/P 3/8-16 X 1 FLAT WASHER SAE N/P 3/8” SPLIT LOCK WASHER N/P 3/8” BASE FRAME SEAT FRAME BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 5 FLAT WASHER SAE N/P 3/8”...
  • Page 8 AP-7000 SERIES LEG PRESS STATION...
  • Page 9 AP-7000 SERIES LEG PRESS STATION...
  • Page 10 STEP 6 Assembly List Item # Description Qty. LEG HOLDOWN SWIVEL FOOT ROLL TUBE BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 1 FLAT WASHER N/P 3/8 ID X 1 1/2 OD X 3/16 SPLIT LOCK WASHER N/P 3/8” AP-7000 SERIES LEG PRESS STATION...

  • Page 11: Leg Ext/Curl Cable Cable

    AP-7000 SERIES LEG PRESS STATION...
  • Page 12 STEP 8 Assembly List Item # Description Qty. WEIGHT SHIELD BUTTON HEAD SCREW GR-8 N/P 1/4-20 X 3/4 FLAT WASHER USS N/P 1/4” WEIGHT STACK LID AP-7000 SERIES LEG PRESS STATION...
  • Page 13 STEP 9 Assembly List Item # Description Qty. FOAM ROLL 2 X 5 1/2 X 19 3/4 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 1 1/4 ALUMINUM WASHER 3/8 X 2.584 OD X .15 THK. RUBBER HANDLE SPLIT LOCK WASHER N/P 3/8” AP-7000 SERIES LEG EXT/CURL STATION...
  • Page 14 STEP 10 Assembly List Item # Description Qty. BACK PAD SEAT PAD BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 1 1/4 FLAT WASHER SAE N/P 3/8” AP-7000 SERIES LEG EXT/CURL STATION...

  • Page 15: Exploded View

    AP-7000 SERIES LEG EXT/CURL STATION...

  • Page 16: Parts List

    AP-71LE REV0 AP-71LE REV0 COLOR CHART AP-71LE GRAY= SUB-ASSEMBLY PARTS BLACK= HARDWARE Parts List Item No. Description Rev. Part No. Qty. Item No. Description Part No. Qty. ACTUATOR ARM DECAL IMPORTANT ADJUST CABLE HERE (REV 0) BNH1893 UP6213 ADJUSTABLE CAM DECAL IMPORTANT FOR BEST PERFORMANCE...

  • Page 17: Maintenance

    Maintenance TuffStuff Basic Strength Equipment Safety and General Maintenance All TUFFSTUFF strength equipment is designed and manufactured to offer maximum, long-life service with minimal maintenance. However, safety inspection and routine maintenance in your facility should be the upmost importance in your daily operation. Information presented in these pages will serve as a basic guideline to design your own inspection procedures.
  • Page 18 Maintenance Part Three: Lubrication Bearing and linear bearings systems have advanced over the years but they must be maintained on a regu- lar basis if you expect them to last and perform effi ciently. TuffStuff uses only the highest quality bearings and linear motion components that are virtually trouble-free but requires the regular preventive maintenance to insure long-lasting performance.
  • Page 19 D O N O T D I S C A R D T H I S M A N U A L T U F F S T U F F L I M I T E D W A R R A N T Y TuffStuff warrants to the original purchaser that TuffStuff equipment will be free from defects in material and workmanship.
