  • Page 1: User Guide

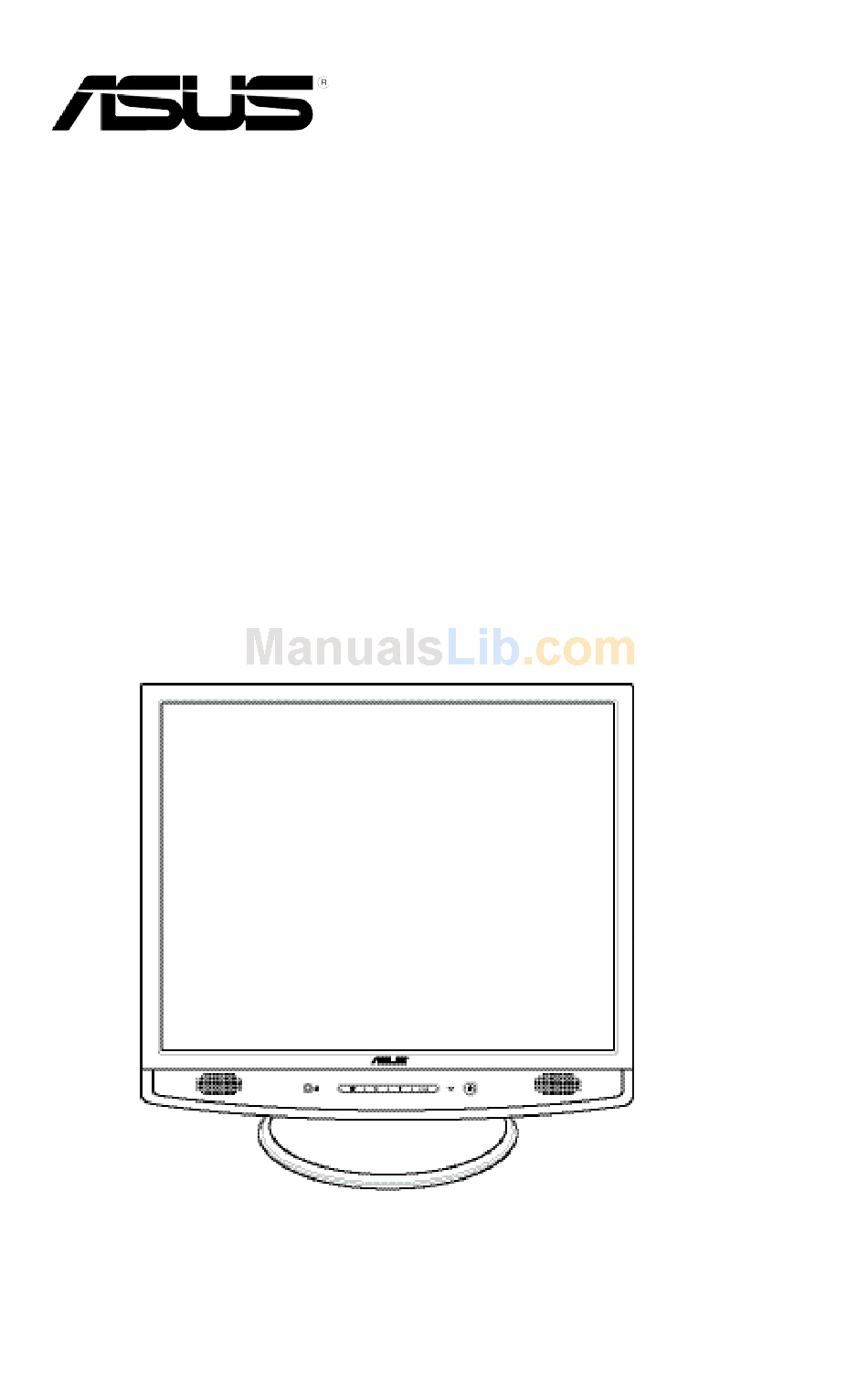

    MB19 Series/ MB17 Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Table Of Contents

    Table of contents Notices ... iv Safety information ... v Care & Cleaning ... vi Package contents ...viii Chapter 1: Product introduction Features ... 1-2 Assembling the monitor base ... 1-2 Monitor introduction ... 1-3 1.3.1 Front of the LCD monitor ... 1-3 1.3.2 Rear of the LCD monitor ...
  • Page 4: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
  • Page 5: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 6: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •...
  • Page 7 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation, such as warranty card, that may have been added by your dealer.
  • Page 8: Package Contents

    Package contents Check your MB19/MB17 Series LCD package for the following items: LCD monitor Quick Start Guide Support CD 1 x Power cord 1 x VGA cable 1 x DVI cable (MB19TU only) 1 x Audio cable 1 x Cable holder If any of the above items is damaged or missing, contact your retailer immediately.
  • Page 9 Chapter 1 This chapter gives a general description of the ASUS LCD monitor MB19/MB17 Series. The chapter lists the monitor features including introduction on the front and rear panels.
  • Page 10: Chapter 1: Product Introduction

    Features • 19”/17” LCD Monitor • Recommended resolution: 1280 X 1024 • MB19TU: 2ms (Gray to Gray) Rapid response time MB19SE/MB17SE: 5ms (Tr+Tf) Quick response time • SPLENDID™ Video Enhancement Technology • 5 Video preset modes switiched by hotkey • 3 Skin-tones selection •...
  • Page 11: Monitor Introduction

    Press this button to decrease the value of the function selected or move to the previous fuction. • This is also a hotkey for Volume adjustment. ASUS LCD Monitor MB19 Series/MB17 Series MENU MENU . This port connects a headphone with a stereo...
  • Page 12 “+” Button: • Press this button to increase the value of the function selected or move to the next function. • This is also a hotkey for Brightness adjustment. Button: • Press this button to enter/select the icon (function) highlighted while the OSD menu is activated.
  • Page 13: Rear Of The Lcd Monitor

    Computer) DVI-D digital signal connection. VGA port. This 15-pin port is for PC VGA connection. Audio-in port. This port connects PC audio source by the bundled audio cable . ASUS LCD Monitor MB19 Series/MB17 Series AC IN DIGITAL ANALOG AUDIO...
  • Page 14 Chapter 1: Product introduction...
  • Page 15 Chapter 2 This chapter provides instructions on how to correctly connect cables and properly adjust the angle of the LCD monitor.
  • Page 16: Chapter 2: Setup

    Connecting the cables Connect the cables as shown: • To connect the audio cable: connect one end of the audio cable to the monitor’s Audio-in port, and then connect the other end to the computer multi-media (or audio) card’s audio output. •...
  • Page 17: Turning The Monitor On

    Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from -5º to 20º. ASUS LCD Monitor MB19 Series/MB17 Series . See page 1-4 for the location of the power -5º~20º...
  • Page 18 Chapter 2: Setup...
  • Page 19 Chapter 3 This chapter introduces the operating instruction, including how to use the OSD (On-Screen Display) menu.
  • Page 20: Chapter 3 General Instruction

    OSD (On-Screen Display) menu OSD MENU TABLE The table describes the function of each OSD icon. Main Menu Main Item Menu Icon Splendid Color Adjust Luminance OSD Setup Sub Menu Item Menu Icon Scenery Advance for scenery use with SPLENDID™ Video Mode Enhancement Standard...
  • Page 21 Information timing Select the desired language Language Recall default setting Reset Exit OSD Exit ASUS LCD Monitor MB19 Series/MB17 Series Adjust image Phase to Phase reduce Horizontal-line noise of the image Adjust image Clock to Clock reduce Vertical-line noise of the image...
  • Page 22: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Power LED is not ON The Power LED lights amber and there is no screen image Screen image is too light or dark Screen image is not centered or sized properly Screen image bounces or a wave pattern is present in the image Screen image has...
  • Page 23: Specification Summary

    Headphone port Colors Speaker (Built-in) Power LED VESA wall mount Kensington lock Power source Power consumption (continued on the next page) ASUS LCD Monitor MB19 Series/MB17 Series TFT LCD 19.0” Standard screen SXGA 1280 x 1024 0.294mm 300cd/m 700:1 160º/160º 16.2M...
  • Page 24 Specification summary (MB19SE) Tilt Dimension Multi-languages (OSD) Accessories Regulation approvals * Specifications are subject to change without notice. +20º~-5º 412.6 mm x 224mm x 406.8mm 10 Languages (English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese) VGA cable, audio cable, power cord, Support CD, quick start guide, warranty card (optional) TCO03, Energy Star 2006, UL/cUL, CB, CE,FCC, CCC, BSMI, Gost-R, C-Tick, PSB, MIC, WHQL...
  • Page 25 Headphone port Colors Speaker (Built-in) Power LED VESA wall mount Kensington lock Power source Power consumption (continued on the next page) ASUS LCD Monitor MB19 Series/MB17 Series TFT LCD 19.0” Standard screen SXGA 1280 x 1024 0.294mm 320cd/m 800:1 160º/160º 16.2M...
  • Page 26 Specification summary (MB19TU) Tilt Dimension Multi-languages Accessories Regulation approvals * Specifications are subject to change without notice. +20º~-5º 412.6 mm x 224mm x 406.8mm English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese VGA cable, DVI cable, audio cable, power cord, support CD, quick start guide, warranty card (optional) Energy Star 2006, UL/cUL, CB, CE,FCC, CCC,...
  • Page 27 Headphone port Colors Speaker (Built-in) Power LED VESA wall mount Kensington lock Power source Power consumption (continued on the next page) ASUS LCD Monitor MB19 Series/MB17 Series TFT LCD 17.0” Standard screen SXGA 1280 x 1024 0.264mm 300cd/m 700:1 160º/160º 16.2M...
  • Page 28 Specification summary (MB17SE) Tilt Dimension Multi-languages Accessories Regulation approvals * Specifications are subject to change without notice. 3-10 +20º~-5º 412.6 mm x 224mm x 406.8mm English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese VGA cable, audio cable, power cord, support CD, quick start guide, warranty card (optional) TCO03, Energy Star 2006, UL/cUL, CB, CE,FCC, CCC, BSMI, Gost-R, C-Tick, PSB, MIC, WHQL...
  • Page 29: Supported Operating Modes

    SXGA 1280 x 1024 * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. ASUS LCD Monitor MB19 Series/MB17 Series Horizontal Vertical Frequency Frequency 31.47KHz...
  • Page 30 3-12 Chapter 3: General Instruction...
