Asus VG27AH User Manual

Vg27ah series user guide for english edition
Hide thumbs

Advertisement

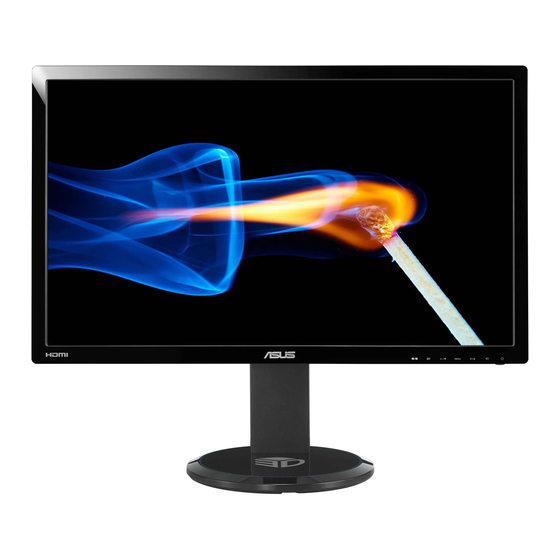

VG27AH
LCD Monitor

User Guide

Advertisement

loading

  Related Manuals for Asus VG27AH

  Summary of Contents for Asus VG27AH

  • Page 1: User Guide

    VG27AH LCD Monitor User Guide...
  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
  • Page 4: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 5: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning.
  • Page 6 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
  • Page 7: Welcome

    ® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...
  • Page 8: Monitor Introduction

    Monitor introduction 1.3.1 Front view Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is shown below. Status Description Blue Amber Standby mode Input Select Button: • Press this button to select input source. Button: •...
  • Page 9 Exits the OSD menu or goes back to the previous menu when the OSD menu is active. • Long press this button to automatically adjust this monitor to its optimized position, clock, and phase (for VGA mode only). ASUS VG27AH LCD Monitor...
  • Page 10: Back View

    1.3.2 Back view Rear connectors Kensington lock slot. AC-IN port: This port connects the power cord. HDMI-IN port: This port is for connection with an HDMI compatible device. support 3D graphic card HDMI1.4; DVD player HDMI1.4, and Blu-ray 3D DVI port: This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection.
  • Page 11: Experiencing 3D Virtual Effects

    To connect the HDMI cable Connect a HDMI cable to the monitor and your 3D compatible device. You can playback 3D content and enjoy 3D effect on VG27AH LCD monitor. To support 3D effect, please make sure the HDMI cable is properly connected the monitor and your 3D compatible device.
  • Page 12: Assembling The Monitor Base

    Assembling the monitor base To assemble the monitor base: Attach the base to the arm. Fix with the screws to joint the base with the arm. You can easily tighten the screws by fingers. Remove the height adjustment lock from the arm. The height adjustment lock should NEVER be removed BEFORE you place the monitor VERTICALLY on a flat and clean table.
  • Page 13: Adjusting The Monitor

    • Hold the base to prevent the monitor from falling when you change its angle. • You can tilt the monitor’s from -5˚ to +15˚, swivel from left-to-right for 150˚, and lift the monitor’s height for about 100mm. -5° ~ +15° 150° 150° 0° 100mm It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS VG27AH LCD Monitor...
  • Page 14: Detaching The Arm (For Vesa Wall Mount)

    Detaching the arm (for VESA wall mount) The detachable arm of this monitor is specially designed for VESA wall mount. To detach the arm: Disconnect power and signal cables. Lower the monitor to its lowest height, and then insert the height adjustment lock.
  • Page 15: Osd (On-Screen Display) Menu

    ] button. Press [ ] or [ ] button to change the settings of the selected function. To exit the OSD menu, press [ ] button. Repeat step 2 and step 3 to adjust any other function. ASUS VG27AH LCD Monitor...
  • Page 16: Osd Function Introduction

    3.1.2 OSD Function Introduction Splendid This function contains six sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. VG27A Splendid Scenery Mode Color Standard Mode Image Theater Mode Input Select...
  • Page 17 “Natural”, and “Yellowish”. Image Set the image related setting from this menu. VG27A Splendid Sharpness Color Trace Free Image Aspect Control Full Input Select ASCR System Setup 3D Mode Selection 3D Depth Position Focus Move Menu Exit ASUS VG27AH LCD Monitor...
  • Page 18 Aspect Control: Adjust the aspect ratio to “4:3”, “Full”, or “OverScan”. (The “OverScan” ratio is only available for HDMI input.) • ASCR: Turn on or off the ASCR (ASUS Smart Contrast Ratio) function. (Only available at Scenery, Theater, Game, and Night View Mode.) •...
  • Page 19: Input Select

    ECO is ON. Its brightness is lower than that when setting the Contrast Ratio to 100.) • QuickFit: Contains three patterns: (1) Grid pattern, (2) Paper size, (3) Photo size. ASUS VG27AH LCD Monitor...
  • Page 20 Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid Paper size: Provides users to view their documents in real size on the screen. Letter Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen.
  • Page 21 “English”, “French”, “German”, “Spanish”, “Italian”, “Dutch”, “Russian”, “Traditional Chinese”, “Simplified Chinese”, “Japanese”, “Polish”, “Turkish”, “Portuguese”, “Czech”, “Croatian”, “Hungarian”, and “Romanian”. • Information: Shows the monitor information. • All Reset: Select “Yes” to restore the default settings. ASUS VG27AH LCD Monitor...
  • Page 22: Specifications

    Full HD 1080P Pixel Pitch 0.3114 mm Brightness (Typ.) 250 cd/m Contrast Ratio (Typ.) ≧ 1000:1 ASUS Smart Contrast Ratio (ASCR) ≧ 80,000,000:1 (with ASCR on) Viewing Angle (H/V) CR≧10 178°(H) /178°(V) Display Colors ≧ 16.7 M Response Time ≦ 5 ms (Gray to gray) Trace Free Technology SPLENDID™...
  • Page 23 711 x 540 x 227 mm (package) Weight (Esti.) 8.3 kg (Net); 11.8 kg (Gross) Regulation approvals Energy Star 5.0, UL/cUL, CB, CE, ErP, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, J-MOSS, PSE, RoHS, WEEE, Windows 7 WHQL, Green ASUS *Specifications subject to change without notice. ASUS VG27AH LCD Monitor...
  • Page 24: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. The power LED lights amber and • Check if the monitor and the computer are in the there is no screen image...
  • Page 25: Supported Timing List

    1280x1024 75Hz 79.976KHz 1366x768 60Hz 47.712KHz 1440x900 60Hz 55.935KHz 1440x900 60Hz 55.469KHz 1440x900 75Hz 70.635KHz 1680x1050 60Hz 64.674KHz 1680x1050 60Hz 65.29KHz 1920x1080 60Hz 67.5KHz 1920x1080 60Hz 66.587KHz 640x480P (HDMI) 59.94/60Hz 31.469KHz/31.5KHz 720x480P (HDMI) 59.94/60Hz 31.469KHz/31.5KHz ASUS VG27AH LCD Monitor 3-11...
  • Page 26 Resolution Refresh Rate Horizontal 720x576P (HDMI) 50Hz 31.25KHz 1280x720P (HDMI) 50Hz 37.5KHz 1280x720P (HDMI) 59.94/60Hz 44.955KHz/45KHz 1440x480P (HDMI) 59.94/60Hz 31.469KHz/31.5KHz 1440x576P (HDMI) 50Hz 31.25KHz 1920x1080i (HDMI) 50Hz 28.125KHz 1920x1080i (HDMI) 59.94/60Hz 33.716KHz/33.75KHz 1920x1080P (HDMI) 50Hz 56.25KHz 1920x1080P (HDMI) 59.94/60Hz 67.433 KHz/67.5KHz 3D Display Modes, Primary Timings List (HDMI input only) Mode 3D Video Format...
