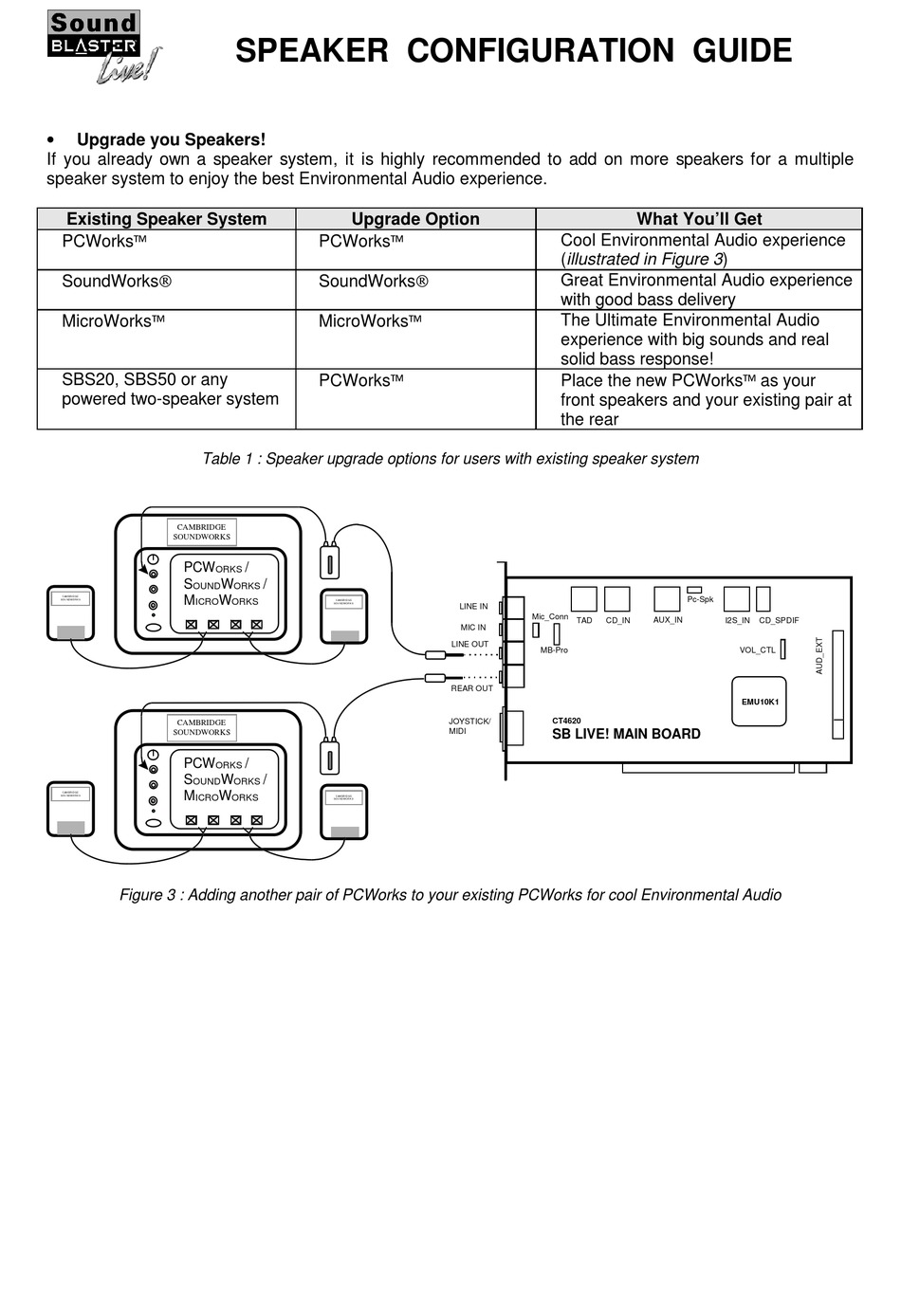

Creative Sound Blaster Live! Getting Started page 44

•
Upgrade you Speakers!
If you already own a speaker system, it is highly recommended to add on more speakers for a multiple
speaker system to enjoy the best Environmental Audio experience.
Existing Speaker System
PCWorks™
SoundWorks®
MicroWorks™
SBS20, SBS50 or any
powered two-speaker system
Table 1 : Speaker upgrade options for users with existing speaker system
CAMBRIDGE
SOUNDWORKS
PCW
ORKS
S
OUND
M
C AM BR ID GE
SOU ND WOR K S ICRO
CAMBRIDGE
SOUNDWORKS
PCW
ORKS
S
OUND
M
C AM BR ID GE
ICRO
SOU ND WOR K S
Figure 3 : Adding another pair of PCWorks to your existing PCWorks for cool Environmental Audio
SPEAKER CONFIGURATION GUIDE
Upgrade Option
PCWorks™
SoundWorks®
MicroWorks™
PCWorks™
/
W /
ORKS
W
ORKS
C AM BR ID GE
SOU ND WOR K S
/
W /
ORKS
W
ORKS
C AM BR ID GE
SOU ND WOR K S
Cool Environmental Audio experience
( illustrated in Figure 3 )
Great Environmental Audio experience
with good bass delivery
The Ultimate Environmental Audio
experience with big sounds and real
solid bass response!
Place the new PCWorks™ as your
front speakers and your existing pair at
the rear
LINE IN
Mic_Conn
TAD CD_IN
MIC IN
LINE OUT
MB-Pro
REAR OUT
JOYSTICK/ CT4620
MIDI
SB LIVE! MAIN BOARD
What You'll Get
Pc-Spk
AUX_IN
I2S_IN CD_SPDIF
VOL_CTL
EMU10K1
