Creative Sound Blaster AE-9 - Ultimate PCI-E Sound Card Manual

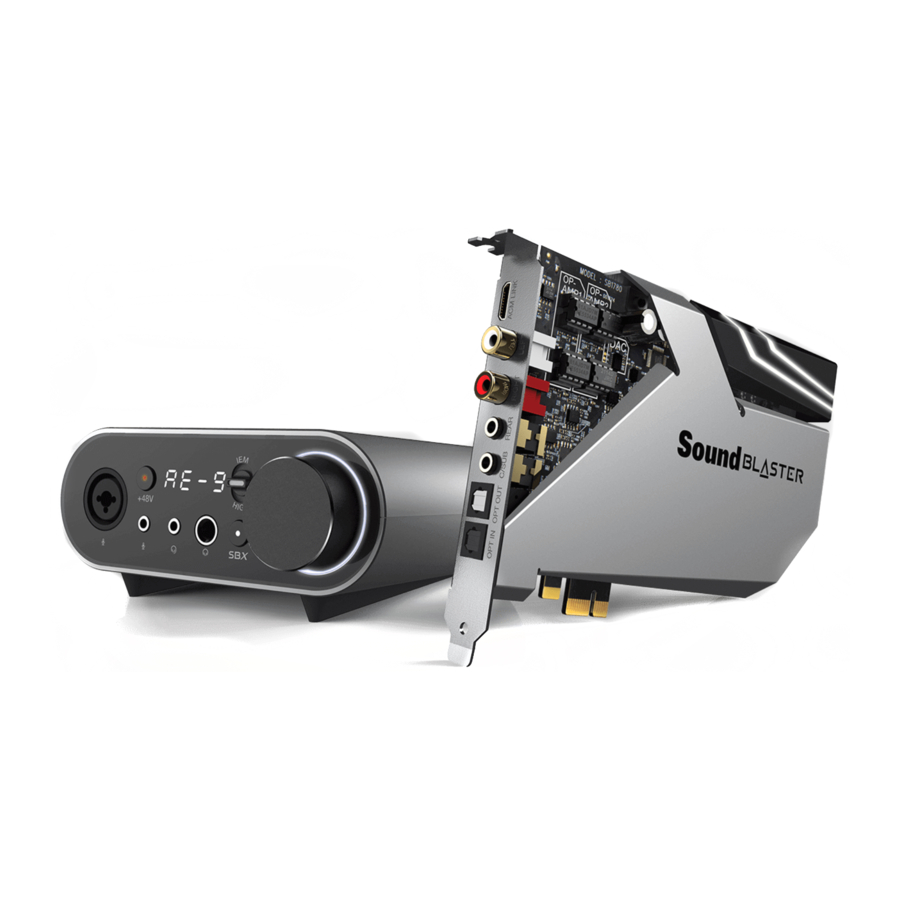

Overview

Overview

  1. Audio Control Module (ACM)
    1. XLR/6.3mm Microphone In
    2. +48V Phantom Power Button
    3. Volume/Status Display
    4. Headphone Impedance Selector Switch
    5. ACM Link Cable
    6. AUX In (Left/Right)
    7. 3.5mm Microphone In (Mono)
    8. 3.5mm Headset/Headphone In
    9. 6.3mm Headphone Jack
    10. SBX Button
    11. Volume Control Knob / Headphone / Speaker Switch
  2. Sound Card
    1. ACM Link Port
    2. Front Left
    3. Front Right
    4. Rear
    5. Center / Subwoofer
    6. Optical Out
    7. Optical In
    8. Op-Amp Pair 1 (Single DIP)
    9. Op-Amp Pair 2 (Dual DIP)

Connecting The Power Supply

Connecting The Power Supply

  1. PC Power Supply Unit^
  2. Sound Card Connector
    Pin Definition
    1 +12 VDC
    2 +12 VDC
    3 +12 VDC
    4 Ground (G)
    5 Ground (G)
    6 Ground (G)
  3. Power Supply PCI Express Connector
    Pin Definition
    1 +12 VDC (Yellow)
    2 +12 VDC (Yellow)
    3 +12 VDC (Yellow)
    4 Ground (G) (Black)
    5 Ground (G) (Black)
    6 Ground (G) (Black)

Ensure that the 6-pin PCI Express power supply connector's latch is properly fitted into the sound card connector's catch.

Note:

  • Only the use of PCI Express 6-Pin Connector is permitted.
  • The PCIe connector must be connected to the sound card in a Pin-to-Pin matching configuration.
  • DO NOT forcefully link the connectors if they do not fit.
  • DO NOT connect ATX 4Pin/P4/EPS Connectors to the Sound Card's PCI Express Connector. Doing so will cause damage to the Sound Card and / or PC / Power supply.

^ Power supply unit must be 80 PLUS Bronze certified with a minimum of 500 watts power output and a 2 x 6 PCIe connector.

Installing The Sound Card


  1. Installing The Sound Card Step 1
    1. Unplug the computer's power cable
    2. Remove the computer's case
    1. Remove the existing sound card
      Installing The Sound Card Step 2
    2. Remove the PCIe slot's metal enclosure
      Installing The Sound Card Step 3
      1. PCI slot
      2. PCIe slot
  2. Gently but firmly slot the Sound Blaster AE-9 sound card into the PCIe slot
    Installing The Sound Card Step 4

  3. Installing The Sound Card Step 5
    1. Replace the computer's case
    2. Plug the power cable back into the computer

Connecting Devices To The Sound Card

Connecting Devices To The Sound Card

  1. Y-Splitter Cable
  2. Front
  3. Audio Inputs
  4. Optical Out
  5. Optical In
  6. Rear
  7. Center/Subwoofer
  1. 2.0 / 2.1 Analog Speakers
  2. AV Receiver
  3. Blu-ray / DVD Player
  4. 5.1 Analog Speakers

Connecting Devices to The Audio Controle Module (ACM)

Connecting to The ACM Step 1

*1/8" to 1/4" adapter not included

Connecting to The ACM Step 2

Note:

  • Do not connect ACM Link's Cable to other mini-HDMI Ports on other devices.
  • Do not connect other mini-HDMI devices to the ACM Link Port of the Sound Card.

Display & Control Interface

Display & Control Interface

  1. +48V Button
    ON: Enable +48V Phantom power to XLR mic
    OFF: Disable +48V Phantom power to XLR mic
    +48V Phantom power is available on XLR connector only.
  2. Volume Display
    dB Min.
    dB Max.
  3. Headphone Impedance Selector Switch
    IEM: 16 - 31Ω in-ear monitor
    Normal(N): 32 - 149 Ω in-ear / headphones
    High: 150 - 600 Ω headphones
  4. Volume Knob
    Press and hold for 2 secs Switch between the headphone and speaker output
    Headphone Mode
    Speaker Mode
    Press and hold for 4 secs Turn off volume LED
    Turn on volume LED
  5. SBX Button
    ON: SBX Acoustic Engine is switched ON
    OFF: SBX Acoustic Engine is switched OFF

Download

Unlock your Sound Blaster AE-9 with the Sound Blaster Command software. Download at creative.com/support/SBAE-9
Software


With Sound Blaster Command, you can:

  • Experience professionally-tuned audio presets for gaming, movies and music
  • Personalize audio effects with Sound Blaster Acoustic Engine
  • Setup speakers and headphones configuration
  • Adjust playback and recording settings

Product Registration

Registering your product ensures you receive the most appropriate service and product support available. You can register your product during installation or at www.creative.com/register.

Please note that your warranty rights are not dependent on registration.

Technical & Customer Support Services

Visit creative.com/support/SBAE-9 to resolve and troubleshoot technical queries at Creative's 24-hour self-help Knowledge Base. You can also find customer support services and other helpful information here.

Other Information

Supplementary documentation for this product including DoC and safety and regulatory information can be found at creative.com/support/SBAE-9.

Warranty Warranty information is supplied with your product in a separate document.
Please keep your Proof of Purchase for the duration of the Warranty period.

Keep this document for future reference.

creative.com/support/SBAE-9
