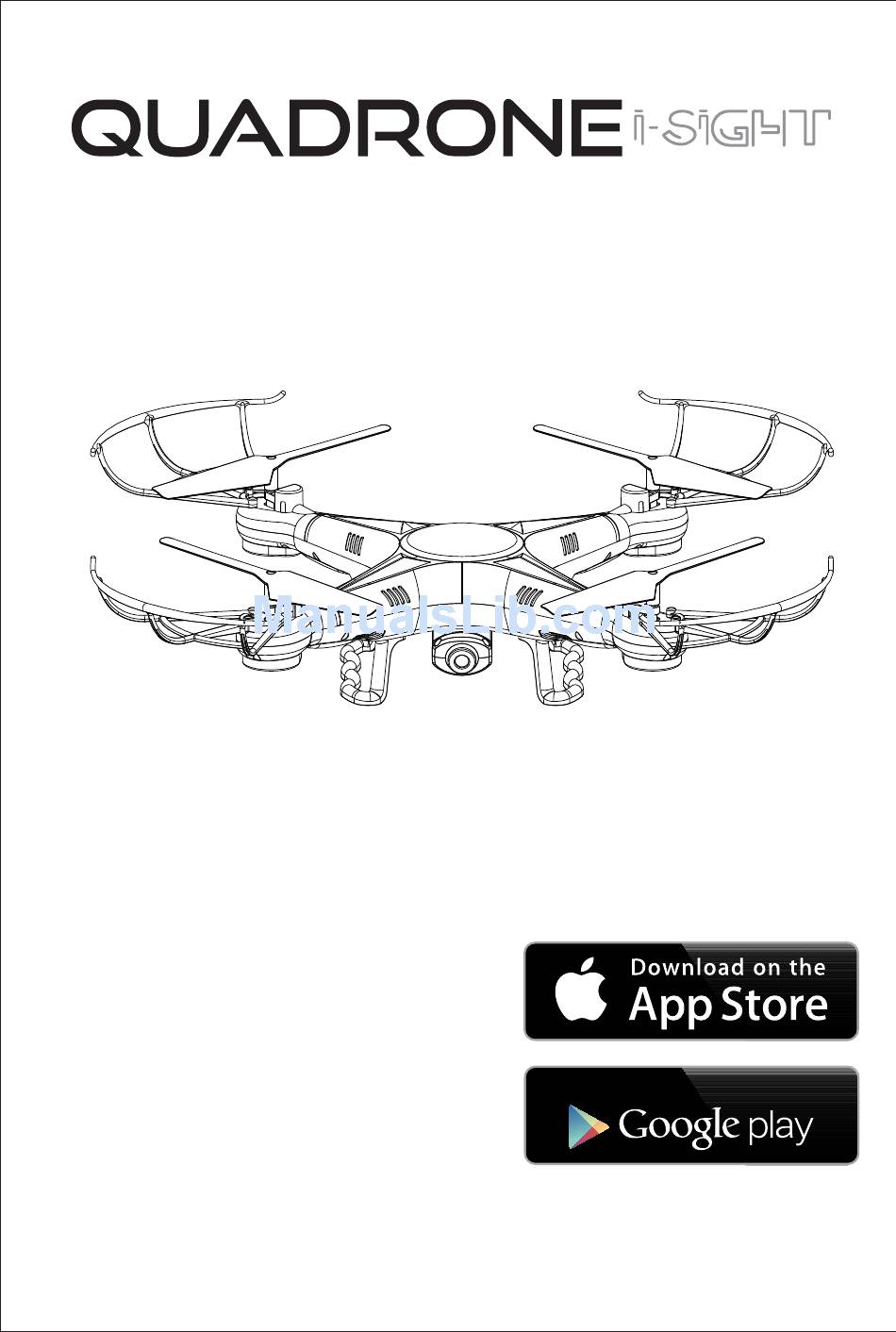

- Page 1 Instruction Manual ANDROID APP ON Please read the operation manual carefully before playing...
-
Page 2: Product View And Parts
1. GETTING STARTED A. Parts Phone clip Indicator High/Low speed switch Flip Mode Right Joystick Left Joystick (Forward/Backward, Left/Right side flight) (Up/Down, Turn Left/Right) Forward and backward Trim Turn Left/ Left/Right side flight Trim & Mode Button Right Trim Screwdriver Blades USB charging cable Power ON/OFF... -
Page 3: Smartphone Controller Interface
2. SMARTPHONE CONTROLLER INTERFACE 1. Back 6. ON/OFF 12/13. Sideways flying trim 2. Take a picture 7. Speed selection 14/15. Turning trim 3. Take a video 8. Flips 16. Up/down 4. Picture & video check 9. Rotary screen 17/18. Turn left/right 5. - Page 4 4. OPERATING METHOD 1. Manual flying control (1) Power control, push up/down on the left button to control up/down. (2) Direction control, push the right button to left/right to make it fly sideways. (3) Direction control, push up/down on the right button to make it move forward/backward. (4) Direction control, push the left button to left/right to make it turn left/right.
- Page 5 Flip mode is off when the icon is Flip mode is on when the icon is white. yellow. (5) Touch the 360° button and it will change to yellow, indicating the flip mode is on. Push the right button up/down, left/right to make the drone flip forward/backward/left/right. 2.
- Page 6 (2) Direction control, tilt the phone to left/right to make the drone sideways fly left/right. (3) Direction control, tilt the phone to forward/backward to make the drone fly forward/ backward. (4) Direction control, push the left button to left/right to make it turn left/right. 3.
- Page 7 5. WIFI CONTROL & OPERATION 1. Preparation before taking off (1) Insert the AA batteries in the controller as shown in the picture below. (2) Please place the drone on a flat, level surface. (3) Stand at least 5 feet behind the drone. (4) Please double check for any obstacles or potential hazards near the area of flight.
- Page 8 4. Controller modes The remote can be operated in two modes. To change modes, push button B to right, then restart the remote controller's power. MODE 1 Operating direction Hover up and down Forward and backward Push the throttle up or down, the quadcopter Push the direction lever up or down, the will ascend or descend.
- Page 9 MODE 2 Operating direction Hover up and down Forward and backward Push the throttle up or down, the quadcopter Push the direction lever up or down, the will ascend or descend. quadcopter will fly forward or backward. Turn left and right Sideward fly Pull the throttle left or right, the quadcopter Pull the direction lever left or right, the...
- Page 10 5. Quadrone Functions 1. Low-voltage protection: When the quadcopter battery is running low, power supply to the rotors will be stopped. The quadcopter control system will automatically protect the battery. 2. Restart function: In case of incorrect flight patterns, use the following method to restore the default factory settings.
- Page 11 7. Recalibrating the Drone's Gyroscope If flight cannot be corrected through fine tune trimming, try the following directions to recalibrate the drone's inner gyroscope: (1) Place the drone on a flat, level surface. (2) After matching the drone and remote, switch the speed to high speed, and then push the joysticks to the bottom right corner as shown.
-
Page 12: Breakdown And Diagram
& BREAKDOWN DIAGRAM Description Description Description Code Quantity Code Quantity Code Quantity Upper body Gear Reverse motor Lower body Motor holder Landing skids Rotating blade Lampshades Camera K300C/Wifi Reversing blade Light boards Protecting frames Receiver board Battery cover Battery Battery cover Rotating motor MAIN PARAMETER Body length: 12"...
