Instructions for the fitter

GB
Mounting the wooden panel onto the door and inserting
the machine into cabinets:
In the case where the machine must be shipped for final
installation after the wooden panel has been mounted, we
suggest leaving it in its original packaging. The packaging
was designed to make it possible to mount the wooden
panel onto the machine without removing it completely (see
figures below).
The wooden panel that covers the face of the machine
must not be less than 18 mm in thickness and can be hin-
ged on either the right or left. For the sake of practicality
when using the machine, we recommend that the panel be
hinged on the same side as the door for the machine itself
- the left.
A
C
te
Tur sei
E
6

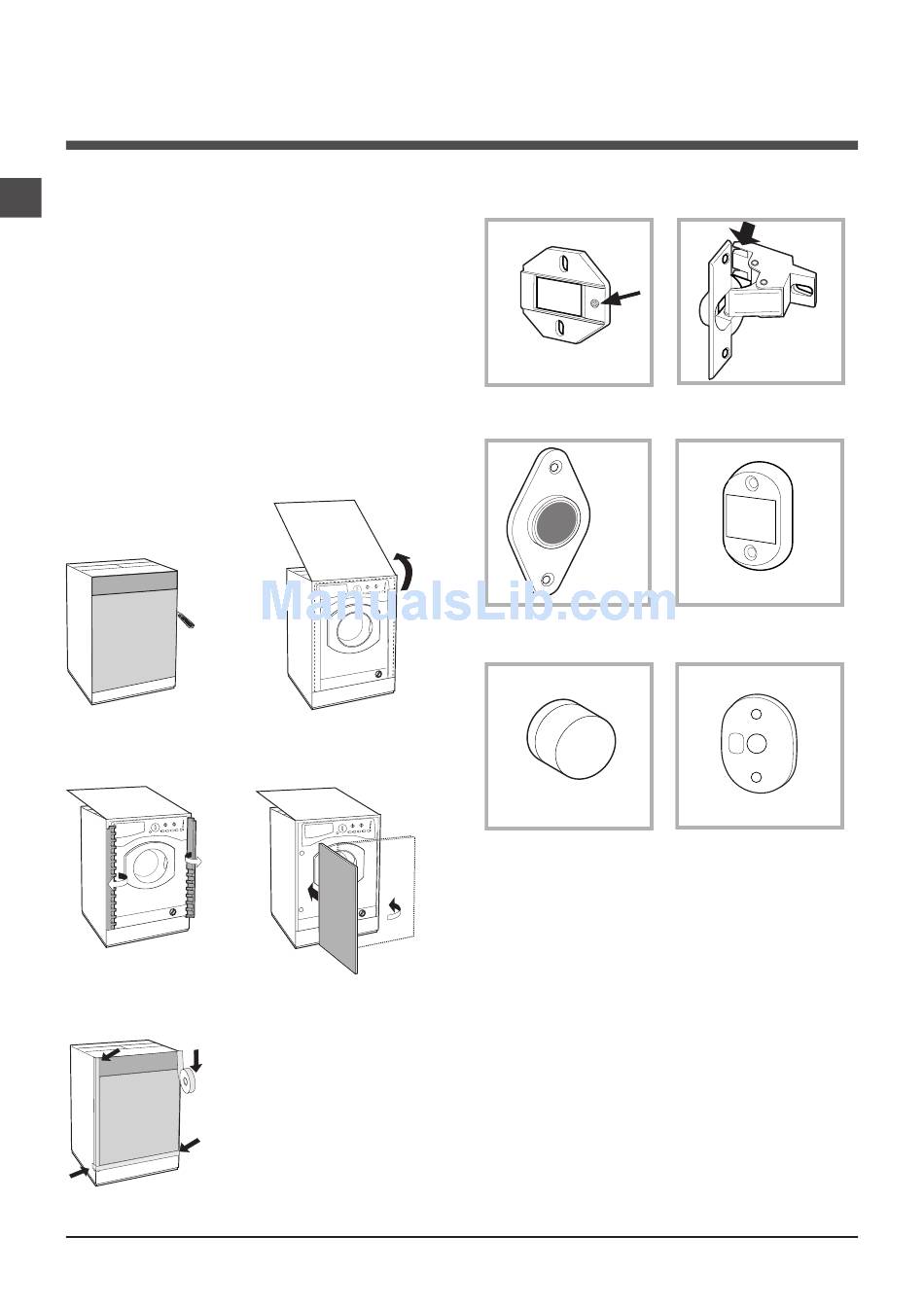

Door Mounting Accessories (Fig. 1-2-3-4-5).
N° 2 Hinge Supports
Fig. 1
Fig. 3
B
N° 1 Rubber plug
Fig. 5
- No. 6 type A self-threading screws, l =13 mm.
- No. 2 type B metric, countersunk screws, l =25; for faste-
ning the magnet plate to the cabinet.
D
- No. 4 type C metric screws, l =15 mm; for mounting the
hinge supports to the cabinet.
- No. 4 type D metric screws, l =7 mm; for mounting the
hinges on the supports.
Mounting the Parts onto the Face of the Machine.
- Fit the hinge supports to the appliance front panel, posi-
tioning the hole marked with an arrow in fig. 1 so that it is
on the inner side of the front panel. Fit a spacer (fig. 4/B)
between the surfaces using type C screws.
- Fit the magnet plate at the top of the opposite side,
using type B screws to fix two spacers (fig. 4/B) between
the plate and the surface.
N° 2 Hinges
Fig. 2
N° 1 Magnet N° 1 Magnet plate
Fig. 4
N° 4 Spacers
Fig. 4/B
