Instructions for the fitter

GB
Mounting the wooden panel onto the
door and inserting the machine into
cabinets:
In the case where the machine must be
shipped for final installation after the wooden
panel has been mounted, we suggest leaving
it in its original packaging. The packaging
was designed to make it possible to mount
the wooden panel onto the machine without
removing it completely (see figures below).
The wooden panel that covers the face of
the machine must not be less than 18 mm
in thickness and can be hinged on either the
right or left. For the sake of practicality when
using the machine, we recommend that the
panel be hinged on the same side as the
door for the machine itself - the left.
A
C
te
Tur sei
E
6

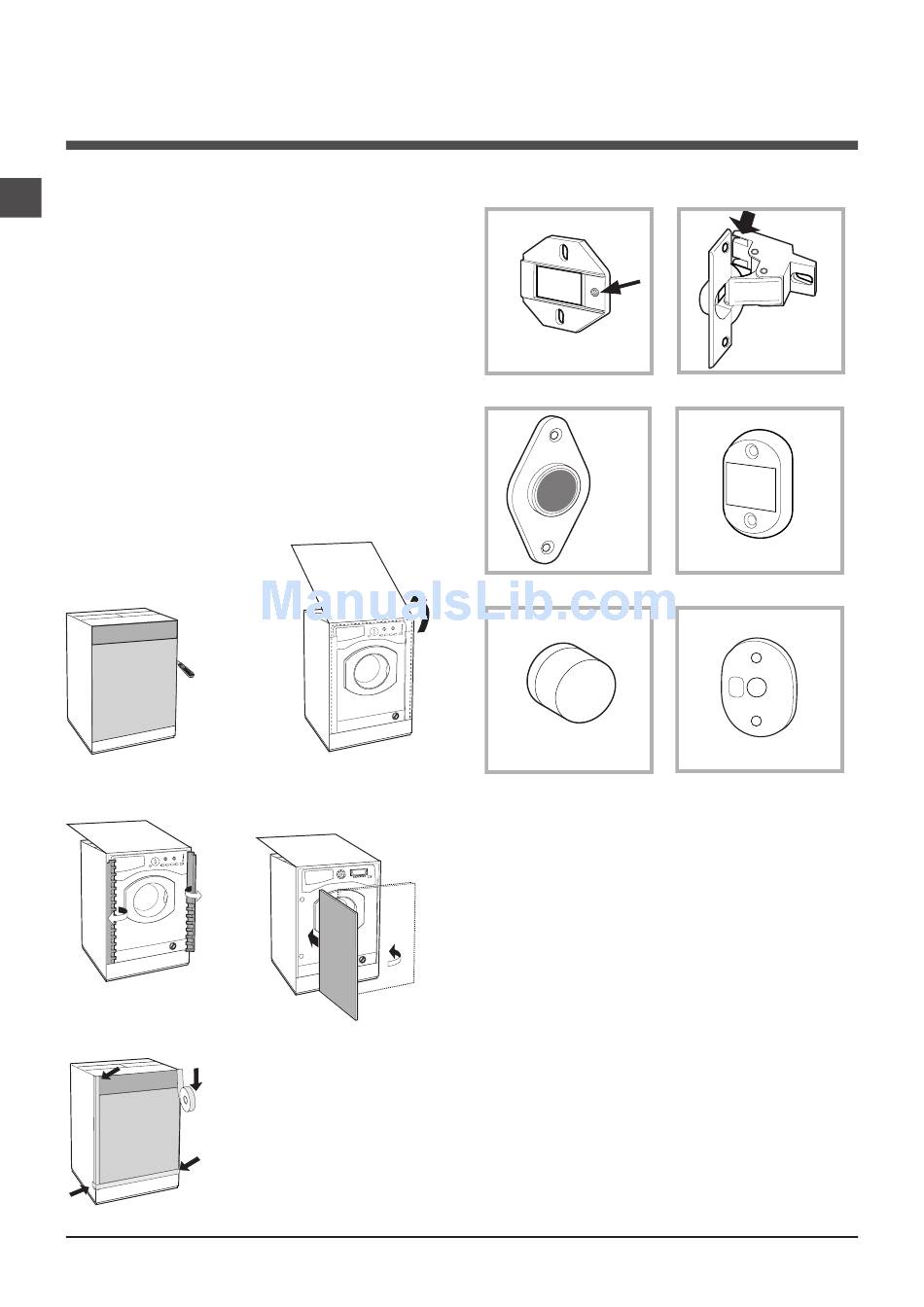

Door Mounting Accessories (Fig. 1-2-3-4-5).
N° 2 Hinge Supports
Fig. 1
Fig. 3
N° 1 Rubber plug
B
Fig. 5
- No. 6 type A self-threading screws, l =13 mm.
- No. 2 type B metric, countersunk screws,
l =25; for fastening the magnet plate to the
cabinet.
- No. 4 type C metric screws, l =15 mm; for
mounting the hinge supports to the cabinet.
- No. 4 type D metric screws, l =7 mm; for
mounting the hinges on the supports.
Mounting the Parts onto the Face of the
D
Machine.
- Fit the hinge supports to the appliance front
panel, positioning the hole marked with an
arrow in fig. 1 so that it is on the inner side of
the front panel. Fit a spacer (fig. 4/B) betwe-
en the surfaces using type C screws.
- Fit the magnet plate at the top of the op-
posite side, using type B screws to fix two
spacers (fig. 4/B) between the plate and the
surface.
N° 2 Hinges
Fig. 2
N° 1 Magnet N° 1 Magnet plate
Fig. 4
N° 4 Spacers
Fig. 4/B
