System memory

2.4.1

Overview

The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline
Memory Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has
a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are
notched differently to prevent installation on a DDR DIMM socket.

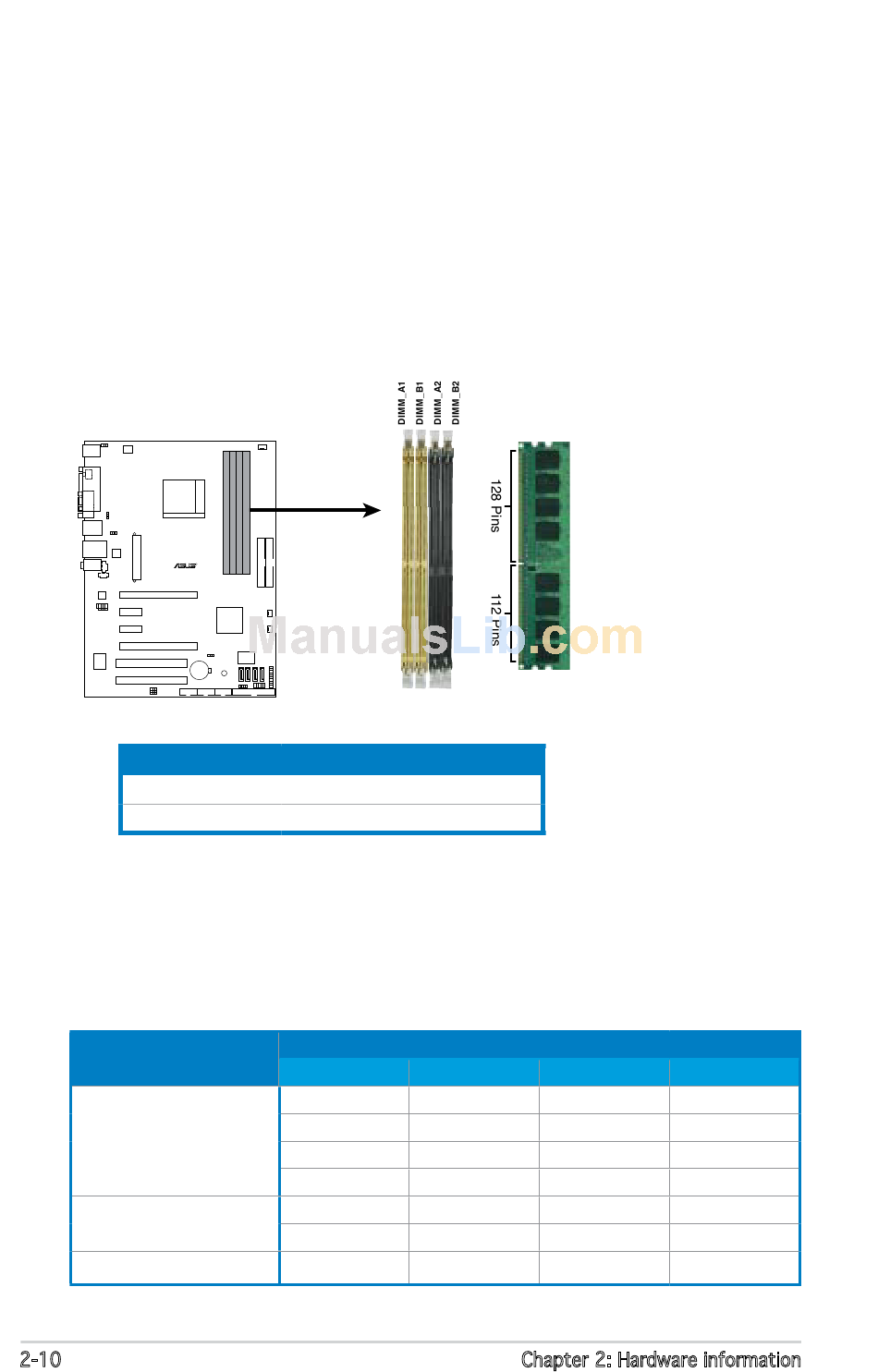

The figure illustrates the location of the DDR2 DIMM sockets:
M2N4-SLI
M2N4-SLI 240-pin DDR2 DIMM Sockets
Channel
Channel A
Channel B
2.4.2

Memory configurations

You may install 256 MB, 512 MB, 1 GB, and 2GB unbuffered ECC/non-ECC
DDR2 DIMMs into the DIMM sockets.
Recommended Memory Configurations
Mode
Single Channel
Dual-channel (1)
Dual-channel (2)
2-10
R
DIMM_A1 and DIMM_A2
DIMM_B1 and DIMM_B2
DIMM_A1
Populated
–
–
–
Populated
–
Populated
Sockets
Sockets
DIMM_A2
–
Populated
–
–
–
Populated
Populated
Chapter 2: Hardware information
DIMM_B1 DIMM_B2
– –
– –
Populated –
– Populated
Populated –
– Populated
Populated Populated
