Summary of Contents for Bowers & Wilkins CWM Cinema

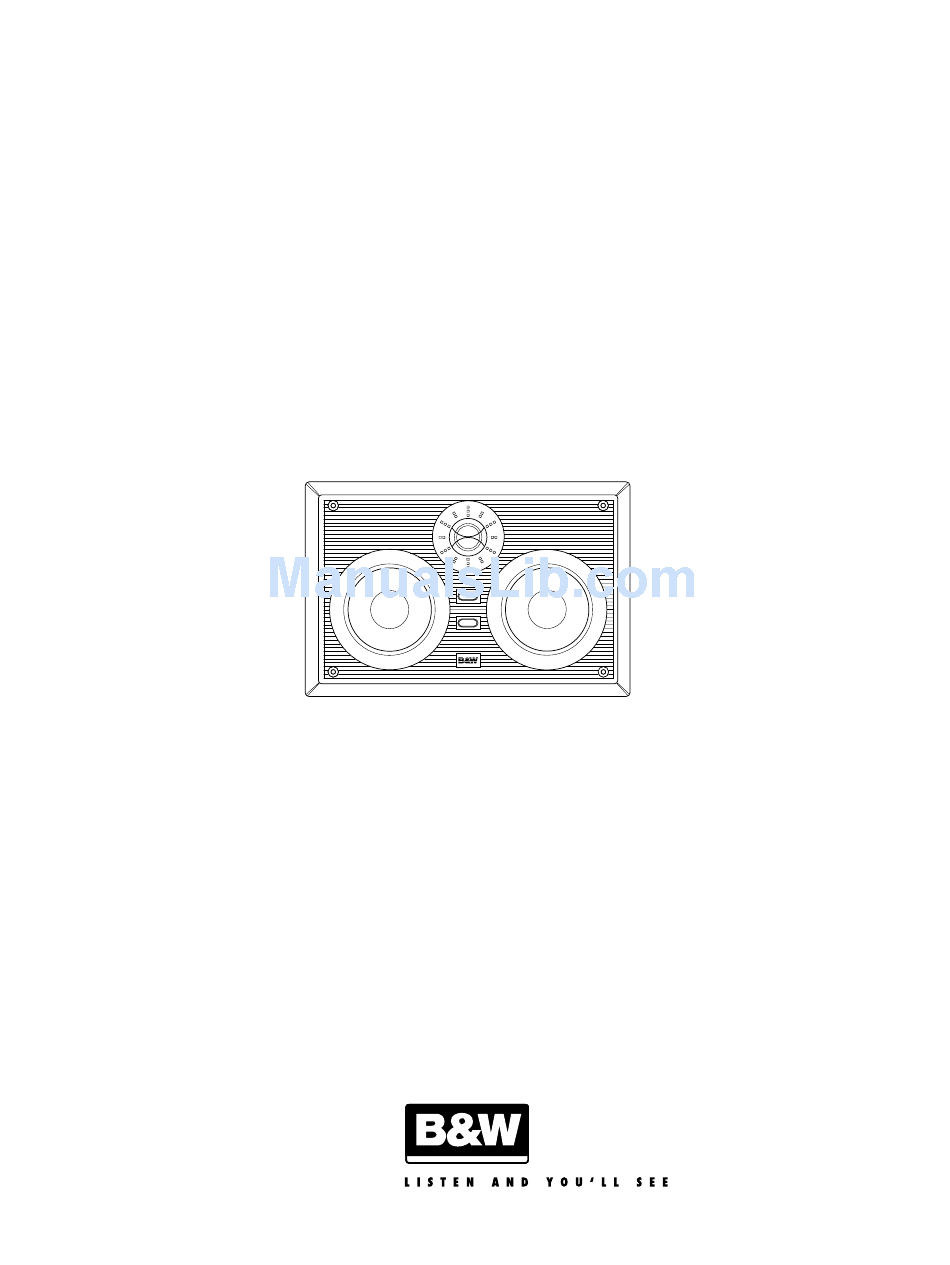

- Page 1 Custom Installation Series ™ Cinema Owner’s manual...
- Page 2 Figure 1 Figure 2 Figure 3...
- Page 3 Figure 4 Owner’s manual ™ Cinema English .......1 Français......2 Deutsch ......4 Español ......5 Português ......7 Italiano .......9 Nederlands .......11 Ελληνικά ......12 Русский ......14 Figure 5...
- Page 4 INTRODUCTION The speakers are designed to operate satis- Home Theatre Centre Channel Thank you for purchasing B&W Custom Wall factorily in a wide range of cavity volumes, Applications Mount (CWM™) speakers. ideally above 15 litres (0.5 cu ft). (figure 3) Since its foundation in 1966, the continuing Theoretically, the best position for a centre The speaker is balanced for half-space mounting...
- Page 5 Existing construction Method 2 FRANÇAIS Nous vous suggérons de conserver l’emballage Using the pre-mount frame in retrofit situations pour un usage ultérieur. Veuillez retirer les grilles requires that the aperture is cut fairly accurately. INTRODUCTION et les baffles du cadre mural et conservez-les à Use the template provided to mark out the l’abri dans leur sac en plastique voire même Nous vous remercions d’avoir choisi les...
- Page 6 CWM™Cinema Drive units 2x 135mm (5 in) Kevlar ® mid/bass1x 25mm (1in) metal dome high-frequency Frequency response 55Hz – 20kHz ±3dB Sensitivity 91dB spl (2.83V, 1m) Nominal impedance 8Ω Crossover frequency 3.5kHz Recommended amplifier power 20W – 150W continuous into 8Ω on unclipped programme.
