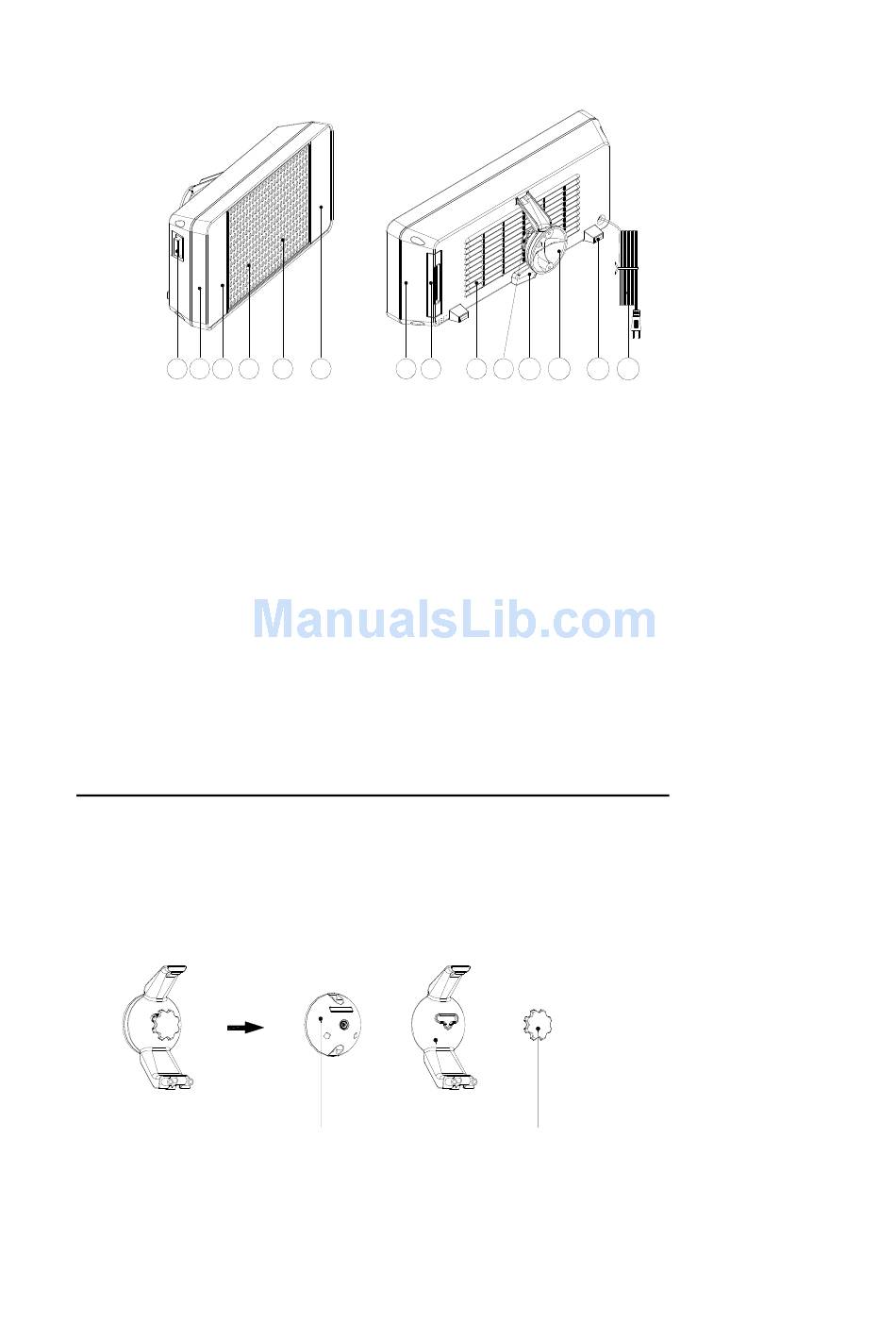

3. Parts description

1 2 3 4
1. On/Off Switch
3. Front Frame
5. Front Grill cover
7. Back cover
9. Air inlet
11. Wall bracket holder
13. Support tabs

4. Installation instruction

Heater can be used on the floor, on a desk or wall mounted
If required for use in a bathroom the heater must be wall mounted.
To mount on the wall
A, Take out the wall holder set, unscrew the knob to separate the three
Components
Base of wall holder wall holder
B, The minimum height from the unit to the ceiling should be 20cm and the distance from
the unit to a wall must be at least 20cm. The heater must be mounted in a position that
doors or other moving objects to not obstruct the airflow.
5 6 7 8
3
9
10 11 12 13 14
2. Branding
4.Air outlet
6. Control panel
8. Air filter
10. Wall bracket knob
12. Base of wall bracket holder
14. Power cable
knob
