Summary of Contents for Dimplex DHBHM20

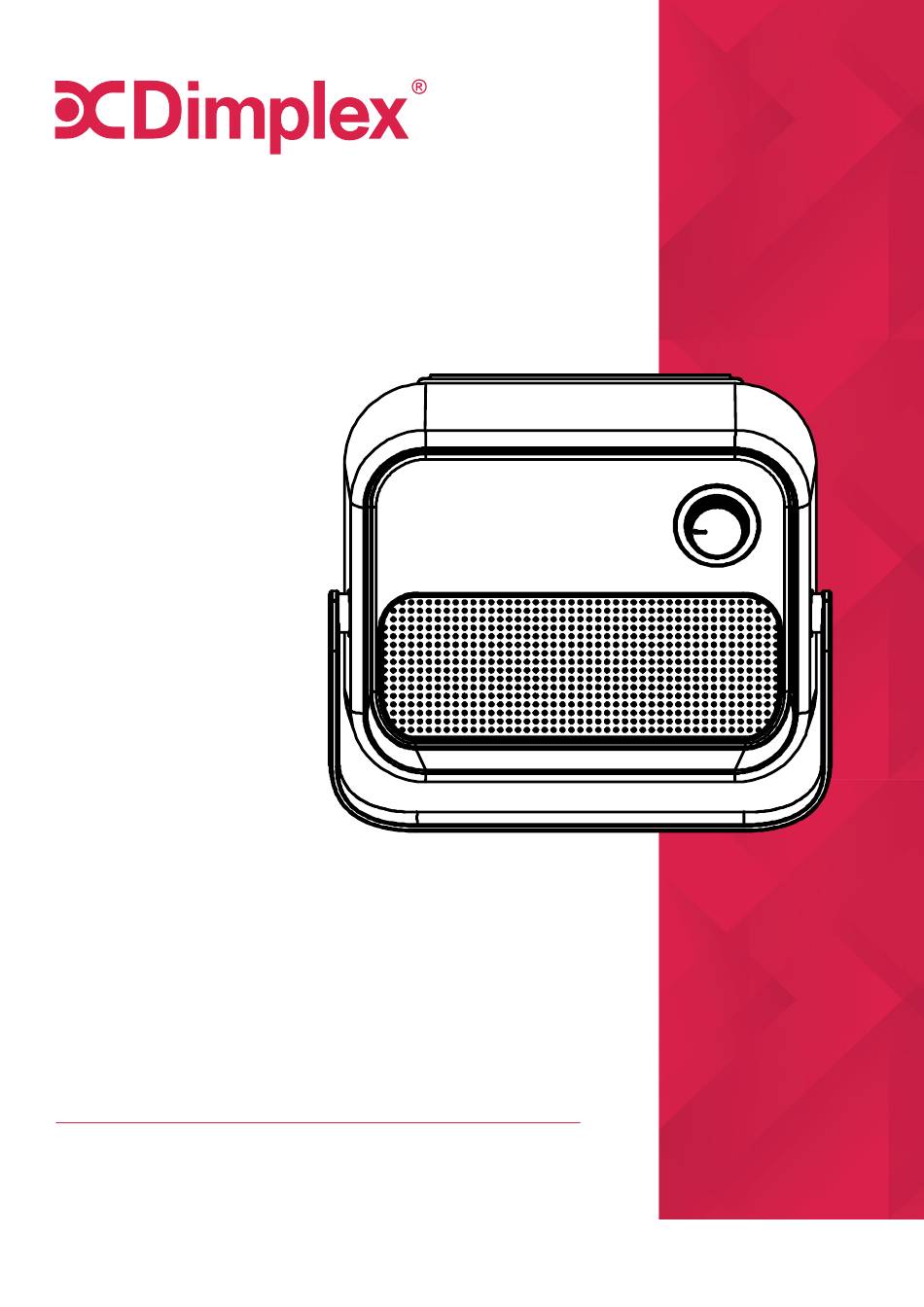

- Page 1 INSTRUCTION MANUAL 2kW Bathroom Heater Model: DHBHM20 For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 service agent or a similarly qualified person in order to avoid a hazard. • Keep the supply cord away from the front of the appliance. • Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specifications
Specifications DHBHM20 Model no. Power supply 220-240V ~ 50Hz Rated power 2000W Heat settings IP22 IP Rating Weight (net) 2.1kg Dimensions (w x d x h) 355x 285 x 155mm For greater precision, please always refer to the rating label placed on the product. -
Page 6: Control Panel
Parts Hook Switch knob Air outlet Towel rail Hook Air inlet Control Panel Ventilation mode Low heat High heat... -
Page 7: Installation
Installation Option 1 - Hanging from towel rail (no screws) If the towel rail is strong and stable, the unit may be hung from a towel bar if a screw-less or portable installation is preferred. Hook Towel rail Option 2 - Wall mounted with screws To install the unit on a wall, please follow the steps below. -
Page 8: Operation
Operation IMPORTANT - OBJECTS OR CLOTHING MUST NOT BE PLACED ON THIS HEATER UNLESS HUNG ON THE INCLUDED TOWEL RAIL Before using the heater ensure that all warnings and instructions have been read carefully. 1. To turn the unit ON turn the control dial clockwise depending to your desired setting. - Page 9 Cleaning Over time, dust can accumulate on the heater which can effect performance. It is recommended to clean the unit at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2. Remove any dust build up with a soft brush. Ensure the air inlet and outlet grilles are cleaned frequently 3.
-
Page 10: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 11 Notes...
- Page 12 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
