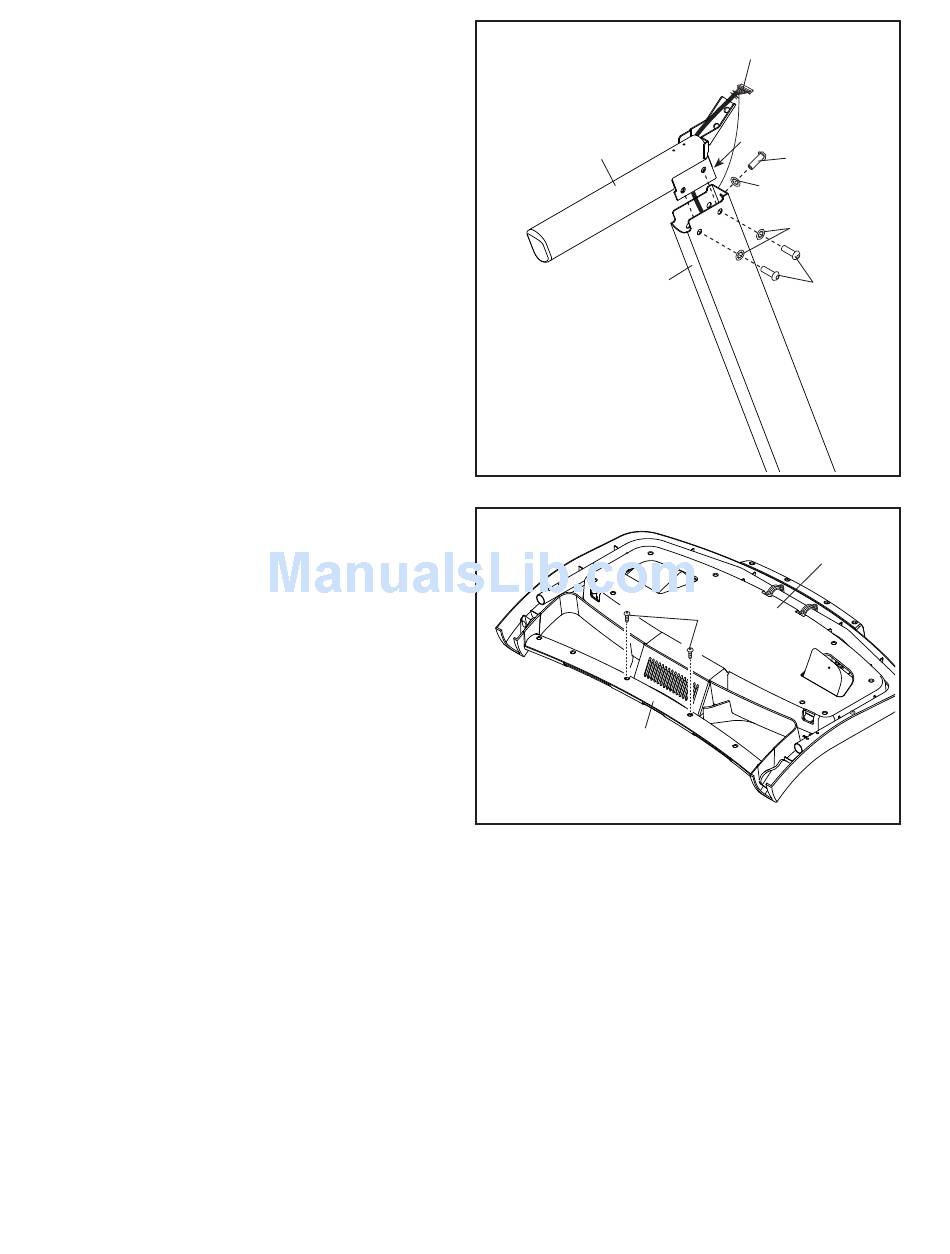

4. Identify the Left Handrail (74). Remove the tie
from the 5/16" Cage Nut (34). If necessary, press
the Cage Nut back into place.
Hold the Left Handrail (74) near the Left Upright
(78). Insert the Upright Wire (77) through the
bracket on the bottom of the Left Handrail.
Then, pull the Upright Wire out of the end of the

Handrail.

Attach the Left Handrail (74) to the Left Upright
(78) with three 5/16" x 1" Bolts (3) and three
5/16" Star Washers (9) as shown. Be careful
not to pinch the Upright Wire (77). Start all
three Bolts, and then tighten them.
Attach the Right Handrail (not shown) in the
same way. Note: There are no wires on the right
side.
5. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove and discard the two indicated
screws (A). Next, lift off the Crossbar (80).
4
74
78
5
80
9
77
34
3
9
9
3
Console
Assembly
A
