DishDrawer
Models
DD601v2 DD601Iv2
DS601v2 DS601Iv2
599039

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD601v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel DD601v2

Summary of Contents for Fisher & Paykel DD601v2

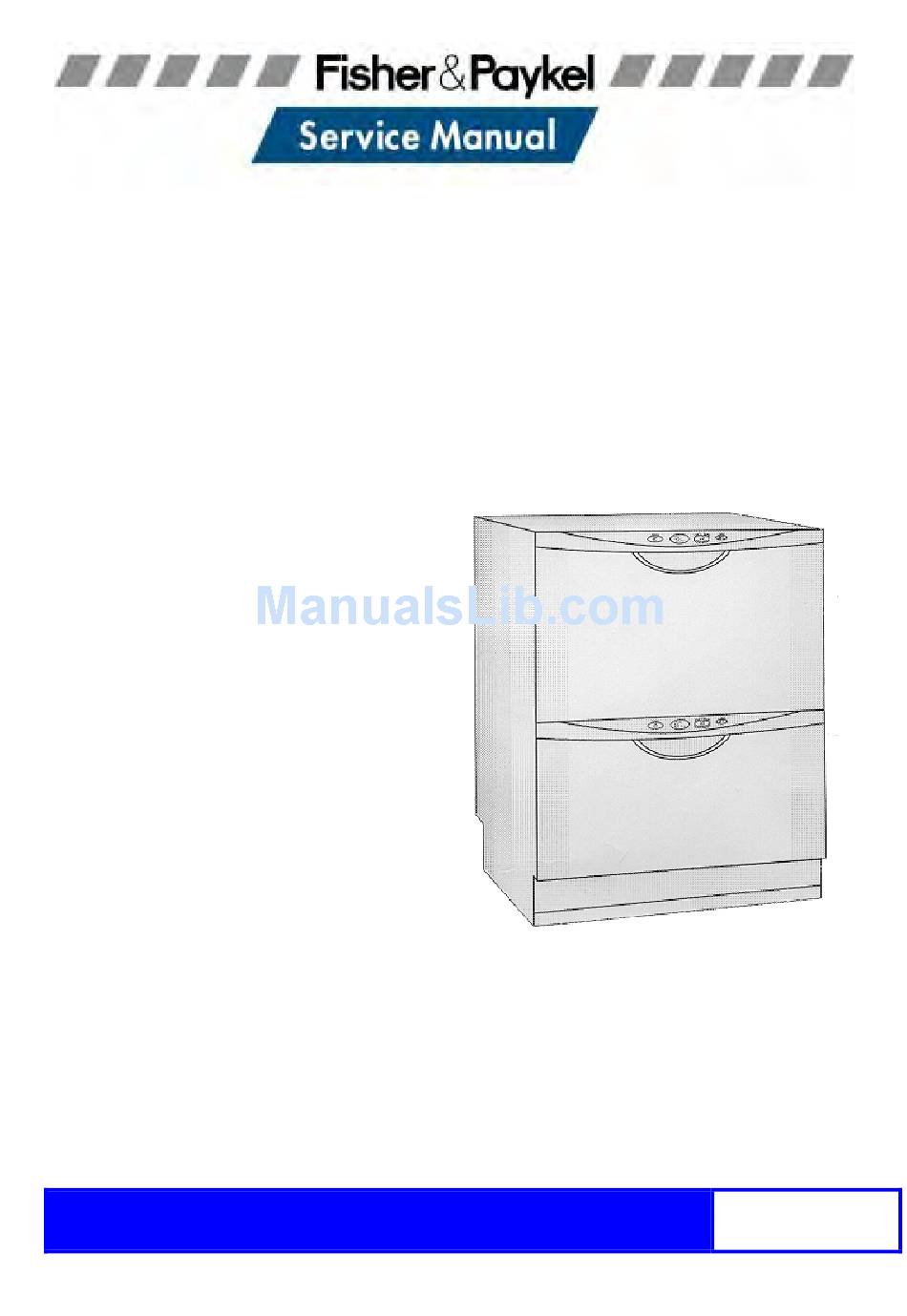

  • Page 1 DishDrawer Models DD601v2 DD601Iv2 DS601v2 DS601Iv2 599039...

  • Page 2: Table Of Contents

    Contents SERVICE REQUIREMENTS Health & Safety Specialised Tools DIMENSIONS & SPECIFICATIONS TECHNICAL OVERVIEW Electronics Motor Cabinet Filling Dispensing Detergent Lid Seal Wash Cycle Heating Filter Plate 3.10 Drain Cycle 3.11 Drying Cycle 3.12 Deflating 3.13 Lockring Nut 3.14 Wiring Cover DIAGNOSTICS Setup &...
  • Page 3 SERVICE PROCEDURES Drawer Front Removal Handle and LCD Display Removal Drying Fan Removal Detergent Dispenser Electronic Controller Top Kick Strip Removal Lower Kick Strip Removal Wiring Cover Removal Filter Plate Removal 6.10 Rotor Assembly Removal 6.11 Tub Removal 6.12 Locking Ring, Element Plate & Motor Assembly Removal 6.13 Lid Assembly Removal 6.14...

  • Page 4: Service Requirements

    SERVICE REQUIREMENTS Health & Safety Note: When servicing the dishdrawer, health and safety issues must be considered at all times. Specific safety issues are listed below with their appropriate icon. These are illustrated throughout the service information to remind service people of the issues.
  • Page 5 1.1.6 Insulation Test Megger test to check insulation. Warning: Short together the phase and neutral pins on the plug so as not to damage any electronic circuitry. 1.1.7 Solvent and Excessive Heat Damage Plastic surfaces can be damaged by solvents and excessive heat.

  • Page 6: Specialised Tools

    Specialised Tools For servicing this product Specialised tools are required. 1.2.1 Static Strap: To be used as ESD protection when replacing or handling electronic components. 1.2.2 Down Load Pen Connection: P/N 425930C. To be used to retrieve data from the electronic controller along with the diagnostic program on your laptop.

  • Page 7: Dimensions & Specifications

    DIMENSIONS & SPECIFICATIONS Product Size (mm) Minimum Cavity Size Height 817-877mm 820-880mm Width 595mm 600mm Depth 570mm 580mm Drawer Open (incl cab) 1080mm Electrical 230-240V AC 50Hz 10amp max. Specifications Lid Seal 30-40 Kpa Detergent 24 volt dc 70 ± 5 Ohms P/N525878 Dispenser Exhaust Valve...

  • Page 8: Technical Overview

    TECHNICAL OVERVIEW Electronics The DD601 electronic controller has two separate micro controllers on the main printed circuit board. One is for motor control and output switching and the other is for controlling interface and console functions. The user interface comprises a printed circuit board for front controls and a touch switch panel for internal controls.

  • Page 9: Filling

    The tub extends 510mm out of the cabinet by travelling along two rigidly attached slides on either side of the tub. 3.3.2 Drawer Fronts Prefinished drawer fronts are formed from a prepainted blank of steel. The drawer fronts are attached to the tub by means of formed hooks and two pins which are inserted through either side of the tub.

  • Page 10: Dispensing Detergent

    Dispensing Detergent The dispenser is mounted in the front wall of the wash tub. The detergent dispenser consists of two detergent chambers, one for pre wash and the other for the main wash. The detergent dispenser door is opened manually for detergent loading and then manually closed ready for the detergent to be transported to the wash tub by the inlet water.

  • Page 11: Wash Cycle

    Wash Cycle 3.7.1 The tub is the main cavity where all the wash activity occurs. The tub is a plastic recepticle which has a wash pump and sprayarm at the base. The tub also has guide vanes around its walls which direct falling water from the wash cycle in a clockwise direction around the filter plate.

  • Page 12: Filter Plate

    3.8.4 Overheating Control The heater plate is only activated during the wash cycles. It is not used for drying. The temperature is maintained by the thermistor. The element circuit is continuously monitored by the electronic controller and will switch a fail safe relay if a fault is detected in the heater circuit.

  • Page 13: Drying Cycle

    3.11 Drying Cycle Immediately after water from the final hot rinse has been drained from the tub, the drying system begins operation. The fan draws air through the tub, where it absorbs water from the dishload. The moisture laden air is then mixed with a larger quantity of ambient air (from the kitchen), to minimise the amount of vapour visible when exiting from the drawer front.

  • Page 14: Wiring Cover

    3.14 Wiring Cover The wiring cover protects the customer from the 240V mains supply which passes over the link assembly and under the lockring to the front of the tub. It also serves to protect the motor assembly, drain and fill hoses from damage when opening and closing drawers.

  • Page 15: Diagnostics

    DIAGNOSTICS Setup & Diagnostics The DishDrawer comes with comprehensive fault codes and built in diagnostics, to save the user & service person time and worry, if the dishwasher ever exhibits a fault. Fault Modes The faults are displayed in the LCD as one of 8 F (fatal) faults or one of 3 U (user) faults.

  • Page 16: Diagnostic Modes

    Diagnostic Modes 4.3.1 Temperature Display Mode During a wash cycle, the current water temperature can be displayed on the LCD instead of the time remaining. To enter temperature display mode, start a wash cycle as normal. Initiate a keylock by pushing and holding the Keylock button for 4 seconds.
  • Page 17 4.3.5. Water Pressure Set Up The DishDrawer can be set to either High(Standard) or Low inlet water pressure. The LCD displays the current water pressure setting. If “HP” is displayed then the setting is High Pressure. If “LP” is displayed then the setting is Low Pressure. Low pressure is generally less than 50kPa or equivalent to that supplied by a ceiling tank.
  • Page 18 4.3.9 Clearing Fault Logs To Clear the current Fault press the Keylock button until a beep is sounded. This action moves the Current Fault into the Previous Fault while clearing the Current Fault. To Clear the Previous Fault press Keylock once more until the beep is sounded.
  • Page 19 Heavy Norm Fast Deli Hardware Output ------------------------------------------------------------------------------------------- Exhaust Valve Fill Water Valve Detergent Diverter Valve Lid Seal Pump Rinse Aid Dispenser (dispenses current setting) Motor Wash direction (2300-2850 rpm) Motor Drain direction (4200 rpm) DC drying fan (On 100% duty) Element Relay ‘...
  • Page 20 Cycle Count Retrieval To display the cycle count on the LCD screen, Pause the dishwasher while running a Continuous Cycle. The two bytes of the cycle count will be displayed alternately, in syncronisation with the changing backlight. The Low byte is displayed when the backlight is Green. The High byte is displayed when the backlight is Orange.

  • Page 21: Diagnostics Quick Reference Flow Chart

    Diagnostics Quick Reference Flow Chart Press and hold All LED's & Keylock, then LCD segments Initiate Pen upload via Start/Pause buttons except Keylock To clear the current Rinse program LED. for 6 seconds are illuminated fault code press the At the same time, first Keylock once.
  • Page 22 Diagnostics Quick Reference Flow Chart cont'd LCD is Rd backlight and displays CC. Press Power Continuous Touchswitch panel is Button cycle Red Red Red Red Select desired cycle and operate as normal. Press Continuous cycle is indicated Stand - by Start/Pause by backlight alternating mode...

  • Page 23: Fault Codes

    Fault Codes Fault Code LED Display Fault Possible Causes • A leak has occurred in the base of ----# The flood switch has been activated. the dishwasher. • The fill valve has failed open. • The flood switch is faulty. •...
  • Page 24 Fault Code LED Display Fault Possible Causes • The water supply is not turned on. #---# Fill fault. The motor has • The machine is siphoning. not primed after a given • The sprayarm is not in place. time. • Excessive foaming. •...
  • Page 25 Monitored while mains power is on. When one drawer leaks this cuts out both drawers. F1 is not monitored in diagnostics. Does the water Machine may be Did a flood overflow syphoning and has occur & activate through the topped up too the flood switch? back air vent? many times...
  • Page 26 This fault is monitored when the motor is running. It is looking for 10 stalls in a row. It is not monitored during diagnostics. The rotor has not been sensed as rotating. Is the rotor jammed? Note* Free or replace Substitute Rotor the rotor.
  • Page 27 This fault is monitored every 6 seconds while the mains power is connected. It is not monitored during diagnostics. Water sensed at greater than 80°C Adjust the Is the incoming incoming water water greater temperature than 80° C? Is the element on all the time? Replace the...
  • Page 28 No temperature increase has been sensed while the element is on. Does the element heat in diagnostics? Test the resistance Test the resistance of the sensor as per of the element at the the temperature controller as per the chart specifications Not OK Not OK...
  • Page 29 Inter-communication fault. Replace the electronic controller. If this occurs while you are servicing the Dishdrawer, you may have induced the fault , so ignore it. RAM fault. Replace the electronic controller - 26 -...
  • Page 30 Motor runs for 15 seconds, during which time the fill valve operates for 2 seconds. This occurs three times. If prime is not detected then the fill valve is operated continually until prime is reached. Below 50kPa water Is the tap turned pressure change the Is the water Check for a...
  • Page 31 The tub drawer has been sensed as open during the cycle or the exhaust valve is open circuit. Is the drawer open? Check the Shut the drawer. microswitch is working in diagnostics. Not OK Check the mechanical Replace the operation of the microswitch.
  • Page 32 The motor has sensed prime too quickly Has the dishdrawer Check locknut on drained? filter plate is locked in correctly Check for pump Check the blockage or drain rotor/sprayarm impellor failure are turning freely Possibilty of electronics incorrectly Free sprayarm sensing the load but or rotor not likely...
  • Page 33 Poor Dry Performance Rinse aid not being dispensed In Diagnostics, does the Dispenser pump run? Check the continuity of the wiring and pump Is there rinse aid in solenoid by removing the dispesner? the connections at the PCB and testing with a meter.
  • Page 34 Poor Wash Performance Detergent not flushing out of Pre Wash or Main Wash chambers In Diagnostics active the fill valve and note which side of the dispenser the water comes out. Then turn off the fill valve and activate the diverter valve(dd), re-active the fill valve to see if the Not OK water now exits the other side of...
  • Page 35 Tub Lid Leak Fit test gauge to Air pump Enter Diagnostics and activate Exhaust valve then air pump Run pump for 60 seconds. Pressure Not OK must reach between 30 - 40 Kpa. Switch Pinch plumbing Pump off above the exhaust valve connection.

  • Page 36: Wiring Diagram

    WIRING DIAGRAM - 33 -...

  • Page 37: Service Procedures

    SERVICE PROCEDURES 6.1. Drawer Front Removal 6.1.1 Slide open drawer. 6.1.2 Locate draw pin on either side of the tub. 6.1.3 Using a sharp pair of long nose pliers or slip jaw pliers grasp the center dividing web of the pin and pull away from the tub to remove the pin.

  • Page 38: Detergent Dispenser

    Detergent Dispenser 6.4.1 Remove the drawer front and handle as per instructions in 6.1.& 6.2 6.4.2 Disconnect the two wiring loom connections off the dispenser coils. Note: Push back locking tabs to allow connectors to release. 6.4.3 Unclip the retainer flap at the bottom center of the dispenser and slide out the rinse aid level LED.

  • Page 39: Lower Kick Strip Removal

    Lower Kick Strip Removal 6.7.1 Remove the top kick strip as per instructions in 6.6. 6.7.2 Insert a flat blade screwdriver into the two inserts in the trim above the lower kick strip and twist. 6.7.3 This will unclip the lower kick strip from the chassis. 6.7.4 Refit by locating the lower kick strip pins into the chassis clips and foot retainer clips.

  • Page 40: Tub Removal

    6.11 Tub Removal 6.11.1 Remove the drawer front as per instructions in 6.1. 6.11.2 Remove the wiring cover as per instructions in 6.8. 6.11.3 Disconnect the fill hose from the dispenser (water may drip) 6.11.4 Disconnect the mains harness and chassis harness connectors from the electronic controller.

  • Page 41: Lid Assembly Removal

    6.13 Lid Assembly Removal 6.13.1 Remove tub assembly as per instructions in 6.11 6.13.2 Disconnect the lid plumbing off the exhaust valve and air pump above the ‘ Y’ joint. 6.13.3 Release two locking tabs securing the front of the lid to the chassis. 6.13.4 To do this, push back the tab in the center of the rectangular slot at the front of the lid molding, using a blade screwdriver, then apply downward pressure to the lid while holding the tab back.

  • Page 42: Slide Runner Replacement

    6.15 Slide Runner Replacement 6.15.1 Remove the Tub as per instructions 6.11 6.15.2 Bottom slide runners only. Remove the two large Philips head screws securing the slide runner at the front. The backing plate that the screws locate into may come loose. This does not matter. It can be realigned on reassembly.

  • Page 43: Link Assembly Removal

    6.18 Link Assembly Removal 6.18.1 Remove tub as in instructions 6.11. 6.18.2 Release clips on side of link assembly to allow the lid of the assembly to hinge open. 6.18.3 Using a blade screw driver to wedge out the spigots in the hinge point of the bracket connecting to the rear of the dishwasher.

  • Page 44: Exhaust Valve Removal

    6.20 Exhaust Valve Removal Note: This component maybe serviced by two Methods. 6.20.1 Method 1: Remove tub assembly as per instructions in 6.11. 6.20.2 Method 2: Remove lower kick strip as per instructions in 6.7. 6.20.3 Remove the clip pegs from the slide retainers. 6.20.4 Slide the dishdrawer from the cavity to allow servicing from the rear.

  • Page 45: Emi Filter Removal

    6.23 EMI Filter Removal 6.23.1 Remove the lower tub as per instructions in 6.11. 6.23.2 The EMI filter is located at the rear left hand side of the chassis base. 6.23.3 Remove the screw in the rear access panel of the chassis.. 6.23.4 Raise the insulating cover to expose the EMI filter.
