2.1
Motherboard installation
The A7N266-VM uses the Micro-ATX form factor, measuring 24.5 cm
(9.6 in.) x 24.5 cm (9.6 in.) - a standard fit for most large chassis.
WARNING!
Failure to do so may cause you physical injury and damage motherboard
components.
2.1.1 Placement direction
When installing the motherboard, take care to orient the chassis correctly:
The edge with external ports goes to the rear part of the chassis. Refer to the
image below. It may be more convenient to install major cables, the CPU
and modular components before fixing the motherboard inside the case frame.

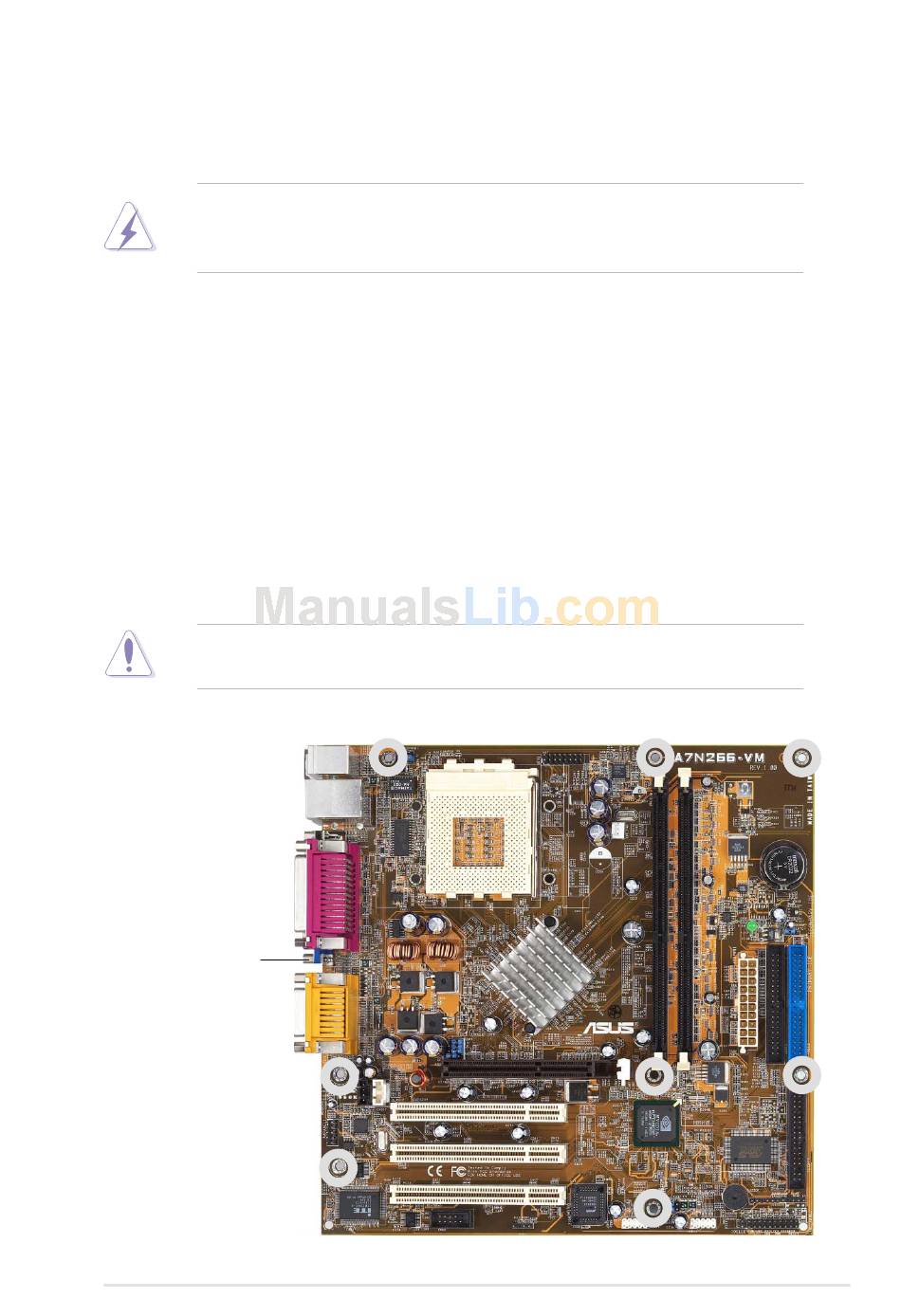

2.1.2 Screw holes
Place eight (8) screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION!
motherboard.
Place this side towards
the rear of the chassis
ASUS A7N266-VM motherboard user guide
Unplug the power cord before installing the motherboard.
Do not overtighten the screws! Doing so may damage the
7
