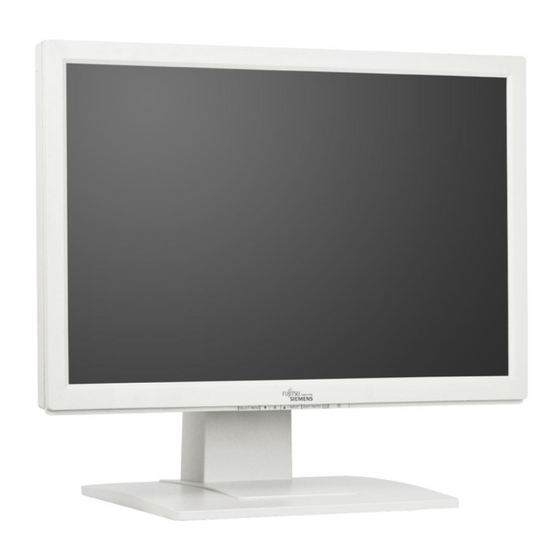

- Page 1 Monitor English Operating Manual SCENICVIEW A20W-3A/ A22W-3A/A24W-3A Downloaded from ManualMonitor.com Manuals...
- Page 2 ... any technical problems or other questions which you would like to be clarified? Please contact our help desk (see Warranty Booklet). The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com Downloaded from ManualMonitor.com Manuals...
- Page 3 Downloaded from ManualMonitor.com Manuals...
- Page 4 This manual was produced by Xerox Global Services Published by Fujitsu Siemens Computers GmbH Order No.: A26361-K1180-Z120-1-7619 Edition 1 AG 05/07 Downloaded from ManualMonitor.com Manuals...
-
Page 5: Lcd Monitor
SCENICVIEW A20W-3A/ A22W-3A/A24W-3A LCD monitor Operating Manual May 2007 edition Downloaded from ManualMonitor.com Manuals... - Page 6 VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association. Copyright © Fujitsu Siemens Computers GmbH 2007 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved. Offenders will be liable for damages.
-
Page 7: Table Of Contents
Contents Introduction............................1 Notational conventions ......................... 2 Important notes............................. 2 Safety notes..........................2 Power cable..........................4 Transport ............................4 Cleaning ............................4 CE marking........................... 4 FCC Class B Compliance Statement ................... 5 Declaration of Conformity ......................5 Energy Star Guidelines......................... 6 Disposal and recycling ......................... - Page 8 Contents A26361-K1180-Z120-1-7619, edition 1 Downloaded from ManualMonitor.com Manuals...
-
Page 9: Introduction
Introduction Your new LCD (Liquid Crystal Display) monitor SCENICVIEW A20W-3A/A22W-3A/A24W-3A offers numerous features and functions, for example: ● TFT display (Thin Film Transistor; active matrix) ● minimal space requirements thanks to slim casing ● optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour purity right into the corners) ●... -
Page 10: Notational Conventions
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Notational conventions The meanings of the symbols and fonts used in this manual are as follows: Pay particular attention to text marked with this symbol. Failure to observe this warning endangers your life, destroys the device, or may lead to loss of data. Supplementary information, remarks, and tips follow this symbol. - Page 11 SCENICVIEW A20W-3A/A22W-3A/A24W-3A ● To ensure sufficient ventilation, the intake and exhaust air openings of the monitor must never be blocked. ● The monitor automatically sets itself to a mains voltage in the range of 100 V to 240 V. Ensure that the local mains voltage lies within these limits.
-
Page 12: Power Cable
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Power cable To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary to replace the original cable set. ● The female/male receptacles of the cord set must meet IEC60320/CEE-22 requirements. ● The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the outer sheath. -
Page 13: Fcc Class B Compliance Statement
Fax No.: (408) 746-8299 We, Fujitsu Siemens Computers Inc., hereby declare that the equipment bearing the trade name and model number specified above was tested confirming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commissions requirements. -
Page 14: Energy Star Guidelines
20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles. As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency. -
Page 15: Checking The Contents Of The Consignment
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Checking the contents of the consignment The display surface of the LCD monitor is sensitive to pressure and scratches. Always hold the device by the casing! ► Unpack all the individual parts. ► Check the delivery for damage incurred during transportation. ►... -
Page 16: Installing An Ergonomic Video Workstation
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Installing an ergonomic video workstation Avoid glare from electric Windows Edge of desk lighting. Permissible reaching Avoid direct and reflected glare. sector Position the keyboard where it is easiest to reach. 0° 65° 30° 60° 30° 65° Example layout of monitor, Bearing surface for palms Preferred viewing distance keyboard and copy-holder... -
Page 17: Mounting And Removing The Monitor Base
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Mounting and removing the monitor base Mounting monitor base The display surface is susceptible to scratching! Therefore, lay the monitor on a soft surface when mounting or removing the monitor base. A26361-K1180-Z120-1-7619, edition 1 Downloaded from ManualMonitor.com Manuals... -
Page 18: Removing Monitor Base
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Removing monitor base Before you can use a swivel arm or a wall bracket, you must remove the monitor base: The display surface is susceptible to scratching! ► Switch off the monitor and pull the power plug out of the power socket. ►... -
Page 19: Connecting Cables To The Monitor
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Connecting cables to the monitor The monitor ports are protected by a cover. ► Remove the cover. Power connector AUDIO-IN connector DVI-D connection socket (DIGITAL) D-SUB connection socket (ANALOG) Security slot for "Kensington Lock" Holes for fixing swivel arm or wall bracket The data cables supplied have two 15-pin D-SUB connectors / two 24-pin DVI connectors for connection to the monitor and to the computer. -
Page 20: Connecting Cables To The Computer
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Connecting cables to the computer Information on the computer connections and interfaces is contained in the operating manual for your computer. If your computer has two monitor ports ("onboard" screen controller and separate graphics card), the monitor port for the separate graphics card is usually active. ►... -
Page 21: Switching The Monitor On/Off
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Switching the monitor on/off The ON/OFF switch at the front is used for switching the monitor on and off. Buttons for the OSD menu (On-Screen-display) Power indicator 3 = ON/OFF switch The buttons are to be pressed from the bottom upwards. The power indicator (2) lights up blue when the monitor and computer are switched on. -
Page 22: Notes On Power Management
SCENICVIEW A20W-3A/A22W-3A/A24W-3A When you switch the computer system on, you must proceed in the following order: ► First switch on the LCD monitor with the ON/OFF switch (2). ► Then switch on the computer. If your computer has a power management function (energy-saving mode), you should read the "Notes on power management"... -
Page 23: Changing The Monitor Settings
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Changing the monitor settings When putting the monitor into operation for the first time, the screen display should be optimally adapted to the screen controller used and adjusted in accordance with your needs. Choosing basic monitor settings using the supplied software If one of the operating systems Windows 95/98, Windows NT, Windows Me, Windows 2000, Windows XP or OS/2 (with Windows emulation installed) is used, the basic monitor settings can be set with the CD supplied. -
Page 24: Monitor Settings Using The Osd Menu
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Locking the OSD menu The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor settings. ► Press and hold the SELECT/MENU button for a few seconds while you switch on the monitor with the ON/OFF switch. A message is displayed that the action has been performed. - Page 25 SCENICVIEW A20W-3A/A22W-3A/A24W-3A The corresponding setting window (here: Image Adjust) is displayed (on the right-hand side). The first function (H-Position) is highlighted. ► If necessary, press the button to mark another function. ► Press the SELECT/MENU button to select the highlighted function. ►...
- Page 26 SCENICVIEW A20W-3A/A22W-3A/A24W-3A Adjusting size and position Calling the Image adjust setting window H-Position Adjusting the horizontal position With this function you move the picture to the left or to the right. V-Position Adjusting the vertical position With this function you move the picture up or down. Clock Setting synchronisation With this function you adjust the picture width to eliminate vertical picture...
- Page 27 SCENICVIEW A20W-3A/A22W-3A/A24W-3A Setting display of the OSD menu Calling the OSD Setup setting window Language Setting language for the OSD menu With this function you choose between English (default setting), French, German, Italian, Spanish, Russian, Netherlands and Swedish as the language for the OSD menu.
-
Page 28: Notes On Ergonomic Colour Adjustment
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Displaying information Calling the Information setting window With this function the model designation, serial number, resolution, H/V frequency, input signal and polarity of the synchronisation signal are displayed. Notes on ergonomic colour adjustment If you select colours for the display in your application programmes, take note of the information below. -
Page 29: Troubleshooting
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Troubleshooting Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer. If you are unable to solve the problem, please inform our help desk. Having this problem? Check the following points: No screen display... - Page 30 SCENICVIEW A20W-3A/A22W-3A/A24W-3A Having this problem? Check the following points: Picture is wrongly adjusted ► Press the SELECT/MENU button to activate the function Factory Recall. The Auto Processing message is displayed. Picture disturbances (vertical lines) ► Press the EXIT/AUTO button to perform the auto- adjustment of the screen.
-
Page 31: Notes Regarding The Din En Iso 13406-2 Standard
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Notes regarding the DIN EN ISO 13406-2 standard Permanently unlit or lit pixel The standard of production techniques today cannot guarantee an absolutely fault-free screen display. A few isolated constant lit or unlit pixel (picture elements) may be present. The maximum permitted number of pixel faults is stipulated in the stringent international standard ISO 13406-2 (Class II). -
Page 32: Technical Data
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Technical data A20W-3A A22W-3A A24W-3A Dimensions and weight Visible diagonals: 51 cm 56 cm 61 cm Dot pitch: 0.258 mm 0.28 mm 0.27 mm Screen size: Width: 422.44 mm 473.76 mm 518.4 mm Height: 270.9 mm 296.1 mm 320.4 mm Maximal resolution: 1680 x 1050... -
Page 33: Vesa-Ddc-Compatible Vga Interface
If the monitor SCENICVIEW A20W-3A/A22W-3A/A24W-3A is not yet displayed in the list of monitors, you can select the following monitor instead: Fujitsu Siemens L22-1W, H22-1W (1680 x 1050) or P24-1W (1920 x 1200) Preset operating modes The picture position and size have been set to optimum values at the factory for the operating modes listed above. -
Page 34: Pin Assignment D-Sub
SCENICVIEW A20W-3A/A22W-3A/A24W-3A Pin assignment D-SUB Meaning Meaning Video input red +5 V (DDC) Video input green Sync. earth Video input blue Earth Earth DDC-Data Earth H. sync Red video earth V. sync Green video earth DDC Clock Blue video earth Monitor port DVI-D Meaning Meaning...
