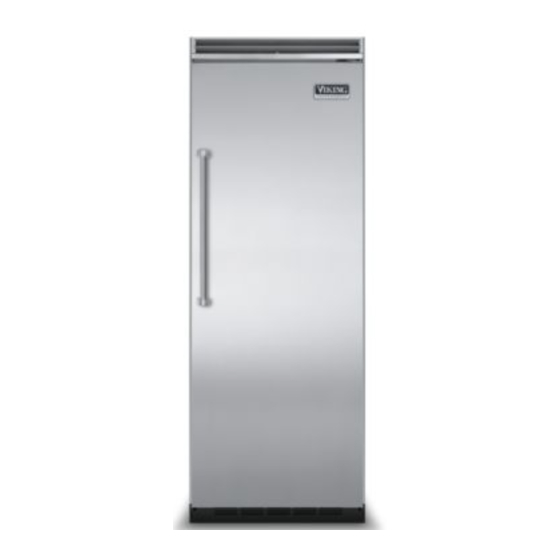

Viking Range VCFB304 Installation Instructions Manual

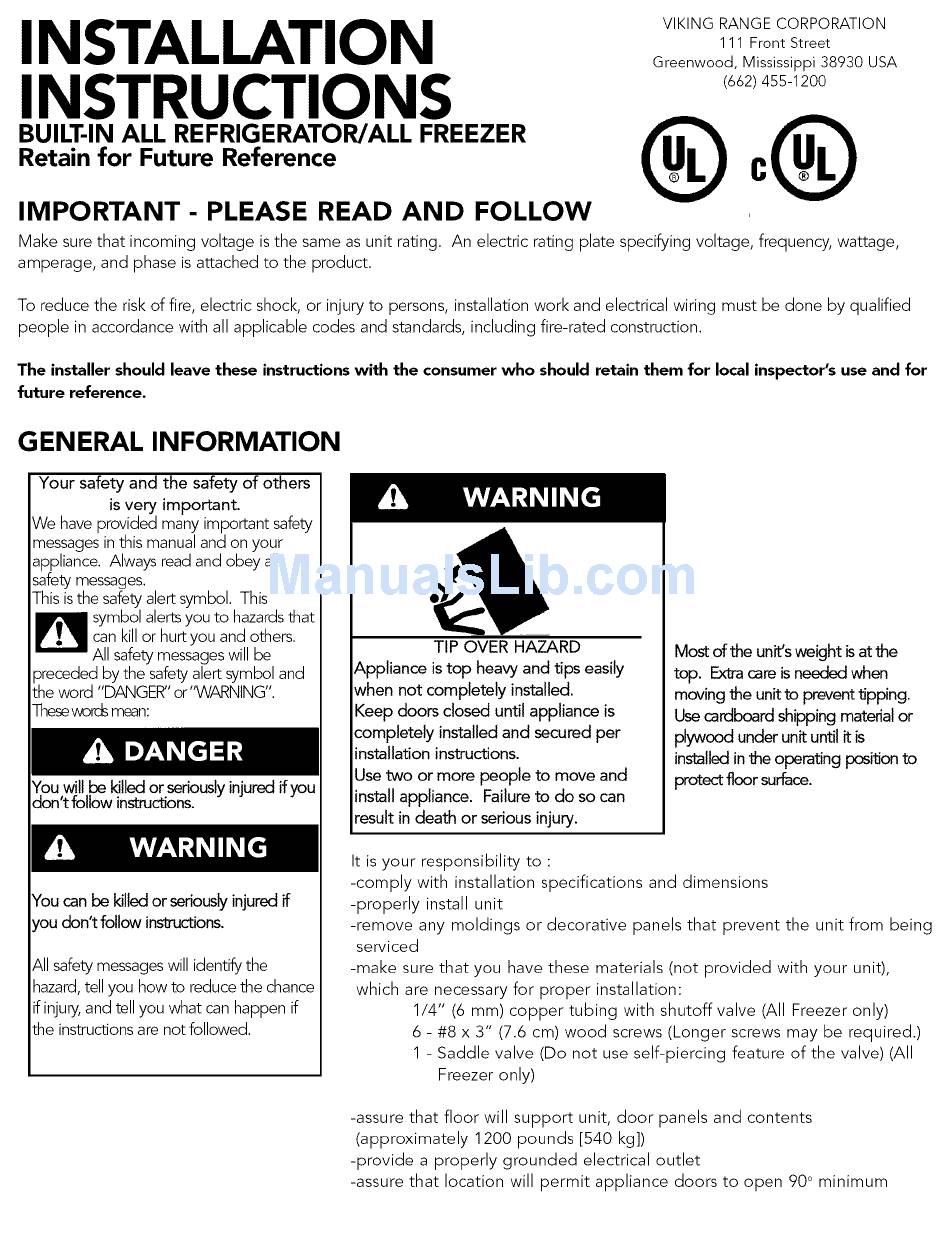

Ii N STALLATION
STRUCTIONS
BUILT-IN ALL REFRIGERATOR/ALL FREEZER
Retain for Future Reference
IMPORTANT - PLEASE READ AND FOLLOW
VIKING RANGE CORPORATION
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
Make sure that incoming voltage is the same as unit rating. An electric rating plate specifying voltage, frequency, wattage,
amperage, and phase is attached to the product.
To reduce the risk of fire, electric shock, or injury to persons, installation work and electrical wiring must be done by qualified
people in accordance with all applicable codes and standards, including fire-rated construction.
The installer should leave these instructions with the consumer who should retain them for local inspector's use and for
future reference.
GENERAL INFORMATION
Your safety and the safety of others
is very important.
We have provided many important safety
messagesin this manual and on your
appliance. Always read and obey all
safety messages.
This isthe safety alert symbol. This
symbol alerts you to hazardsthat
can kill or hurt you and others.
All safety messageswill be
preceded,by the sa!ety,alert symbol and
the word DANGER or 'WARNING .
These wordsmean:
be killed or seriouslyinjured if you
don't follow instructions.
You can be killed or seriouslyinjured if
rou don t follow instructions.
Nilsafety messageswill identify the
hazard,tell you how to reduce the chance
if injury,and tell you what can happen if
the instructionsare not followed.
TIP OVER HAZARD
Appliance is top heavy and tips easily
when not completely installed.
Keep doors closed until appliance is
completely installed and secured per
installation instructions.
Use two or more people to move and
install appliance. Failure to do so can
result in death or serious injury.
Most of the unit's weight is atthe
top. Extra care is needed when
moving the unit to prevent lipping.
Use cardboard shipping material or
plywood under unit until it is
installed in the operating pesil_onto
protect floor surface.
It is your responsibility to :
-comply with installation specifications and dimensions
-properly install unit
-remove any moldings or decorative panels that prevent the unit from being
serviced
-make sure that you have these materials (not provided with your unit),
which are necessary for proper installation:
1/4" (6 mm) copper tubing with shutoff valve (All Freezer only)
6 - #8 x 3" (7.6 cm) wood screws (Longer screws may be required.)
1 - Saddle valve (Do not use self-piercing feature of the valve) (All
Freezer only)
-assure that floor will support unit, door panels and contents
(approximately 1200 pounds [540 kg])
-provide a properly grounded electrical outlet
-assure that location will permit appliance doors to open ?0 ° minimum
