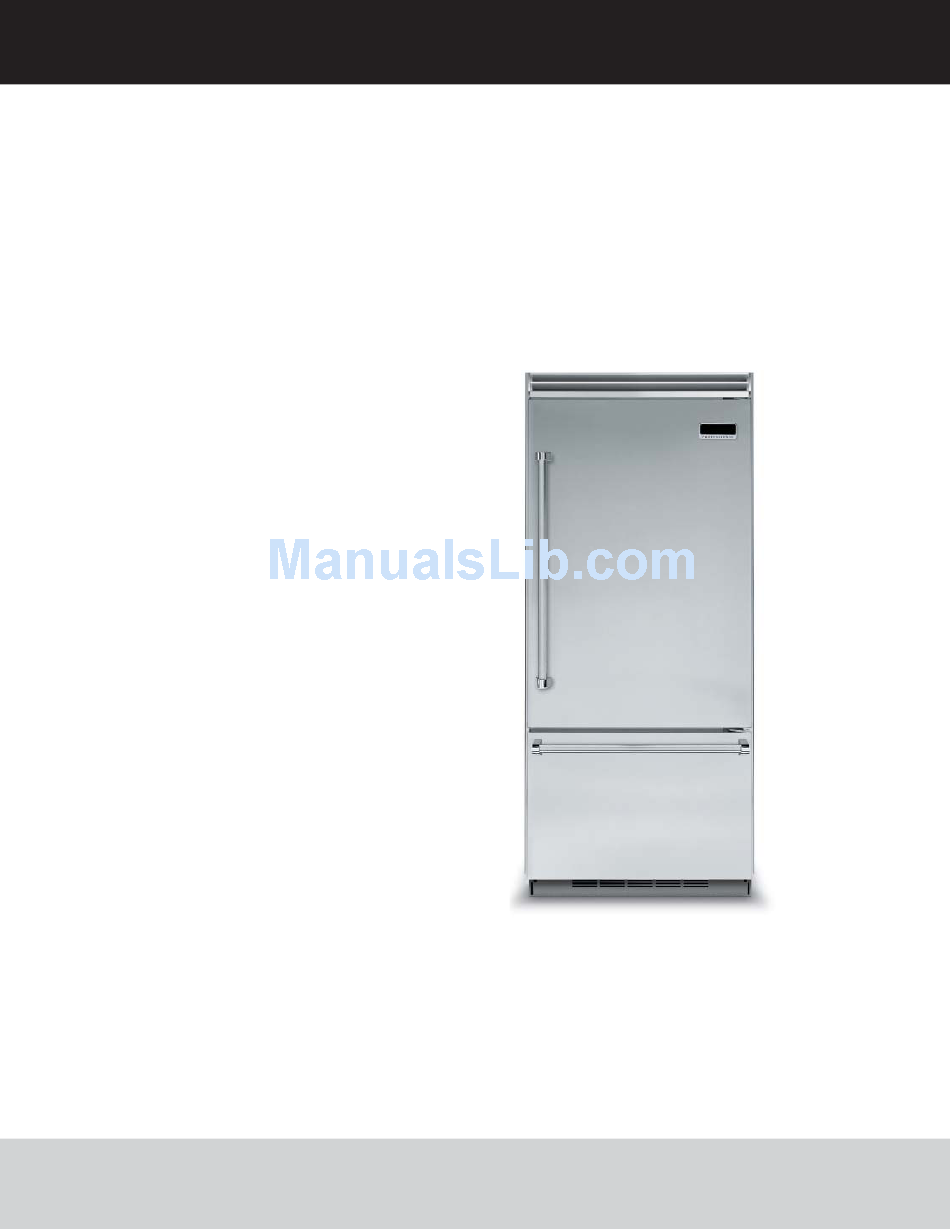

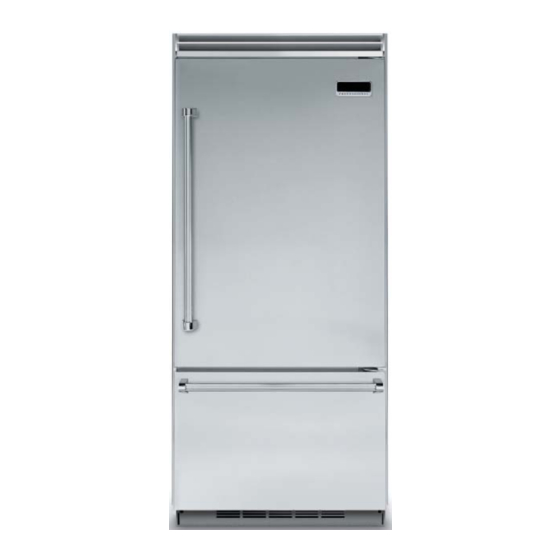

- Page 1 Installation GUIDE 5 SERIES Professional Built-In Bottom-Freezer Refrigerator VCBB5363E / CVCBB5363E...
-
Page 2: Table Of Contents
Table of Contents Warnings and Important Information _______________________________ 3 Professional Bottom-Freezer Dimensions __________________________________________________ 6 Specifi cations ________________________________________________ 7 Cutout Dimensions ___________________________________________ 8 Anti-Tip Dimensions (36”) ______________________________________ 9 Cabinet Information (Professional) ________________________________ 10 Cabinet Information (Professional with fl ush mount trim) _____________ 11 Custom Side Panel Dimensions (Professional) ______________________ 12 Custom Side Panel Dimensions (Professional with fl... -
Page 3: Warnings And Important Information
IMPORTANT – Please Read and Follow! • Make sure that incoming voltage is the Your safety and the safety of others is same as unit rating. An electric rating very important. plate specifying voltage, frequency, wattage, amperage, and phase is attached We have provided many important safety to the product. - Page 4 • The required use of a GFI is normally related to the location of a receptacle with respect to any signifi cant sources of water or moisture. • Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below.
- Page 5 IMPORTANT – Please Read and Follow! It is your responsibility to: • comply with installation specifi cations and dimensions. • properly install unit. • remove any moldings or decorative panels that prevent the unit from being serviced. • make sure that you have these materials (not provided with your unit), which are necessary for proper installation: •...
-
Page 6: Dimensions
Dimensions (Bottom-Freezer) 36” Bottom-Freezer 3 – 1 9 / 3 2 ” ( 9 . 1 c m 36” Bottom-Freezer with Flush Mount Trim 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” –... -
Page 7: Specifi Cations
Specifi cations (Bottom-Freezer) 36” Bottom Freezer Description VCBB/CVCBB Overall width 36” (91.5 cm) Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm) To front of top grille: 24” (61.0 cm) To front of handle endcap: 26-1/2”... -
Page 8: Cutout Dimensions
Cutout Dimensions (Bottom-Freezer) 36” Bottom-Freezer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 – 7 / 8 ”... -
Page 9: Anti-Tip Dimensions (36")
Anti-Tip Dimensions (Bottom-Freezer) 36” Bottom-Freezer Anti-Tip Location Two 2”x 4” Mounting Boards 3” (7.6 cm) x 3-1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m... -
Page 10: Cabinet Information (Professional)
Cabinet Information (Professional) Professional models fi t “semi-fl ush” in standard 24” (61.0 cm) deep cabinet openings. The door face protrudes 1-3/4” (4.4 cm) from the cabinet face. The handle protrudes an additional 2-1/2” (6.4 cm) into the room. Wall 1–13/16”... -
Page 11: Cabinet Information (Professional With Fl Ush Mount Trim)
Cabinet Information (Professional with Flush Mount Trim) Professional models with fl ush mount trim fi t fl ush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the room. -
Page 12: Custom Side Panel Dimensions (Professional)
Custom Side Panel Dimensions (Professional) 3/16” 3/4” (0.5 cm) (1.9 cm) Back filler End panel panel 6 ” ” - 7 / ( 1 5 ( 5 7 5/32” (0.4 cm) ” - 7 / ( 5 7 ( 2 1 - 7 / 0 . -
Page 13: Custom Side Panel Dimensions (Professional With Fl Ush Mount Trim)
Custom Side Panel Dimensions ( Professional with Flush Mount Trim) Z-Bracket 1” 1/4” 3/4” (2.5 cm) (1.9 cm) (0.6 cm) End panel 4 ” - 3 / ( 5 5 4 ” - 3 / ( 5 5 ( 2 1 - 7 / 0 . -
Page 14: General Information
General Information Area Requirements A 115 volt, 60-Hz, 15 amp, fused, electrical Verify the following: supply is required. It is required that a • Unit can fi t into residence and can be separate circuit serving only this appliance moved around corners and through be provided. - Page 15 • Connect a vertical or horizontal 1/2” • Viking Range, LLC is not responsible (1.3 cm) to 1-1/4” (3.2 cm) COLD water for property damage due to improper line near water area.
-
Page 16: Unpacking & Moving
General Information Area Requirements Tip Over Hazard • Most of the unit’s weight is at the top. Appliance is top heavy and tips easily when Extra care is needed when moving the unit not completely installed. Keep doors closed to prevent tipping. until appliance is completely installed and secured per installation instructions. -
Page 17: Flush Mount Side Trim Installation
Flush Mount Side Trim Installation (Sold Separately) Note: If the unit is to be installed fl ush with Step 3 - Align the top of the fl ush mount the cabinets, the fl ush mount side trim must side trim with the top of the unit's machine be installed fi... -
Page 18: Hinge Adjustment
Hinge Adjustment Front of unit Remove four side screws and remove unit top. Loosen the four hinge screws. Adjust door. Retighten four hinge screws. Wall 2 x 4 Refrigerator Replace unit top. Replace four side screws. Attach one 2 x 4 to wall stud (refer to dimensions page for exact location). - Page 19 Hinge Adjustment (cont.) Place unit within 3” (7.6 cm) of being fl ush with cabinets. Note: To Carefully move unit until semi fl ush with cabinet avoid cabinet damage, place cardboard between cabinets and unit. (depending on unit). When moving unit, DO NOT crimp, kink or crush water supply line. Pull supply tubing forward under unit.
- Page 20 Hinge Adjustment (cont.) Screw Wall 2 x 4 Refrigerator Lift unit off rollers to desired height and level unit using Reinstall handle side door trim a 5/16” head wrench. NOTE: DO NOT use an electric and door trim screws. device. Overtightening can cause damage. Reinstall cabinet trim and screws.
-
Page 21: Kickplate Installation
Kickplate Installation Align holes on both ends of louvered panels Using a Phillips screwdriver, attach the and insert screws. kickplate to the unit and adjust to desired height. Door Stop Adjustment (Bottom-Freezer) 120˚ 120˚ 120˚ 110˚ 110˚ 110˚ 90˚ Open refrigerator door so door stop and shoulder Remove shoulder screw and place in screw are accessible. -
Page 22: System Specifi Cations And Data
Water Filter System Specifi cation and Performance Data Sheet This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration of less than or equal to the permissible limit for water leaving the system, as specifi... -
Page 23: Final Installation
Final Installation Replace top air grille. Using an 8” (20.3 cm) magnetic nut driver, replace the two 1/4” (0.6 cm) screws. Replace the center grille louver. Open door. The display should fl ash. Press “ACTIVATE CONTROLS” pad and close door. Note: There is a 6 minute delay before the unit starts. -
Page 24: Performance Checklist
Performance Checklist —Verify cabinet size. —Align/square door(s). — Verify electrical supply and water — Verify drain pan is properly installed supply (if applicable). and there are no leaks on water connection. — Install anti-tip device(s) and verify unit is secure. —Install kickplate. -
Page 25: Control Panels
Verify Operations Control Panels Bottom Freezer FREEZER FREEZER REFRIGERATOR REFRIGERATOR MAX FRZ MAX FRZ MAX REF MAX REF DOOR OPEN DOOR OPEN ACTIVATE ACTIVATE FAST FAST ALARM ALARM DISPLAY DISPLAY HIGHER HIGHER LOWER LOWER CONTROLS CONTROLS TEMP TEMP TEMP TEMP COOL COOL FAST COOL... -
Page 26: Service & Registration
• Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at 1-888-(845-4641), or write to:... - Page 28 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US or brigade.ca in Canada F21417A EN (120115)
