READ THIS FIRST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tungsten W and is the answer not in the manual?

Questions and answers

Summary of Contents for Palm Tungsten W

  • Page 1 READ THIS FIRST...

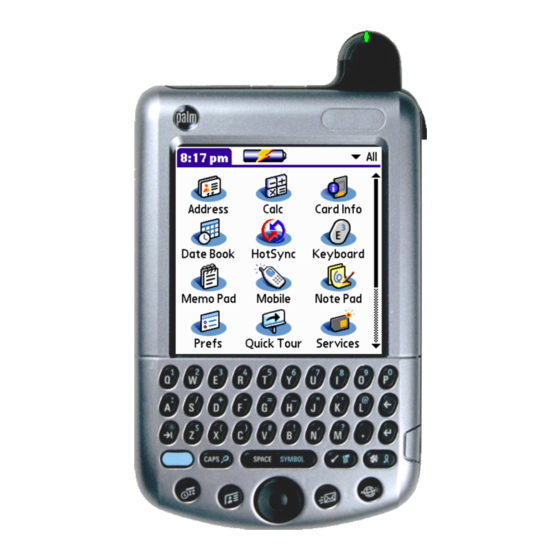

  • Page 2 PRODUCT CALL OUT Indicator light IR port Voice jack Stylus Keyboard Expansion card slot Power button/ Backlight on & off Function Home (Press to go to Applications Launcher) Date Book Wireless application/ Address Book Wireless power on & off E-mail Navigator...
  • Page 3 START HERE Congratulations on your purchase of a Palm™ Tungsten™ W wireless integrated handheld and phone. Here’s what you’ll do: Important! Already use a Palm ™ handheld? • Charge and set up your Tungsten™ W wireless integrated handheld and •...
  • Page 4: Start Here

    START HERE Connect and charge a. Plug the adapter into an outlet and the cradle. Note! Your adapter must connect to the cradle cable, not to the cradle itself. b. Place your Tungsten™ W handheld into the cradle. c. Check that the charging indicator light is solid green. This means your handheld is properly seated in the cradle and is being charged.* d.
  • Page 5: Set Up Your Handheld

    START HERE Set up your handheld a. Remove the handheld from the cradle. c. Remove the stylus. d. Follow Setup instructions on the screen. Centre Use stylus to tap centre of target 1. Tilt it forward. 2. Lift up. b. Press the power button.* e.
  • Page 6: Insert The Sim Card

    CONNECT TO THE SINGTEL MOBILE NETWORK Insert the SIM card Your subscriber identity module (SIM) card contains your basic subscriber information. SingTel Mobile also uses the SIM card to register and connect your handheld to the SingTel Mobile GSM/GPRS network. The wireless applications of your handheld cannot operate on the network without the SIM card.
  • Page 7 CONNECT TO THE SINGTEL MOBILE NETWORK Turn on the Mobile application and connect to the network a. Press and the Wireless button c. To confirm the connection:* hold until the Mobile dialog box appears. (1) Check that the indicator light is blinking green.
  • Page 8: Make A Phone Call

    CONNECT TO THE SINGTEL MOBILE NETWORK Make a phone call a. With the handheld on, insert the headset into the voice jack. This opens the onscreen keypad used for dialling. b. Place the earpiece in your ear. c. Tap the number you want to dial. d.
  • Page 9: Install Software

    INSTALL SOFTWARE Install wireless applications from the SingTel IDEAS Configuration Card a. Remove the placeholder card: Push lightly against the card to release it. b. Insert the SingTel IDEAS Configuration Card as shown by the icon: Push the card in. You feel the card lock and hear the system sound. Icon Notched corner...
  • Page 10: Your Computer

    Install Palm Desktop software on ™ your computer Use Palm™ Desktop software to enter appointments, addresses, and other ® information. Then transfer the information to your handheld using the HotSync process. It’s the fastest way to enter lots of information.
  • Page 11 Learn how to use the keyboard Backspace/Delete Brightness Return/Enter Home Function Command stroke/ CAPS/Find Menu Navigator Space bar/SYMBOL To practice using the keyboard: Open Memo Pad: Press Home to open the Applications Launcher. Press “M” to highlight the Memo Pad icon .
  • Page 12: Troubleshooting And Tips

    TROUBLESHOOTING AND TIPS For information on upgrading from another Palm™ handheld and additional troubleshooting tips, see Palm™ Tungsten™ W Handheld Getting Started, included in your handheld package. Your handheld operates in voice mode and wireless data mode, but it cannot operate in both modes at the same time.
  • Page 13 Palm™ Desktop Install appears to stall Check for a window hidden in the background. Drag the current window from the centre of the screen. If you see another dialog box related to Palm™ Desktop software, click it and follow its instructions.
  • Page 14 Make sure there is a check mark next to Local USB (or Local Serial if using a serial connection). To insert a check mark, click the menu item. Mac: After you install Palm™ Desktop software, try the following: 1. Make sure the Transport Monitor of the HotSync ®...
  • Page 15 SINGTEL SERVICE AND SUPPORT NUMBERS • IDEAS Customer Service Hotline: 1-800-4-1-43327 Operating hours: 8 a.m. to 8 p.m., every day • IDEAS Mobile Internet Helpdesk: 1-800-778-8133 Operating Hours: 9 a.m. to 7 p.m., Monday – Friday 9 a.m. to 3 p.m., Saturday Closed on Sunday and public holidays •...
  • Page 16 LEARN MORE ABOUT YOUR HANDHELD Power tips • To use the navigator to dial numbers, send SMS messages, or send email: Open an Address record. Press Right on the navigator to see available numbers and addresses. Press Up/Down to highlight the number. Press Select to connect. •...
  • Page 17 Started, included in your handheld package. The Handbook opens in Adobe Acrobat Reader on your computer. If you do not have Acrobat Reader, you can install it from the Palm™ Desktop software CD-ROM. Windows: In Palm™ Desktop software, click Help in the menu bar. Then select the menu item for the Handbook.
  • Page 18 Copyright © 2002 Palm, Inc. All rights reserved. The Palm logo, Palm OS and HotSync are registered trademarks and Palm, Tungsten and the Tungsten trade dress are trademarks of Palm, Inc. Other products and brand names may be trademarks or registered trademarks of their respective owners.
