YOUR SKY BOX

When your Sky box was installed, all the connections were made between your Sky box, TV, video and minidish.

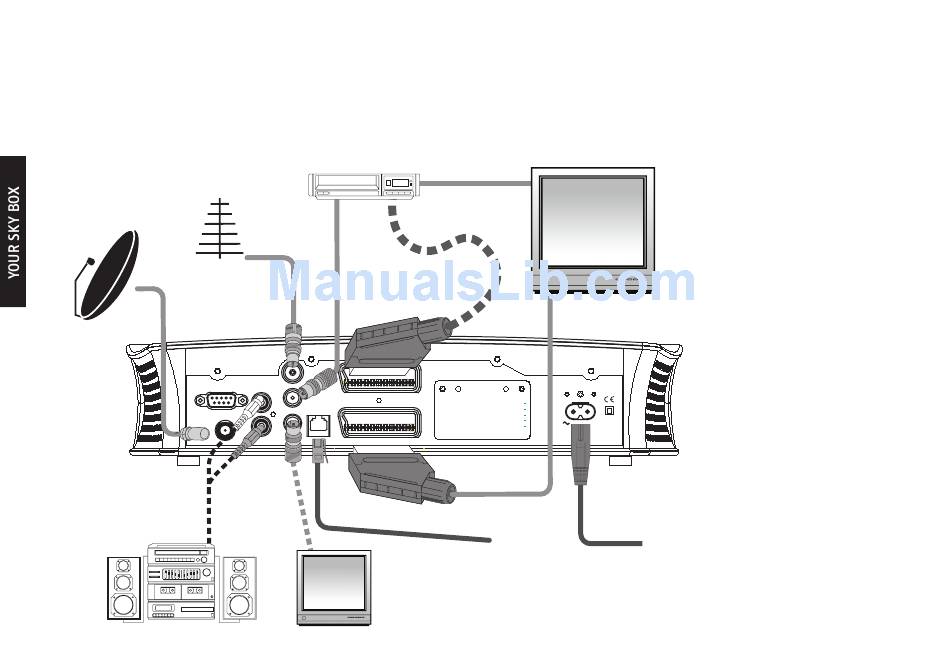

Follow this diagram for an overview of the standard setup, and if you need to connect other devices such as a second TV or a sound
system. The connections on your Sky box may vary from the picture shown here.
SKY BOX REAR PANEL
TERRESTRIAL
AERIAL
SATELLITE
DISH
RF
lead
Dish Input 1
13/18V DC
350mA max.
SOUND SYSTEM
38 USING YOUR SKY BOX
VIDEO/DVD RECORDER
RF
leads
Aerial In
Left
VCR SCART
RF Out-1
RS-232 Telephone Line
RF Out-2
Right
TV SCART
9V DC 75mA max.
audio
lead
RF
lead
SECOND TV
TV
scart lead
230 50Hz 40W MAX.
Digital Interface 5V DC 600mA max 3V3 DC 1.2A max
scart lead
telephone
lead
WARNING!
You must disconnect
your Sky box from the
mains supply before you
connect your Sky box to
(or disconnect it from)
any other equipment.
Terminals marked with
the hazard symbol are
hazardous live and
the external wiring
connected to these
terminals requires
installation by an
instructed person or the
use of ready-made leads
or cords.
With the exceptions
of the mains and the
telephone line, all
the interconnections
between the rear panel
of your Sky box and
your other equipment
are safe, extra-low
mains voltage circuits.
lead
However, you should
always disconnect the
box from the mains
before connecting other
devices.
