Summary of Contents for NetComm MyWay 3G8WV

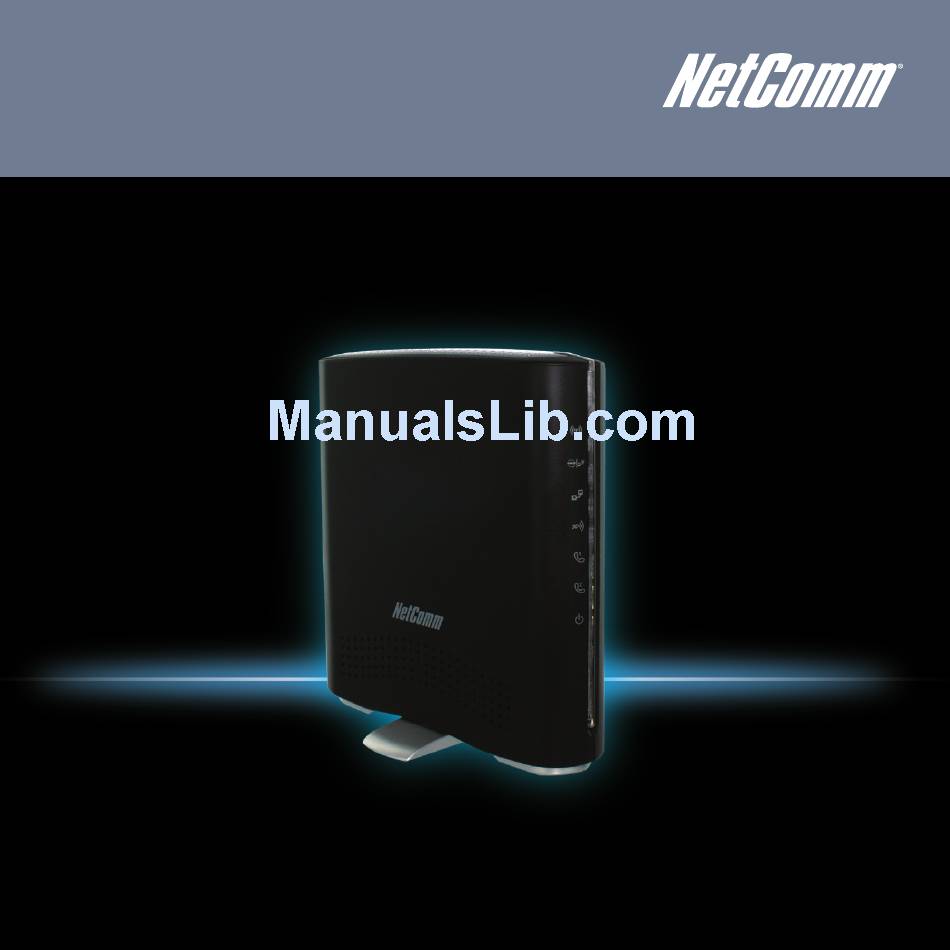

- Page 1 NetComm MyWay 3G WiFi Router with Voice Quick Start Guide...
-
Page 2: Hardware Installation
Hardware installation SIM Card Power Power adapter point Attach the supplied antenna to the port labelled 3G Antenna on the back of the MyWay (this should be attached in a clockwise direction). Insert your SIM card into the SIM slot (you should hear it click into place). Connect the power adapter to the power socket on the back of the MyWay. - Page 3 Connecting to the Router via a Cable Connect the yellow Ethernet cable provided to the port labelled “LAN” on the back of the MyWay. Connect the other end of the yellow Ethernet cable to your computer or to another Ethernet – enabled device like a gaming console, a TV or a home cinema system.
- Page 4 Connecting to the MyWay via Wireless Ensure WiFi is enabled on your device (computer/smartphone/gaming console). Scan for wireless networks in your area and connect to the network name that matches the Wireless Network Name found on the Wireless Security Card (included in the box).
- Page 5 Connecting the MyWay to the Internet via 3G Your 3G connection should automatically configure and connect you to your 3G service. In the event it doesn’t, please follow these steps: After establishing your wireless connection in Chapter 3, open your Web browser and type http://my.router or http://192.168.20.1 into the address bar at the top of the web browser window and press enter.
- Page 6 Enter the 3G service details as supplied by your 3G service provider. This may include the APN*, username / password, or dialled number. Leave any fields which are not required blank. Once the correct details are entered, click the Apply button. The MyWay will now attempt to connect using the details you have entered.
- Page 7 List of Mobile Broadband Service Providers: Mobile Service Australia Telstra Telstra.internet Telstra.pcpack Telstra.datapack Telstra.extranet Optus – Postpaid connect Optus – Prepaid preconnect Three – Postpaid 3netaccess Three – Prepaid 3services Vodafone – Postpaid vfinternet.au Vodafone – Prepaid vfprepaymbb Crazy John’s purtona.net DoDo dodolns1...
-
Page 8: Led Indicators
LED Indicators Front Icon Description Panel Wireless Solid blue light when WLAN is enabled. Blinks on traffic (data transfer) Internet/ LAN mode: Solid blue light when the router is connected via the LAN Ethernet Port WAN mode: Lights up when the router is connected to the internet via fixed line WAN Solid blue light when LAN connection is established. -
Page 9: Rear Panel
Rear Panel Port Description SIM Slot Insert your SIM card here (until you hear a click). Please be careful to insert the SIM in the correct orientation by viewing the printed icon beside the slot. 3G Antenna Attach in the 3G Antenna here in a clockwise direction. LAN/WAN Switchable LAN/ WAN Ethernet port for Fixed Line (ADSL/Cable/ Satellite) connection or wired Ethernet clients (computers, laptops, etc) - Page 10 Making Voice Calls The NetComm MyWay allows you to make high quality voice calls over the 3G network by simply plugging a standard analogue phone into the router. Before you get started, make sure you’ve checked the following: Have you inserted your 3G SIM card that supports both data and voice into...
