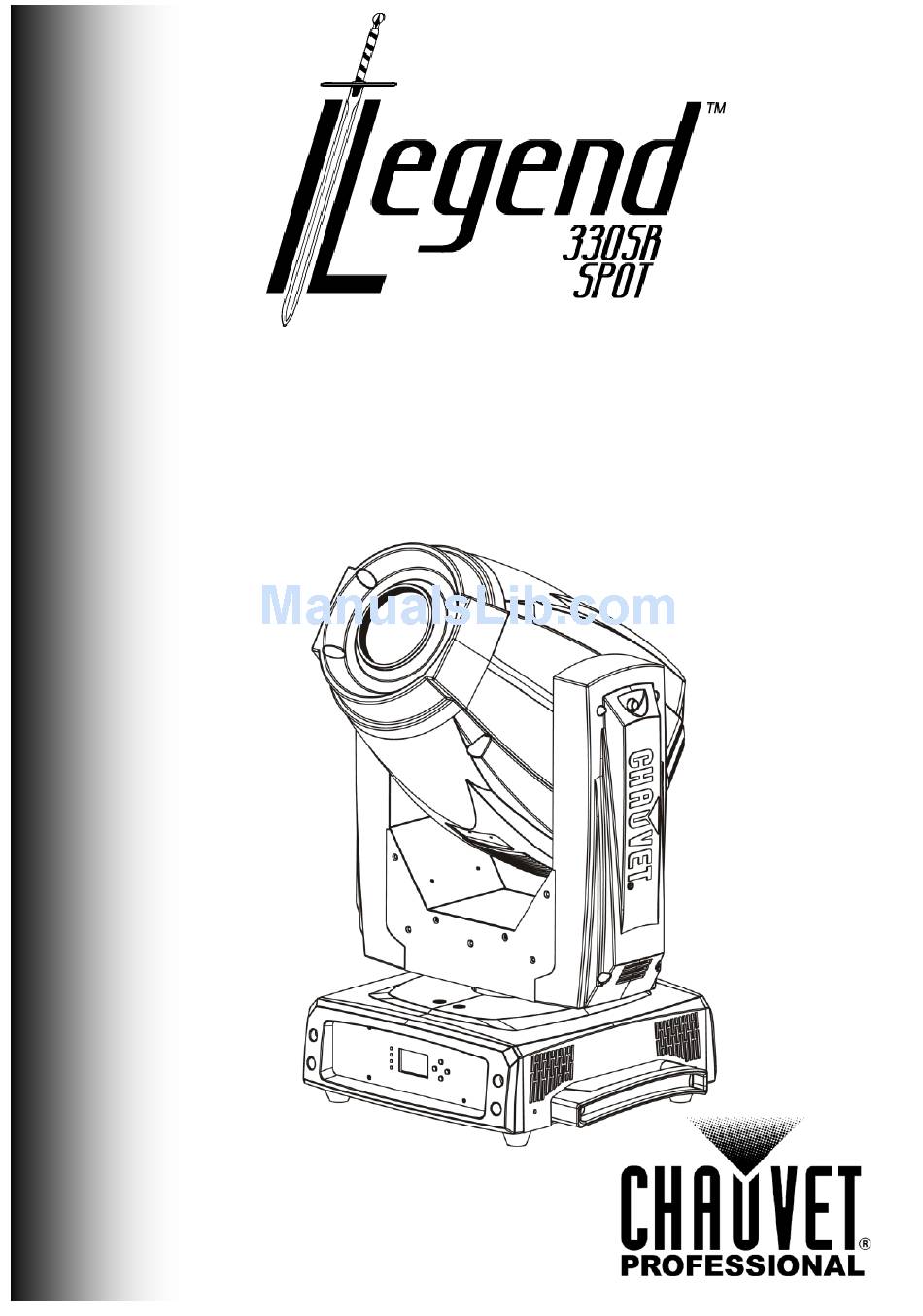

Page 1
Quick Reference Guide English Español Français Nederlands NL...
Page 2
Legend™ 330SR Spot QRG About this Guide The Legend™ 330SR Spot Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice.
Legend™ 330SR Spot QRG Contact Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor request support return product. Visit www.chauvetprofessional.com for contact information. What is · · Legend™ 330SR Spot 2 Omega Brackets Included · · Neutrik® powerCON® power Warranty Card ·...
Page 4
Legend™ 330SR Spot QRG ¼-turn Phillips-head Screws Spade Lamp Connector Lamp Vent Spring Clips RISK OF LAMP EXPLOSION! Vent holes on the front of the lamp should align horizontally with the air vents on the lamp frame. This is extremely important for lamp cooling.
Page 5
Legend™ 330SR Spot QRG Mounting Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to trusst.com/productcategory/base-plates-accessories- clamps/. Mounting Clamps...
Legend™ 330SR Spot QRG Menu Options Main Level Programming Levels Description DMX Address 001–512 Selects a starting DMX address Mode1 (21) DMX Channel Selects the 21-channel DMX mode DMX Functions Mode Mode2 (27) Selects the 27-channel DMX mode Shows current DMX values for each View DMX Value channel Pan Inverse...
Page 7
Legend™ 330SR Spot QRG Menu Options (cont.) Main Level Programming Levels Description Selects the product’s automatic test Auto Test Fixture Test sequence Manual Test Selects the product’s manual test function Fixture Use Time Displays total hours of products use Displays the amount of time the lamp has Exit Fixture Information Lamp On Time...
Legend™ 330SR Spot QRG DMX Values Mode1 (21) Channel Function Value Percent/Setting 000 ó 255 0–100% Fine Pan 000 ó 255 0–100% Tilt 000 ó 255 0–100% Fine Tilt 000 ó 255 0–100% Pan/Tilt Speed 000 ó 255 Fast to slow Dimmer 000 ó...
Page 9
Legend™ 330SR Spot QRG DMX Values (cont.) Mode1 (21) Channel Function Value Percent/Setting (cont.) 000 ó 127 Index/split gobo Gobo Wheel 1 128 ó 189 Clockwise rotation, fast to slow Rotate 190 ó 193 Stop 194 ó 255 Counter-clockwise rotation, slow to fast 000 ó...
Page 10
Legend™ 330SR Spot QRG DMX Values (cont.) Mode1 (21) Channel Function Value Percent/Setting (cont.) 224 ó 227 Effect 2-gobo 1 rotate/counter-clockwise prism spin 228 ó 231 Effect 2-gobo 2 rotate/counter-clockwise prism spin 232 ó 235 Effect 2-gobo 3 rotate/counter-clockwise prism spin 236 ó...
Page 11
Legend™ 330SR Spot QRG DMX Values (cont.) Mode2 (27) Channel Function Value Percent/Setting 000 ó 255 0–100% Fine Pan 000 ó 255 0–100% Tilt 000 ó 255 0–100% Fine Tilt 000 ó 255 0–100% Pan/Tilt Speed 000 ó 255 Fast to slow Dimmer 000 ó...
Page 12
Legend™ 330SR Spot QRG DMX Values (cont.) Mode2 (27) Channel Function Value Percent/Setting (cont.) 000 ó 007 Open 008 ó 014 Gobo 1 015 ó 021 Gobo 2 022 ó 028 Gobo 3 029 ó 035 Gobo 4 036 ó 042 Gobo 5 Gobo Wheel 1 043 ó...
Page 13
Legend™ 330SR Spot QRG DMX Values (cont.) Mode2 (27) Channel Function Value Percent/Setting (cont.) 000 ó 007 No function 008 ó 127 Prism insert 128 ó 131 Effect 1-gobo 1-clockwise prism spin 132 ó 135 Effect 1-gobo 2-clockwise prism spin 136 ó...
Page 14
Legend™ 330SR Spot QRG DMX Values (cont.) Mode2 (27) Channel Function Value Percent/Setting (cont.) 000 ó 007 No function 008 ó 015 Macro 1 016 ó 023 Macro 2 024 ó 031 Macro 3 032 ó 039 Macro 4 040 ó 047 Macro 5 048 ó...
Page 15
Legend™ 330SR Spot QRG DMX Values (cont.) Mode2 (27) Channel Function Value Percent/Setting (cont.) 000 ó 007 No function 008 ó 028 Color Macro 1 029 ó 049 Color Macro 2 050 ó 069 Color Macro 3 070 ó 090 Color Macro 4 091 ó...
Page 16
Legend™ 330SR Spot GRR Acerca de Esta La Guía de Referencia Rápida (GRR) del Legend™ 330SR Spot contiene Guía información básica sobre el producto, como conexión, montaje, opciones de menú y valores DMX. Descargue el Manual de Usuario de www.chauvetprofessional.com para información más detallada.
Legend™ 330SR Spot GRR Corriente Alterna Este producto tiene una fuente de alimentación con detección automática que puede funcionar rango tensión entrada 100–240 VCA, 50/60 Hz. Para evitar un desgaste innecesario y alargar su vida útil, desconecte complemente el producto de la alimentación, mediante el interruptor o desenchufándolo, durante los periodos en los que no se use.
Page 18
Legend™ 330SR Spot GRR Tornillos de Estrella de ¼ de Vuelta Conectores Lámpara de Horquilla Ventilación de Lámpara Pinzas Resorte RIESGO DE EXPLOSIÓN LÁMPARA! Orificios de ventilación en la parte frontal de la lámpara debe alinear horizontalmente con las salidas de aire en el bastidor de la lámpara.
Montaje Antes de montar este producto, lea las Notas de seguridad. Asegúrese de que las abrazaderas de montaje son capaces de soportar el peso del producto. Para nuestra línea Chauvet abrazaderas montaje, visite trusst.com/productcategory/base-plates-accessories-clamps/. Clips de Fixation Élingue de Sécurité...
Legend™ 330SR Spot GRR Opciones de Menú Nivel Principal Niveles de Programación Descripción DMX Address 001–512 Selecciona una dirección DMX de inicio Mode1 (21) DMX Channel Selecciona el modo DMX de 21-canales DMX Functions Mode Mode2 (27) Selecciona el modo DMX de 27-canales Muestra los valores DMX actuales para View DMX Value cada canal...
Page 21
Legend™ 330SR Spot GRR Opciones de Menú (cont.) Nivel Principal Niveles de Programación Descripción Display Inverse Define la dirección de la pantalla Iluminación de la pantalla siempre encendida Backlight Auto Off La iluminación de la pantalla se apaga Display Setting después de 1 minuto de inactividad del panel de control Selecciona la intensidad de la...
Legend™ 330SR Spot GRR Valores DMX Mode1 (21) Canal Función Valor Porcentaje/Configuración Desplazamiento 000 ó 255 0–100% Lateral Desplazamiento 000 ó 255 0–100% Lateral Fino Inclinación 000 ó 255 0–100% Inclinación Fina 000 ó 255 0–100% Velocidad Desplazamiento 000 ó 255 Lento a rápido lateral/Inclinación Atenuador 000 ó...
Page 23
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode1 (21) Canal Función Valor Porcentaje/Configuración (cont.) 000 ó 127 Gobo indexado/división 128 ó 189 Giro en sentido contrario a las agujas del reloj Rotación de Gobo rápido a lento 190 ó 193 Parada 194 ó...
Page 24
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode1 (21) Canal Función Valor Porcentaje/Configuración (cont.) 160 ó 163 Efecto 1-gobo 1 rotar/giro del prisma en sentido horario 164 ó 167 Efecto 1-gobo 2 rotar/giro del prisma en sentido horario 168 ó 171 Efecto 1-gobo 3 rotar/giro del prisma en sentido horario 172 ó...
Page 25
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode1 (21) Canal Función Valor Porcentaje/Configuración (cont.) 000 ó 127 Índice 128 ó 190 Giro en el sentido de las agujas del reloj Rotación de rápido a lento Prisma 191 ó 192 Parada 193 ó...
Page 26
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode2 (27) Canal Función Valor Porcentaje/Configuración Desplazamiento 000 ó 255 0–100% Lateral Desplazamiento 000 ó 255 0–100% Lateral Fino Inclinación 000 ó 255 0–100% Inclinación Fina 000 ó 255 0–100% Velocidad Desplazamiento 000 ó 255 Lento a rápido lateral/Inclinación Atenuador 000 ó...
Page 27
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode2 (27) Canal Función Valor Porcentaje/Configuración (cont.) Magenta 000 ó 255 0–100% Amarillo 000 ó 255 0–100% 000 ó 254 Lento a rápido Velocidad CMA Rápido 000 ó 007 Abrir 008 ó 014 Gobo 1 015 ó...
Page 28
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode2 (27) Canal Función Valor Porcentaje/Configuración (cont.) 000 ó 007 Sin función 008 ó 127 Insertar prisma 128 ó 131 Efecto 1-gobo 1-giro del prisma en sentido horario 132 ó 135 Efecto 1-gobo 2-giro del prisma en sentido horario 136 ó...
Page 29
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode2 (27) Canal Función Valor Porcentaje/Configuración (cont.) 224 ó 227 Efecto 2-gobo 1 rotar/giro del prisma en sentido antihorario 228 ó 231 Efecto 2-gobo 2 rotar/giro del prisma en sentido antihorario 232 ó 235 Efecto 2-gobo 3 rotar/giro del prisma en sentido antihorario 236 ó...
Page 30
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode2 (27) Canal Función Valor Porcentaje/Configuración (cont.) Difusor 000 ó 255 0–100% 000 ó 007 Sin función 008 ó 015 Macro 1 016 ó 023 Macro 2 024 ó 031 Macro 3 032 ó 039 Macro 4 040 ó...
Page 31
Legend™ 330SR Spot GRR Valores DMX (cont.) Mode2 (27) Canal Función Valor Porcentaje/Configuración (cont.) 000 ó 021 Sin función 022 ó 042 Color 1 043 ó 063 Color 2 064 ó 085 Color 3 086 ó 106 Color 4 107 ó 127 Color 5 Preajuste Color 128 ó...
Page 32
Legend™ 330SR Spot MR À Propos de ce Le Manuel de Référence du Legend™ 330SR Spot (MR) reprend des Manuel informations de base sur ce produit notamment en matière de connexions, montage, options de menu et valeurs DMX. Téléchargez le manuel d'utilisation www.chauvetprofessional.com pour de plus amples informations.
Page 33
Legend™ 330SR Spot MR Contact En dehors des États-Unis, du Royaume-Uni, de l’Irlande, du Mexique et de Benelux, contactez votre fournisseur si vous avez besoin d'assistance ou de retourner votre produit. Consultez le site www.chauvetprofessional.com pour trouver nos coordonnées. Ce qui est ·...
Page 34
Legend™ 330SR Spot MR Remplacement Éteignez l'unité et déconnectez-la de la prise. de la Lampe Attendez au moins 15 minutes afin que l'unité refroidisse. Retirez la couverture arrière en utilisant les deux vis cruciformes ¼ de tour. Notez que l'orientation de la lampe. Trous d'aération sur le devant de la lampe devrait aligner horizontalement avec les prises d'air sur le cadre de la lampe.
Page 35
Consignes de Sécurité. Veillez à ce que les fixations sont capables de supporter le poids de l'unité. Découvrez notre gamme fixations Chauvet trusst.com/productcategory/base-plates-accessories-clamps/. Clips de Fixation Élingue de Sécurité Schéma de Montage Montage au Sol Fixez le câble de sécurité au moyen du passant au bas de l'unité...
Legend™ 330SR Spot MR Options du Menu Niveau Principal Niveaux de Programmation Description DMX Address 001–512 Sélectionne une adresse DMX de départ Mode1 (21) DMX Channel Sélectionne le mode DMX à 21-canaux DMX Functions Mode Mode2 (27) Sélectionne le mode DMX à 27-canaux Indique les valeurs DMX actuelles de View DMX Value chaque canal.
Page 37
Legend™ 330SR Spot MR Options du Menu (suite) Niveau Principal Niveaux de Programmation Description Display Inverse Définit l'orientation de l'affichage Rétroéclairage toujours actif Backlight Auto Off Rétroéclairage désactivé après 1 minute Display Setting d'inactivité du panneau de contrôle Sélectionne l'intensité du rétroéclairage Backlight Intensity 1–10 (1 faible à...
Legend™ 330SR Spot MR Valeurs DMX Mode1 (21) Canal Fonction Valeur Pourcentage/Configuration 000 ó 255 0–100% Pan Fin 000 ó 255 0–100% Tilt 000 ó 255 0–100% Tilt Fin 000 ó 255 0–100% Vitesse Pan/Tilt 000 ó 255 Lent à rapide Gradateur 000 ó...
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode1 (21) Canal Fonction Valeur Pourcentage/Configuration (suite) Cyan 000 ó 255 0–100% Magenta 000 ó 255 0–100% Jaune 000 ó 255 0–100% 000 ó 007 Ouvert 008 ó 014 Gobo 1 015 ó 021 Gobo 2 022 ó...
Page 40
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode1 (21) Canal Fonction Valeur Pourcentage/Configuration (suite) Mise au Point 000 ó 255 0–100% Zoom 000 ó 255 0–100% 000 ó 007 Aucune fonction 008 ó 127 Insertion du prisme 128 ó 131 Rotation horaire du prisme pour effet 1, gobo 1 132 ó...
Page 41
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode1 (21) Canal Fonction Valeur Pourcentage/Configuration (suite) 192 ó 195 Rotation antihoraire du prisme pour effet 2, gobo 1 196 ó 199 Rotation antihoraire du prisme pour effet 2, gobo 2 200 ó 203 Rotation antihoraire du prisme pour effet 2, gobo 3 204 ó...
Page 42
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode1 (21) Canal Fonction Valeur Pourcentage/Configuration (suite) 000 ó 063 Large à étroit : 064 ó 127 Effet iris, lent à rapide Iris 128 ó 191 Effet iris, sortie lente, entrée rapide 192 ó 255 Effet iris, entrée lente, sortie rapide Effet Dépoli 000 ó...
Page 43
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode2 (27) Canal Fonction Valeur Pourcentage/Configuration 000 ó 255 0–100% Pan Fin 000 ó 255 0–100% Tilt 000 ó 255 0–100% Tilt Fin 000 ó 255 0–100% Vitesse Pan/Tilt 000 ó 255 Lent à rapide Gradateur 000 ó...
Page 44
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode2 (27) Canal Fonction Valeur Pourcentage/Configuration (suite) 000 ó 007 Ouvert 008 ó 014 Gobo 1 015 ó 021 Gobo 2 022 ó 028 Gobo 3 029 ó 035 Gobo 4 036 ó 042 Gobo 5 043 ó...
Page 45
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode2 (27) Canal Fonction Valeur Pourcentage/Configuration (suite) 000 ó 007 Aucune fonction 008 ó 127 Insertion du prisme 128 ó 131 Rotation horaire du prisme pour effet 1, gobo 1 132 ó 135 Rotation horaire du prisme pour effet 1, gobo 2 136 ó...
Page 46
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode2 (27) Canal Fonction Valeur Pourcentage/Configuration (suite) 224 ó 227 Rotation antihoraire du prisme pour effet 2, rotation gobo 1 228 ó 231 Rotation antihoraire du prisme pour effet 2, rotation gobo 2 232 ó...
Page 47
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode2 (27) Canal Fonction Valeur Pourcentage/Configuration (suite) 000 ó 007 Pas de fonction 008 ó 015 Macro 1 016 ó 023 Macro 2 024 ó 031 Macro 3 032 ó 039 Macro 4 040 ó...
Page 48
Legend™ 330SR Spot MR Valeurs DMX (suite) Mode2 (27) Canal Fonction Valeur Pourcentage/Configuration (suite) 000 ó 007 Pas de fonction 008 ó 028 Macro de couleur 1 029 ó 049 Macro de couleur 2 050 ó 069 Macro de couleur 3 070 ó...
Page 49
Legend™ 330SR Spot BH Over deze De Legend™ 330SR Beknopte Handleiding (BH) bevat basisinformatie over handleiding het product, zoals aansluiting, montage, menu-opties en DMX-waarden. Download de gebruikershandleiding op www.chauvetprofessional.com voor meer informatie. Disclaimer De informatie en specificaties in deze BH kunnen zonder voorafgaande kennisgeving worden gewijzigd.
Page 50
Legend™ 330SR Spot BH · GEBRUIK een veiligheidskabel bij het boven het hoofd plaatsen van dit product. · Gebruik dit product NIET buitenshuis of op een locatie waar stof, grote warmte, water of vochtigheid het kunnen beïnvloeden. (IP20) · Gebruik dit product NIET als de behuizing, lenzen of kabels beschadigd lijken.
Page 51
Legend™ 330SR Spot BH AC-stroom Dit product heeft een voeding met automatisch bereik die werkt met een ingangsspanning van 100–240 VAC, 50/60 Hz. Sluit om onnodige slijtage te verhinderen en de levensduur te verlengen tijdens periodes van niet-gebruik het product via stroomonderbreker of de stekker volledig van stroom af.
Page 52
Legend™ 330SR Spot BH Kwart slag kruiskopschro even Lamp Aansluitklemmen Lamp ventilatie Veerklemmen RISICO ontploffen van de lamp! Ventilatieopeningen op de voorkant van de lamp moet horizontaal zijn uitgelijnd met de ventilatieopeningen aan de lamp frame. Dit is uiterst belangrijk voor lampkoeling.
Legend™ 330SR Spot BH Montage Lees alvorens dit product te monteren alle Veiligheidsinstructies. Controleer of de montageklem het gewicht van het product kan dragen. Ga voor onze Chauvet-serie montageklemmen naar www.trusst.com/productcategory/accessories-clamps/ Montageklemmen Veiligheidskabel Montagediagram van het product Plaatsing op de vloer...
Page 54
Legend™ 330SR Spot BH Hoofdniveau Programmeerniveaus Beschrijving DMX Address 001–512 Selecteer een DMX-startadres DMX Channel Mode1 (21) Selecteert de 21-kanaals DMX-modus DMX Functions Mode Mode2 (27) Selecteert de 27-kanaals DMX-modus Toont de huidige DMX-waarden voor elk View DMX Value kanaal Pan Inverse Definieert de richting van de zwenkfunctie Tilt Inverse...
Page 55
Legend™ 330SR Spot BH Menu Options (cont.) Hoofdniveau Programmeerniveaus Beschrijving Selecteert de automatische testprocedure Auto Test van het product Fixture Test Selecteert de handmatige testfunctie van Manual Test het product Toont het totaal aantal uren Fixture Use Time productgebruik Toont de tijdsduur waarop de lamp aan is Exit Fixture Information Lamp On Time...
Legend™ 330SR Spot BH DMX-waarden Mode1 (21) Kanaal Functie Waarde Percentage/instelling Zwenken 000 ó 255 0–100% Fijn zwenken 000 ó 255 0–100% Kantelen 000 ó 255 0–100% Fijn kantelen 000 ó 255 0–100% Zwenk- 000 ó 255 Snel tot langzaam /kantelsnelheid Dimmer 000 ó...
Page 57
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode1 (21) Kanaal Functie Waarde Percentage/instelling (vervolg) 000 ó 004 Open 005 ó 009 Gobo 1 010 ó 014 Gobo 2 015 ó 018 Gobo 3 019 ó 023 Gobo 4 024 ó 028 Gobo 5 029 ó...
Page 58
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode1 (21) Kanaal Functie Waarde Percentage/instelling (vervolg) 224 ó 227 Effect 2-gobo 1-rotatie/prismadraaiing tegen de klok in 228 ó 231 Effect 2-gobo 2-rotatie/prismadraaiing tegen de klok in 232 ó 235 Effect 2-gobo 3-rotatie/prismadraaiing tegen de klok in 236 ó...
Page 59
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode2 (27) Kanaal Functie Waarde Percentage/instelling Zwenken 000 ó 255 0–100% Fijn zwenken 000 ó 255 0–100% Kantelen 000 ó 255 0–100% Fijn kantelen 000 ó 255 0–100% Zwenk- 000 ó 255 Snel tot langzaam /kantelsnelheid Dimmer 000 ó...
Page 60
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode2 (27) Kanaal Functie Waarde Percentage/instelling (vervolg) 000 ó 007 Open 008 ó 014 Gobo 1 015 ó 021 Gobo 2 022 ó 028 Gobo 3 029 ó 035 Gobo 4 036 ó 042 Gobo 5 Gobo-wiel 1 043 ó...
Page 61
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode2 (27) Kanaal Functie Waarde Percentage/instelling (vervolg) 000 ó 007 Geen functie 008 ó 127 Inzetstuk van het prisma 128 ó 131 Effect 1-gobo 1-prismadraaiing met de klok mee 132 ó 135 Effect 1-gobo 2-prismadraaiing met de klok mee 136 ó...
Page 62
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode2 (27) Kanaal Functie Waarde Percentage/instelling (vervolg) 000 ó 007 Geen functie 008 ó 015 Macro 1 016 ó 023 Macro 2 024 ó 031 Macro 3 032 ó 039 Macro 4 040 ó 047 Macro 5 048 ó...
Page 63
Legend™ 330SR Spot BH DMX-waarden (vervolg) Mode2 (27) Kanaal Functie Waarde Percentage/instelling (vervolg) 000 ó 007 Geen functie 008 ó 028 Kleurenmacro 1 029 ó 049 Kleurenmacro 2 050 ó 069 Kleurenmacro 3 070 ó 090 Kleurenmacro 4 091 ó 110 Kleurenmacro 5 Kleurenmacro 111 ó...
