Summary of Contents for Chauvet Intimidator Trio

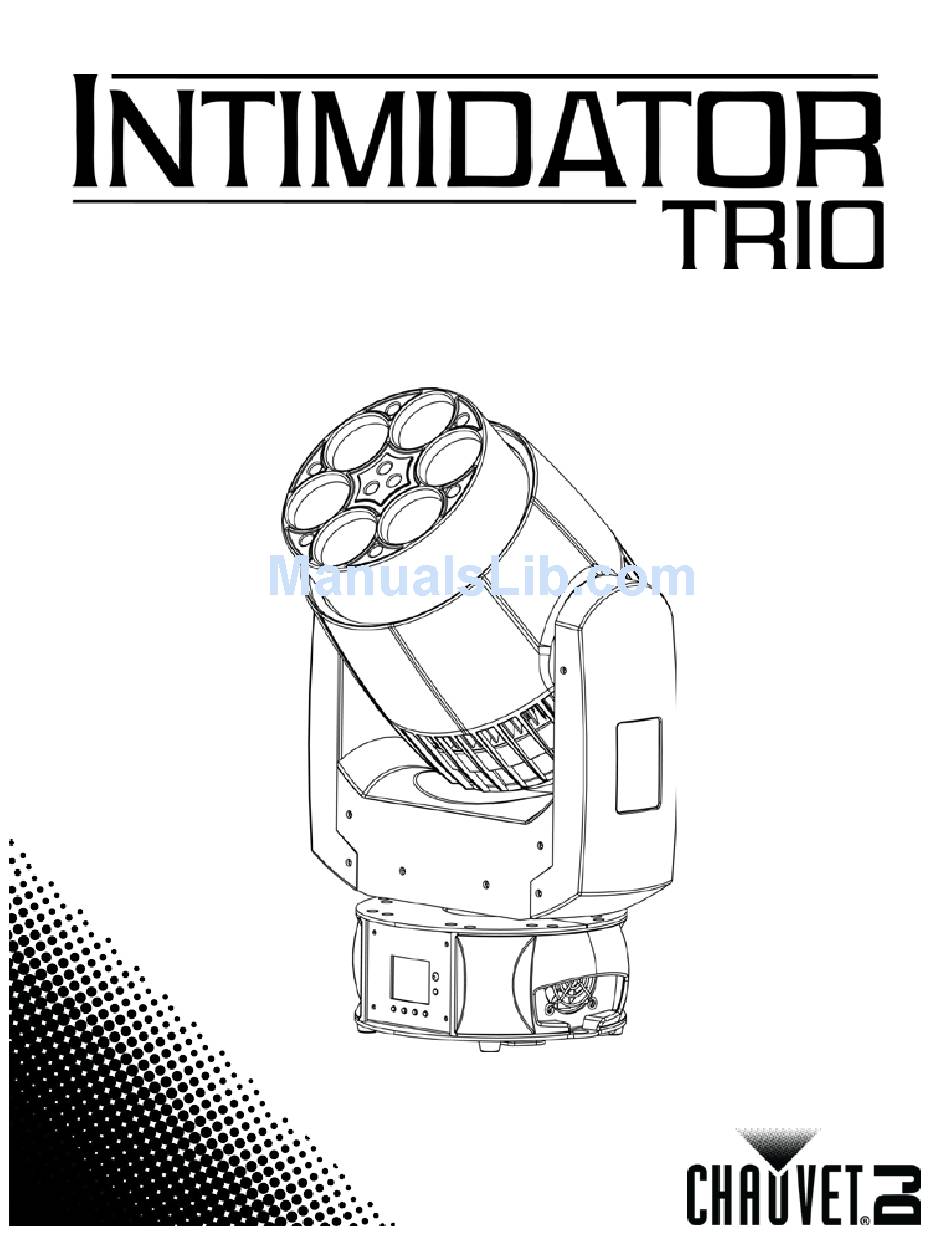

- Page 1 User Manual...
-
Page 2: Table Of Contents
Starting Address ........................... 11 DMX Personalities ..........................11 DMX Channel Assignments and Values ..................12 30CH ..............................12 Intimidator Trio Zones of Control ......................12 30CH (cont.) ............................13 30CH (cont.) ............................14 30CH (cont.) ............................15 15CH ..............................16 15CH (cont.) ............................ - Page 3 System Info ............................21 IR Mode ............................22 IRC-6 Operation............................ 22 Master/Slave Mode ........................23 5. Maintenance .........................24 Product Maintenance ........................24 6. Technical Specifications ....................25 Returns ..........................26 Contact Us .........................27 Intimidator Trio User Manual Rev. 1 Page 3 of 27...
-
Page 4: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -
Page 5: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Intimidator Trio User Manual Rev. 1 Page 5 of 27... -
Page 6: Introduction
2. I NTRODUCTION Product Overview Yoke Display IR Sensor Front View Control Indicator Buttons Light Fuse-Holder Power In DMX In/Out Power Out Back Panel View Page 6 of 27 Intimidator Trio User Manual Rev. 1... -
Page 7: Product Dimensions
Product Dimensions 10.9 in 278 mm 15.2 in 386 mm Intimidator Trio User Manual Rev. 1 Page 7 of 27... -
Page 8: Setup
Diagram 3rd Product Other products You can power link up to 4 Intimidator Trio products on 120 VAC or up to 8 Intimidator Trio products on 230 VAC. The power linking diagram corresponds to the North American version of the... -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in Safety Notes. The Intimidator Trio may be mounted in any position; however, make sure adequate Orientation ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 10: Operation
Sets fan speed according to temperature Fans Full Fan set to full speed Display background light turns off after inactivity Display Display background light stays on Normal display Screen Rev Reverse display Page 10 of 27 Intimidator Trio User Manual Rev. 1... -
Page 11: Menu Map (Cont.)
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Intimidator Trio uses up to 30 DMX channels in its 30-channel DMX mode, which defines the highest configurable address to 483. -
Page 12: Dmx Channel Assignments And Values
Reserved for future use No function 000ó255 Reserved for future use No function 000ó255 Reserved for future use No function 000ó255 Reserved for future use Intimidator Trio Zones of Control Page 12 of 27 Intimidator Trio User Manual Rev. 1... -
Page 13: 30Ch (Cont.)
Clockwise color change (fast to slow) 202ó207 Stop (color stays in the current color) 208ó229 Counter-clockwise color change (fast to slow) 230ó234 No function 235ó249 Color jump (fast to slow) 250ó255 Sound-Active colors Intimidator Trio User Manual Rev. 1 Page 13 of 27... -
Page 14: 30Ch (Cont.)
Pulse effect 2 (fast to slow) 205ó209 Open 210ó224 Gradually on and off (fast to slow) 225ó229 Open 230ó244 Pulse effect 3 (fast to slow) 245ó255 Open Zoom 000ó255 Zoom in and out Page 14 of 27 Intimidator Trio User Manual Rev. 1... -
Page 15: 30Ch (Cont.)
Rotating small shake (slow to fast) (Zoom) Rotating 096ó127 Rotating large shake (slow to fast) value is 128ó191 Rotating (slow to fast) above 150 192ó255 Reverse rotating (slow to fast) Intimidator Trio User Manual Rev. 1 Page 15 of 27... -
Page 16: 15Ch
208ó223 Built-in Auto 6 224ó239 Built-in Auto 7 240ó255 Built-in Auto 8 (built-in auto 1–7) Built-in Speed 000ó255 Zone macros and built-in auto speed (slow to fast) Dimmer 000ó255 0–100% Page 16 of 27 Intimidator Trio User Manual Rev. 1... -
Page 17: 15Ch (Cont.)
Cancel reverse pan/tilt 110ó114 Pan/Tilt normal speed 115ó119 Pan/Tilt fast speed 120ó124 Pan/Tilt slow speed 125ó129 Fan full speed 130ó134 Fan auto speed 135ó139 Dimmer fast 140ó144 Dimmer smooth 145ó255 No function Intimidator Trio User Manual Rev. 1 Page 17 of 27... -
Page 18: 15Ch (Cont.)
Rotating small shake (slow to fast) (Zoom) Rotating 096ó127 Rotating large shake (slow to fast) value is above 150 128ó191 Rotating (slow to fast) 192ó255 Reverse rotating (slow to fast) Page 18 of 27 Intimidator Trio User Manual Rev. 1... -
Page 19: Configuration (Standalone)
Use <UP> or <DOWN> to select Sensitivity. Press <ENTER>. Use <UP> or <DOWN> to select 001-100, low to high. Press <ENTER>. To test or control any function of the Intimidator Trio through the LCD display menu, Manual Mode follow the instructions below: Press <MENU>. -
Page 20: Pan/Tilt Orientation
Use <UP> or <DOWN> to select Pan Reverse. Press <ENTER>. Use <UP> or <DOWN> to select ON or OFF. Press <ENTER>. To select whether the Intimidator Trio will operate with normal tilting or inverted tilting, do the following: Press <MENU>. Use <UP> or <DOWN> to choose Setup. -
Page 21: Color Balance
Use <UP> or <DOWN> to choose Setup. Press <ENTER>. Use <UP> or <DOWN> to select Reset. Press <ENTER>. To reset the Intimidator Trio to factory default settings, follow the instructions below: Load Factory Press <MENU>. Defaults Use <UP> or <DOWN> to choose Setup. -
Page 22: Ir Mode
Use <UP> or <DOWN> to choose Run Mode. Press <ENTER>.Use <UP> or <DOWN> to choose IR. Press <ENTER> and the indicator on the front of the Intimidator Trio blinks. IRC-6 Operation Be sure the IRC-6 remote is pointing directly at the product and there is nothing in between the remote and the product. -
Page 23: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single Intimidator Trio (the master) to control the actions of one or more Intimidator Trio products (the slaves) without the need of a DMX Mode controller. The master will be set to operate in either Stand-Alone mode or with the IRC-6, while the slaves will be set to operate in Slave mode. -
Page 24: Maintenance
Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because you could damage them. Page 24 of 27 Intimidator Trio User Manual Rev. 1... -
Page 25: Technical Specifications
Cooling System 104 °F (40 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 15 or 30 Product Name Item Code UPC Number Ordering Intimidator Trio 08011102 781462214500 Intimidator Trio User Manual Rev. 1 Page 25 of 27... -
Page 26: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 27: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Intimidator Trio User Manual Rev. 1 Page 27 of 27...
