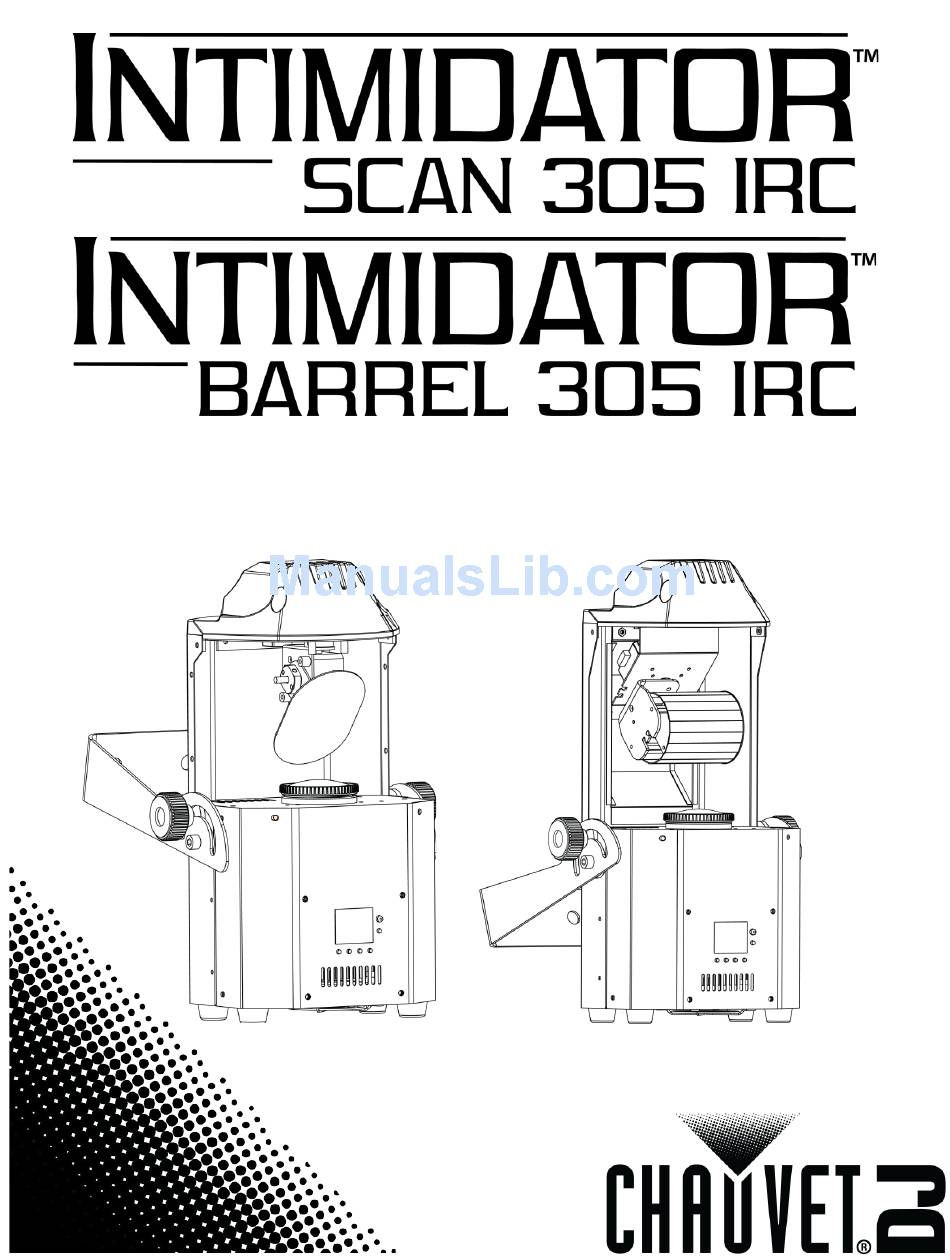

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................... 4 What is Included ................................4 Unpacking Instructions ..............................4 Claims ..................................... 4 Text Conventions ................................4 Symbols ..................................4 Disclaimer ..................................4 Product at a Glance ................................ 5 Safety Notes ................................... 5 2. - Page 3 Product Maintenance ..............................24 6. Technical Specifications ......................25 Returns ............................26 Contact Us ............................27 Page 3 of 27 Intimidator™ Scan/Barrel 305 IRC User Manual Rev. 1...
-
Page 4: Before You Begin
If the box or any of the contents appear damaged from shipping, or show signs of mishandling, Claims save all packaging and file a claim with the carrier immediately, do not notify Chauvet. Failure to report damage to the carrier immediately or failure to have all packaging available for inspection may invalidate your claim. -
Page 5: Product At A Glance
Use on Dimmer Auto Programs Product at a Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave These notes include important information about the mounting, use, and maintenance of this Safety Notes product. Read these notes before using the product. ·... -
Page 6: Introduction
2. I NTRODUCTION Overview Safety Cable Pass-Through Fuse Holder DMX In/Out Power Out Power In Back Panel View Mirror Adjustable Lens Display IR Sensor LED Indicator Front View (Scan) Menu Buttons Front View (Barrel) Page 6 of 27 Intimidator™ Scan/Barrel 305 IRC User Manual Rev. 1... -
Page 7: Dimensions
Dimensions 10 in 6.7 in 255 mm 171 mm 18.9 in 480 mm Barrel 10 in 255 mm 16.9 in 430 mm 5.7 in Scan 147 mm Page 7 of 27 Intimidator™ Scan/Barrel 305 IRC User Manual Rev. 1... -
Page 8: Setup
3. S ETUP The Intimidator™ Scan/Barrel 305 IRC have auto-ranging power supplies that work with an AC Power input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the values listed on the label affixed to the product’s back panel, or refer to the product’s Specifications. -
Page 9: Power Linking
ONLY! · If using this product anywhere other than North America, consult with the local Chauvet distributor because power linking connectors and requirements differ from country to country, and region to region. Page 9 of 27 Intimidator™ Scan/Barrel 305 IRC User Manual Rev. 1... -
Page 10: Mounting
The rubber feet serve as floor supports. When placing the product on the floor, make sure that the product and cables are away from people and vehicles. Mounting Clamps (such as CLP-15 from Chauvet) Rigging Diagram Safety Cable Hanging/... -
Page 11: Operation
4. O PERATION The control panel is used to set the operating mode, and the configuration settings of the Control Panel product. Use the 4 buttons underneath the LCD display to access the control panel and Description navigate the menu map. For specific instructions see the Configurations sections below. Button Function <MENU>... - Page 12 Menu Value Description Normal pan operation Pan Reverse Reverse pan operation Normal tilt operation Tilt Reverse Reverse tilt operation Setup Normal display Screen Reverse Upside-down display Sensitivity 001—100 Sets sound sensitivity Reset Resets the product Factory Set Loads factory defaults Ver: VX.X Shows the current software version, Running Mode: XXXX...
-
Page 13: Configuration (Dmx)
The highest configurable DMX address in 7-channel mode is 506. The highest configurable DMX address in 11-channel mode is 502. For more information about DMX download the Chauvet DMX Primer from the Chauvet web site http://www.chauvetlighting.com/download. To set the DMX starting address, do the following: 1. -
Page 14: Dmx Channel Assignments And Values
DMX Channel The following table outlines all the capabilities of the Intimidator™ Scan/ Barrel 305 IRC and the channels that control them when the light is used with a lighting controller. Assignments and Values 11-CH Channel Function Value Percent/Setting 000 ó 255 0–180° 000 ó... - Page 15 11-CH Channel Function Value Percent/Setting 000 ó 255 0 to 100% Dimmer 000 ó 007 Open 008 ó 015 Gobo 1 (glass) 016 ó 023 Gobo 2 (glass) 024 ó 031 Gobo 3 032 ó 039 Gobo 4 040 ó 047 Gobo 5 048 ó...
- Page 16 11-CH Channel Function Value Percent/Setting 000 ó 007 No function 008 ó 015 Pan/tilt move-in-black 016 ó 023 Pan/tilt move-in-black (disable) 024 ó 031 Color wheel move-in-black 032 ó 047 Gobo wheel move-in-black Color wheel and Gobo wheel move-in-black 048 ó 055 (disable) 056 ó...
-
Page 17: 7Ch
Channel Function Value Percent/Setting 000 ó 255 0 to 180° 000 ó 255 0 to 90° Tilt (Scan) 000 ó 020 Stop 021 ó 135 Clockwise rotation (slow to fast) Tilt (Barrel) 136 ó 140 Stop 141 ó 255 Counter-clockwise rotation (slow to fast) 000 ó... - Page 18 Channel Function Value Percent/Setting 000 ó 007 Open 008 ó 015 Gobo 1 (glass) 016 ó 023 Gobo 2 (glass) 024 ó 031 Gobo 3 032 ó 039 Gobo 4 040 ó 047 Gobo 5 048 ó 055 Gobo 6 Gobo Wheel 056 ó...
-
Page 19: Configuration (Standalone)
Use standalone configurations to operate the product without a DMX controller. Configuration (Standalone) Never connect a product operating in a standalone mode (Sound, Auto, or IR) to a DMX chain that includes a DMX controller. Products in standalone mode can transmit DMX signals that interfere with the DMX signals from the controller Sound mode sets the product to respond to sounds and music. -
Page 20: Configuration (Settings)
The Intimidator™ Scan/Barrel 305 IRC can be customized with settings such as pan direction, Configuration screen orientation, and sound sensitivity. Below are instructions for configuring all the settings (Settings) available. Reversing the pan movement is useful when 2 lights are facing each other and they both need to Pan Reverse turn toward the same direction. -
Page 21: Reset
Reset Resetting will restart the product. It does not change any settings. Resetting is a helpful troubleshooting tool, and can be used if the product has stopped responding to control, or if the control system has suffered a failure. To reset the product, do the following: 1. -
Page 22: Ir Mode
5. Press <ENTER>. A green dot will show on the IR option line and the product will begin moving and emitting light. The IRC-6 infrared controller (available from Chauvet) allows remote control of the IRC-6 Operation Intimidator™ Scan/Barrel 305 IRC. -
Page 23: Configuration (Master/Slave)
Master/Slave mode allows a single Intimidator™ Scan/Barrel 305 IRC (the master) to Configuration control the actions of one or more Intimidator™ Scan/Barrel 305 IRCs (the slaves) without (Master/Slave) a DMX controller. In Master/Slave mode the master is set to operate in Auto mode, Sound mode, or IR mode and the slaves are set to operate in Slave mode. -
Page 24: Technical Information
5. T ECHNICAL NFORMATION Dust build-up on the lens reduces light output. Dust build-up on the body and fans can Product cause overheating and mechanical wear, which can reduce the usable life of the product. Maintenance To maintain optimum performance and minimal wear in a normal environment, clean the product at least twice a month. -
Page 25: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length (Scan) Width (Scan) Height (Scan) Weight (Scan) Weight 16.9 in (430 mm) 10 in (255 mm) 5.7 in (147 mm) 10 lb (4.6 kg) Length (Barrel) Width (Barrel) Height (Barrel) Weight (Barrel) 18.9 in (480 mm) 10 in (255 mm) 6.7 in (171 mm) 10.4 lb (4.8 kg) -
Page 26: Returns
· If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com... -
Page 27: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate Pinxton, Nottingham, UK World Wide Web www.chauvetlighting.co.uk...
