Page 1: Installation Guide
PAP2 Phone Adapter Installation Guide OUTBOUND CALLING Version 1.0 DocVersion: PAP2-IG-v1-0-042805... - Page 2 The use, disclosure, modification, transfer, or transmittal of this work for any purpose, in any form, or by any means, without the written permission of the copyright holder, is strictly forbidden. Trademarks used herein are the property of their respective owners. PAP2 Phone Adapter Installation Guide Version 1.0 April 2005 Disclaimer The content of this manual is subject to change without notice and should not be construed as a commitment by the manufacturer, distributor, or service provider.
-
Page 3: Table Of Contents
Linksys PAP2 Installation Guide Table of Contents Introduction ..............1 Adapter Description ............ 2 PAP2 Overview .............. 2 Connectors and Pinouts........... 2 Accessing the PAP2 ............2 Provisioning ..............4 General Configuration for Outbound Calling......4 Line-Specific Configuration ..........5 Page i... -
Page 4: Introduction
Linksys PAP2 Installation Guide 1 Introduction This document is an installation/configuration guide for the Linksys PAP2 phone adapter running firmware version 2.0.10 (LSc). It describes how to configure the SIP parameters, codec settings and analog coefficients for outbound calling. It also includes steps for provisioning the device with the user account and PIN. -
Page 5: Adapter Description

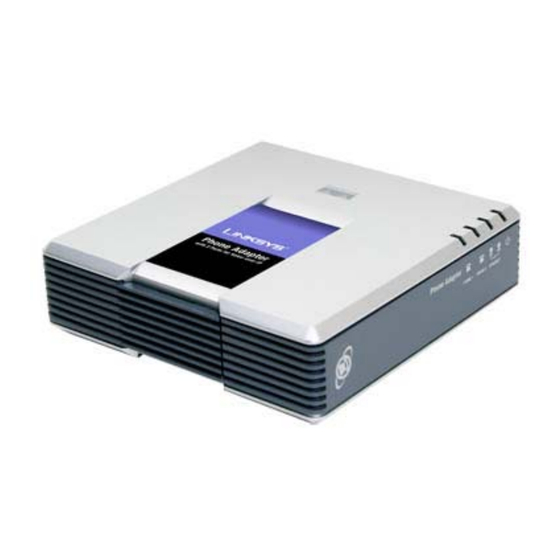

Linksys PAP2 Installation Guide 2 Adapter Description The sections below briefly describe the PAP2 device. PAP2 Overview The PAP2 is a 2-port FXS phone adapter, which allows you to connect two (2) analog phones. PAP2 2-Port FXS Phone Adapter Connectors and Pinouts The image below displays the Ethernet (RJ-45) and analog (RJ-11) line pin-outs. - Page 6 Linksys PAP2 Installation Guide PAP2 MENU OPTIONS Action Code User Input Behavior Notes Enter IVR Menu **** None Do not press any other keys until you hear, “Configuration menu. Please enter option followed by the pound (#) key, or hang up to exit.”...
-
Page 7: Provisioning
3.1 General Configuration for Outbound Calling To configure the PAP2 for outbound calling: 1. Connect to the PAP2 by entering the device’s IP address in the Web browser’s Address bar. For instructions on obtaining the IP address, refer to section 2.3 Accessing the PAP2 on page 2 in this Guide. -
Page 8: Line-Specific Configuration
Linksys PAP2 Installation Guide 3.2 Line-Specific Configuration 1. Click the Line1 or Line2 tab at the top of the page, and in the NAT Settings section, change the following setting: Field Value NAT Keep Alive Enable 2. In the Proxy and Registration section (see the screen on the following page),... - Page 9 Linksys PAP2 Installation Guide Proxy and Registration and Subscriber Information Sections 6. Scroll to the Audio Configuration section (as shown in the Audio Configurations and Dial Plan Sections screen on the following page), and change the following settings: Field Value...
- Page 10 7. In the Dial Plan section, change the Dial Plan to fit the dialing pattern in your country. The dialed number must start with ‘1’ for US calls and ‘011’ for non-US calls. Please read the PAP2 manual to customize your dial plan. 8. Click the Submit All Changes button to save the settings.
