User Manual

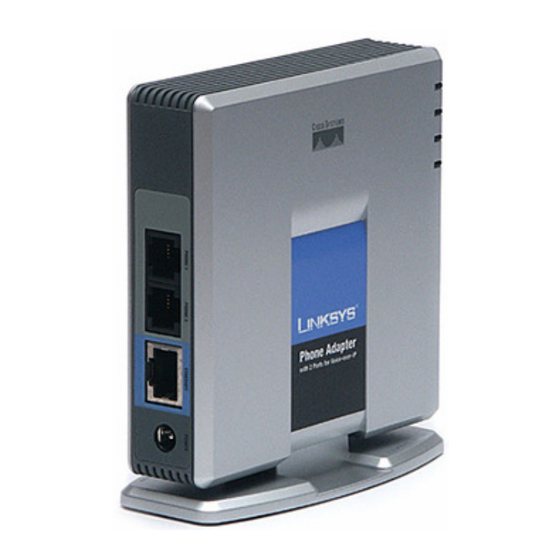

Linksys PAP2
Broadband Phone Service
Linhagratuita
grupo csdata
www.linhagratuita.com.br
csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031
Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07

Advertisement

loading

Related Manuals for Linksys PAP2

Summary of Contents for Linksys PAP2

  • Page 1 User Manual Linksys PAP2 Broadband Phone Service Linhagratuita grupo csdata www.linhagratuita.com.br csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 2 Linksys PAP2 User Manual csdata the VoIP Company Please follow the step-by-step guide below to set up your Linksys PAP2 for use with Linhagratuita Broadband Phone Service. Before you begin to configure your device: A. Set your device to factory default: 1.
  • Page 3 Use this illustration of the back of the ATA to connect it to your network 1. Phone 1 - Plug your analog telephone cord in here: Ethernet Port - Use an Ethernet cable to connect your PAP2 to your router or Internet connection: 3.
  • Page 4 A. First you must verify that your PAP2 will acquire an IP adress automatically. 1. Pick up the phone connected to the “Phone 1” port of the PAP2 and enter “* * * *”. You will then hear a voice say, “Linksys configuration menu.”...
  • Page 5 1. Open your configuration page by typing the following address into your web browser: https://aaa.bbb.ccc.ddd/admin/advanced (“aaa.bbb.ccc.ddd. “ represents the IP address of your PAP2). 2. On the configuration page click “Admin Logic,” then click “switch to advanced view.” (switch to advanced view) Admin Login 3.
  • Page 6 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 7 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 8 Linksys PAP2 User Manual csdata the VoIP Company 2: Outbound Dialtone (No IVR) Configuration SIP Port 5065 Proxy Outbound Proxy Register Make calls without Reg yes Use Outbound Proxy Display Name Type Your Name User ID Type in xxx PIN...
  • Page 9 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 10 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 11 Linksys PAP2 User Manual csdata the VoIP Company 3: Outbound IVR Configuration - Requiring user to enter PIN and destination # SIP Port 5065 Proxy Outbound Proxy Register Display Name Type Your Name User ID 1234 Use Auth ID Auth ID...
  • Page 12 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 13 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 14 Linksys PAP2 User Manual csdata the VoIP Company 4: Outbound- IVR Configuration - Enter Destination SIP Port 5065 Proxy Outbound Proxy Register Display Name Type Your Name User ID Type Your xxx PIN Use Auth ID Auth ID Type Your xxx PIN...
  • Page 15 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 16 Linksys PAP2 User Manual csdata the VoIP Company csdata brasil Ltda. / Tel. +55 81 3422 1714 / Fax. +55 81 3422 1984 / VoIP 2031 Web: www.linhagratuita.com.br / E-Mail: voip@linhagratuita.com.br / CNPJ: 07.196.259/0001-07...
  • Page 17 To verify that the configuration is correct, please pick up the telephone receiver on the phone connected to the ATA, and dial * * * * to enter the Linksys configuration menu. Dial 110 # to hear the adaptor read back the IP address that you have configured. If the IP read aloud is not the same as the one that you have just entered in, please repeat steps 1 through 10 above once again to ensure that you have entered the correct settings.
