Crestron GLPPA-REMOTE-USER
User Remote for GLPP Systems
Operations Guide
Crestron Electronics, Inc. Operations Guide
15 Volvo Drive DOC. 7217B
Rockleigh, NJ 07647 (2031705)
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Further Inquiries
To locate specific information or resolve questions after
reviewing this guide, contact Crestron's True Blue Support at
1-888-CRESTRON [1-888-273-7876] or, for assistance within
a particular geographic region, refer to the listing of Crestron
world wide offices at www.crestron.com/offices.
To post a question about Crestron products, log onto
Crestron's Online Help at www.crestron.com/onlinehelp.
First-time users must establish a user account to fully benefit
from all available features.
Future Updates
As Crestron improves functions, adds new features, and
extends the capabilities of the GLPPA-REMOTE-USER units,
additional information may be made available as manual
updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron Web site periodically for manual update
availability and its relevance. Updates are identified as an
"Addendum" in the Download column.
As of the date of manufacture, the GLPPA-REMOTE-USER
has been tested and found to comply with specifications for
CE marking and standards per EMC and Radiocommunica-
tions Compliance Labelling.
DESCRIPTION
The Crestron ® GLPPA-REMOTE-USER is a
compact IR wireless remote designed
specifically for the user of a Crestron Green
Light ® Power Pack (GLPP)—a room
controller that communicates with
photocells, occupancy sensors, and control
stations to automatically control lighting in
any room. Operating on two (2) AAA
batteries (included), the
GLPPA-REMOTE-USER provides buttons
for operating the GLPP.

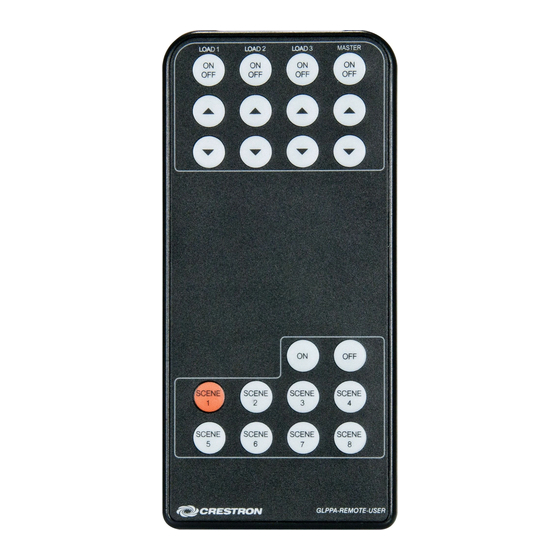

GLPPA-REMOTE-USER Physical View
08.13
REMOTE COMMANDS
Commands for the GLPPA-REMOTE-USER are listed in the following table.
COMMANDS
LOADS 1–3 ON/OFF Toggles the load between off and 100%.
LOADS 1–3 RAISE Raises the load level. This turns the load on if it is off.
LOADS 1–3 LOWER Lowers the load level. The load stops at 1%. If the lower
command continues for another 2 seconds, the load turns off.
MASTER ON/OFF If any load is on, this button turns all loads off. Otherwise all
loads turn on to 100%.
MASTER RAISE All loads that are on, at any level, begin to raise. Loads that are
off stay off.
MASTER LOWER All loads that are on, at any level, begin to lower to 1%. They do
not lower to off.
ON Turns the loads on.
OFF Turns the loads off.
SCENE 1–8 Toggles the loads according to the programmed settings for
scenes 1 through 8. "Scene 1" enables daylighting.
EDIT SCENES USING USER REMOTE
Use the GLPPA-REMOTE-USER to change the default scene settings for scenes 1
through 8.
1. Use LOAD 1 ON/OFF, LOAD 1
level. Repeat this process for the other connected loads. Alternatively, use MASTER
ON/OFF, MASTER , or MASTER
2. Press and hold the appropriate SCENE 1 through SCENE 8 button for 2 seconds to
save the scene. The GLPP beeps when the scene is saved.
NOTE: Only "Scene 1" enables daylighting.
3. Repeat the steps above for all scenes that need
DESCRIPTION
, or LOAD 1 buttons to set load to the desired
buttons to set the levels of all connected loads.
to be configured.
