Model SR3001 User Guide
AV Surround Receiver

Advertisement

Table of Contents
loading

Related Manuals for Marantz R3001

Summary of Contents for Marantz R3001

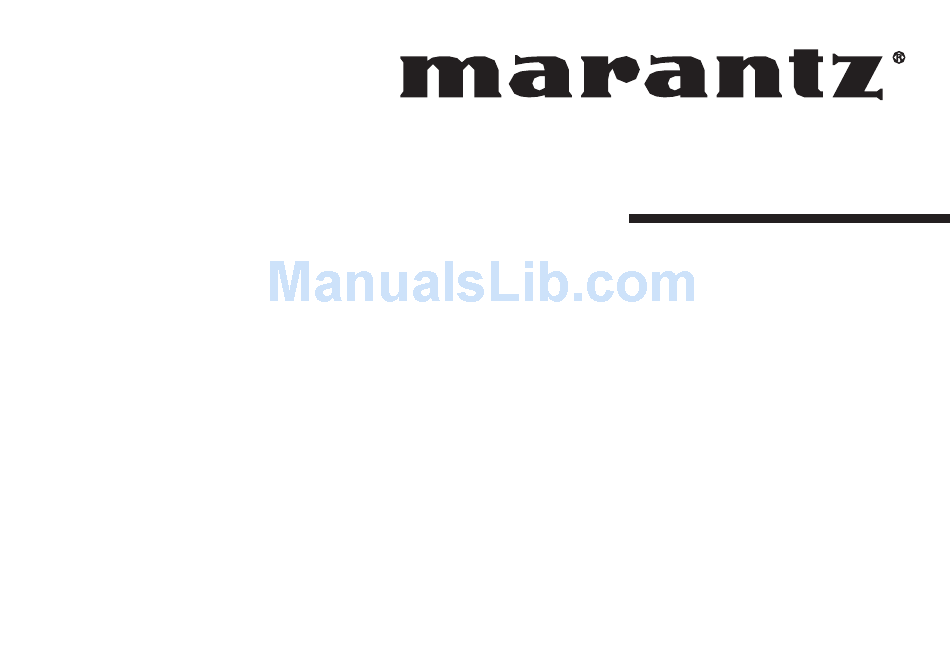

  • Page 1 Model SR3001 User Guide AV Surround Receiver...
  • Page 2 L'attestation d'achat est la preuve permanente seguro o se ponga en contacto con Marantz. d'un achat de valeur. La conserver en lieu sur pour s'y reporter aux fi ns d'obtention d'une couverture...
  • Page 3 CE MARKING English The SR3001 is in conformity with the EMC directive and low-voltage directive. Français Le SR3001 est conforme à la directive EMC et à la directive sur les basses tensions. Deutsch Das Modell SR3001 entspricht den EMC-Richtlinien und den Richtlinien für Nieders- pannungsgeräte.
  • Page 4 Nederlands - No se deben colocar sobre el aparato recipientes que contengan líquidos, como por ejemplo WAARSCHUWINGEN jarrones. - Stel het apparaat niet bloot aan regen of vocht. - Cuando el interruptor está en la posición OFF, el - Verwijder de afdekplaat van het apparaat niet. equipo no está...

  • Page 5: Table Of Contents

    EQUIPMENT MAINS WORKING SETTING and the wall or other components. Your Marantz product has been prepared to comply • Do not obstruct the ventilation holes. with the household power and safety requirements that exist in your area.

  • Page 6: Description

    DESCRIPTION DTS-ES Extended Surround is a new multichannel digital signal format developed by Digital Theater Systems Inc. While offering high compatibility with DTS was introduced in 1994 to provide 5.1 channels of the conventional DTS Digital Surround format, DTS- discrete digital audio into home theater systems. ES Extended Surround greatly improves the 360- DTS brings you premium quality discrete multichannel degree surround impression and space expression...

  • Page 7: Features

    HDCD encoded CDs sound better because they are Surround II (Cinema and Music). encoded with 20-bits of real musical information as In addition, Marantz has focused on the future. By compared to 16-bits for all other CDs. utilizing pre-out jack, 7.1 direct inputs the SR3001 is...

  • Page 8: Front Panel

    FRONT PANEL o !0 AV SURROUND RECEIVER SR3001 INPUT SELECTOR DISP MULTI AUTO TUNED V – OFF NIGHT PEAK ANALOG DIGITAL SLEEP AUTO SURR DIRECT DISC 6.1 MTX 6.1 SURROUND PURE SIMPLE MODE DIRECT SETUP DISPLAY 7.1CH INPUT S. SPEAKER B STANDBY ENTER AUTO...

  • Page 9: Fl Display

    HEADPHONE jack for stereo FL DISPLAY headphones This jack may be used to listen to the SR3001’s output through a pair of headphones. Be certain that the headphones have a standard 1 / 4" stereo phono plug. Note that the main room speakers will automatically be turned off when the headphone jack is in use.

  • Page 10: Rear Panel

    AM antenna and ground terminals Connect the supplied AM loop antenna. Use the terminals marked “AM” and “GND”. The supplied AM Connect to a Marantz component equipped with loop antenna will provide good AM reception in most remote control (RC-5) terminals.

  • Page 11: Remote Control Operation

    Transmitting indicator REMOTE CONTROL Lights up during a button is pressed and an infra- red signal is sending. OPERATION (Main) POWER buttons FUNCTION AND OPERATION (when AMP mode is selected) The provided remote control unit is a universal Press to switch the power of the SR3001 ON or remote controller.

  • Page 12: Programming The Remote Controller

    ¤1 PURE DIRECT button PROGRAMMING THE REMOTE CONTROLLER When this button is pressed, the tone control circuit The remote controller RC5500SR must be is bypassed. programmed to use the codes for your appliances of different brands. This is done by keying in a 4-digit ¤2 SETUP / T.TONE button code or by scanning the codes until the correct one is...

  • Page 13: Operation Of Remote Control Unit

    LOADING BATTERIES OPERATION OF REMOTE CONTROL UNIT The life of the batteries used with the remote control REMOTE CONTROL is about 4 months with normal use. Also be sure to replace batteries earlier when you notice that they are The distance between the transmitter of the remote getting weak.
  • Page 14 THE CONTRABLE FUNCTION TABLE POWER POWER POWER VCR1 DSS/VCR2 CALL UP MENU TUNER TAPE CDR/MD MENU AUX1 Cursor Cursor MAIN VOL. SLEEP MUTE VOL. ENTER MENU SETUP/T.TONE – ENTER SET UP/ MENU OFF MENU OFF – T.TONE PURE DIRECT AUTO NIGHT CSII EX/ES...

  • Page 15: Connections

    Surround left and right speakers CONNECTIONS When the SR3001 is used in surround operation, the preferred location for surround speakers is on the side walls of the room, at or slightly behind the SPEAKER PLACEMENT listening position. The center of the speaker should face into the room. The ideal surround speaker system for this unit is 7-speaker systems, using front left and right Surround back left and right speakers...

  • Page 16: Connecting Audio Components

    Caution: CONNECTING AUDIO COMPONENTS • Be sure to use speakers with the specifi ed impedance as shown on the rear panel of this unit. • To prevent damage to circuitry, do not let the bare speaker wires touch each other and do not let them touch any metal part of this unit.

  • Page 17: Connecting Video Components

    CONNECTING VIDEO COMPONENTS VIDEO PROJECTOR DVD player COMPONENT S-VIDEO COMPONENT VIDEO AUDIO S-VIDEO DIGITAL VIDEO IN VIDEO OUT RC-5 VIDEO VIDEO VIDEO MONITOR VCR1 VCR1 MONITOR MONITOR DSS / VCR2 VCR1 VCR1 CDR/MD DSS / VCR2 VCR1 VCR1 7.1CH INPUT AUDIO AUDIO DIGITAL INPUT...

  • Page 18: Advanced Connecting

    Therefore you only need to aim the remote at one unit. Also, if a Marantz power amplifi er (some models excluded) is connected to one of these terminals, the power amplifier’s, power switch is synchronized with this unit’s power switch.

  • Page 19: Connecting The Antenna Terminals

    CONNECTING THE ANTENNA TERMINALS AM Loop Antenna FM External Antenna Antenna VIDEO FM (75Ω) FM (75Ω) MONITOR VCR1 MONITOR ANTENNA ANTENNA DSS / VCR2 VCR1 TAPE CDR/MD DSS / VCR2 VCR1 7.1CH INPUT AUDIO FRONT SURROUND BACK SURROUND CENTER SUBWOOFER S.

  • Page 20: Setup

    MENU STRUCTURE SETUP After all components are connected, initial setup must be performed. SETUP MENU SYSTEM The SR3001 incorporates an menu on the front display, which makes various operations possible by using the cursor (3, 4, 1, 2) and ENTER buttons. ENTER THE DESIRED MENU ITEM OF THE SETUP MENU 3.

  • Page 21: Simple Setup

    SIMPLE SETUP MENU STRUCTURE of Simple Setup You can setup the speaker conditions quickly with SIMPLE SETUP SIMPLE SETUP menu. In this menu, the number of speakers and speaker delay time can be set. These settings can be changed more detail in “2. SPEAKER”...

  • Page 22: Speaker Setup

    If you fi nish these setup, press the 3 or 4 cursor button to select “TO MAIN MENU” then press the ENTER button to return the SETUP MENU. Or press the 1 or 2 cursor button to select “EXIT” then press the ENTER button to exit the SETUP MENU.
  • Page 23 2-2. SPEAKERS DISTANCE L&R : Set the distance from the front left and right Use this parameter to specify the distance of each speakers to your normal listening position between speaker’s position from the listening position. The 1 and 30 feet in 1.0 foot interval (0.3 to 9 meters in delay time is automatically calculated according to 0.3-meter intervals).
  • Page 24 2-3. SPEAKERS LEVEL SETTING WITH TEST TONE Here you will set the volume for each speaker so that they are all heard by the listener at the same level. Moreover, if the T.TONE button is pressed, unit can enter into this menu directly. Note: The speaker level settings are not available in 7.1 Channel Input mode, CS mode and Multi Channel...

  • Page 25: Preference

    3. PREFERENCE When you select “TO MAIN MENU” by pressing the 3 or 4 button, you can return the SETUP MENU by pressing the ENTER button. 1. 4. 3. 4. 2. 4. Or press the 1 or 2 cursor button to select “EXIT”...

  • Page 26: Pl Ii (Dolby Pro Logic Ii ) Music Parameter

    C WIDTH: 5. PL II (DOLBY PRO LOGIC II ) MUSIC PARAMETER Pro Logic II-Music mode creates a rich and enveloping surround ambience from stereo sources such as CDs. In this mode, SR3001 includes three controls to fi ne- tune the soundfi eld as follows. 1.

  • Page 27: Basic Operation (Play Back)

    SELECTING THE SURROUND MODE BASIC OPERATION Example : AUTO SURROUND (PLAY BACK) SELECTING AN INPUT SOURCE Before you can listen to any input media, you must fi rst select the input source on the SR3001. 7.1CH INPUT Example : DVD STANDBY POWER ON/OFF AV SURROUND RECEIVER SR3001...

  • Page 28: Surround Mode

    2 MODE SURROUND MODE (Dolby Digital, Pro Logic IIx MOVIE, Pro Logic IIx The SR3001 is equipped with many surround modes. MUSIC, Pro Logic IIx GAME, Pro Logic) These are provided to reproduce a variety of surround This mode is used with source materials encoded in sound effects, according to the content of the source Dolby Digital and Dolby Surround.
  • Page 29 VIRTUAL CAUTION This mode creates a virtualized surround sound NOTE for DTS signal experience from a two-speaker (front L and R) playback * Connected DVD-player, laser-disc player or CD- system playing any multichannel audio source (such as player needs to support DTS-digital output. You found on DVDs and digital broadcasts), including Dolby may not be able to play some DTS source signals Digital, Dolby Pro Logic or DTS.
  • Page 30 The relation between the selected surround mode and the input signal The surround mode is selected with the surround AUTO mode selector on SR3001 or the remote control unit. However, the sound you hear is subject to the relationship between the selected surround mode and input signal.

  • Page 31: Other Function

    LISTENING THROUGH HEADPHONES OTHER FUNCTION This jack may be used to listen to the SR3001’s output through a pair of headphones. Be certain that the ATTENUATION TO ANALOG INPUT SIGNAL headphones have a standard 1/4" stereo phono plug. (Note that the speakers will automatically be turned off BASS TREBLE TUNE/SEARCH...

  • Page 32: Recording An Analog Source

    Recording the video from one source and the RECORDING AN ANALOG SOURCE audio from another You can add the sound from one source to the In normal operation, the audio or video source video of another source to make your own video selected for listening through the SR3001 is sent to recordings.

  • Page 33: 7.1 Ch Input Level

    7.1 CH INPUT LEVEL If it is necessary to adjust the output level of each channel, press the CH.SEL button on the This menu is to adjust the speaker levels for 7.1- remote. channel input sources. Adjust the speaker output levels so that you can Here you will adjust the volume for each channel so hear the same sound level from each speaker that they are all heard by the listener at the same...

  • Page 34: Basic Operation (Tuner)

    MANUAL TUNING BASIC OPERATION (TUNER) LISTENING TO THE TUNER Frequency scan step for AM is selectable. Default setup is 9 kHz step, if your country’s standard RROUND MODE is 10 kHz step, Press TUNER button on the remote AUTO more than 6 seconds. Scan step will change. Note: Preset memory for the tuner will clear by changing (Using the SR3001)
  • Page 35 (Using the remote control unit) PRESET SCAN Tune into the radio station you desire (Refer to the “MANUAL TUNING” or “AUTO TUNING” section). Press the MEMO button on the remote. “– –“ (preset number) starts blinking on the display. Enter the desired preset number by pressing the numeric buttons.

  • Page 36: Rds Operation

    RDS data, the Front Panel Information Display will automatically show the station name or RADIO TEXT in place of the typical display of the station’s broadcast frequency. R3001 To change the display, press the RDS button on the remote. CHANNEL/SKIP...

  • Page 37: Surround Speaker B System

    Notes for SURROUND SPEAKER B SURROUND • SURROUND SPEAKER B On/ Off is available in main room only. SPEAKER B SYSTEM • SURROUND SPEAKER B output terminals can be used when the SURROUND BACK SPEAKER is set The Surround Speaker B system is a function which NONE in SPEAKER SETUP menu.

  • Page 38: Troubleshooting

    If your trouble cannot be recovered with the remedy actions listed in the following table, malfunction of the internal circuitry is suspected; immediately unplug the power cable and contact your dealer, nearest Marantz authorized dealer or the Marantz Service Center in your country.

  • Page 39: Technical Specifications

    GENERAL MALFUNCTION TECHNICAL If the equipment malfunctions, this may be because an electrostatic discharge or AC line interference has SPECIFICATIONS corrupted the information in the equipment memory circuits. Therefore: FM TUNER SECTION disconnect the plug from the AC line supply Frequency Range ...87.5 - 108.0 MHz after waiting at least three minutes, reconnect Usable Sensitivity ...IHF 1.8 µV/16.4 dBf...
  • Page 40 Luxman ... 0120 Classic ... 0324 LXI ... 0332 Fisher ... 0352 Magnavox ... 0184, 0332 Harman/Kardon ... 0229 Marantz ... 0999, 0056, 0184 JVC ... 0321 MCS ... 0056 Kenwood ... 0999 Miro ... 0027 Marantz ... 0999 Mission ... 0184 Philips ...
  • Page 41 LXI ... 0074, 0081, 0181, 0183, 0205 Changhong ... 0792 Magnavox ... 0081, 0057, 1481, 0733, 1281 Citizen ... 0087, 0057, 0119 Marantz ... 0081, 0057, 1581, 0731 Clarion ... 0207 Matsushita ... 0277, 0677 Contec ... 0207 Megatron ... 0205, 0172 Craig ...
  • Page 42 Shogun ... 0267 Koss ... 0678 Sonic Blue ... 0643 Magnavox ... 0530, 0848 Sony ... 0062, 0059, 0060, 0027, 1259, 0663 Marantz ... 0566 STS ... 0069 Memorex ... 0722 Sylvania ... 0062, 0108, 0027, 0070, 1808 Microsoft ... 0549 Symphonic ...
  • Page 43 You can find your nearest authorized distributor or dealer on our website. is a registered trademark. Printed in China 09/2006 00M23CW851310 ecmf-e...
