a
Machine & wood screws
Bolts & Nuts,
Tapper
~~~~~
Self drilling screws
(steel)
Uni-Drill
Overall
Net
No load
~~~~
1
length
I
weight
10 mm
(3/8")
MODEL 6000LR
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC I FI CAT IO N S
CaDacities
* Manufacturer reserves the right t o change specifications w i t h o u t notice.
*
Note: Specifications may differ from country t o country.
Advertisement
Related Manuals for Makita UNI-DRILL 6000LR
Summary of Contents for Makita UNI-DRILL 6000LR

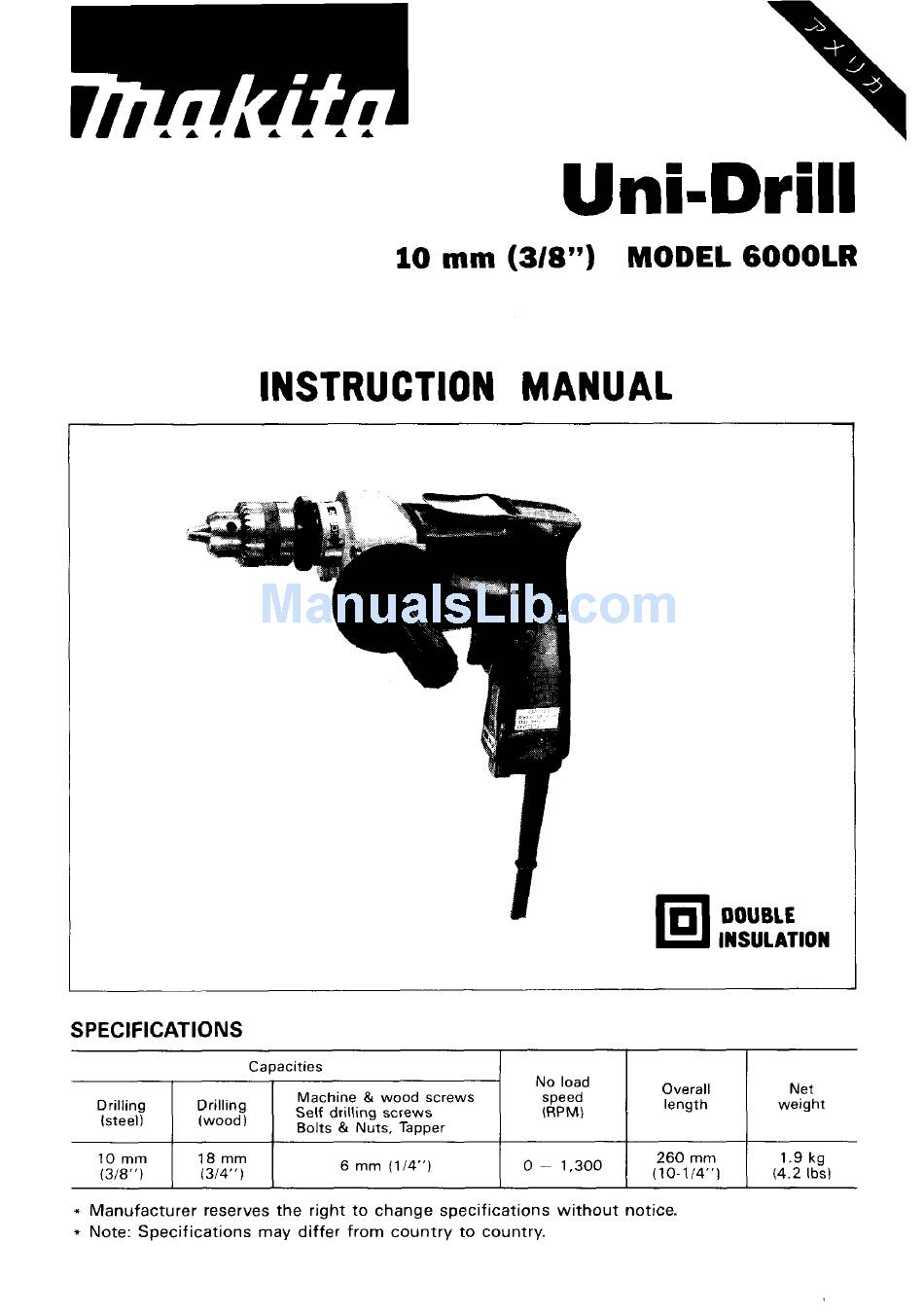

- Page 1 Uni-Drill 10 mm MODEL 6000LR (3/8") INSTRUCTION MANUAL DOUBLE INSULATION SPEC I FI CAT IO N S CaDacities No load Overall Machine & wood screws length weight Self drilling screws ~~~~ (steel) ~~~~~ Bolts & Nuts, Tapper * Manufacturer reserves the right t o change specifications w i t h o u t notice.
-
Page 2: Important Safety Instructions
SAFETY INSTRUCTIONS WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE- TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER- SONAL INJURY, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT. - Page 3 13. DISCONNECT TOOLS. When not in use, before servicing, and when chang- ing accessories, such as blades, bits, cutters. 14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning 15.
-
Page 4: Additional Safety Rules
"live" wire. 5. Do not leave the tool running. Operate the tool only when hand-held. 6. Do not touch the drill bit or the workpiece immediately after operation: they may be extremely hot and could burn your skin. - Page 5 Selecting action mode For drilling, turn the change ring so that the red dot i s aligned with the DRILL marking on the collar. If the change ring will not come all the way, grasp the chuck and turn the change ring again. Do not move the red dot beyond the DRILL mark- ing.
- Page 6 Installing or removing drill bit or driver bit CAUTION : Always be sure that the tool i s switched off and unplugged before installing or removing the bit. To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand.
- Page 7 Turn the change ring so that the red dot is aligned with the DRILL marking. Drilling in wood When drilling holes in the wood, use a wood drill with a guide screw. The guide screw makes it bore naturally by itself,...
- Page 8 When this occurs, both carbon brushes should be replaced. To maintain product SAFETY and RELlABl LITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.
- Page 9 C A U T I O N : These accessories or attachments are recommended for use w i t h your Makita t o o l specified in this manual. The use of any other accessories or attachments might present a risk of injury t o persons. The...
- Page 10 O e c . - 2 0 - 8 3 (3/8") UNI-DRILL Model 6000LR Note: The switch, noise suppressor and other part configurations may differ from country to country.
- Page 11 MODEL 6000LR ITEM DESCRIPTION USED MACHINE Drill Chuck S10 Change Ring Ring Gear Housing Flat Washer 16 Spindle Compression Spring 9 Helical Gear 56 Woodruff Key Gear Shaft Thrust Needle Bearing 1023 Gear Housing Cover Flat Washer 6 Gear Complete 1 5 - 3 8...
- Page 12 1’ MAKITA LIMITED ONE YEAR WARRANTY Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
