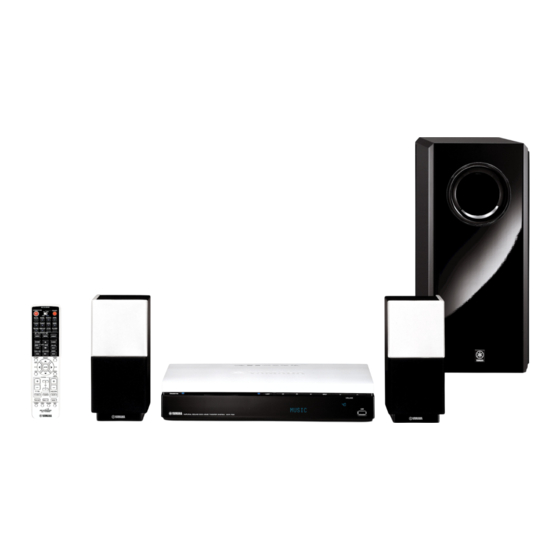

Yamaha DVX-700 Service Manual

Dvd controller dvr-700 subwoofer / system control ns-psw700 speakers ns-p700
Hide thumbs Also See for DVX-700:

Advertisement

DVD CONTROLLER
SUBWOOFER / SYSTEM CONTROL
* The DVX-700 consists of the DVR-700, NS-PSW700 and NS-P700.
When accepting a repair order from the user, it is recommended to receive DVR-700, NS-PSW700 and NS-P700
as a set for the repair work.
* When DVD MODULE P.C.B. of the DVR-700 is replaced, the serial number and new device key (ID number)
MUST be reported to YCJ (Yamaha Corporation Japan) by email.
Email: ycav-keycontrol@gmx.yamaha.com
For more information, refer to "SERVICE PRECAUTIONS".
本资料由OKXIA视听皮带资源库www.okxia.cn提供
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifi cally YAMAHA Products, are already known
and understood by the users, and have therefore not been restated.
WARNING:
IMPORTANT:
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and
specifi cations are subject to change without notice or obligation to retrofi t. Should any discrepancy appear to exist, please contact the
distributor's Service Division.
WARNING:
IMPORTANT:
■ CONTENTS
TO SERVICE PERSONNEL ........................................2-3
REGION MANAGEMENT INFORMATION .....................5
SYSTEM COMPOSITION ................................................5
FRONT PANELS .........................................................6-8
REAR PANELS ......................................................... 9-10
REMOTE CONTROL PANELS ..................................... 11
SPECIFICATIONS ................................................... 12-14
INTERNAL VIEW .......................................................... 15
SERVICE PRECAUTIONS ...................................... 16-17
DVR-700 DISASSEMBLY PROCEDURES ............. 18-20
1 0 1 1 2 0
DVD HOME THEATER SYSTEM
SERVICE MANUAL
IMPORTANT NOTICE
Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specifi ed. For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative.
The presentation or sale of this manual to any individual or fi rm does not constitute authorization, certifi cation or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
UPDATING FIRMWARE ..........................................24-37
SELF-DIAGNOSTIC FUNCTION ............................38-63
DISPLAY DATA .......................................................64-65
IC DATA ...................................................................66-83
PIN CONNECTION DIAGRAMS .............................84-86
BLOCK DIAGRAMS ................................................87-89
PRINTED CIRCUIT BOARDS .................................90-98
SCHEMATIC DIAGRAMS ..................................... 99-106
REPLACEMENT PARTS LIST .............................107-117
REMOTE CONTROL ............................................118-119
SYSTEM MENU ........................................................... 120
Copyright © 2008
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.
DVX-700
DVR-700
NS-PSW700
NS-P700
SPEAKERS
All rights reserved.
P.O.Box 1, Hamamatsu, Japan
animate '08.12

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha DVX-700

  • Page 1: Table Of Contents

    This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifi cally YAMAHA Products, are already known and understood by the users, and have therefore not been restated.
  • Page 2: To Service Personnel

    DVR-700/NS-PSW700/NS-P700 ■ TO SERVICE PERSONNEL AC LEAKAGE 1. Critical Components Information WALL EQUIPMENT TESTER OR Components having special characteristics are marked OUTLET UNDER TEST EQUIVALENT must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify INSULATING that all exposed conductive surfaces are properly insulated...
  • Page 3 DVR-700/NS-PSW700/NS-P700 Laser Emitting conditions: 1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the “ON” position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick-up unit.
  • Page 4: Prevention Of Electrostatic Discharge

    DVR-700/NS-PSW700/NS-P700 ■ PREVENTION OF ELECTROSTATIC DISCHARGE Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).
  • Page 5: Region Management Information

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. ■ SYSTEM COMPOSITION The DVX-700 consists of the DVR-700, NS-PSW700 and NS-P700. DVX-700 ▼ NS-PSW700 ▼ NS-P700 L / R ▼ DVR-700...
  • Page 6: Front Panels

    DVR-700/NS-PSW700/NS-P700 ■ FRONT PANELS DVR-700 U, C, A, G, F, L, V models (U, C model) (A, G, F, L, V models) ▼ Top view ▼ Front view POWER indicators...
  • Page 7 DVR-700/NS-PSW700/NS-P700 NS-PSW700 U, C, A, G, F, L, V models ▼ Top view ▼ Front view ▼ Side view...
  • Page 8 DVR-700/NS-PSW700/NS-P700 NS-P700 ▼ Top view ▼ Top view NS-P700 L NS-P700 R ▼ Side view ▼ Front view ▼ Side view ▼ Side view ▼ Front view ▼ Side view...
  • Page 9: Rear Panels

    DVR-700/NS-PSW700/NS-P700 ■ REAR PANELS DVR-700 U, C, A, G, F, L, V models U, C models A model G model F model L, V models...
  • Page 10 DVR-700/NS-PSW700/NS-P700 NS-PSW700 U, C, A, G, F, L, V models A model L model U, C models G, F models V model U, C models U, C models NS-P700 U, C, A, G, F, L, V models NS-P700 L NS-P700 R...
  • Page 11: Remote Control Panels

    DVR-700/NS-PSW700/NS-P700 ■ REMOTE CONTROL PANELS U, C models A, L, V models G, F models...
  • Page 12: Specifications

    DVR-700/NS-PSW700/NS-P700 ■ SPECIFICATIONS DVR-700 NS-P700 ■ Input/Output Section ■ Speaker Section Type ..........Magnetic shielding type Input Terminal Others ................USB Driver Woofer ......... 5.5 cm (2-3/16") cone type x 2 Output Terminal Tweeter ......2.5 cm (1") balanced dome type x 1 Video ............VIDEO (composite) Frequency Response COMPONENT (Y, P...
  • Page 13 Bluetooth is a registered trademark of Bluetooth SIG and is used by Indoor FM antenna (1.4 m) ..........x 1 Yamaha in accordance with a license agreement. Speaker cable ass’y (4 m) ..........x 2 System cable (4 m) ............x 1 Windows Media is either a registered trademark or trademark of Video pin cable (1.5 m) ..........
  • Page 14 DVR-700/NS-PSW700/NS-P700 • DIMENSIONS DVR-700 ▼ Front view ▼ Side view 360 (14-3/16") 224 (8-13/16") Unit: mm (inch) NS-PSW700 ▼ Front view ▼ Side view 194 (7-5/8") 400 (15-3/4") 71.5 (2-13/16") Unit: mm (inch) NS-P700 ▼ Upright position ▼ Horizontal position Front view Side view Rear view...
  • Page 15: Internal View

    DVR-700/NS-PSW700/NS-P700 ■ INTERNAL VIEW DVR-700 Front view OPERATION (4) P.C.B. DVD MECHANISM UNIT OPERATION (3) P.C.B. OPERATION (2) P.C.B. FRONT (2) P.C.B. OPERATION (1) P.C.B. OPERATION (6) P.C.B. OPERATION (5) P.C.B. FRONT (1) P.C.B. DVD MODULE P.C.B. Rear view NS-PSW700 Side view Rear view DRIVER WOOFER...
  • Page 16: Service Precautions

    DVR-700/NS-PSW700/NS-P700 ■ SERVICE PRECAUTIONS When DVD MODULE P.C.B. of the DVR-700 is replaced, the serial number and new ID number (device key) must be re- ported to YCJ (Yamaha Corporation Japan) by email. (Fig. 1) Email: ycav-keycontrol@gmx.yamaha.com ycav-keycontrol@gmx.yamaha.com ycav-keycontrol@gmx.yamaha.com Model name...
  • Page 17 DVR-700/NS-PSW700/NS-P700 ● Check the New ID Number (Device key) Connection Connect the VIDEO OUT terminal of DVR-700 to the VIDEO IN terminal of the TV monitor with a video pin cable. Operation Procedure Perform following steps while watching the TV monitor screen and using the keys on the remote control.
  • Page 18: Disassembly Procedures

    DVR-700/NS-PSW700/NS-P700 ■ DVR-700 DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) 1. Removal of Top Cover 2. Removal of Frame Top a. Remove 3 screws ( ). Remove the side panel L. (Fig. 1) a. Remove 7 screws ( ).
  • Page 19 DVR-700/NS-PSW700/NS-P700 3. Removal of FRONT (1) P.C.B. 4. Removal of Front Panel Ass’y a. Remove 4 screws ( ). (Fig. 3) a. Remove 3 screws ( ) and screw ( ). (Fig. 3) b. Release a hook. Remove the front panel ass’y. (Fig. 3) b.
  • Page 20 DVR-700/NS-PSW700/NS-P700 5. Removal of DVD Mechanism Unit and DVD module P.C.B. a. Remove 6 screws ( ) and 2 screws ( ). (Fig. 5) b. Remove the DVD mechanism unit , DVD module P.C.B. and frame PCB together. (Fig. 5) c.
  • Page 21: Ns-Psw700 Disassembly Procedures

    DVR-700/NS-PSW700/NS-P700 ■ NS-PSW700 DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) Disconnect the power cable from the AC outlet. 1. Removal of Side Grille Ass’y The side grille ass’y is fixed to the NS-PSW700 Note: cabinet ass’y with dowels at 7 locations. As a •...
  • Page 22 DVR-700/NS-PSW700/NS-P700 3. Removal of Cover If the cover (accessory) is installed, remove it first. a. Remove 6 screws ( ). (Fig. 3) Screws ( ) are identified with arrow marks (COVER b. Remove the cover. (Fig. 3) Cover Rear panel ass'y CB802 Fig.
  • Page 23 DVR-700/NS-PSW700/NS-P700 5. Removal of Chassis Cover Ass’y a. Remove 14 screws ( ) and 6 screws ( ). (Fig. 4) b. Remove the chassis cover ass’y. (Fig. 4) Chassis cover ass'y Fig. 4 When checking the P.C.B.s: • Spread the rubber sheet and the cloth. Then place the rear panel ass’y on the cloth and check it.
  • Page 24: Updating Firmware

    DVR-700/NS-PSW700/NS-P700 ■ UPDATING FIRMWARE When replacing the following parts, be sure to write the latest firmware. Write the latest firmware to Replaced parts Main Sub- Module Board Microprocessor Microprocessor MAIN P.C.B. (NS-PSW700) IC500 (Main microprocessor) of MAIN P.C.B. (NS-PSW700) IC303 (DSP (TI) flash ROM) of MAIN P.C.B. (NS-PSW700) FRONT P.C.B.
  • Page 25: Connection Diagrams

    DVR-700/NS-PSW700/NS-P700 ● Connection Diagrams NS-PSW700 rear panel Writing port Serial port (RS232C) RS232C conversion adaptor RS232C cross cable Flexible flat cable (9P) SW301 SW301 FLASH FLASH OTHER OTHER UCOM UCOM For main microprocessor For DSP Connection Diagram 1 Tighten the screws. NS-PSW700 Tighten the screws.
  • Page 26 DVR-700/NS-PSW700/NS-P700 DVR-700 rear panel Writing port Serial port (RS232C) RS232C conversion adaptor RS232C cross cable Flexible flat cable (9P) SW301 FLASH OTHER UCOM Connection Diagram 3...
  • Page 27 DVR-700/NS-PSW700/NS-P700 Writing to the Main Microprocessor Connection Connect the writing port of NS-PSW700 to the serial port (RS232C) of the PC with RS232C cross cable, RS232C conversion adaptor and flexible flat cable. (See connection diagram 1) Set the switch (SW301) of RS232C conversion adaptor to the “FLASH UCOM” side. (See connection diagram 1) Operation procedures Start up “DSP_FLASHER_v3.0.exe”.
  • Page 28 DVR-700/NS-PSW700/NS-P700 Click [E.P.] to start writing. (Fig. 2) When writing is completed, “Program Finished!” is displayed. (Fig. 2) Click [OK]. (Fig. 3) Click [EXIT] to end “DSP FLASHER_v3.0.exe”. (Fig. 2) Fig. 2 Disconnect the power cable of the NS-PSW700 from the AC outlet.
  • Page 29 DVR-700/NS-PSW700/NS-P700 Writing to DSP Connection Connect the writing port of the NS-PSW700 to the serial port (RS232C) of the PC with RS232C cross cable, RS232C conversion adaptor and flexible flat cable. (See connection diagram 1) Set the switch (SW301) of RS232C conversion adaptor to the “OTHER” side. (See connection diagram 1) Connect the DVR-700 and the NS-PSW700 with the system cable (D-sub 15pin cable) supplied with this unit.
  • Page 30 DVR-700/NS-PSW700/NS-P700 Select the firmware. Click [...]. (Fig. 2) Select “DVX700_data1_verx_xx.hex”. (Fig. 2) Check to make sure that the serial port is open. If “COM x opened!” is not displayed, it is possible that 232C port of the PC has a problem. When the hex file is loaded The checksum of the ROM code is displayed in the frame of “SUM from FILE”...
  • Page 31 DVR-700/NS-PSW700/NS-P700 Click [RDY]. (Fig. 3) Fig. 3 Select the writing mode from "15-1 DSP STBY" by pressing the “ ▶ (right) ” (Forward) key. Writing starts automatically. (Fig. 4) Fig. 4...
  • Page 32 DVR-700/NS-PSW700/NS-P700 10. When writing is completed, “Vx61 DSP Flash finished!” is displayed. (Fig. 5) The power of this unit turns off/on automatically. 11. Click [EXIT] to end “DSP_FLASHER Ver2.7.exe”. (Fig. 5) When writing is completed, “Vx61 DSP Flash finished!” is displayed. Fig.
  • Page 33 DVR-700/NS-PSW700/NS-P700 Writing to Sub-Microprocessor Connection Connect the writing port of the DVR-700 to the serial port (RS232C) of the PC with RS232C cross cable, RS232C conversion adaptor and flexible flat cable. (See connection diagram 3) Set the switch (SW301) of RS232C conversion adaptor to the “FLASH UCOM” side. (See connection diagram 3) Connect the DVR-700 and NS-PSW700 with the system cable (D-sub 15pin cable) supplied with this unit.
  • Page 34 DVR-700/NS-PSW700/NS-P700 “ID Check” is displayed. (Fig. 3) Click [Refer...], and select “D700S_xxxx.mot”. (Fig. 3) The ID code and MCU type are loaded when the file is selected. (Fig. 3) Click [OK]. (Fig. 3) When [Refer...] is clicked, the open file screen is displayed. Select the firmware “D700S_xxxx.mot”.
  • Page 35 DVR-700/NS-PSW700/NS-P700 10. “M16C Flash Start” is displayed. (Fig. 4) Click [E.P.R...], then “Erase OK?” is displayed. (Fig. 4) Click [OK], then writing is started. (Fig. 4) 11. When writing is completed, “Program OK.” is displayed. (Fig. 4) Click [OK]. (Fig. 4) 12.
  • Page 36 DVR-700/NS-PSW700/NS-P700 Writing to the Module Board Connection Connect the DVR-700 and NS-PSW700 with the system cable (D-sub 15pin cable) supplied with this unit. (See connection diagram 3) Connect the VIDEO OUT terminal of the DVR-700 to the VIDEO IN terminal of the TV monitor with a video pin cable. Operation procedures Connect the power cable of the NS-PSW700 to the AC outlet.
  • Page 37 DVR-700/NS-PSW700/NS-P700 Confirmation of Firmware Version Press the “STANDBY/ON” key of this unit to turn on the power. Press the “DVD/USB” key on the remote control to select the input DVD/USB. Press the “SETUP” key on the remote control. The SETUP menu is displayed on the TV monitor screen. (Fig. 3) Move the cursor to [Initial Settings] by pressing the “DOWN”...
  • Page 38: Self-Diagnostic Function

    DVR-700/NS-PSW700/NS-P700 ■ SELF-DIAGNOSTIC FUNCTION This unit has self-diagnostic functions that are intended for inspection, measurement and location of faulty point. There are 22 main menu items, each of which has sub-menu items. Listed in the table below are menu items and submenu items. Note that not all menu items listed will apply to the models covered in this service manual.
  • Page 39 DVR-700/NS-PSW700/NS-P700 Main menu Sub-menu 17 SWFR CROSS OVER CRSOVR 40Hz CRSOVR 60Hz CRSOVR 80Hz CRSOVR 90Hz CRSOVR 100Hz CRSOVR 110Hz CRSOVR 120Hz CRSOVR 160Hz CRSOVR 200Hz 18 FACTORY PRESET INHIBIT RESERVED 19 SWEEP TEST SWEEP TEST (Not applied to this model) 20 XM TEST 1k - 1dB/44 1k -61dB/44...
  • Page 40 DVR-700/NS-PSW700/NS-P700 ● Connection 1. Connect the DVR-700 and NS-PSW700 with the system cable (D-sub 15pin cable) supplied with this unit as shown in the figure below. 2. Connect the power cable of the NS-PSW700 to AC outlet. NS-PSW700 Tighten the screws. Tighten the screws.
  • Page 41 DVR-700/NS-PSW700/NS-P700 ● Starting Self-Diagnostic Function With this unit in the standby mode, press the keys on the remote control in the order as shown below. The self-diagnostic function mode is activated and an opening message (the protection history) appears for a few seconds followed by the main menu display (1-1 VOL 1).
  • Page 42 DVR-700/NS-PSW700/NS-P700 ● Starting Self-Diagnostic Function in the protection cancel mode If the protection function works and causes hindrance to trouble diagnostic, cancel the protection function as described below, and it will be possible to enter the self-diagnostic function mode. (The protection functions other than the excess current detect function will be disabled.) With this unit in the standby mode, press the keys on the remote control in the order as shown below.
  • Page 43 DVR-700/NS-PSW700/NS-P700 ● Canceling Self-Diagnostic Function 1. Before canceling self-diagnostic function, execute setting for FACTORY PRESET of main menu No. 18 (Memory initialization inhibited or Memory initialized). In order to keep the user memory stored, be sure to select INIT INHI (Memory initialization inhibited). 2.
  • Page 44 DVR-700/NS-PSW700/NS-P700 ● Details of Self-Diagnostic Function menu 1. DSP THROUGH 2. MUTE CHECK The output level can be selected by using sub- The output level can be selected by using sub- menu. menu. The signal is output in digital full-bit without The signal is output in digital full-bit without including the head margin.
  • Page 45 DVR-700/NS-PSW700/NS-P700 3. VFD CHECK This menu is used to check the FL and FL driver. Using the sub-menu, the display varies as shown below. All segments ON (dimmer 100 %) 3-1 ALL ON All segments OFF 3-2 ALL OFF All segments ON (dimmer 50 %) 3-3 DIMMER Lighting of segments in lattice 3-4 PATTERN...
  • Page 46 DVR-700/NS-PSW700/NS-P700 4. TEST TONE The built-in noise generator outputs the test tone through the channels specified by the sub-menu. The noise frequency for LFE (SUBWOOFER) is 35 to 80 Hz. Other than that, the noise frequency is 500 to 2 kHz. All OUT A test tone is output from all the speakers.
  • Page 47 DVR-700/NS-PSW700/NS-P700 5. DTS TEST 6. SPEAKER SELECT Not applied to this model. Not applied to this model. L: N / R: N SP SMALL 5 - 1 L : N R : N S P S M A L L L: LF / R: RF SP LARGE 5 - 2 L : L F R : R F...
  • Page 48 DVR-700/NS-PSW700/NS-P700 7. AD CHECK This menu is used to display the A/D conversion value of the microprocessor which detects panel keys of this unit and protection functions by using the sub-menu. DC: / 5S: DC voltage of speaker output Normal value: 82 to 173 (Reference voltage: 5.0 V=255) Detection for AD port: DC_PRT...
  • Page 49 DVR-700/NS-PSW700/NS-P700 12: / 7i: Power supply voltages +12D, +12A and +10T (for digital amplifier/analog audio) Normal value: 106 to 162 (Reference voltage: 5.0 V=255) Detection for AD port: PRV_12 (125 pin of main microprocessor IC500 of MAIN P.C.B.) Power supply voltage +7i (for DOCK) Normal value: 64 to 181 (Reference voltage: 5.0 V=255)
  • Page 50 DVR-700/NS-PSW700/NS-P700 3: / 1P2: Power supply voltage +3.3D (for digital circuit) Normal value: 86 to 141 (Reference voltage: 5.0 V=255) Detection for AD port: PRV_3.3 (136 pin of main microprocessor IC500 of MAIN P.C.B.) 1P2: Power supply voltage +1.2D (for DSP IC) Normal value: 42 to 81 (Reference voltage: 5.0 V=255) Detection for AD port: PRV_1.2...
  • Page 51 DVR-700/NS-PSW700/NS-P700 DOC: DOCK: DOCK type (Reference voltage: 5.0 V=255) D O C : 2 5 5 DOCK detection for AD port (IC500 Microprocessor pin no. 133) Pull-up resistance 10 k-ohms DOCK DOCK DOCK type Reserved Reserved Reserved (Development) No connect (Bluetooth) (iPod) 0.56k...
  • Page 52 DVR-700/NS-PSW700/NS-P700 8. DEVICE CHECK The communication between devices and register access are checked automatically. When an error is found, corresponding error message is displayed as shown below. No error detected. 8 N O E R R O R Error detection of DIR/CODEC (IC1). 8 E R R D I R Error detection of DSP (IC303).
  • Page 53 DVR-700/NS-PSW700/NS-P700 10. SET DESTINATION This menu is used to write the destination information in EEPROM. Caution: After replacing MAIN P.C.B. or EEPROM (IC501 MAIN P.C.B.), be sure to change the destination setting using this main menu. If the destination setting is not changed, “UNKNOWN DEST” is displayed and proper operation is not available.
  • Page 54 DVR-700/NS-PSW700/NS-P700 11. CPU INFORMATION The information on main microprocessor (CPU), DSP, sub-microprocessor (SUB-CPU), XM (U, C models), SIRIUS (U, C models) and destination are displayed. 11-1 CPU version 11-7 XM version (U, C models) The firmware version of the microproces- The firmware version of XM is displayed.
  • Page 55 DVR-700/NS-PSW700/NS-P700 12. EMC TEST The signal is output in digital full-bit without including the head margin. Select the input using the INPUT key (INPUT1 for default). Output can be adjusted in the range of master volume control from -90 to 0 dB. E M C V O L 13.
  • Page 56 DVR-700/NS-PSW700/NS-P700 14. ERROR INFORMATION The error information is displayed up to latest 4 errors. When the same error is repeated, it is ignored. This information is retained until sub-menu 14-5 is selected or EEPROM is initialized. 14-1 to 14-4 ERROR INFORMATION NO ERROR 1 4 - 1 N o P R T Digital Amp TAS5342 (IC801, IC802 MAIN P.C.B.) over-temperature.
  • Page 57 DVR-700/NS-PSW700/NS-P700 Abnormal voltage level. VDET (for DVR-700 DVD module) 1 4 - 1 S D V D x x x x x Over-temperature of DVR-700. (Not applied to this model.) 1 4 - 1 S T E _ 1 x x x x 14-5 RST HIST ! When you select this menu and press the “ENTER”...
  • Page 58 DVR-700/NS-PSW700/NS-P700 16. DOCK CHECK This menu is used to check the DOCK connector without the iPod itself. With the power to this unit turned off, short between pins No.14 (TX) and No. 18 (RX), between pins No. 1 (PWR) and No. 17 (ACCPOW) and between pins No. 4 (iPDET) and No. 8 (DGND). Start the self-diagnostic function and select this menu.
  • Page 59 DVR-700/NS-PSW700/NS-P700 17. SWFR CROSSOVER This menu is used to set the crossover frequency of SUBWOOFER/Front L/R channels. This setting is retained until EEPROM is initialized. (Setting subwoofer level to 0 in advance.) 17-1 CRSOVR 40Hz 17-6 CRSOVR 110Hz Cross Over Frequency = 40Hz Cross Over Frequency = 110Hz 1 7 C R S O V R 4 0 H z 1 7 C R S O V R 1 1 0 H z...
  • Page 60 DVR-700/NS-PSW700/NS-P700 18. FACTORY PRESET This menu is used to reserve and inhibit initialization of EEPROM. 18-1 INIT INHI (Initialization inhibited) EEPROM initialization is not executed. Select this sub-menu to protect the user setting values. 1 8 - 1 I N I T I N H I 18-2 INIT RSRV (Initialization reserved) Initialization of EEPROM is reserved.
  • Page 61 DVR-700/NS-PSW700/NS-P700 20. XM TEST (U, C models) This menu is used to check the output of XM Satellite Radio. Volume level is changed to 60. V O L U M E 20-1 1k -1dB/44 20-6 1k -1dB/32 The test tone (1kHz, -1dB/44.1kHz) is The test tone (1kHz, -1dB/32kHz) is output.
  • Page 62 DVR-700/NS-PSW700/NS-P700 21. SIRIUS TEST (U, C models) This menu is used to check SIRIUS Satellite Radio function by using Sirius Connect tuner. Volume level is changed to 60. V O L U M E 21-1 SIRIUS: 21-6 PRDID: The UART loop-back is checked. The prd_id version of SIRIUS is displayed.
  • Page 63 DVR-700/NS-PSW700/NS-P700 22. DVD SETTING This mode is prepared mainly for manufacturing use. Select “DVD ID CLR” to check the ID number (device key) of the module board. See “Check the New ID number” for details. 22-1 DVD: 22-3 ID CLEAR D V D : - s e t t i n g - x x x : D V D I D C L R 22-2 ID WRITE...
  • Page 64: Display Data

    DVR-700/NS-PSW700/NS-P700 ■ DISPLAY DATA V1: 17-BT-32GNK (OPERATION P.C.B.) PATTERN AREA PIN CONNECTION Pin No. 68 67 Connection F2 NX Pin No. Connection Note : 1) F1, F2 ..Filament pin 2) NP ..No pin 3) NX ..No extend pin 4) 1G~17G ..
  • Page 65 DVR-700/NS-PSW700/NS-P700 ANODE CONNECTION 13G-1G (ES) (HOLD) (RT) – –...
  • Page 66: Ic Data

    DVR-700/NS-PSW700/NS-P700 ■ IC DATA IC303: R5F21247SNFP (FRONT P.C.B.) Sub-microprocessor I/O ports Port P0 Port P1 Port P2 Port P3 Port P4 Port P6 Peripheral functions A/D converter System clock (10 bits x 12 channels) generation circuit Timers XIN-XOUT High-speed on -chip oscillator Timer RA (8 bits) Low-speed on-chip oscillator Timer RB (8bits)
  • Page 67 DVR-700/NS-PSW700/NS-P700 Function Port Detail of function Name Name P3_5 S-CLK SCLK MDATA P3_3 S-Rx MDATA XDVDRST P3_4 XDVDRST MODE XREDADY P4_3 XREADY DVDPWR P4_4 DVDPOWER /RESET P4_7 20MHz 10 VSS 11 XOUT P4_6 20MHz 12 VCC 13 PWR_DVD P2_7 DVD_PS: DVD power supply control (H: ON/NonTuner, L: OFF/Tuner) Front 14 PWR_LED P2_6...
  • Page 68 DVR-700/NS-PSW700/NS-P700 Detection for AD port: KEY0 (39 pin of sub-microprocessor IC303 of OPERATION P.C.B.) KEY1 (41 pin of sub-microprocessor IC303 of OPERATION P.C.B.) Key Input(A-D) Pull-Up Resistance 10 k-Ohms + 680 + 680 + 15k + 13.5k 0 – 0.2 0.2 –...
  • Page 69 DVR-700/NS-PSW700/NS-P700 IC1: M66003-0131FP (OPERATION P.C.B.) FL display driver Display code CGROM SEG00 (35 bit x 166) (8-bit x 60) SEG25 Segment Code output write SEG26 circuit CGROM SEG34 dot data Serial data (35 bit x 16) write receive Code/ circuit SDATA command SEG35...
  • Page 70 DVR-700/NS-PSW700/NS-P700 Function Port Name Detail of Function Name RESET /RESET Reset input When “L”, M66003 is initialized. /CEFL Chip select input When “L”, communication with the MCU is possible. CKFL Shift clock input When “H”, any instruction from the MCU is neglected. SDATA DTFL Serial data input Serial input data is taken and shifted by the positive edge of SCK.
  • Page 71 DVR-700/NS-PSW700/NS-P700 IC1: AK4588VQ (MAIN P.C.B.) 2/8-channel audio CODEC with DIR PVSS PVDD X'tal Clock Oscillator 8 to 3 Recovery Clock MCKO1 Generator Input MCKO2 Selector LRCK2 DAIF Audio BICK2 Decoder SDTO2 DAUX2 AVDD AVSS DVDD Error & Q-subcode CCLK DVSS AC-3/MPEG uP I/F STATUS...
  • Page 72 DVR-700/NS-PSW700/NS-P700 Pin No. Function Name Detail of Function INT1 Interrupt 1 pin BOUT Block-start output pin for receiver input “H” during first 40 flames TVDD – Output buffer power supply pin, 2.7 V to 5.5 V DVDD – Digital power supply pin, 4.5 V to 5.5 V DVSS –...
  • Page 73 DVR-700/NS-PSW700/NS-P700 Pin No. Function Name Detail of Function Zero input detect 2 pin DZF2 When the input data of the group 1 follow total 8192 LRCK cycles with “0” input data, this pin goes to “H” / When RSTN1 bit is “0” or PWDAN bit is “0”, this pin goes to “H” Analog input overflow detect pin This pin goes to “H”...
  • Page 74 DVR-700/NS-PSW700/NS-P700 Pin No. Function Name Detail of Function Receiver channel 2 pin (Internal biased pin / Internally biased at PVDD/2) No connect pin – No internal bonding / This pin should be connected to PVSS Receiver channel 3 pin (Internal biased pin / Internally biased at PVDD/2) PVSS –...
  • Page 75 DVR-700/NS-PSW700/NS-P700 IC500: M30878FJBGP (MAIN P.C.B.) Main microprocessor Port P0 Port P1 Port P2 Port P3 Port P4 Port P5 Port P6 < > < > Peripheral Functions Clock Generation Circuit A/D Converter: 1 circuit Timer (16-bit) Standard: 10 inputs COUT Timer A: 5-channel Maximum: 34 inputs On-chip Oscillator...
  • Page 76 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) TXD4 PowerOn TXDi Standby Asynchronous data output for iPod P96/ANEX1/TXD4/ SDA4/SRXD4 MCUSleep PowerOn Power control output for XM antenna /PWR_XM Standby H: OFF, L: ON P95/ANEX0/CLK4 (U, C models) MCUSleep PowerOn Standby No connected P94/DA1/TB4in/...
  • Page 77 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) PowerOn /CS_DSP Standby Chip select output for TI (DA70Y) P87/Xcin MCUSleep PowerOn Standby No connected P86/Xcout MCUSleep 19 RESET /RESET MCU Reset 20 Xout Xout 21 Vss 22 Xin 23 Vcc1 PowerOn /NMI Standby...
  • Page 78 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) PowerOn LRCK_DIR Standby DIR WCK input for CDDA writing P72/TA1out/V/ CLK2 MCUSleep SCL2 PowerOn P71/TA0in/TB5in/ RXD2/SCL2/ Standby STXD2/INPC17/ SCL_EPR I2C clock input/output for EEPROM OUTC17/OUTC22/ ISRXD2/IEin/ MCUSleep RTP03 SDA2 PowerOn P70/TA0out/TXD2/ SDA2/SRXD2/ Standby INPC16/...
  • Page 79 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) P134 PowerOn Standby No connected P134/OUTC20/ ISTXD2/Ieout MCUSleep PowerOn Standby No connected P57/RDY MCUSleep PowerOn Standby No connected P56/ALE MCUSleep PowerOn /EPM Standby 47k-ohms pull down for flash write mode P55/HOLD MCUSleep PowerOn Standby...
  • Page 80 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) PowerOn Standby No connected P46/SC1/A22 MCUSleep PowerOn Standby No connected P45/SC2/A21 MCUSleep PowerOn Standby No connected P44/SC3/A20 MCUSleep PowerOn Standby No connected P43/A19 MCUSleep 74 Vcc2 PowerOn Standby No connected P42/A18 MCUSleep 76 Vss PowerOn...
  • Page 81 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) CLK6 PowerOn SCK_TUNER Standby Synchronous clock output for both tuner PLL P121/CLK6 MCUSleep TXD6 PowerOn SDO_TUNER Standby Synchronous data output for both tuner PLL P120/TXD6 MCUSleep 91 Vcc2 PowerOn TUNER Mute output MUTE_TUNER Standby H: Mute...
  • Page 82 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) PowerOn Reset output for RDS IC RST_RDS Standby (G model) P11/D9 MCUSleep PowerOn PLED_IRQ_CU Standby IRQ signal output for Sub-microprocessor communication P10/D8 MCUSleep AN07 PowerOn TEMP_DET1 Standby Temperature detection of power supply IC of SUB P.C.B. P07/D7/AN07 MCUSleep AN06...
  • Page 83 DVR-700/NS-PSW700/NS-P700 Function Name Port Name Detail of function (P.C.B.) AN155 PowerOn PRV_12 Standby AD protection Power voltage detect +12D, +12A, +10T P155/AN155/RXD6 MCUSleep AN154 PowerOn DC_PRT Standby AD protection Power amplifier DC detect P154/AN154/TXD6 MCUSleep P153 PowerOn Standby P153/AN153/CTS5/ RTS5 MCUSleep Synchronous data input for Sub-microprocessor communica- ISRXD0...
  • Page 84: Pin Connection Diagrams

    DVR-700/NS-PSW700/NS-P700 ■ PIN CONNECTION DIAGRAMS • ICs AK4588VQ BA50DD0WHFP BD7931F BD3843FS-E2 BD9302FP-E2 BD9781HFP BD9870FPS-E2 BR24L08FVM-WTR D70YE101BRFP266 EN29LV400AB-70TCP FA5511N-D1-TE1 KIA78M05F LC72725KM-UY-TLM-E M66003-0131FP-R PCM1781DBQR 1: INPUT 2: COMMON 3: OUTPUT M12L16161A-7TG M30878JBGP MD1423R MIC2005-0.5YM6 TC7SET08FU NJM431U NJM2904M NJM3404AM-TE1 NJM7812DL1A PQ012FZ01ZP TC7WHU04FK TC7WZ04FK 1: REFERENCE 2: ANODE 3: CATHODE...
  • Page 85 DVR-700/NS-PSW700/NS-P700 R5F21247SNFP TAS5086DBT TAS5342LDDV TC74HC14AF TC74VHC153FT TC74VHC541FT TC74VHCU04FT μPC29M33T-E1-AZ TC74VHCT541AFT TC74VHC245FT 3: IN 2: COM 1: OUT • Diodes 1N4002S 1SS355 STTH110A D1FS4A-4063 D1FK60-5063 1SR154-400 MA8051-M 5.1V RB050L-40 D3S6M-7002 MA8062-H 6.4V RB051L-40 P6KE200A 200V MA8068-M 6.8V MTZJ30D MA8100-H 10.3V Anode Anode MTZJ27D MA8200-M 20V...
  • Page 86 DVR-700/NS-PSW700/NS-P700 • Transistors 2SA2093 2Y 5181CS 2SC1740S 2SA1826 2SA1037K KTC3199-Y-AT/P 2SC4730 2SC4488 2SC2412K 2SD2704K KRA102S-RTK/P DTA143EKA 2SK3523-01R RSR015P03TL KS5783CT DTC114EKA KRC104S-RTK 2SK3876-01R 1: GND 2: IN 3: OUT COMMON...
  • Page 87: Block Diagrams

    DVR-700/NS-PSW700/NS-P700 DVR-700 NS-PSW700 NS-P700 ■ BLOCK DIAGRAMS AUDIO SECTION BLOCK DIAGRAM • See page 101-104 → NS-PSW700 NS-P700 MAIN SCHEMATIC DIAGRAM DIGITAL POWER 0.47mH B. T. L. AMPLIFIER 39, 36 CRYSTAL WOOFER x2 TAS5342LDDV 24. 576MHz (IC801) 12 ohms XM/DC IC (XL301) (IC300) 1.5uF...
  • Page 88 DVR-700/NS-PSW700/NS-P700 NS-PSW700 POWER SUPPLY SECTION BLOCK DIAGRAM → → POWER D712 Q202 +5CPU +5SUB +5CPU T702 F701 AC IN L701 L702 D205 C703 C701 C702 DGND +12_RES /RES +12_RES D711 RESET CIRCUIT Q201, 203 PW_DWN RY701 Q702 PWR_RY REGULA TOR L703 BD9322 DGND...
  • Page 89 DVR-700/NS-PSW700/NS-P700 DVR-700 DVR-700 SECTION BLOCK DIAGRAM • See page 100 → OPERATION SCHEMATIC DIAGRAM POWER INDICATOR KEYS STANDBY/ON PLAY, STOP, PAUSE, EJECT, FL Display SWITCH INPUT, VOL-< VOL+ CB306 SW2,3,4,5,8,9,10 D+/D- +5USB REMOTE CONTROL USB LIMIT V+5V MIC2005-0.5YM6 IC305 FL DRIVER M66003-0131FP-R 3R3V DVD POWER...
  • Page 90: Printed Circuit Boards

    DVR-700/NS-PSW700/NS-P700 DVR-700 ■ PRINTED CIRCUIT BOARDS FRONT (1) P.C.B. OPERATION (1) (Side A) OPERATION (2) (W4) OPERATION (5) (W8) (W2) OPERATION (4) OPERATION (6) (W9) OPERATION (1) (W3) (W5) • Semiconductor Location Ref No. Location CB317 CB321 CB319 OPERATION (3) CB315 CB311 CB314...
  • Page 91 DVR-700/NS-PSW700/NS-P700 DVR-700 FRONT (1) P.C.B. (Side B) • Semiconductor Location Ref No. Location D302 D304 IC303 D312 Q301 Q302 Q303 Q304 Q306 Q307 FRONT (2) P.C.B. (Side A)
  • Page 92 DVR-700/NS-PSW700/NS-P700 DVR-700 OPERATION (1) P.C.B. (Side A) FRONT (1) (CB317) OPERATION (2) P.C.B. FRONT (1) (CB311) (Side A) FRONT (1) (CB314) • Semiconductor Location Ref No. Location VOLUME INPUT EJECT OPERATION (3) P.C.B. OPERATION (4) P.C.B. OPERATION (5) P.C.B. OPERATION (6) P.C.B. (Side A) (Side A) (Side A)
  • Page 93 DVR-700/NS-PSW700/NS-P700 DVR-700 OPERATION (1) P.C.B. (Side B) • Semiconductor Location Ref No. Location OPERATION (2) P.C.B. (Side B) OPERATION (3) P.C.B. OPERATION (4) P.C.B. OPERATION (5) P.C.B. OPERATION (6) P.C.B. (Side B) (Side B) (Side B) (Side B)
  • Page 94 DVR-700/NS-PSW700/NS-P700 NS-PSW700 (W204) DGND MAIN P.C.B. (Side A) INT_PDN_DET /RES Writing port /PWR_DOCK INPUT /PWR_XM (Main microprocessor/DSP) (W205) ANALOG COAXIAL OPTICAL OPTICAL PWR_RY PRV_71 SYSTEM CONNECTOR /PWR_12D No replacement part available. PWR_15D_D (DVR-700) DGND SPEAKERS U, C models U, C models SIRIUS DOCK CB503...
  • Page 95 DVR-700/NS-PSW700/NS-P700 NS-PSW700 MAIN P.C.B. (Side B) U, C models G, F models • Semiconductor Location Ref No. Location Ref No. Location D509 D500 D511 D501 D502 D503 D504 D505 D506 D507 D508...
  • Page 96 DVR-700/NS-PSW700/NS-P700 NS-PSW700 SUB P.C.B. (Side A) • Semiconductor Location Ref No. Location D201 MAIN (CB801) POWER (W701) D202 D203 DGND +30D D204 DGND +30D D205 +30D D206 +30D IC202 D207 +30D DGND IC207 D208 +12D DGND D209 D210 DGND D212 MAIN (CB504) D213...
  • Page 97 DVR-700/NS-PSW700/NS-P700 NS-PSW700 SUB P.C.B. (Side B)
  • Page 98 DVR-700/NS-PSW700/NS-P700 NS-PSW700 POWER P.C.B. (Side A) POWER P.C.B. (Side B) • Semiconductor Location Ref No. Location D701 D702 D703 AC IN D704 D705 D706 CB701 D707 D710 D711 D712 D713 D714 D715 D716 U, C, V, J models D717 D719 D720 IC701 IC702...
  • Page 99: Schematic Diagrams

    DVR-700/NS-PSW700/NS-P700 SCHEMATIC DIAGRAMS FRONT POINT A XL301 (Pin 9 of IC303) SYSTEM CONNECTOR DVD/USB IN (NS-PSW700) Page 100 Page 100 Page 100 CB318 to OPERATION (1)_W4 to OPERATION (2)_W8 to OPERATION (4)_W9 Writing port (Sub-microprocessor) Page 100 Page 100 to OPERATION (6)_W3 to OPERATION (5)_W2 11.0 IC312...
  • Page 100 DVR-700/NS-PSW700/NS-P700 OPERATION Page 99 Page 99 to FRONT (1)_CB317 to FRONT (1)_CB311 -25.7 -27.4 Page 99 Page 99 -23.4 -27.0 to FRONT (1)_CB319 to FRONT (1)_CB321 -27.7 -21.6 -25.6 -25.6 -27.6 -27.7 -25.6 -25.6 -25.6 -15.9 -27.6 -17.9 -27.6 -21.7 -29.6 -25.7 -21.0...
  • Page 101 DVR-700/NS-PSW700/NS-P700 MAIN 1/4 NS-PSW700 INPUT No replacement part available. OPTICAL OPTICAL COAXIAL ANALOG SIRIUS DOCK (U, C models) ANALOG IN DIGITAL IN DVD/USB IN AUDIO SELECTOR 12.1 MIX IN IC5: TC74VHCU04FT Hex inverters CODEC 12.1 IC1: AK4588VQ 2/8-channel audio CODEC with DIR PVSS PVDD X'tal...
  • Page 102 DVR-700/NS-PSW700/NS-P700 MAIN 2/4 CB300 (U, C models) No replacement part available. IC304 IC305 IC306 IC308 IC313: PCM1781DBQR Audio digital-to-analog converter Audio LRCK Serial Output Amp DATA Port Low-Pass Filter Oversampling Enhanced Digital Multilevel (FMT) Filter Delta-Sigma With Modulator MS (DEMP0) Function Serial Control...
  • Page 103 DVR-700/NS-PSW700/NS-P700 MAIN 3/4 Page 105 SYSTEM CONNECTOR (DVR-700) to SUB_W204 Writing port (Main microprocessor/DSP) CB503 IC503 IC503 DVD/USB IN IC504 POINT D XL500 (Pin 20 of IC500) MAIN MICROPROCESSOR IC500 IC501 IC500: M30878JBGP Single chip 16/32-bit microprocessor Port P0 Port P1 Port P2 Port P3 Port P4...
  • Page 104 DVR-700/NS-PSW700/NS-P700 MAIN 4/4 12.0 12.0 26.3 OUT L 30.3 30.3 15.1 15.1 30.3 26.3 11.6 30.3 15.1 10.3 30.3 30.3 12.0 11.4 12.0 12.0 12.0 12.0 26.3 30.3 30.3 15.1 15.1 30.3 26.3 11.6 OUT SW 30.3 15.1 DRIVER 15.1 WOOFER 30.3 CB802...
  • Page 105 DVR-700/NS-PSW700/NS-P700 15.0 15.0 15.0 30.2 15.0 IC209 30.2 15.0 W201 30.2 15.0 30.2 21.1 30.2 W202 21.1 CB201 W203 CB202 IC202 W204 14.8 14.8 14.8 14.8 14.8 16.4 12.0 CB203 12.0 12.0 W206 13.5 13.6 IC208 CB204 W205 13.6 14.3 12.2 IC206 14.3...
  • Page 106 DVR-700/NS-PSW700/NS-P700 POWER 5 k-ohms 10 W AC2.2 (109.5) AC23.3 W701 (317.8) 30.3 (108.1) AC24.8 AC4.3 (1.5) IC703 W702 (4.0) (1.3) (4.9) –30.3 (16.4) IC701 (16.4) (–0.2) (2.0) –29.7 –32.0 –32.0 Primary side ground CB701 AC IN W703 14.3 11.6 AC8.7 14.1 W704 11.5...
  • Page 107: Replacement Parts List

    DVR-700/NS-PSW700/NS-P700 ■ REPLACEMENT PARTS LIST • ELECTRICAL COMPONENT PARTS WARNING ● Components having special characteristics are marked and must be replaced with parts having specifications equal to those originally installed. ● The chip resistor is not supplied as a replacement part. When a chip resistor is necessary, use the following part.
  • Page 108 DVR-700/NS-PSW700/NS-P700 DVR-700 P.C.B. FRONT P.C.B. FRONT and P.C.B. OPERATION Ref No. Part No. Description Markets Ref No. Part No. Description Markets WQ312700 P.C.B. FRONT C404 US135100 C.CE.CHP 0.1uF CB301 V2215900 CN.BS.PIN C405 UR837100 C.EL 10uF CB303 VQ044400 CN.BS.PIN C406 US064100 C.CE.CHP 0.01uF 50V B CB304...
  • Page 109 DVR-700/NS-PSW700/NS-P700 DVR-700 NS-PSW700 P.C.B. OPERATION P.C.B. MAIN Ref No. Part No. Description Markets Ref No. Part No. Description Markets UR867100 C.EL 10uF WQ312300 P.C.B. MAIN WQ312400 P.C.B. MAIN US035100 C.CE.CHP 0.1uF 16V B US063100 C.CE.CHP 1000pF 50V B WQ312500 P.C.B. MAIN C5-6 US135100 C.CE.CHP...
  • Page 110 DVR-700/NS-PSW700/NS-P700 NS-PSW700 P.C.B. MAIN P.C.B. MAIN Ref No. Part No. Description Markets Ref No. Part No. Description Markets UR838100 C.EL 100uF C368 UR838100 C.EL 100uF US135100 C.CE.CHP 0.1uF C369 US135100 C.CE.CHP 0.1uF UR837100 C.EL 10uF C370 UR838100 C.EL 100uF UU237100 C.EL 10uF C371-374 US135100 C.CE.CHP 0.1uF...
  • Page 111 DVR-700/NS-PSW700/NS-P700 NS-PSW700 P.C.B. MAIN P.C.B. MAIN and P.C.B. SUB Ref No. Part No. Description Markets Ref No. Part No. Description Markets C818 WN951300 C.EL 10uF ST800-801 WA789600 SCR.TERM C819-822 US135100 C.CE.CHP 0.1uF TE800 WN771000 TERM.SP 2P YOKO NLA101-031 C823-828 UB044330 C.CE.M.CHP 0.033uF U1-2 WN333200 CN.PHOTO.R 1P JSR1165 C829-836 US065100 C.CE.CHP...
  • Page 112 DVR-700/NS-PSW700/NS-P700 NS-PSW700 P.C.B. SUB and P.C.B. POWER P.C.B. POWER Ref No. Part No. Description Markets Ref No. Part No. Description Markets C268-269 US135100 C.CE.CHP 0.1uF C711 WN817900 C.EL 180uF 400V AGFL C273 WP380500 C.EL 470uF C712 WJ047200 C.EL 22uF C274 WQ050300 C.EL 100uF C713...
  • Page 113 DVR-700/NS-PSW700/NS-P700 NS-PSW700 P.C.B. POWER Carbon Resistors Value 1/4W Type Part No. 1/6W Type Part No. Value 1/4W Type Part No. 1/6W Type Part No. Ref No. Part No. Description Markets Ref No. Part No. Description Markets 1.0 Ω HJ35 3100 HF85 3100 11 kΩ...
  • Page 114 DVR-700/NS-PSW700/NS-P700 DVR-700 • OVERALL ASS'Y 2 (3) 1 (1) 2 (4) 2 (5) 2 (6) 2 (1) 2 (2) 1 (2)
  • Page 115 DVR-700/NS-PSW700/NS-P700 • ACCESSORIES Ref No. Part No. Description Remarks Markets WQ312700 P.C.B. ASS'Y FRONT WQ312800 P.C.B. ASS'Y OPERATION WR645800 DVD MECHANISM UNIT DSM-2 with CABLE WQ968100 DVD MODULE P.C.B. DB-VPB801 REGION1 WQ968400 DVD MODULE P.C.B. DB-VPB801 REGION4 WQ968200 DVD MODULE P.C.B. DB-VPB801 REGION2 WQ968500 DVD MODULE P.C.B.
  • Page 116 DVR-700/NS-PSW700/NS-P700 NS-PSW700 NS-P700 • OVERALL ASS'Y 100 NS-P700 L 3-21 3-21 3-21 NS-P700 R 3-21 3-21 3-21 3-20 3-18 3-21 3-21 3-21 3-21 3-11 3-21 3-21 5P12 1.5uF/63V TWEETER 3-22 INPUT 3-21 3-22 3-21 0.47mH WOOFER1 3-21 WOOFER2 3-22 3-19 3-22 3-22 3-22...
  • Page 117 DVR-700/NS-PSW700/NS-P700 Ref No. Part No. Description Remarks Markets WP500000 NS-PSW700 CABINET ASS'Y WP500700 SIDE GRILLE ASS'Y WQ312300 P.C.B. ASS'Y MAIN WQ312400 P.C.B. ASS'Y MAIN WQ312500 P.C.B. ASS'Y MAIN WP503000 P.C.B. ASS'Y WP503200 P.C.B. ASS'Y POWER WP503400 P.C.B. ASS'Y POWER WP503500 P.C.B.
  • Page 118: Remote Control

    DVR-700/NS-PSW700/NS-P700 ■ REMOTE CONTROL SCHEMATIC DIAGRAM <JP1 ∙ JP2> JP1 JP2 P0D2 P1A2 P0D3 P0D1 P1B0/INT P0D0 P0E0 P0C3 3.0V 47μF P0E1 P0C2 2 ohms (1/4 W) P0E2 P0C1 P0E3 P0C0 MIE-554A2 P0B3 27 ohms P0B2 2SC3440-T112 0.1 μF XOUT P0B1 KEY No.
  • Page 119 DVR-700/NS-PSW700/NS-P700 KEY NO. LAYOUT KEY CODE Code Function SW1=TV SW1=STB STANDBY/ON 78-0F TV/STB POWER Preset POWER 1 / MOVIE 78-D9 78-11 2 / MUSIC 78-DA 78-12 3 / SPORTS 78-DB 78-13 4 / GAME 78-DC 78-14 5 / STEREO 78-9B 78-15 6 / ENHANCER 78-CB...
  • Page 120: System Menu

    DVR-700/NS-PSW700/NS-P700 ■ SYSTEM MENU...
